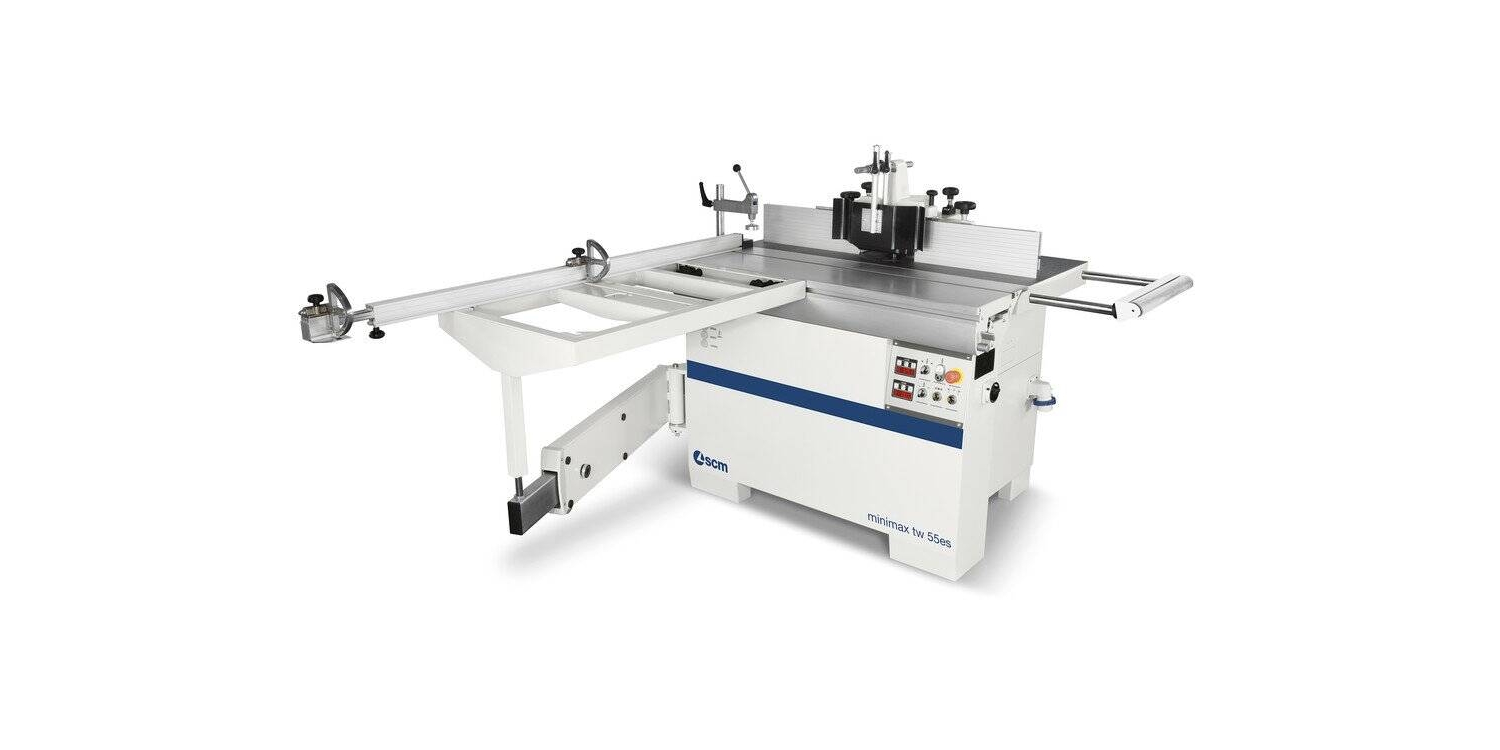

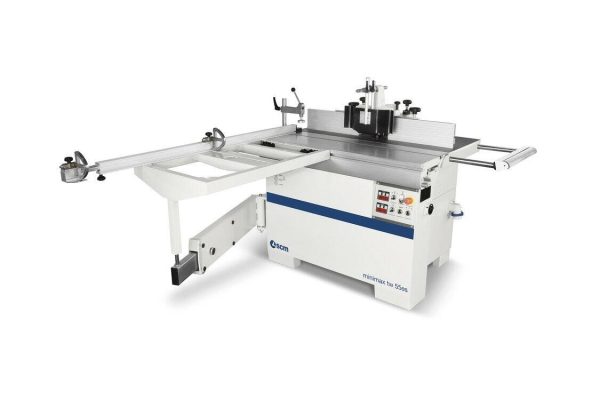

SCM Minimax tw55es Spindle Moulder
The SCM Minimax tw55es Spindle Moulder is the right machine for demanding craftsmen and carpentries, thanks to its customization and flexibility.
The SCM minimax tw55es is the culmination of years of experience in manufacturing quality solid wood SCM products. This 4-speed heavy duty machine is standard with both a sliding table and tilt! The slider has hardened steel guide ways and precision bearings, so it incorporates the exact technology found in our top selling sliding table saws! The hood has memory pins so if removed, it will go right back into the same position, making this shaper accurate and repeatable.
Maximum stability and rigidity in every working condition thanks to a big cast iron spindle moulder unit and a sturdy base in single-block steel. Great versatility with the spindle moulder with 4 speeds and available in fixed or tilting version. Best support in all machinings, thanks to the 330 mm width sliding table.
Manufacture – SCM Minimax
Condition – New
Price – From £7,106 (ex VAT)
Unsurpassed moulding
Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The 4 standard speed are ideal for any type of machining, from moulding to routing and tenoning, with the possibility to fit tools upto 320 mm of diameter (300 mm no CE).
High-tech accessories

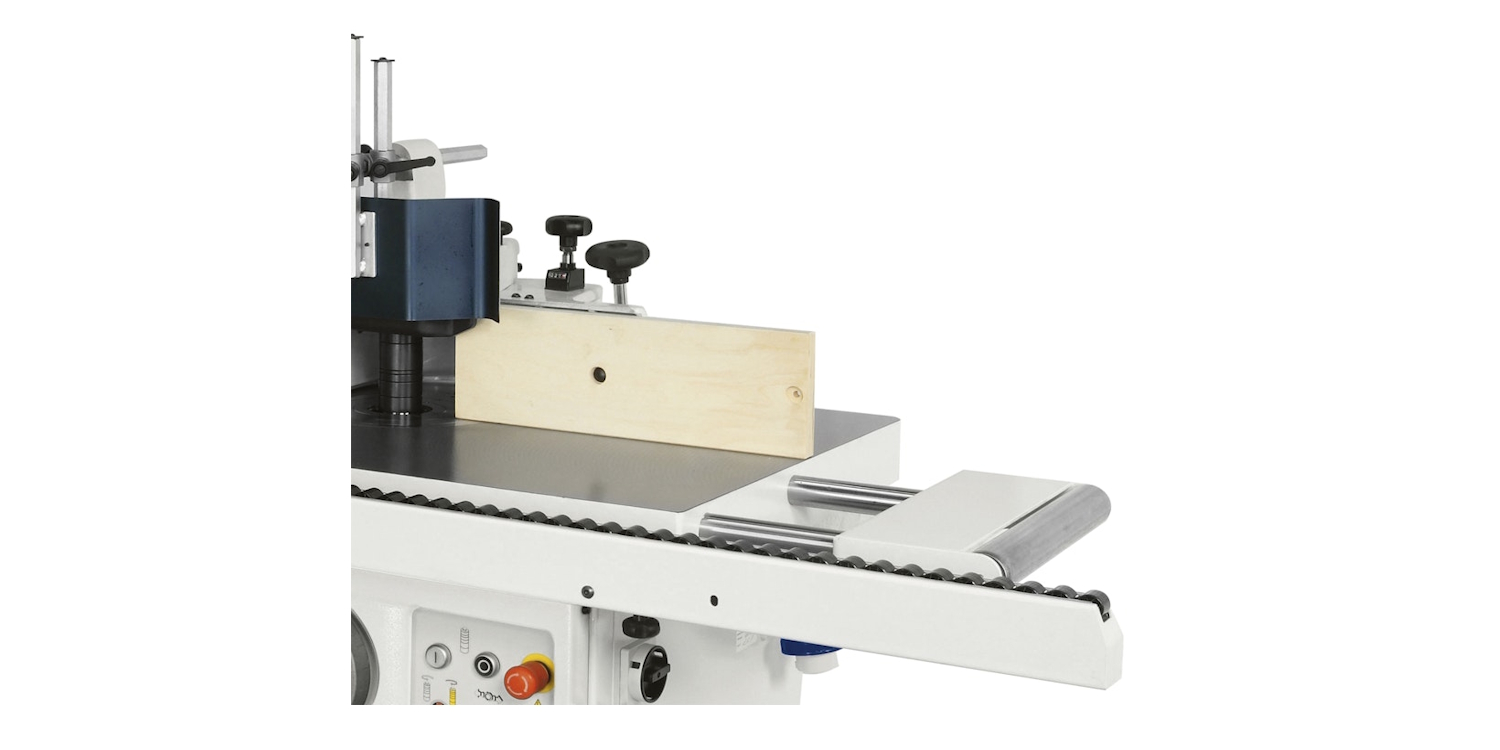

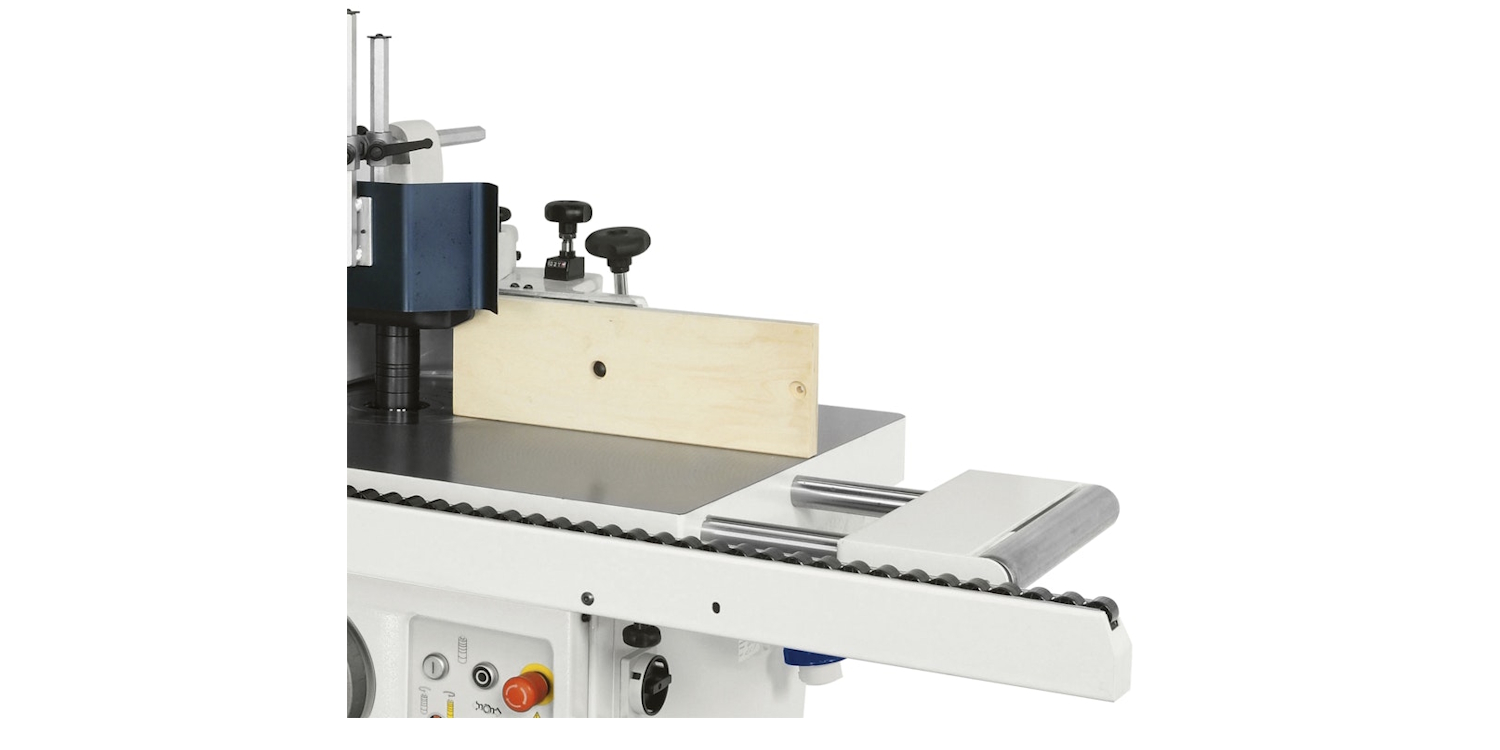

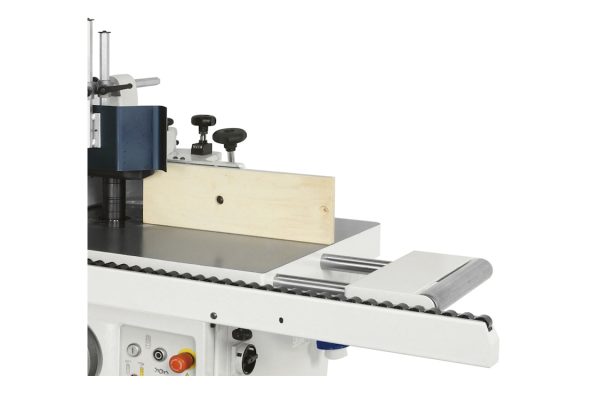

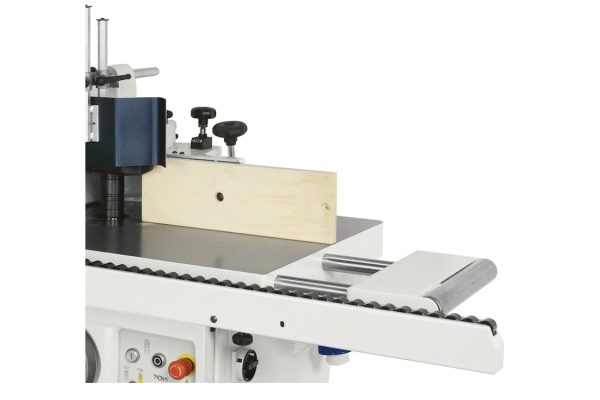

As option it is available the spindle moulder hood that uses a system for adjusting the guides with a rack and it is fitted with a mechanical digital readout. Thanks to the system of memories the hood can be removed and repositioned without losing the machining position. The maximum tool diameter during moulding operations is 240 mm.
Unrivalled cutting finishing

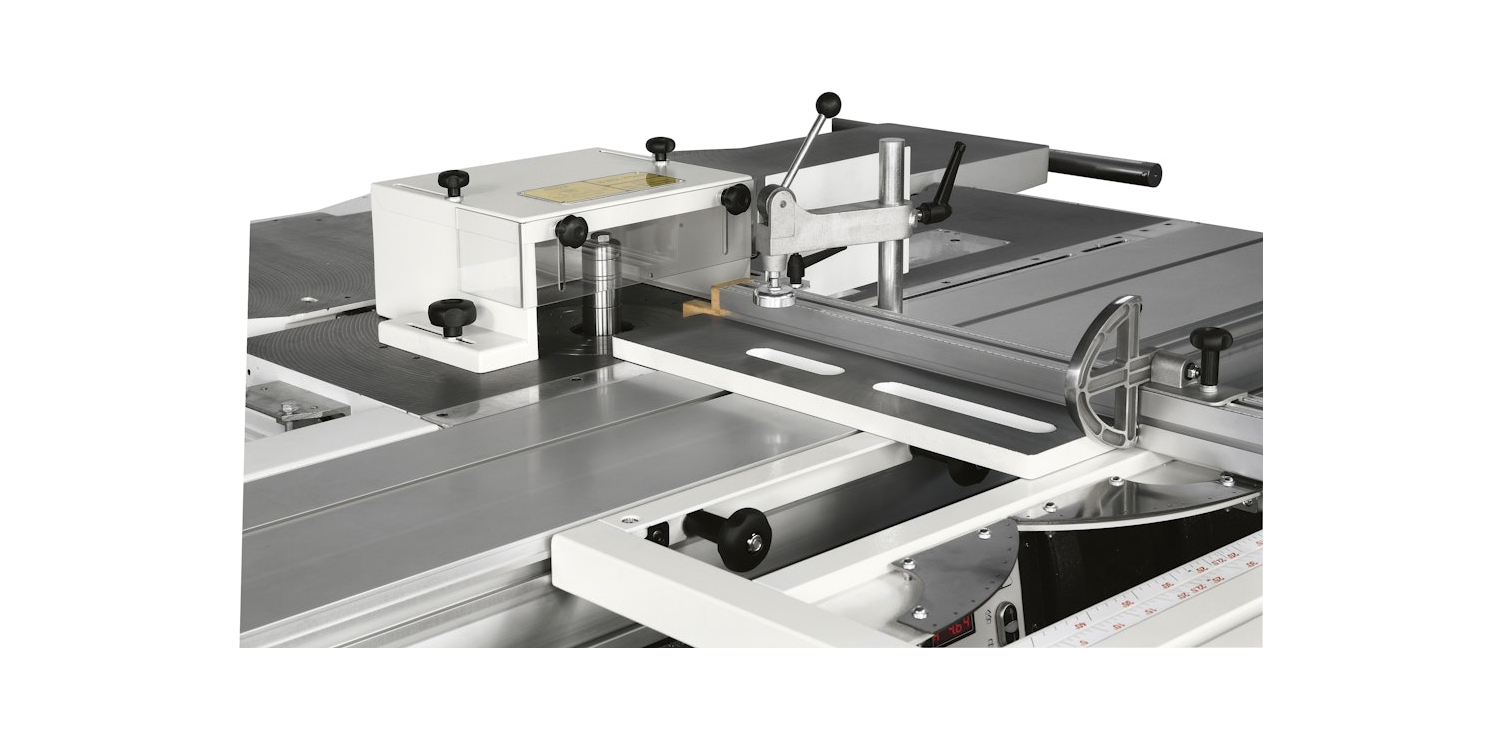

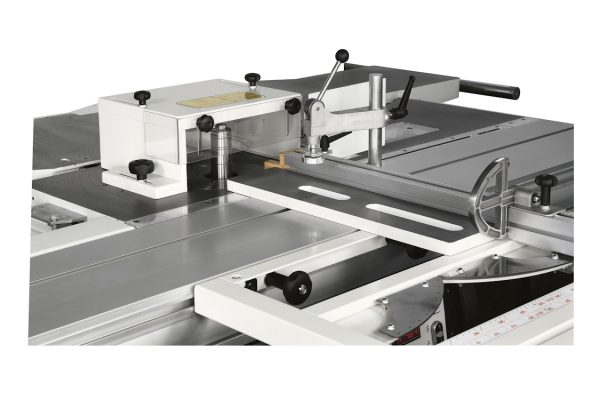

Optimal support also to larger pieces, with the new sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting.
| Function | Measurement |
|---|---|
| Spindle Moulder Speeds | 3500/6000/8000/10000rpm |
| Max. Useful Spindle Length | 125mm |
| Max. Dimensions Of Tool Lowered Under Table At 90° | 240mm |
| Max. Tool Diameter When Tenoning | 320mm (300 mm no CE) |
| Three-Phase Motor Power Starting From | 5 (6)kW – 50 (60)HZ |
| Options |
|---|
| Version with anodized aluminium alloy carriage (dimensions 360 x 2250 mm) |
| Spindle moulder fence with 3 controlled adjustments max. tool Ø 240 mm |
| Anodized aluminium tables for spindle moulder fence |
| Profiling version with lateral extensions |
| Support frame |
| Tenoning table and protection hood max. tool Ø 275 mm |
| Tenoning table and protection hood max. tool Ø 320 mm |
| Tiltable spindle moulder 90° ÷ 45° |
| Interchangeable spindle |
| Spare spindle for interchangeable spindle |
| Spare spindle for interchangeable spindle, 125 mm length |
| Spare spindle for router bits |

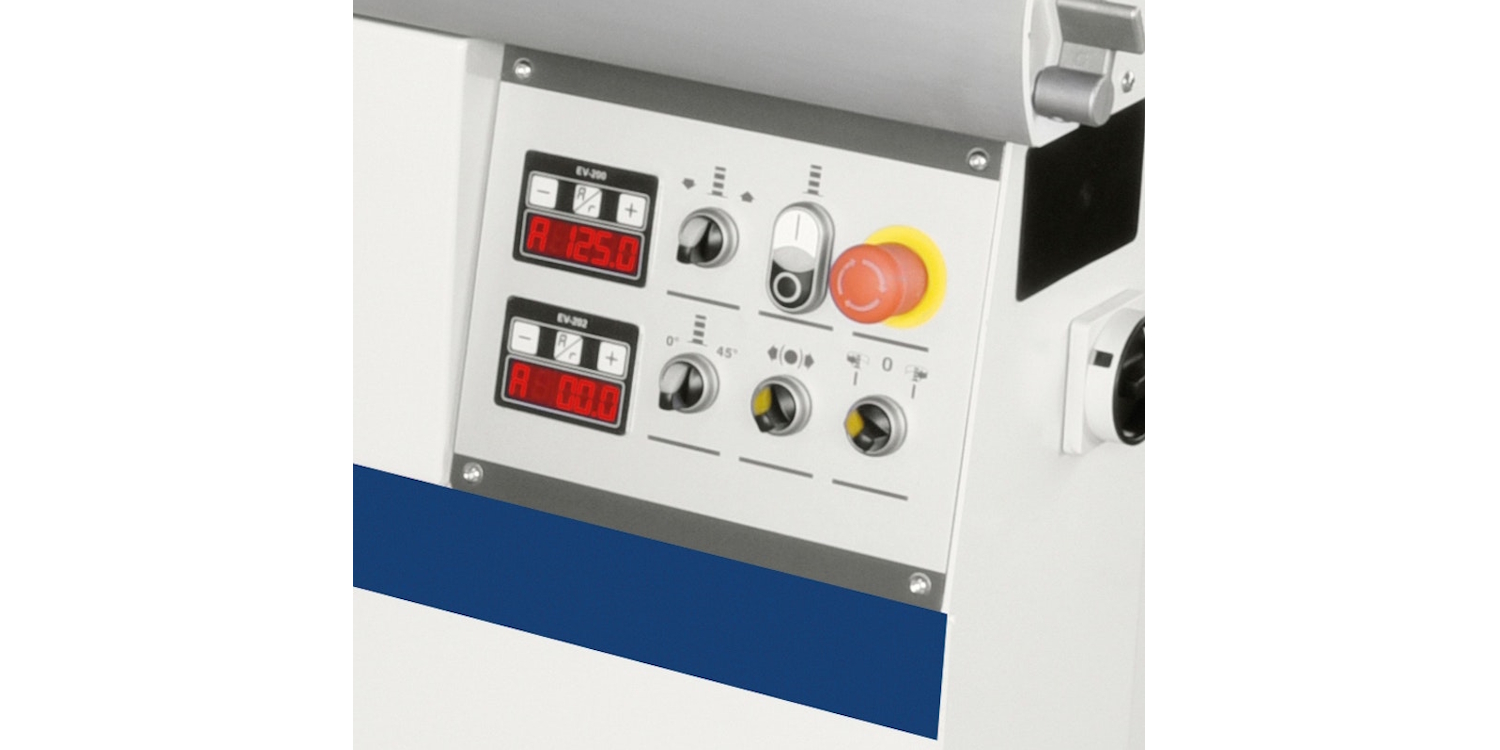

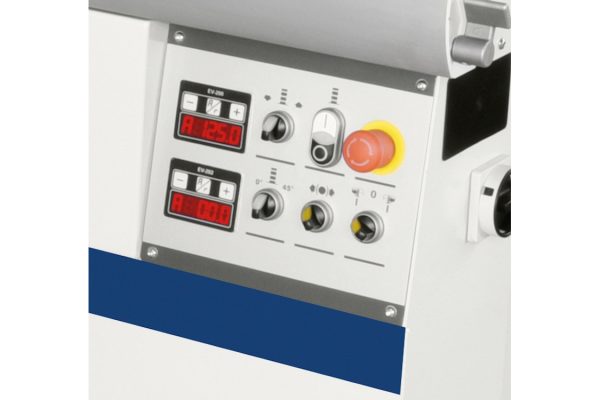

| Powered vertical movement of operating unit for machine with fixed spindle moulder with digital displays |
| Powered vertical movement and tilting of operating unit for machine with tilting spindle moulder with digital displays |
| Electric pre-setting and support device for feeder |
| Three-phase motor 7kW (9,5hp) with automatic star-delta starter |
| Single-phase motor 2,2kW (3hp) |
