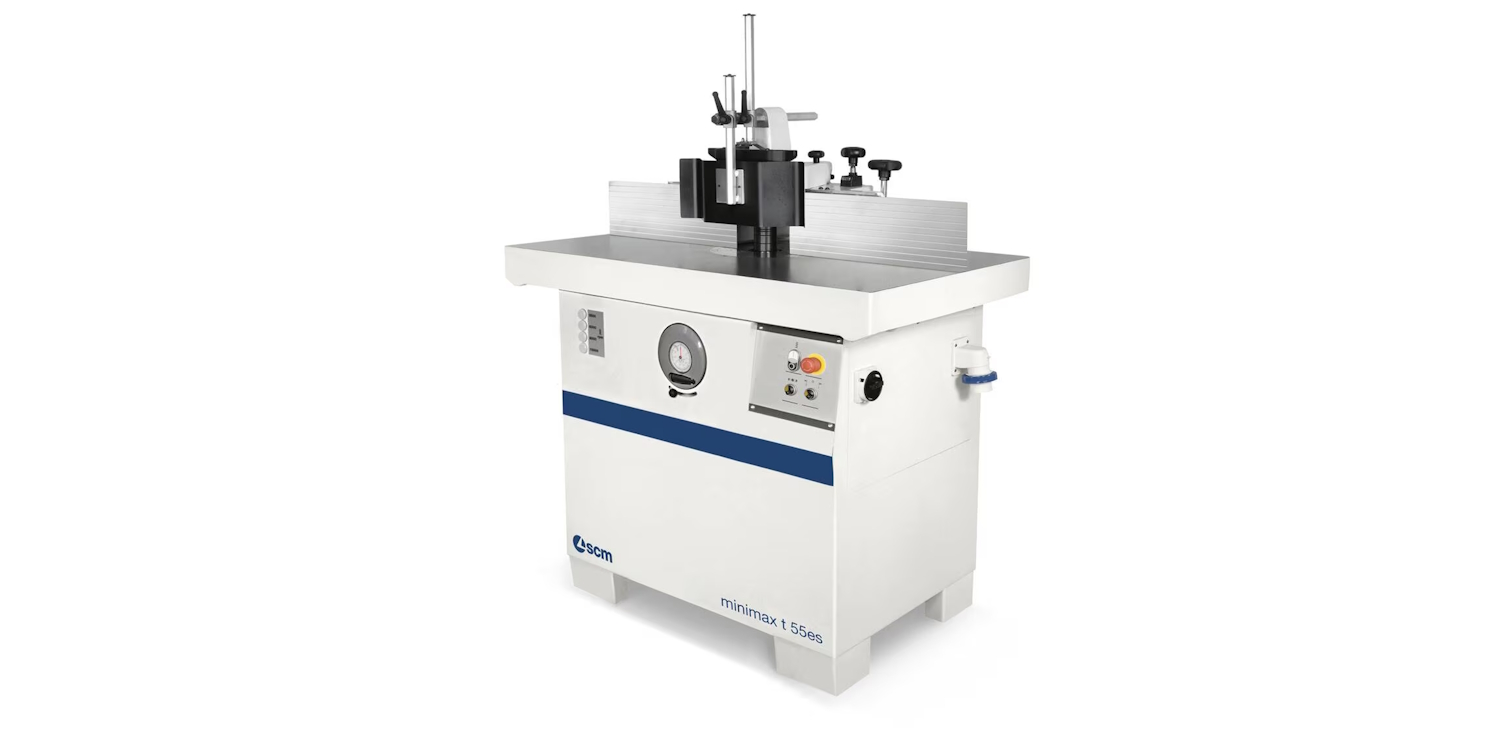

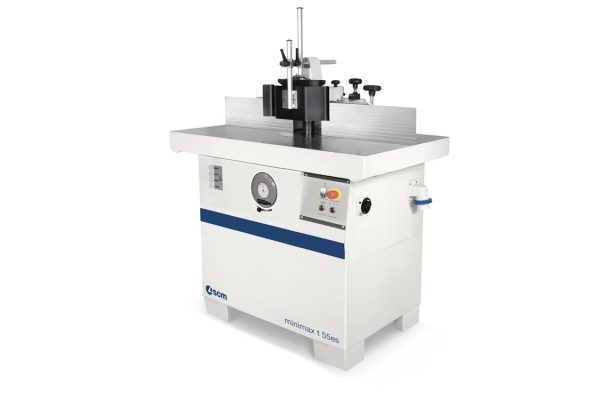

SCM Minimax t55es Spindle Moulder
The SCM Minimax t55es Spindle Moulder is the right spindle moulder for demanding craftsmen and carpentries, thanks to its customization and flexibility.
Maximum stability and rigidity in every working condition thanks to a big cast iron spindle moulder unit and a sturdy base in single-block steel. Great versatility with the spindle moulder with 4 speeds.
Manufacture – SCM Minimax
Condition – New
Price – From £4,749 (ex VAT)
Unsurpassed moulding
Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The 4 standard speed are ideal for any type of machining, from moulding to routing and tenoning, with the possibility to fit tools upto 320 mm of diameter (300 mm no CE).
High-tech accessories
As option it is available the spindle moulder hood that uses a system for adjusting the guides with a rack and it is fitted with a mechanical digital readout. Thanks to the system of memories the hood can be removed and repositioned without losing the machining position. The maximum tool diameter during moulding operations is 240 mm.
| Function | Measurement |
|---|---|
| Spindle Moulder Speeds | 3500/6000/8000/10000rpm |
| Max. Useful Spindle Length | 125mm |
| Max. Dimensions Of Tool Lowered Under Table At 90° | 240mm |
| Three-Phase Motor Power Starting From | 5 (6)kW – 50 (60)HZ |
| Options |
|---|
| Gravitational readout on the handwheel for the spindle moulder lifting |
| Spindle moulder fence with 3 controlled adjustments max. tool Ø 240 mm |
| Anodized aluminium tables for spindle moulder fence |
| Profiling version with lateral extensions and front telescopic extension complete with rollers |
| Interchangeable spindle |
| Spare spindle for interchangeable spindle |
| Spare spindle for interchangeable spindle, 125 mm length |
| Spare spindle for router bits |
| Three-phase motor 7kW (9,5hp) with automatic star-delta starter |
| Single-phase motor 2,2kW (3hp) |
