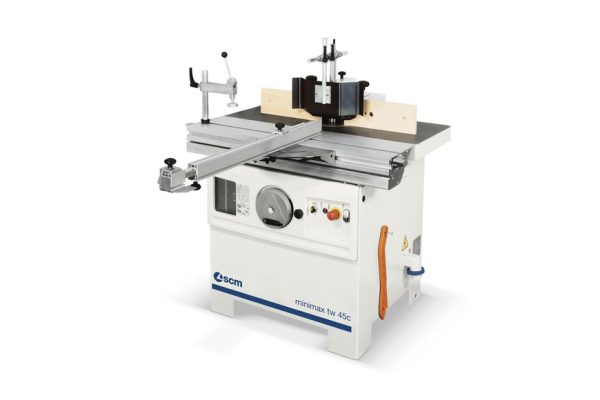

SCM Minimax tw45c Spindle Moulder
SCM Minimax tw45c Spindle Moulder – with sliding table and fixed or tilting spindle, versatile and easy to use, ideal for D.I.Y. woodworkers and craftsmen.
Maximum stability during machining, with the steel and cast iron structure. Great versatility with the 4 spindle moulder speeds up to 10.000 rpm. Customization for every woodworking need thanks to the wide range of optional devices.
Manufacture – SCM Minimax
Condition – New
Price – From £4,441 (ex VAT)
Professional and very sturdy
The unit has a cast iron structure. It is closed off by a cast iron “cup” to protect mechanical components inside the machine from sawdust, shavings and dirt. Precise and safe machining with the spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers.

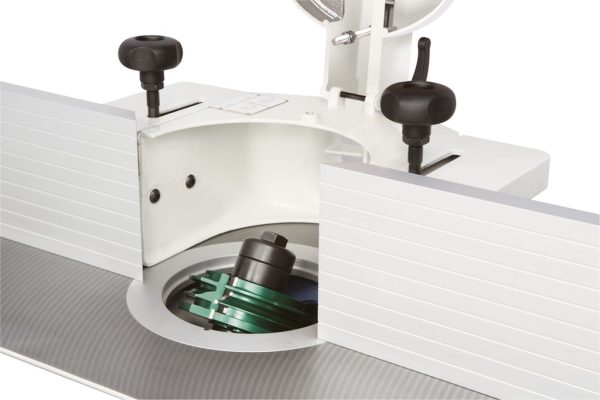

Tilting spindle
On request, it is available the 45° tilting spindle, toward the inside of the machine.
Customisable for any requirement
The 270 mm sliding table on tw 45c, provides a greater support, very useful also for tenoning. Precise cuttings, even for large work pieces, with the support frame (option) with telescopic fence.
High-tech accessories
As option it is available the spindle moulder hood that uses a system for adjusting the guides with a rack and it is fitted with a mechanical digital readout. Thanks to the system of memories the hood can be removed and repositioned without losing the machining position. The maximum tool diameter during moulding operations is 240 mm.
| Function | Measurement |
|---|---|
| Max. Useful Spindle Length | 100mm |
| Max. Tool Diameter When Profiling | 210mm |
| Max. Dimensions Of Tool Lowered Under Table At 90° | 180mm |
| Max. Tool Diameter When Tenoning | 275mm |
| Three-Phase Motor Power | 5 (6)kW – 50 (60)Hz |
