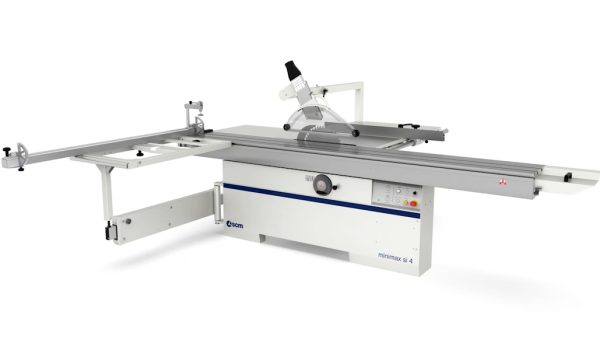

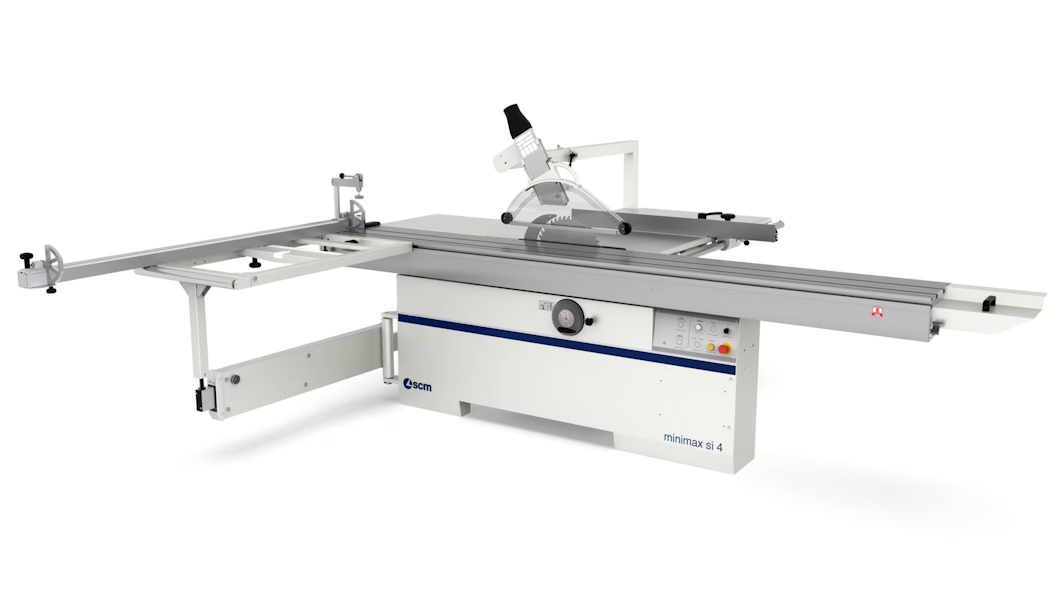

SCM Minimax si4 Panel Saw
The SCM Minimax si4 Panel Saw is a circular saw designed to optimise performance and offer maximum versatility based on the operator’s demands.
Manufacture – SCM Minimax
Condition – New
Price – From £6,655 (ex VAT)
MAXIMUM CUT QUALITY GUARANTEED OVER TIME

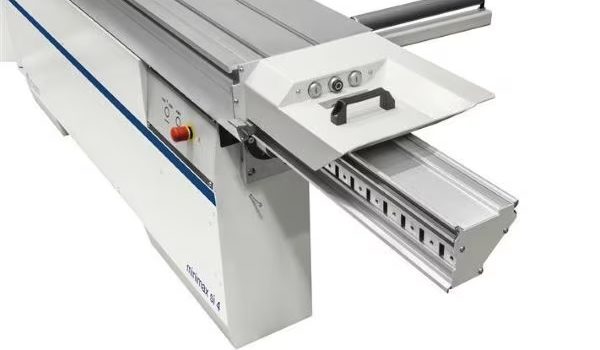

New highly reliable sliding carriage, guanranteed for 10 years and developed to enhance performance and customization. Its closed reticular geometry provides top rigidity and minimal flexing.
The carriage locking in any position makes the machine even more ergonomic and easy to use.
SOLID AND STURDY STUCTURE

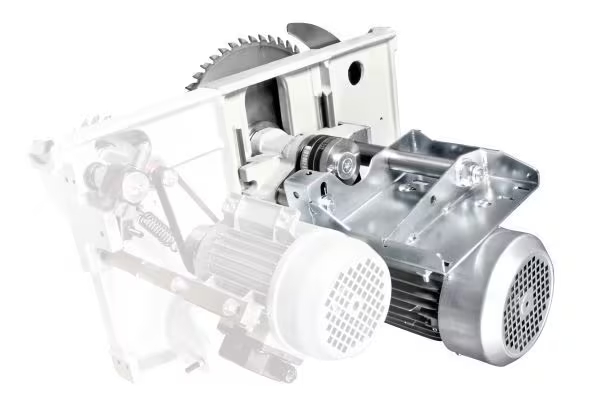

Made of a solid and sturdy structure, the saw blade unit enables an accurate cut.
On request, the scoring unit (option) is available for a perfect cut even on veneered panels.
OPTIMAL SUPPORT

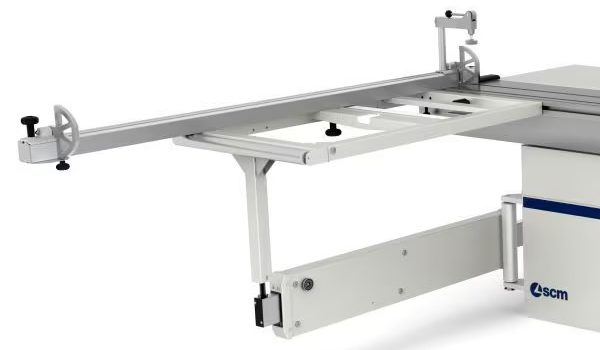

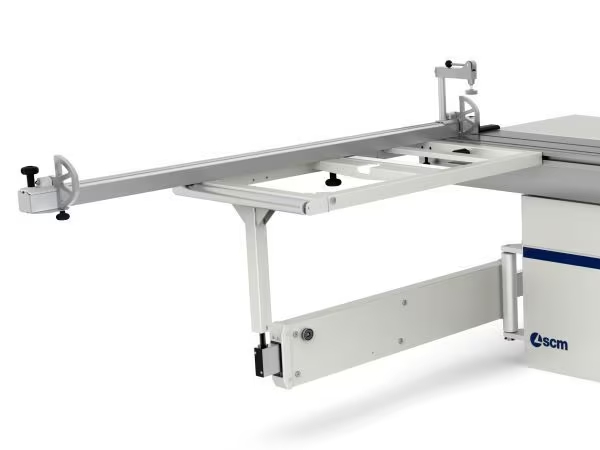

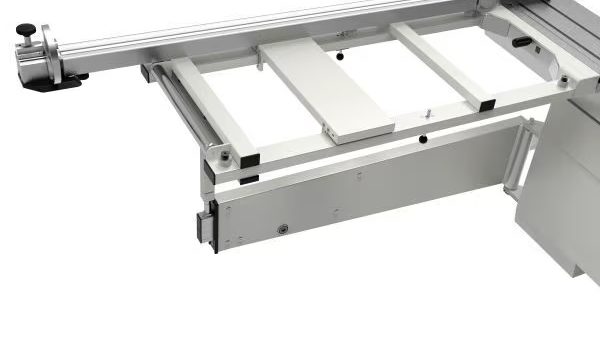

The squaring frame facilitates the panel loading and its mobile cross beams offer an optimal support also to smaller panels. Moreover, depending on customer’s needs, different optional squaring frame devices are available.
HIGH VERSATILITY
Different optional squaring frame devices are available, including the new squaring frame with telescopic “Quick Lock” fence made of two reversible stops with lens and fitted with simultaneous locking/unlocking.
| Function | Measurement |
|---|---|
| Scoring blade unit | OPTIONAL |
| Sliding carriage length (standard) | 2250mm |
| Cutting width on rip fence (standard) | 900mm |
| Cast-iron saw-worktable dimensions | 940 x 560mm (1000 x 560mm option) |
| Blades tilting | 90° ÷ 46° |
| Max. saw blade diameter with scoring blade (option) | 315mm (400mm option) |
| Max. saw blade projection from worktable at 90°/46° | 100/71mm (136/97mm option) |
| Max. squaring capacity (standard) | 2250 x 3200mm |
| Cutting width on rip fence (standard) | 900mm |
| Other technical features: | |
| Three-phase motor power | 5kW (6,6hp) 50Hz |
| Exhaust outlets diameter | 120mm |
