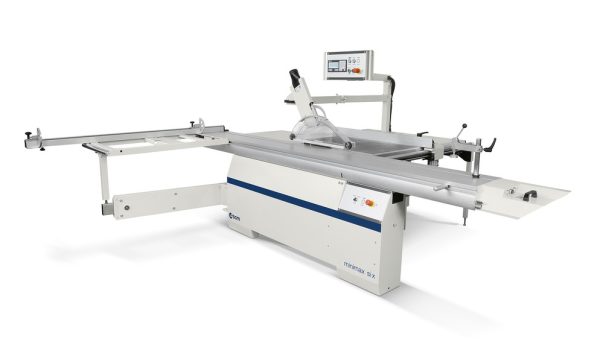

SCM Minimax si x Panel Saw
The SCM Minimax si x Panel Saw is a circular saw with ±46° double tilting.
Finally available at everybody’s reach. With powered and programmed sawblade movement available as standard.
It allows simultaneous use of a 400mm saw blade and 160mm scoring blade both for 90° cutting and ±46° tilted cutting, guaranteeing the maximum cutting height on veneered panels and solid wood.
Manufacture – SCM Minimax
Condition – New
Price – From £15,015 (ex VAT)

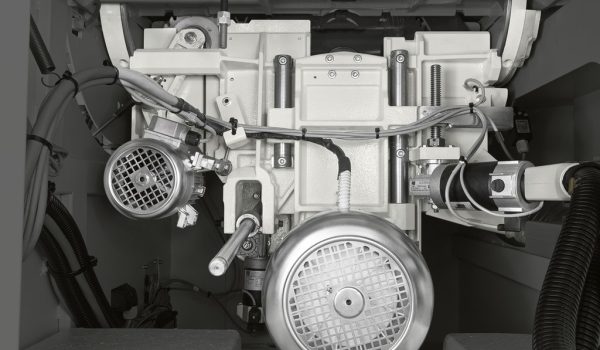

New saw unit with a stiff cast-iron structure which can accommodate a blade of 400 mm diameter with scoring blade mounted. It ensures a perfect and easy cutting of veneer panels and thick solid wood material with very high thickness both at 90° and tilted cuts at ±46°. The saw blade uses 100% of the motor power, thanks to the scoring blade with an independent motor as standard.
Circular saw with ±46° double tilting; now at everybody’s reach.
Unrivalled cutting finishing

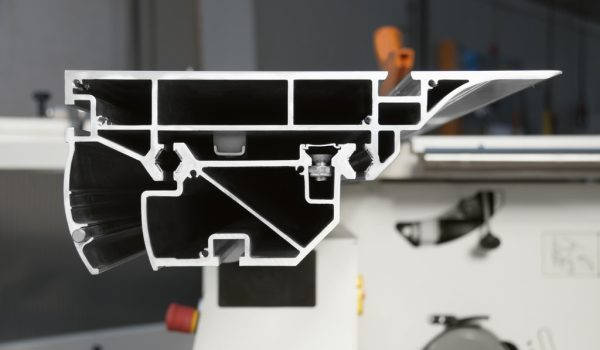

Optimal support also to larger pieces, with the new sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting.
Automatic positioning of the parallel fence, from “Ready” control (3 axes). Programmed or manual fence movement with a hold-down drive for the maximum versatility. In addition the Ready 3 UP version has the control on the mobile control panel.
| Function | Measurement |
|---|---|
| Cast Iron Worktable Diameter | 1000 x 685mm |
| Blades Tilting | -46° ÷ +46° |
| Max. Saw Blade Diameter With Scoring Blade Installed | 400mm |
| Max. Saw Blade Projection From Table At 90°/+45°/-45° | 136/97/60mm |
| Scoring Blade Diameter | 160mm |
| Squaring Stroke | 2600 (3200mm option) |
| Cutting Width On Parallel Fence | 1270mm |
| Three-Phase Motor Power | 7kW (9,4hp) 50Hz |
| Three-Phase Scoring Motor | 0,9kW (1,2hp) 50Hz |
| Exhaust Outlets Diameter | 120 – 80mm |
| Options |
|---|
| Version with maximum squaring stroke 3200 mm |

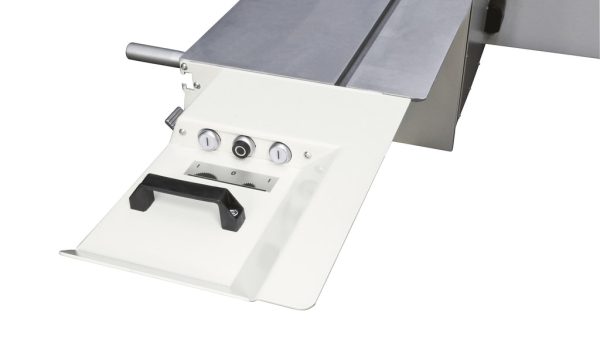

| Start/stop pushbuttons for the main blade and scoring blade integrated in the sliding carriage |

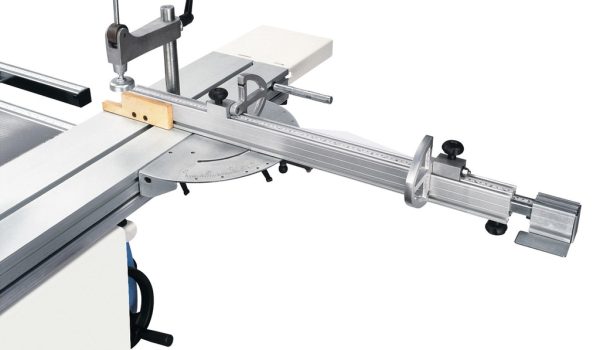

| Angular cutting device with flip-over stops |
| Pre-set angular cutting device directly positioned on squaring frame |

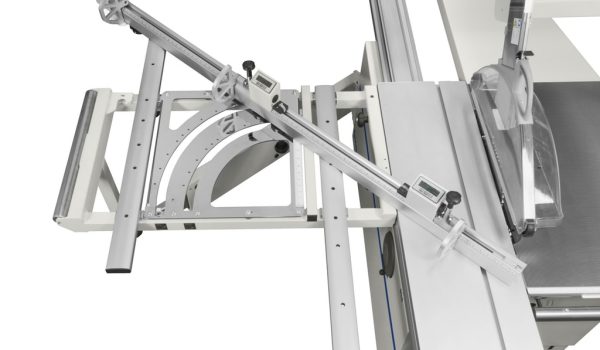

| Squaring frame with CompeX device |
| Third squaring stop with LCD display for the position readout |
| Adjustable tablet holder positioned on mobile control panel |
| Tablet holder on sliding carriage |

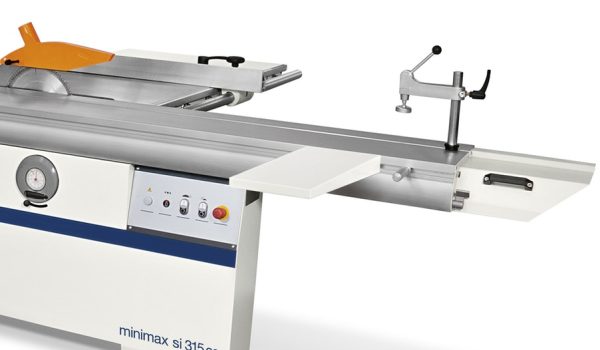

| Additional table on the sliding table |
| Digital readout for parallel fence positions |
| 2 saw blade rotating speed (3500/5000 rpm) |
| “DADO SET” capability |
| Autotransformer for 220V, 230V, 600V |
