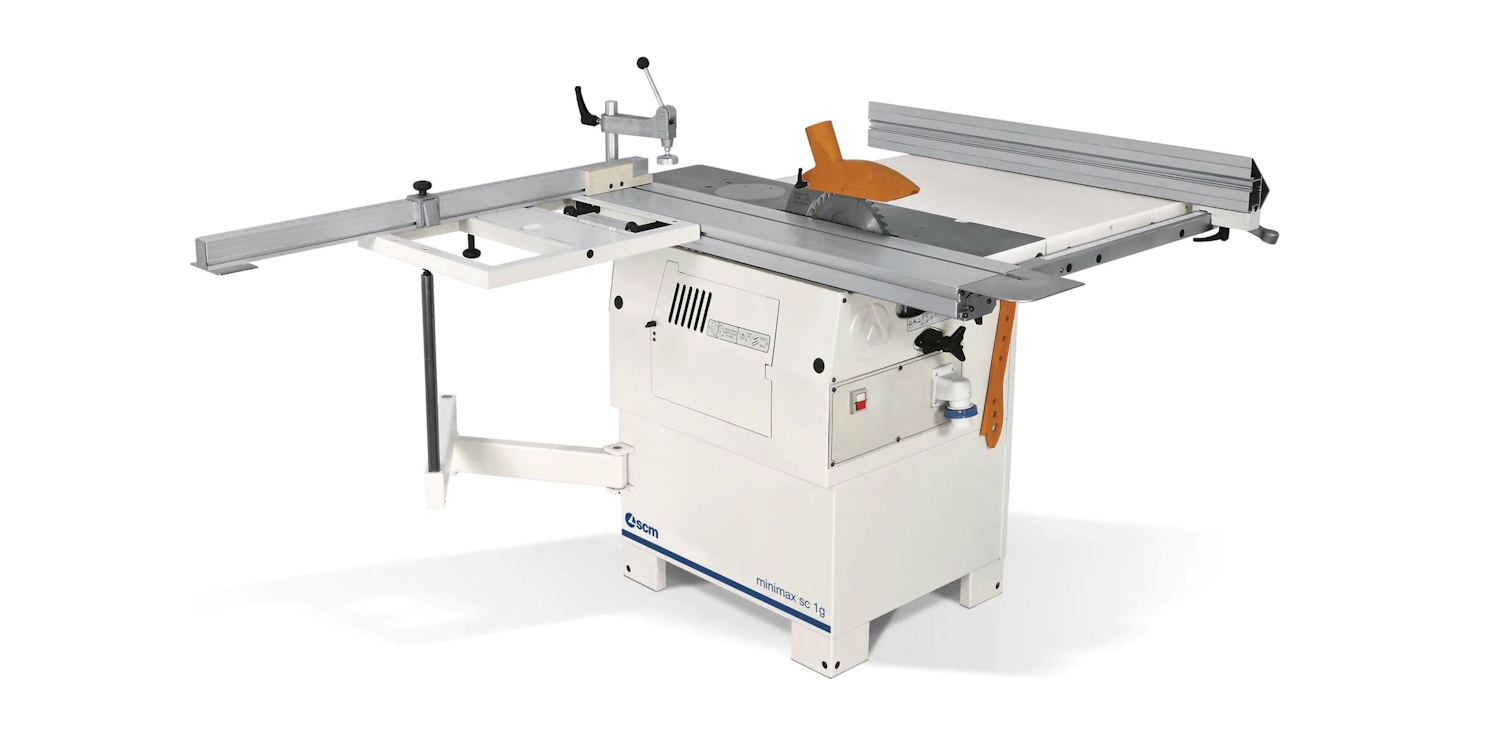

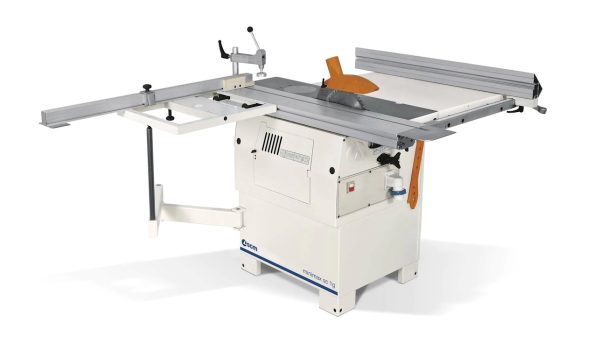

SCM Minimax sc 1g Panel Saw
The SCM Minimax sc 1g Panel Saw is a practical and cost-effective circular saw with tilting blade for the D.I.Y. woodworkers and the small joinery workshops.
Cutting precision

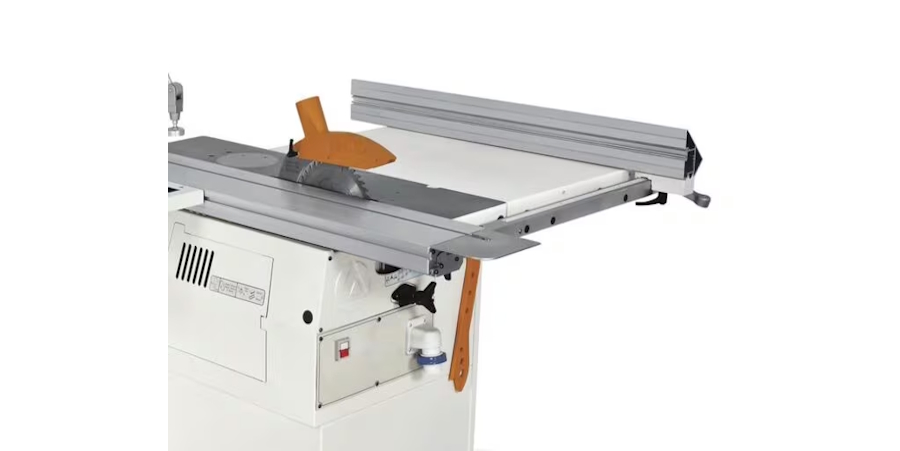

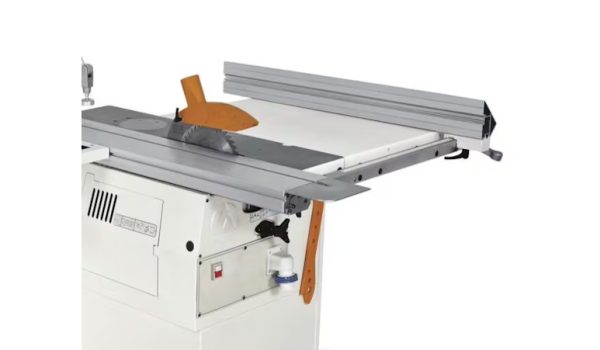

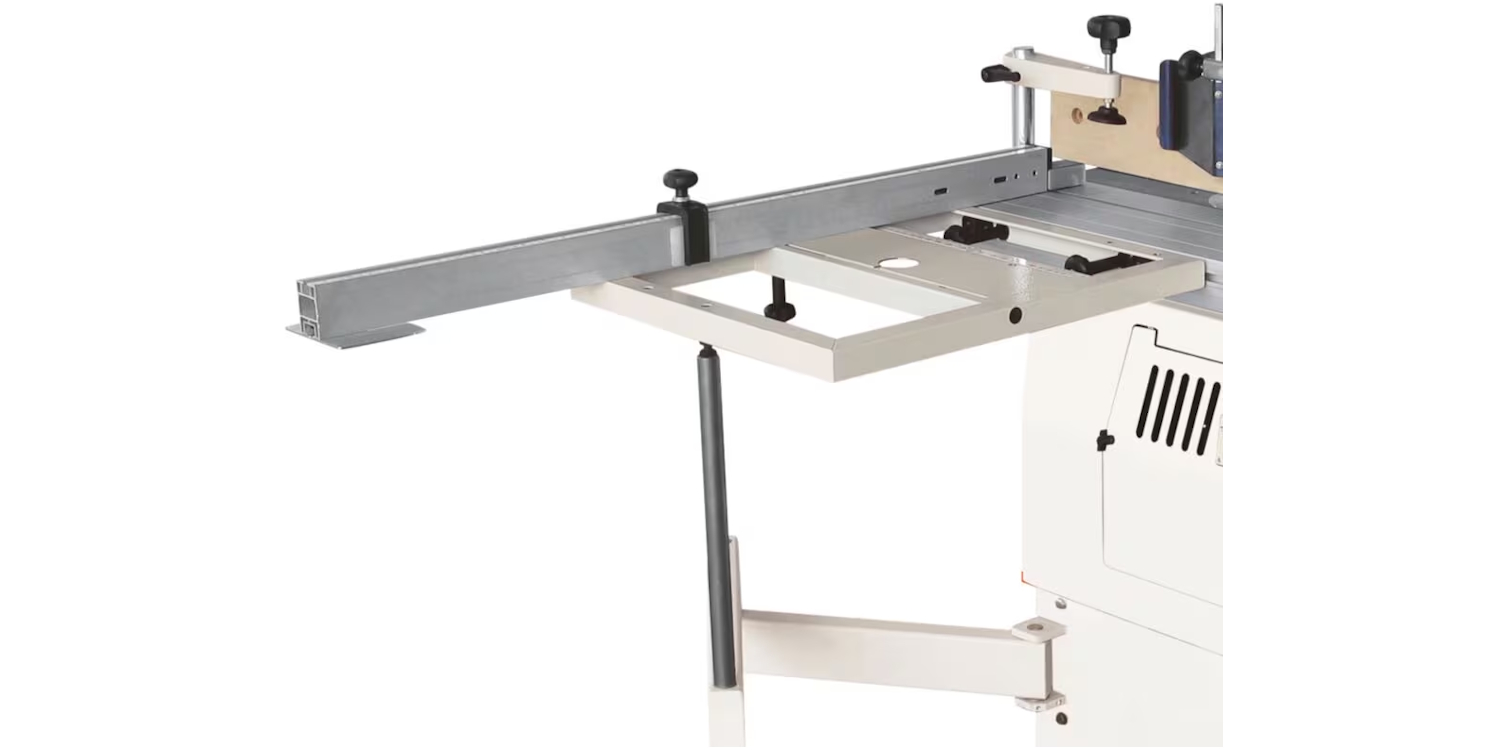

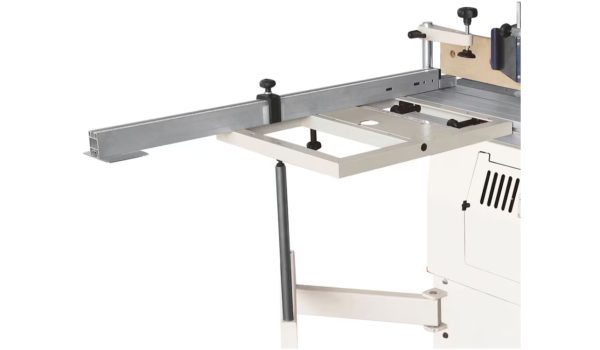

Tilting saw unit with a 250 mm blade and a maximum blade projection from table at 90° of 80 mm. The saw unit can be raised and tilted using convenient hand-wheels. The anodized aluminium sliding table, with a 1200 mm stroke, slides next to the blade, thus ensuring better cutting precision.
Manufacture – SCM Minimax
Condition – New
Price – From £2,896 (ex VAT)
| Function | Measurement |
|---|---|
| Cast Iron Worktable Dimensions | 1024 x 224mm |
| Blade Tilting | 90° ÷ 45° |
| Max. Saw Blade Diameter | 250mm |
| Max. Saw Blade Projection From Table At 90°/45° | 75/60mm |
| Max.Squaring Stroke | 1200mm |
| Cutting Width On Parallel Fence | 700mm |
| Exhaust Outlets Diameter | 120mm |
| Three-Phase Motors | 1,8kW (2,5hp) 50Hz |
| Options |
|---|
| Squaring flip-over stop |
| Tablet holder on sliding carriage |
| Round sliding bar on parallel fence |
| Three-phase motor 2,2kW |
| Single-phase motor 1,8kW |
