Sedgwick TE350 Single End Tenoner

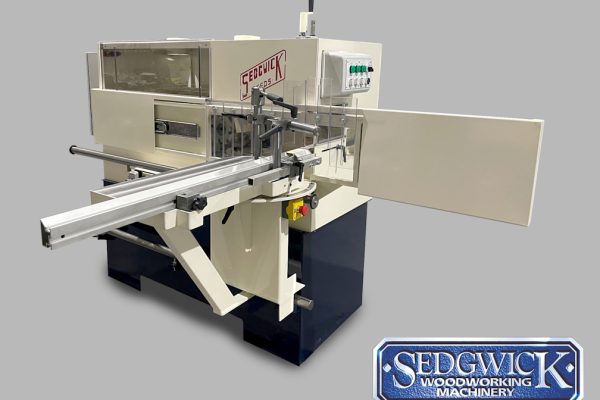

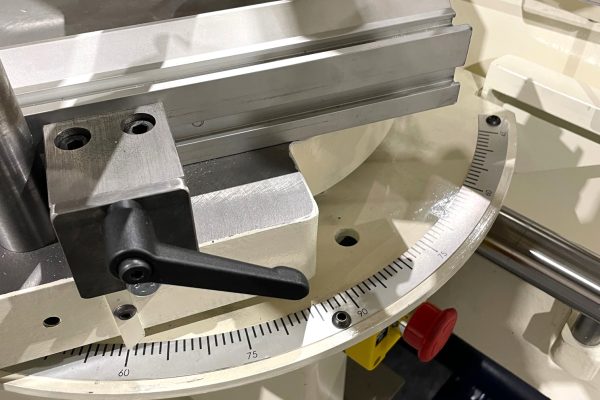

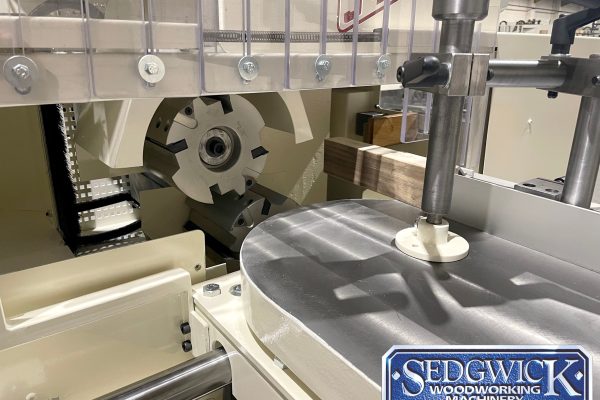

Taking only minutes to set up, the Sedgwick TE350 single end tenoner is easy to use and accurate in operation. Work is positioned on the rolling table against an end stop and a fence, and is secured by a cam action clamp. Its end is then passed between two vertically mounted cutterheads which machine the top and bottom cheeks of the tenon. The tenon width is set by raising or lowering the top motor, and its position on the timber by raising/lowering the two motors in tandem. Variations in shoulder length are set using the rule on the end stop, and staggered tenons are achieved by simple handwheel adjustment of the top motor.
Manufacture – Sedgwick
Condition – New
Price – From £14,600 (ex VAT)
Versatility
Stepped tenons, splayed tenons, scribed tenons, double tenons, and multiple bridles are all possible on this versatile machine. Combinations of 90 degree and bevelled cutting discs with appropriate spacers can also be fitted to produce interleaved joints as used in sash window construction.
Construction
The Sedgwick TE350 is designed and built to withstand continuous production use. Its cast iron base, column and slideways provide a rigid and durable mainframe assembly, and the 2.2Kw motors supply ample power. The generously proportioned cast iron sliding table is mounted on bearing equipped hardened steel rollers for minimum wear, and cutterhead slide movements are easily adjusted on dovetail slides for ease of maintenance.
Safety Features
The TE350 offers all of these safety features as standard:
Automatic braking
Starters with thermal overload, no volt release protection and lock off emergency stop switch.
High performance lightweight cutter blocks with chip limiting devices
Large diameter dust extraction outlets
One piece front cutter guard
Front & rear table guards
| Function | Measurement |
|---|---|
| Timber capacity | 150 x 300mm |
| Maximum length of tenon | 150mm |
| Table Size | 765 x 340mm (765×300 useful) |
| Table Working Height | 890mm |
| HORIZONTAL TENONING HEADS | |
| Cutterblocks | 150 x 150 x 30mm |
| Max tooling dia. | 155mm (bottom) 200mm (top) |
| Vertical adjustment of bottom cutterblock | -2mm / + 77mm |
| Vertical adjustment of top cutterblock | +4mm / + 150mm |
| Horizontal adjustment of top cutterblock | -50mm /+ 20mm |
| Dust extraction outlets | 2 x 150mm |
| Motor | 2 x 2.2 Kw |
| VERTICAL SPINDLE | |
| Shaft diameter | 40mm |
| Effective length of shaft | 205mm |
| Vertical movement | 112mm |
| Horizontal movement | 150mm |
| Max tooling diameter | 350mm |
| Spindle speed | 4000rpm |
| Motor | 5.5kW |
