SCM Formula Ten 400/E Tenoner
The SCM Formula Ten 400/E Tenoner is an automatic tenoning machine which allows very high working rapidity and accuracy.

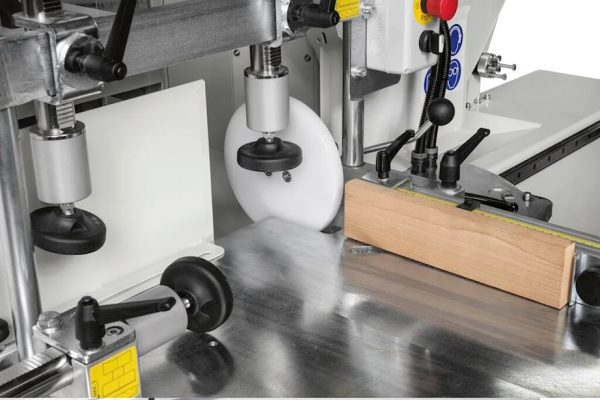

The tenoning unit is equipped with two vertical and one horizontal pressure cylinders for the work-pieces locking and the machining even of large elements.
Manufacture – SCM
Condition – New
Price – From £24,393 (ex VAT)

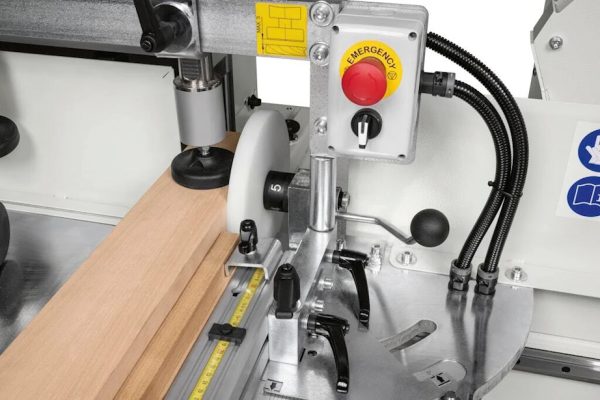

Accurate positioning – The worktable is fitted with a tiltable fence up to ± 45°.

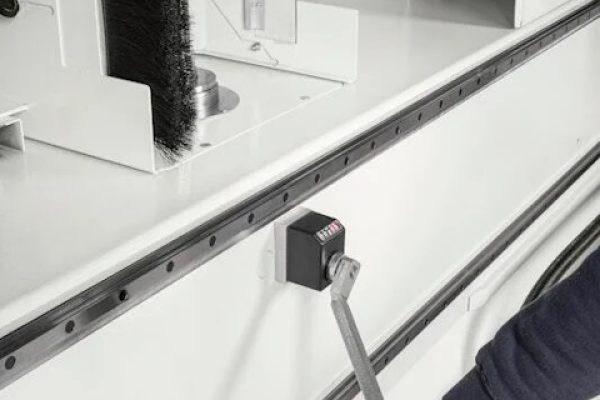

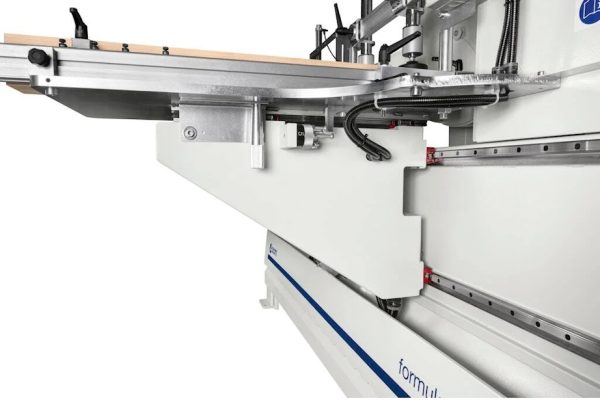

High efficiency – Carriage movement on ball bushing linear guides and positioning by means of 5-position revolver.
Perfect tenoning operations – Revolver with 4 mechanical stops for the work-piece positioning during tenoning machining, without needing cutting-off operation.

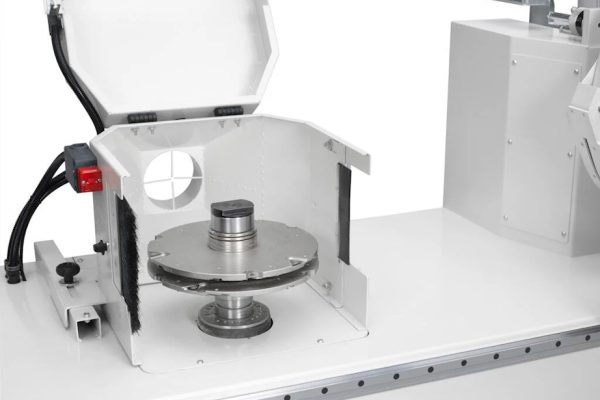

Maximum performances as standard – The formula ten 400e machine version is fitted with spindle moulder unit including an electrospindle with HSK 63B rapid tool change.
| ten 400 | ten 400e | ||
|---|---|---|---|
| Spindle moulder unit | |||
| Max. tool diameter | mm | 360 | 360 |
| Spindle diameter | mm | 40 or 50 | 40 or 50 |
| Tool rotating speed | rpm | 3600 fixed | up to 3600 |
| Tool change system | Manual ring | HSK 63B | |
| Motor power | kW | 7,5 | 7,5 |
| Circular saw unit | |||
| Max. blade diameter | mm | 400 | 400 |
| Max. cutting height | mm | 120 | 120 |
| Blade rotating speed | rpm | 2800 | 2800 |
| Number of stops on revolver | n. | 4 | 4 |
| Selfbraking motor power | kW | 3 | 3 |
| Work-piece support table | |||
| Worktable stroke towards the tool | mm | 105 | 105 |
| Worktable width | mm | 400 | 400 |
| Vertical pressers for pneumatic clamping | n. | 2 | 2 |
| Horizontal presser for pneumatic clamping | n. | 1 | 1 |
| Number of stops on revolver | n. | 5 | 5 |
| Options |
|---|
| Machine version with 450 mm blade |
| N. 1 additional tool-holder spindle – 40 mm diameter |
| N. 1 additional tool-holder spindle – 50 mm diameter |
