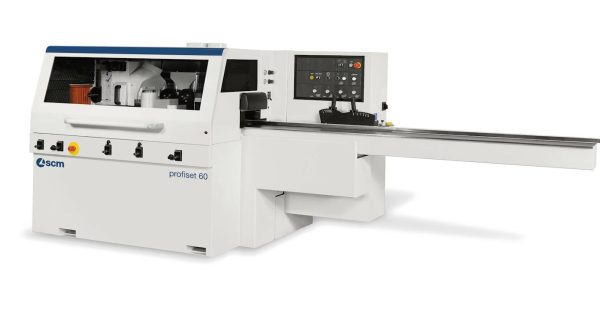

SCM Profiset 60 Planer Moulder.

Automatic planer and throughfeed moulder up to 6 spindles, available in four compositions with possibility to preset the profiling on the top horizontal spindle (option).

Manufacture –  SCM
Condition – New
Price – From £30,765 (ex VAT)

FINANCE AVAILABLE FROM JUST £124 PER WEEK
ENQUIRE ABOUT THIS MACHINE

Ergonomics and safety. The operator easily manages every working operation due to all controls at your fingertips. The manual pump for the worktable lubrication positioned in the working area facilitates its use, assuring always the best smooth movement of the work piece.

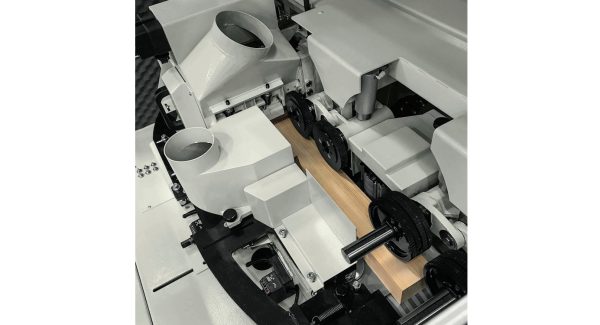

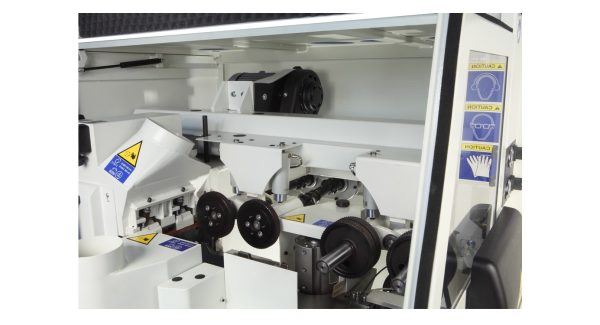

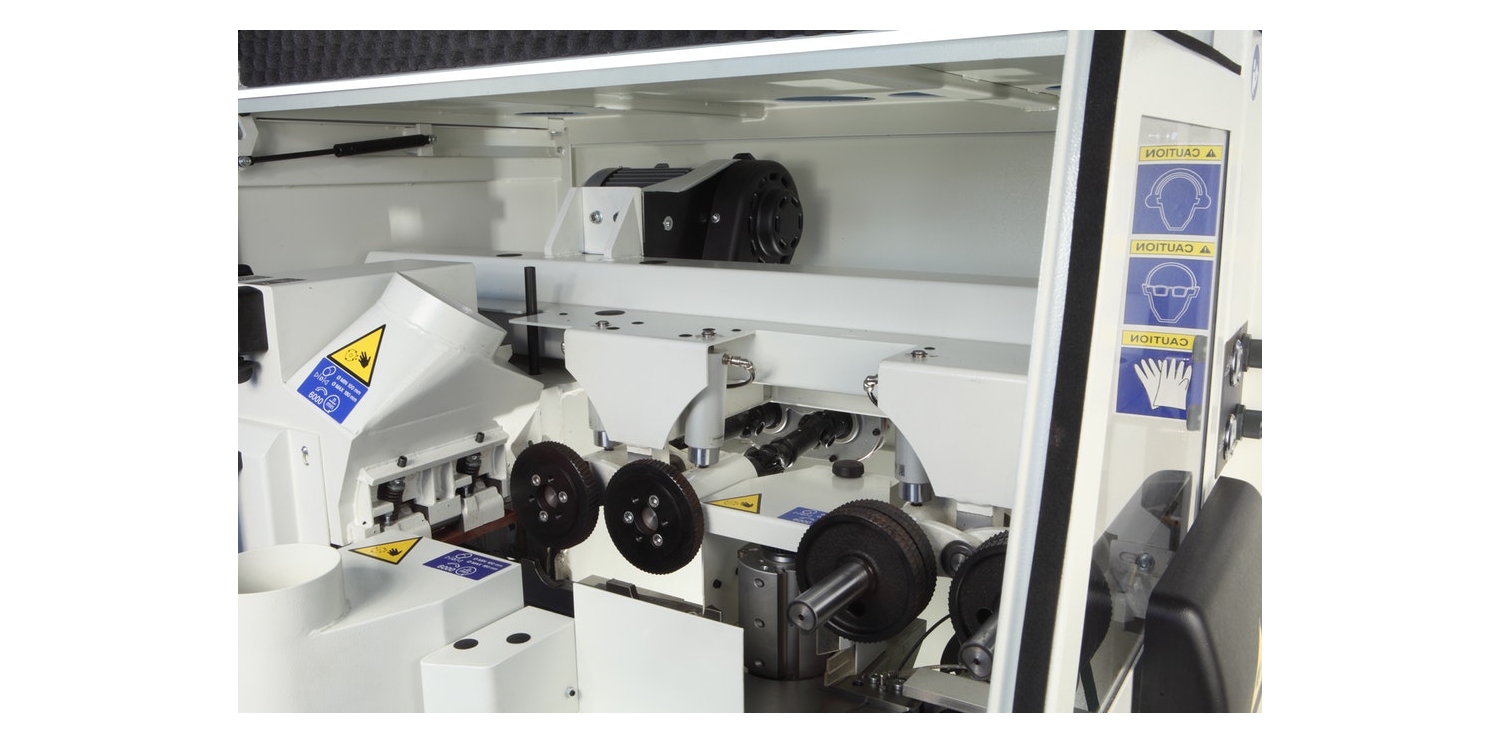

The optimum feeding: more productivity and improved finishing.
• Gears box drive and cardan joints
• Pneumatic working pressure on the feed rollers
• Inverter for the stepless speed  adjustment from 5 to 25 m/min.

EASY PLUS: the operating advantage for easy assistance. Maximum reliability due to the function pushbuttons and easy-to-use with the electronic control of up to 5 axes with the 7” LCD display, 16:9 format. Integrated and fast control of all dedicated functions. These features translate into immediate improvements in productivity and guarantees the capability of the full potential of the machine.

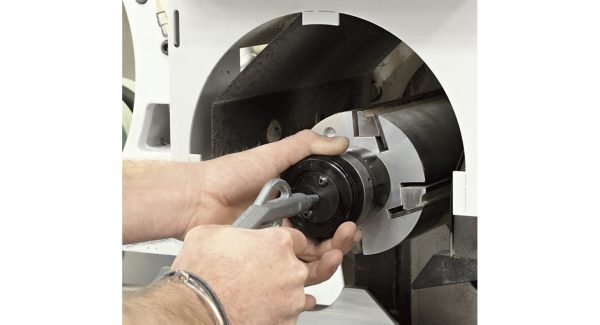

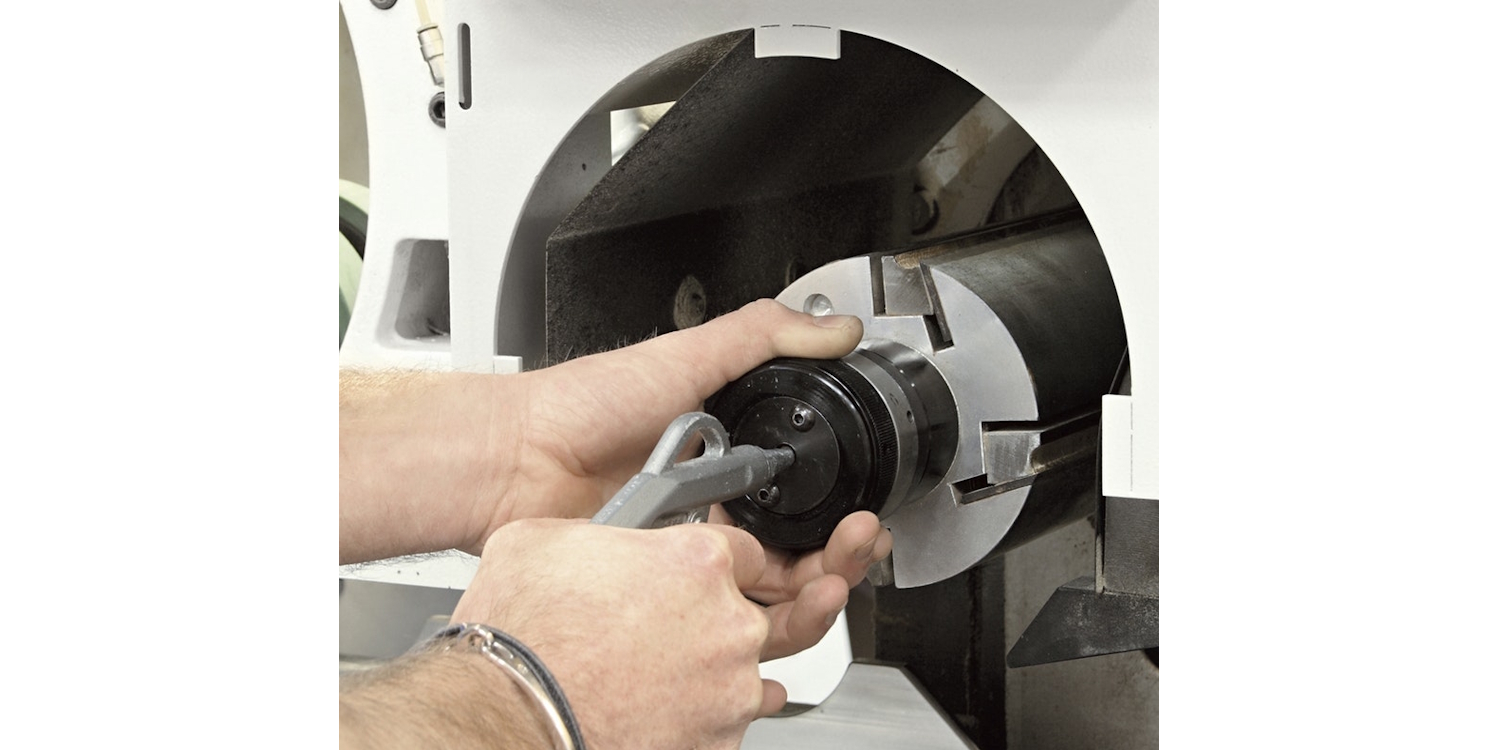

“T-SET” rapid tool locking device: maximum degree of safety without any efforts. It ensures the locking/unlocking of tools simply through a gun with compressed air.

FunctionMeasurement
Min./max. working width (finished section)
25mm/230mm
Min./max. working height (finished section)
6mm/120mm
Infeed worktable length2,000mm
Feed speed5- 25m/min
Spindles speed
6000rpm
Spindles diameter40mm
Vertical spindles length140mm
Horizontal spindles length250mm
Min./max. tool diameter on surface planer120 – 140mm
Min./max. tool diameter on vertical spindles100 – 180mm
Max. profiling capacity on vertical spindles40mm
Min./max. tool diameter on top horizontal spindle125mm
(100-180mm opt.)
Min./max. tool diameter on 2nd bottom horizontal spindles100 – 180mm
Profiling capacity with tool 180mm on 2nd bottom horizontal
spindles		15mm
Min./max. tool diameter on universal spindle (option)100 – 180mm
Feed rollers diameter140mm
Infeed table length2000mm
