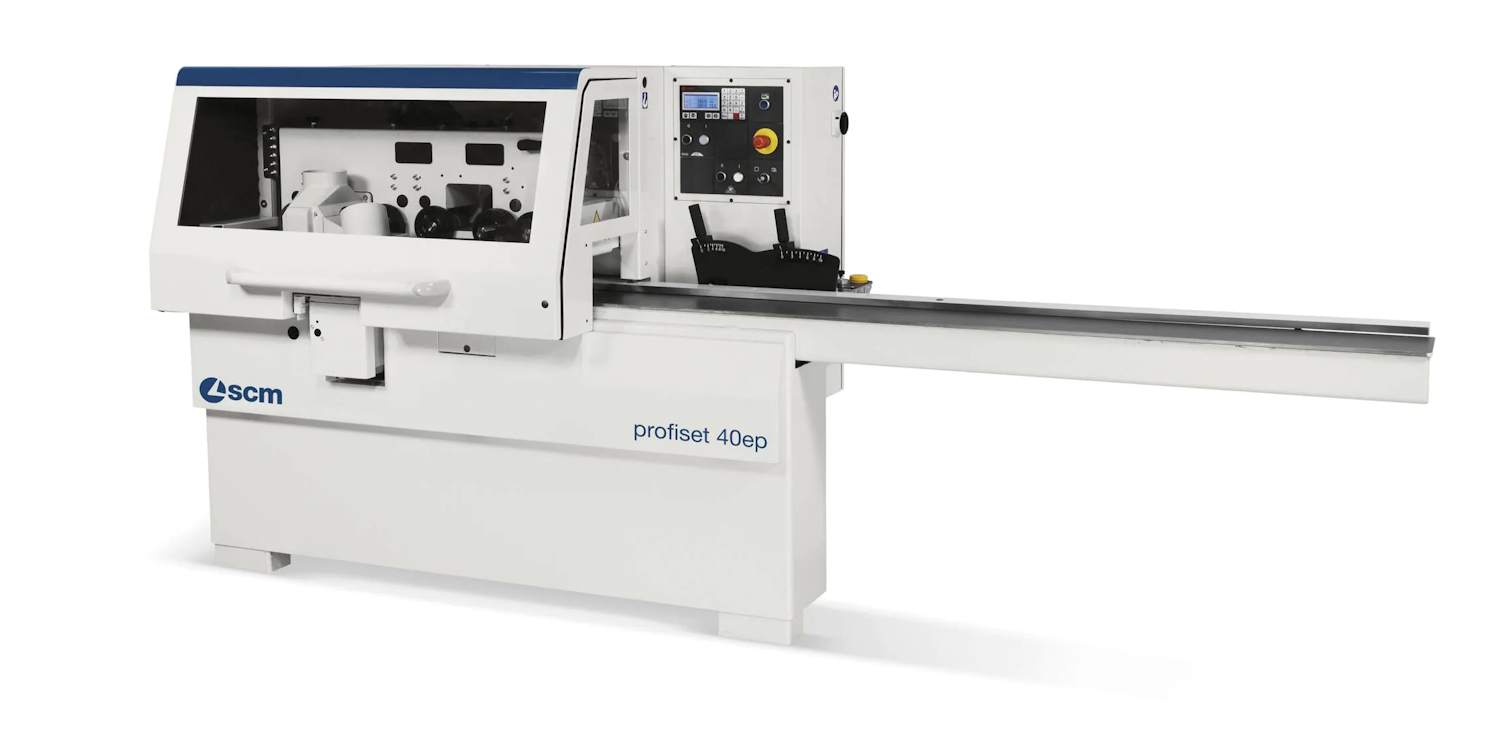

SCM Profiset 40 EP Planer Moulder
SCM Profiset 40 EP Planer Moulder.
4-spindles automatic planer and throughfeed moulder with 10 mm profiling capacity by means of vertical spindles.
Manufacture – SCM
Condition – New
Price – From £20,612 (ex VAT)

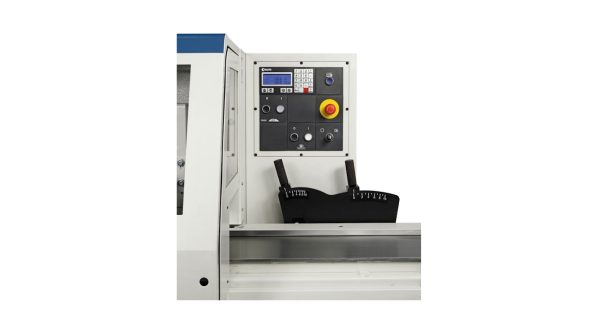

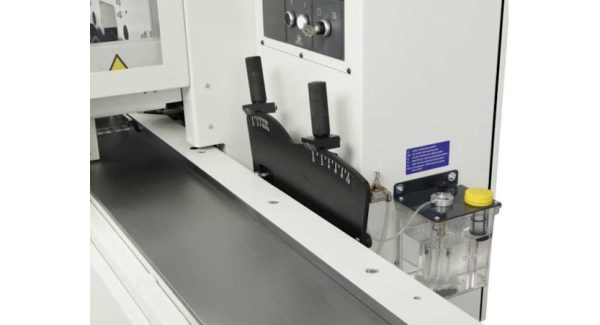

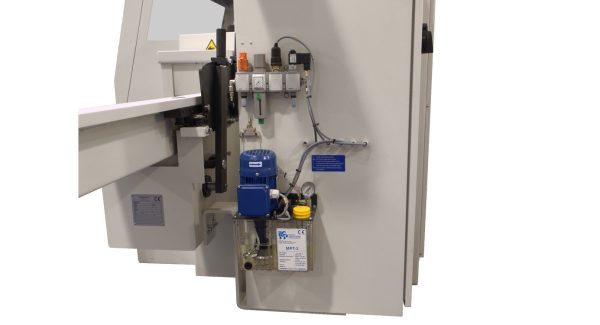

Ergonomics and safety. The operator easily manages every working operation due to all controls at your fingertips. The manual pump for the worktable lubrication positioned in the working area facilitates its use, assuring always the best smooth movement of the work piece.
Profiset 40ep: always ready to use. La Profiset 40ep automatically controls the working sections. The feed speed is equipped with only one push button for the sequential motors start.
Idle roller placed on the table: the best finishing. Improved feeding due to the idle roller placed on the outfeed table, typical feature of industrial level machines.

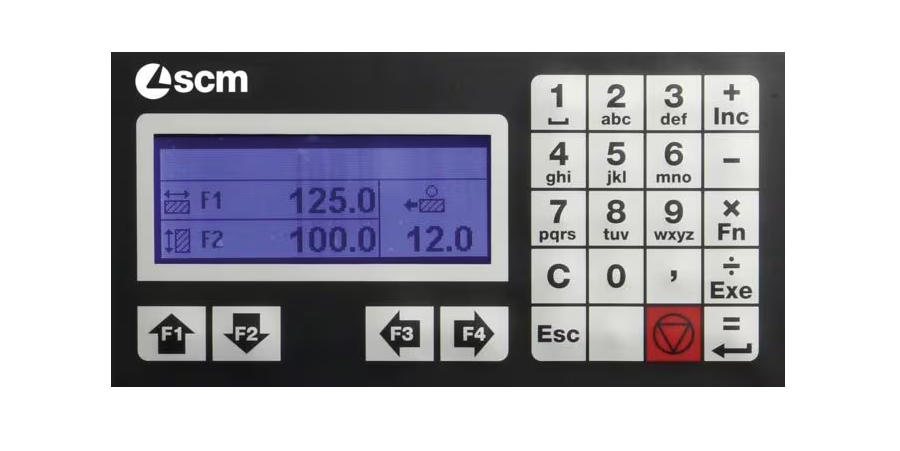

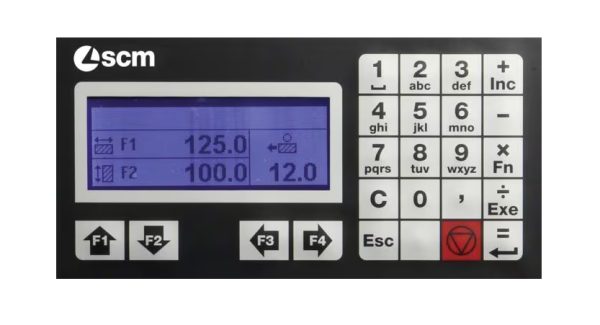

“Ready” electronic control: work programming becomes simple and effective.

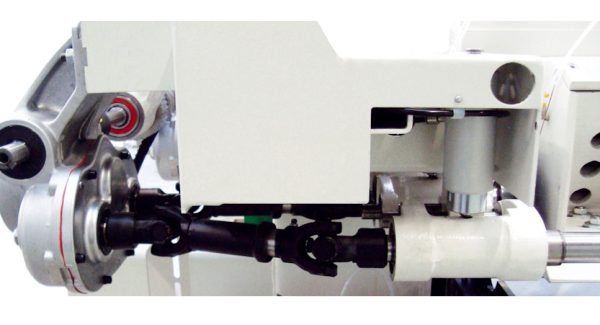

• Automatic positioning control of left vertical spindle and top horizontal spindle
• Feed speed programming
• Mode: manual, semi-automatic and automatic with memory capacity up to 99 programs
• Additional functions: claculator and hour counter.
| Function | Measurement |
|---|---|
| Min./max. working width (finished section) | 23mm/180mm |
| Min./max. working height (finished section) | 10mm/105mm |
| Min. length of single workpiece | 300mm |
| Feed speed | 6 – 12m/min |
| Infeed worktable length | 1,700mm |
| Spindles speed | 6000rpm |
| Motors | 2 x 10Hp |
| Spindles diameter | 35mm |
| Vertical spindles length | 120mm |
| Horizontal spindles length | 190mm |
| Min/max cutterheads diam. on horizontal spindles | 100mm |
| Min/max cutterheads diam. on vertical spindles | 100 – 120mm |
| Profiling capacity without axial stroke on vertical spindles | 10mm |
| Feed rollers diameter | 120mm |
| Fast adjustment of infeed table and fence | 10mm |
| Exhaust outlets diameter | 4 x 120mm |
| Options |
|---|
| 220 volts version |
| SAV€NERGY |
| Powered feeding group before surfacer planer with lever for exclusion of the same |
| Vertical pressers for large workpieces placed in front of left vertical spindle |
| 2300 mm infeed table |
| Kit of 4 planer cutterheads and reference engraver for light-duty machining |
| Kit of 4 planer cutterheads and reference engraver for heavy-duty machining |
