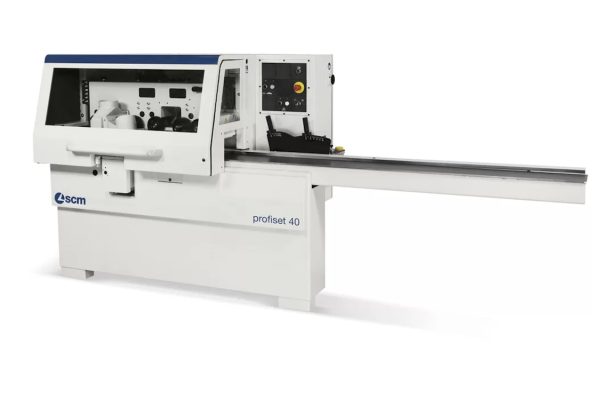

SCM Profiset 40 4 Sided Planer
In Stock!
SCM Profiset 40 4 Sided Planer In Stock & ready for immediate delivery.
Manufacture – SCM
Condition – New
Price – Was £20,679 | Now £16,500 (ex VAT)
SAVE £4,179

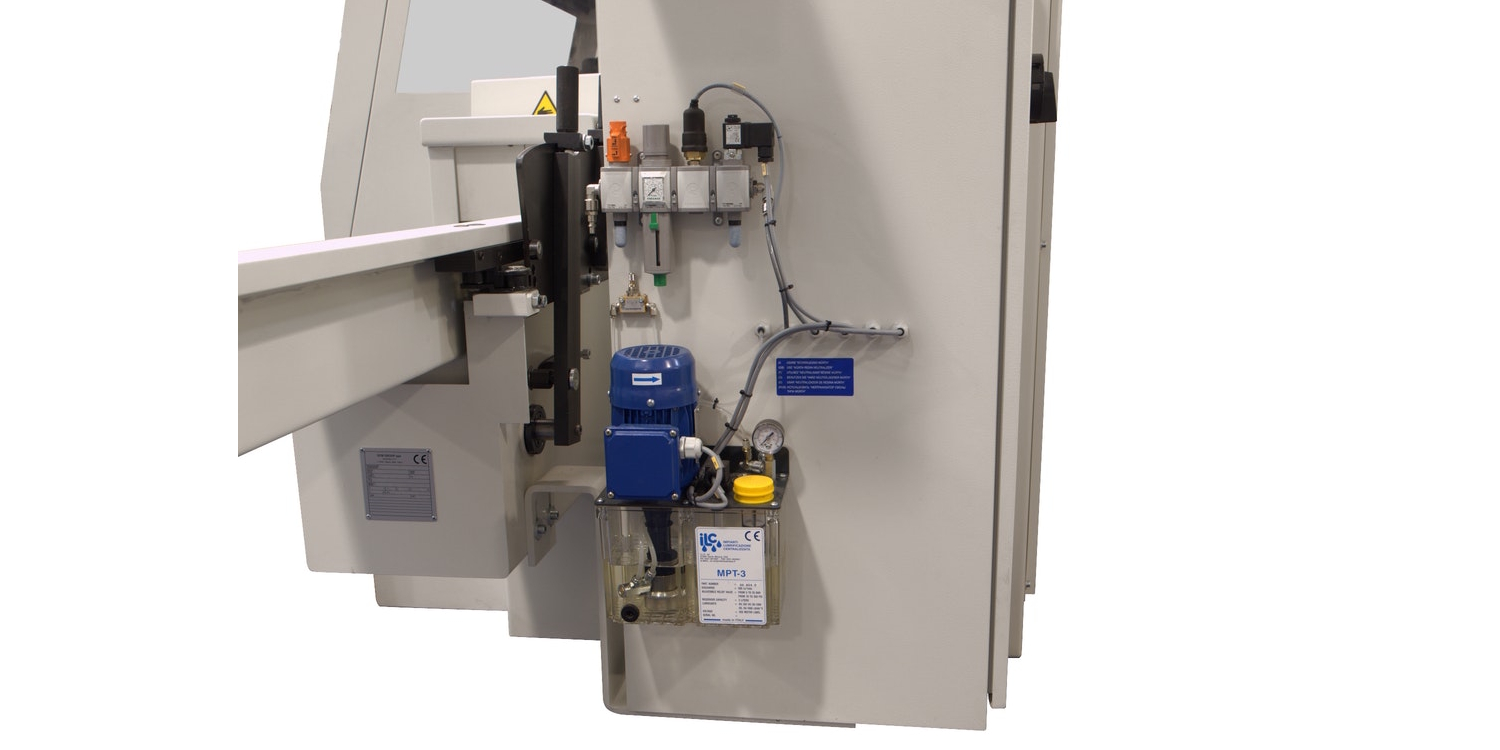

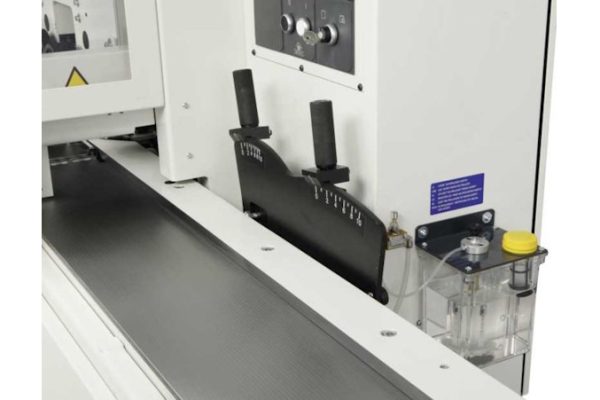

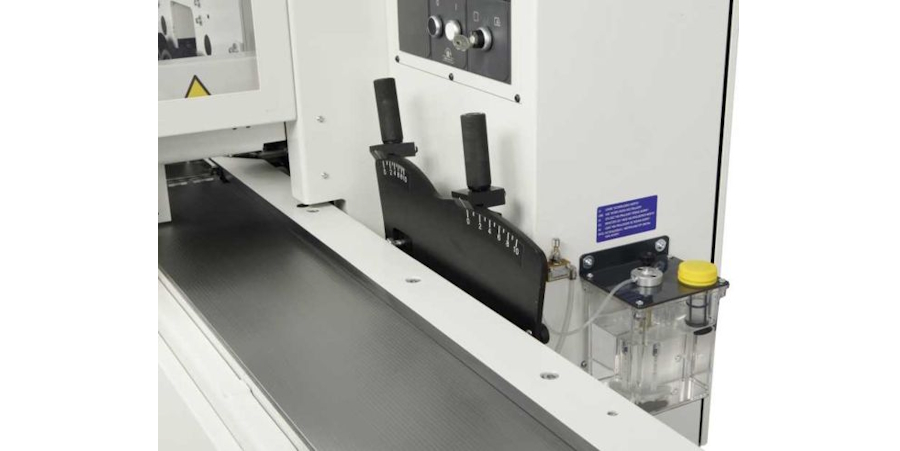

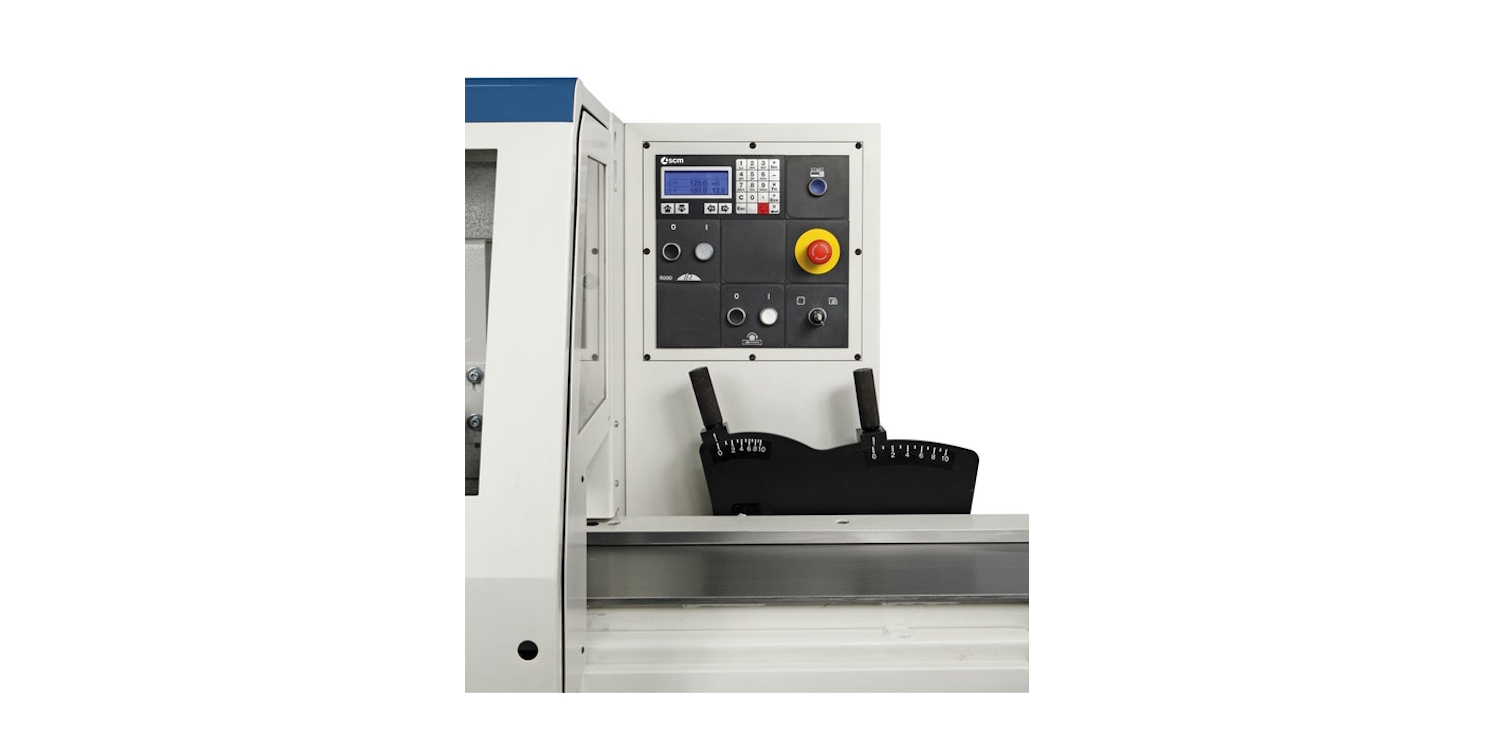

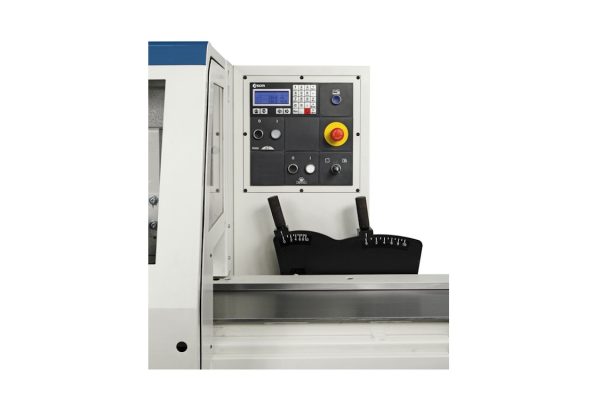

Ergonomics and safety. The operator easily manages every working operation due to all controls at your fingertips. The manual pump for the worktable lubrication positioned in the working area facilitates its use, assuring always the best smooth movement of the work piece.

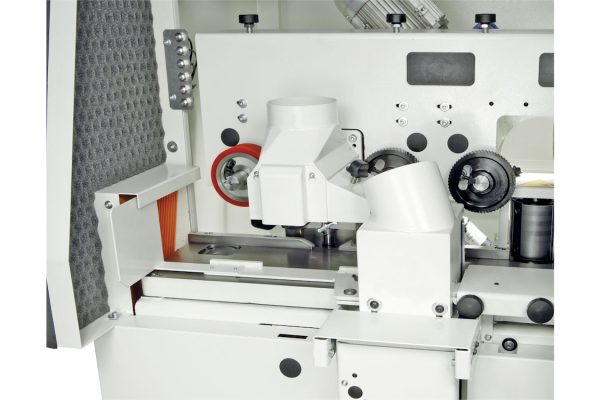

Idle roller placed on the table: the best finishing. Improoved feeding due to the idle roller placed on the outfeed table, typicla feature of industrial level machines.
| Function | Measurement |
|---|---|
| Min./max. working width (finished section) | 23mm/180mm |
| Min./max. working height (finished section) | 6mm/105mm |
| Min. length of single workpiece | 300mm |
| Feed speed | 6 – 12m/min |
| Infeed worktable length | 2300mm |
| Spindles speed | 6000rpm |
| Motors | 2 x 10Hp |
| Spindles diameter | 35mm |
| Vertical spindles length | 120mm |
| Horizontal spindles length | 190mm |
| Min/max cutterheads diam. on horizontal spindles | 100mm |
| Min/max cutterheads diam. on vertical spindles | 100 – 120mm |
| Profiling capacity without axial stroke on vertical spindles | 10mm |
| Feed rollers diameter | 120mm |
| Fast adjustment of infeed table and fence | 10mm |
| Exhaust outlets diameter | 4 x 120mm |
| Powered feeding group before surfacer planer with lever for exclusion of the same | |
| Kit of 4 planer cutterheads and reference engraver for light duty machining |
