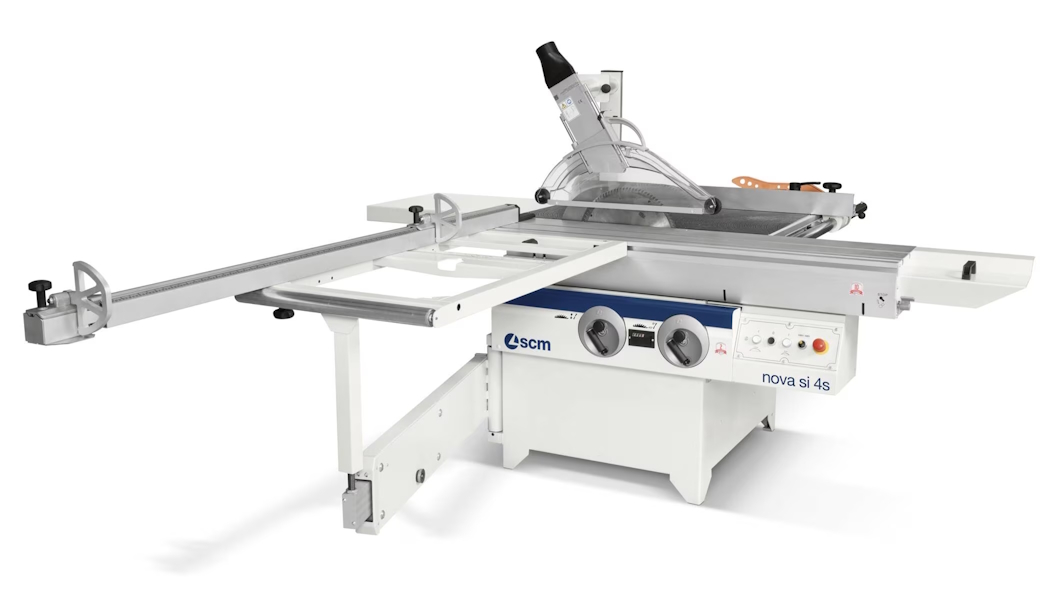

SCM Nova si 4s Panel Saw
SCM Nova si 4s Panel Saw combines accuracy, reliability and sturdiness to guarantee high performance standards.
Manufacture – SCM
Condition – New
Price – From £8,413 (ex VAT)
MAXIMUM CUT QUALITY GUARANTEED OVER TIME
New highly reliable sliding carriage, guaranteed for 10 years and developed to enhance performance and customization. Its closed reticular geometry provides top rigidity and minimal flexing.
The carriage locking in any position makes the machine even more ergonomic and easy to use.
SOLID AND STURDY STUCTURE

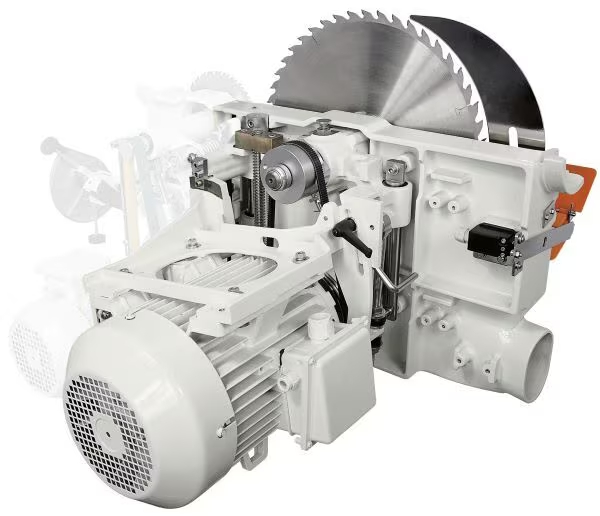

Made of a solid and sturdy structure, the saw blade unit enables an accurate cut.
On request, the scoring unit (option) is available for a perfect cut even on veneered panels.
OPTIMAL SUPPORT

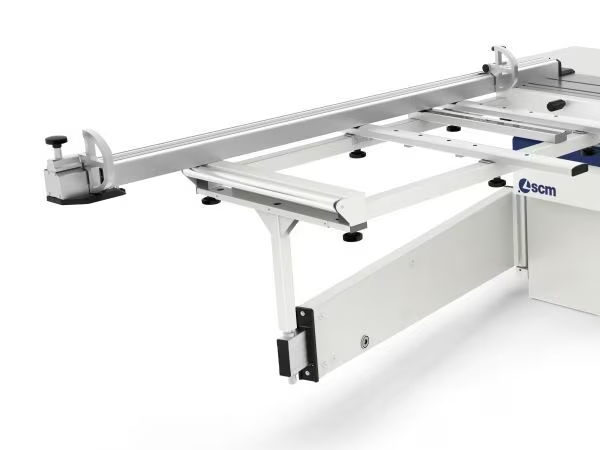

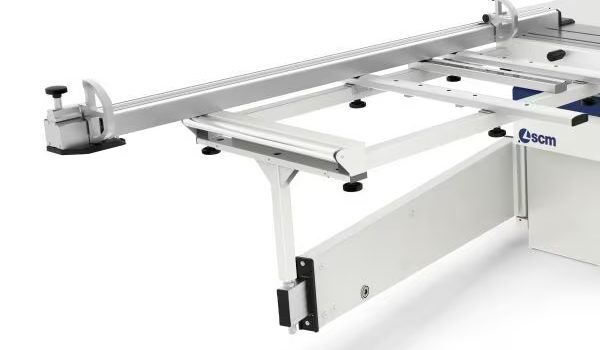

The squaring frame facilitates the panel loading and its mobile cross beams offer an optimal support also to smaller panels. Moreover, depending on customer’s demands, different optional squaring frame devices are available.
ALWAYS USER FRIENDLY

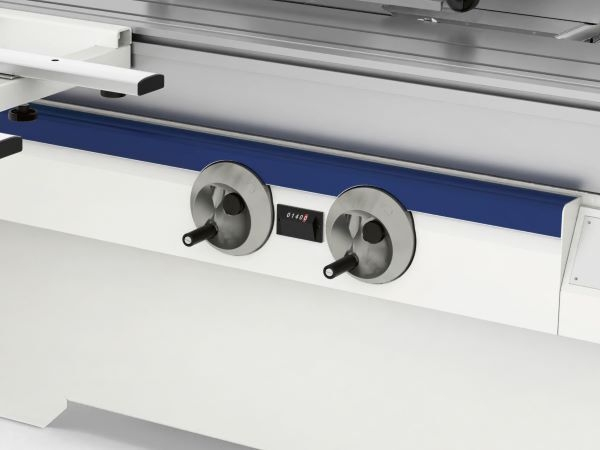

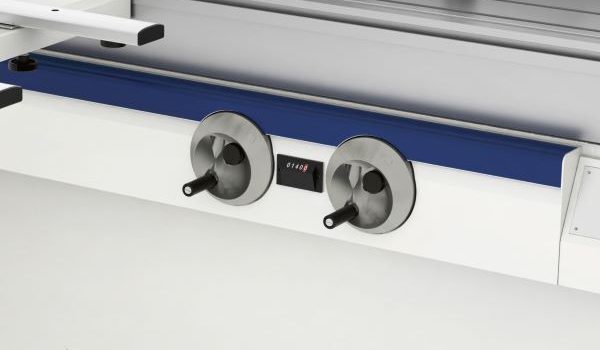

The hand-wheels on the machine front, for the saw blade unit moving, are easy to use; every minimum hand-wheel movement corresponds to an exact blade adjustment.
| Function | Measurement |
|---|---|
| Scoring blade unit | Option |
| Max Cutting Height At 45°Sliding carriage length (standard) | 1600mm |
| Cutting width on rip fence (standard) | 1000mm |
| Cast-iron saw-worktable dimensions | 900 x 550mm (1040 x 630mm option) |
| Saw blades tilting | 90° ÷ 45° |
| Max. saw blade diameter with scoring blade (optional) installed | 315mm (400mm) |
| Max. saw blade projection from worktable at 90°/46° | 100/70mm (140/99mm) |
| Saw blade rotating speed | 4000rpm (3700rpm) |
| Max. squaring capacity (standard) | 1600 x 2600mm |
| Cutting width on rip fence (standard) | 1000mm |
| Main blade motor power (standard) | 5kW (6,6hp) 50Hz |
| Exhaust Outlet Diameter At The Base / On Overhead Protection / On Riving Knife | 120/80/60mm |
