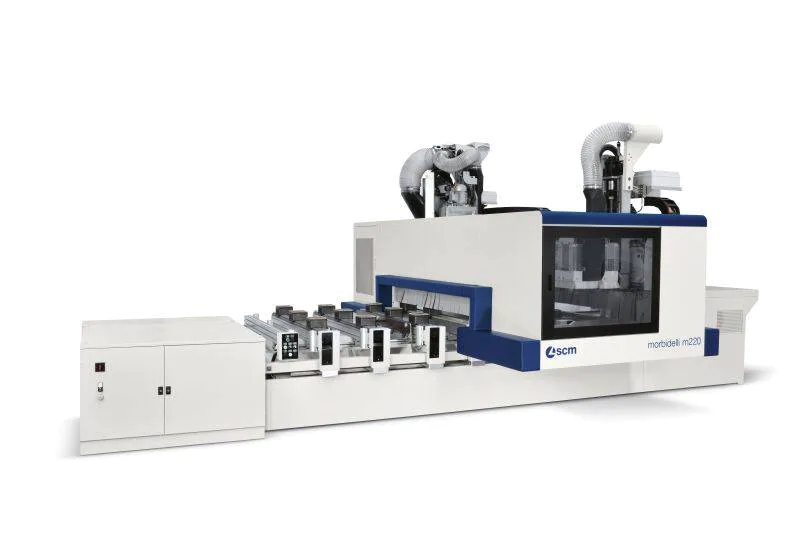

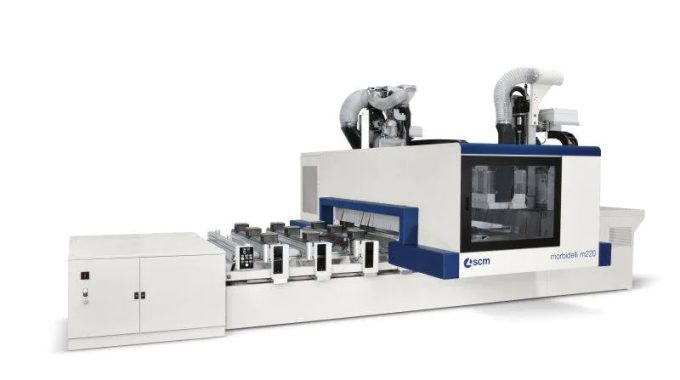

SCM Morbidelli M220 CNC Machining Centre
The SCM Morbidelli M220 is an advanced CNC Machining Centre equipped with a dual drilling head, achieving a remarkable 70% reduction in drilling cycles compared to competing models. This efficiency makes it a standout choice in the market for precision machining.
With just a few clicks, users can design and produce components of various shapes. The machine operates using Maestro CNC software, which includes tailored modules for each stage of the production process, ensuring seamless operation and enhanced productivity.
Manufacture – SCM
Condition – New
Price – POA
70% FASTER ON DRILLING CYCLES: TOP QUALITY

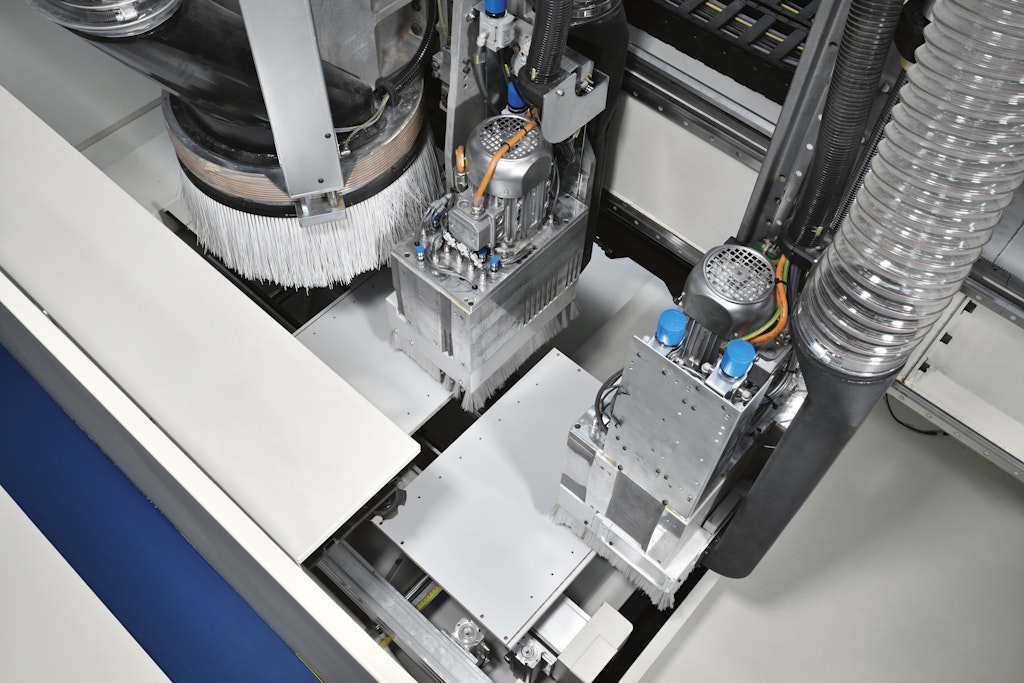

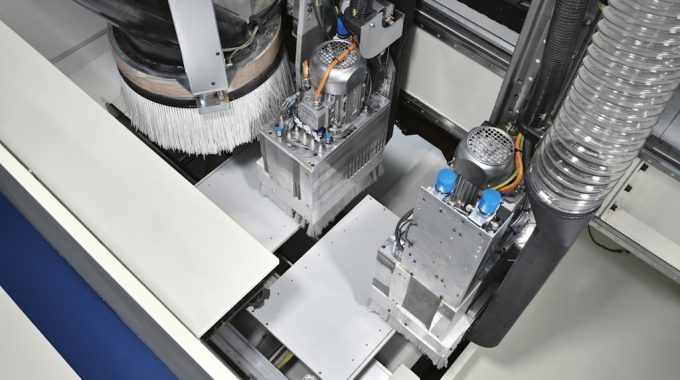

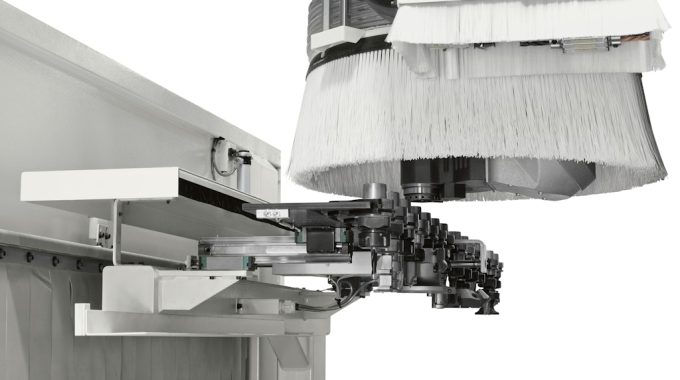

Double drilling heads with independent Y-axis studied for simultaneous machining on an single panel or on 2 different panels.
FREEDOM AT 360°:
ALL FREEDOM
Optimizing the space within your factory thanks to the Pro-Space solution.

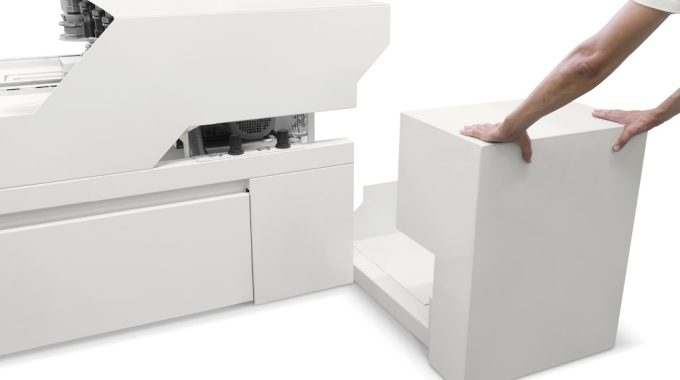

Maximum ergonomic load, the absence of perimetral protections allows the access to the work table from all sides of the machine.
TOTAL CUSTOMIZATION:
ALL FLEXIBLE

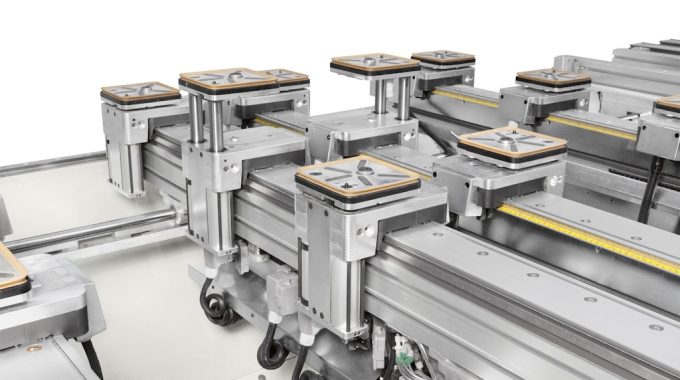

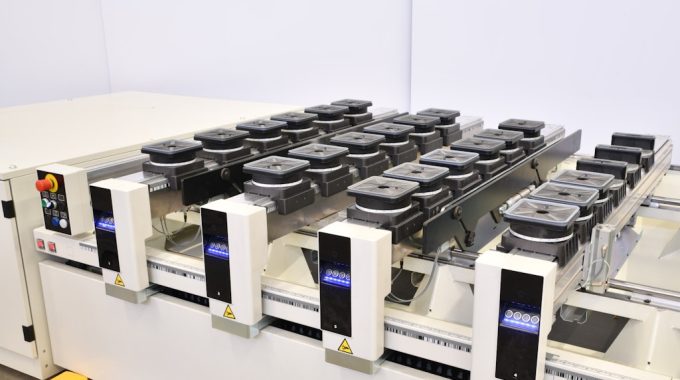

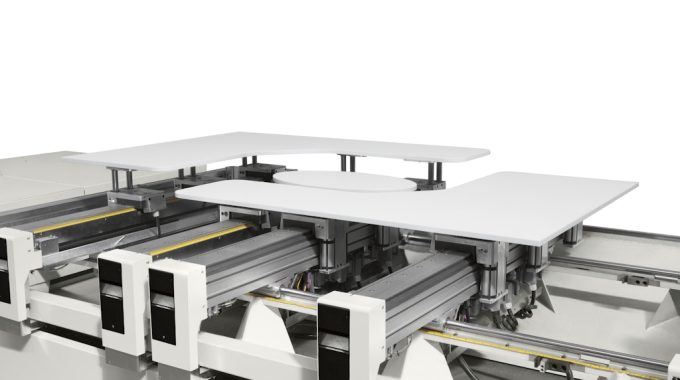

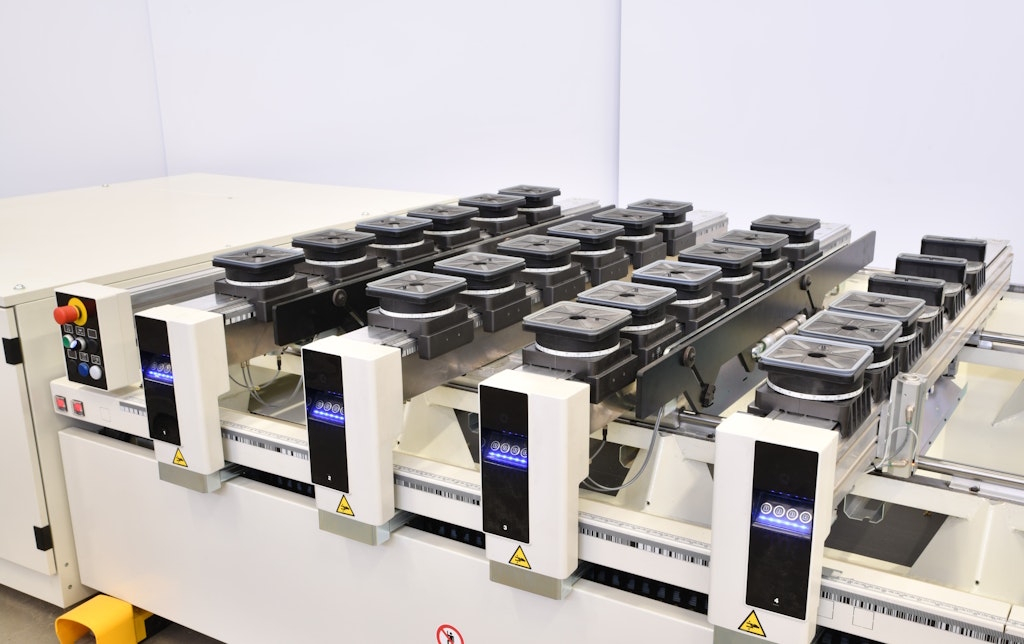

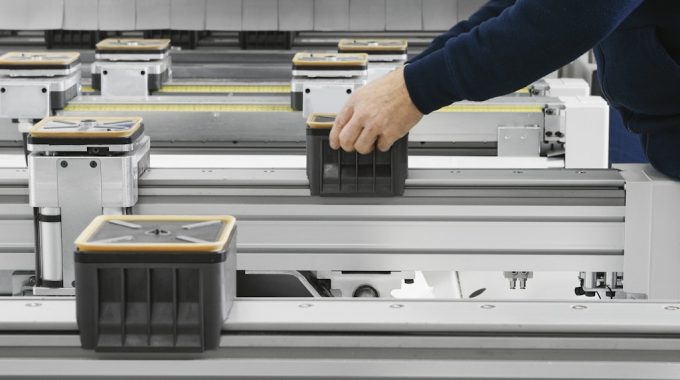

The TV FLEXMATIC automatic work table allows the management of a variable number of pods on the bar, according to the dimensions and shape of the work piece to be machined, in order to always have the best holding without risks of collision.
INSPIRE THE MIND:
MAESTRO LAB
The CAD/CAM programming software ensures that all machining can quickly and easily be programmed.
Transforming an idea into a finished product has never been so easier.
| Function | Measurement |
|---|---|
| Working areas | |
| X-Y axes dimensions | 3110 x 1620mm 3710 x 1620mm 5510 x 1620mm |
| Axes | |
| Vectorial speed | 56m/min (Pro-Space) 78m/min (Pro-Speed) |
| Z axis panel passage | 180mm |
| Routing unit | |
| Motor power (max.) | 15kW (20,5Hp) |
| Rotation speed | 24000rpm |
| Available tools on tool changer (max.) | 60 places |

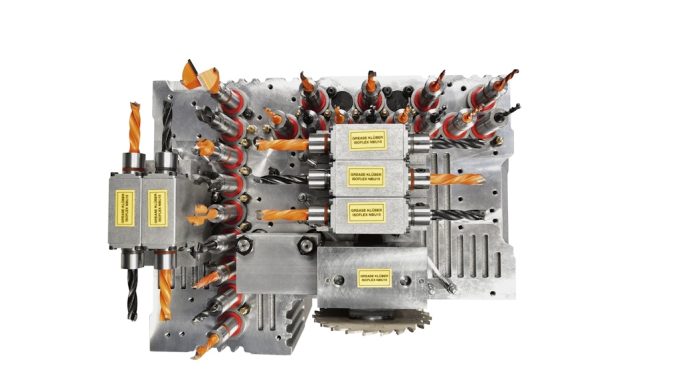

| Drilling unit | |
| Independent vertical spindles (max.) | 34n. |
| Independent horizontal spindles (max.) | 22n. |
| Rotation speed (max.) | 8000rpm |
| Integrated blades in X | 2n. |
| 0-90° blade unit | |
| Motor power (max.) | 2,2kW (3Hp) |
| Rotation speed (max.) | 6000rpm |
| Auxiliary routing unit | |
| Motor power (max.) | 4,5kW (6Hp) |
| Rotation speed (max.) | 18000rpm |
