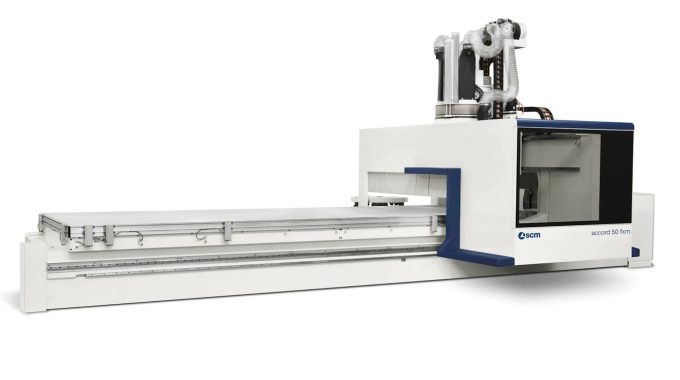

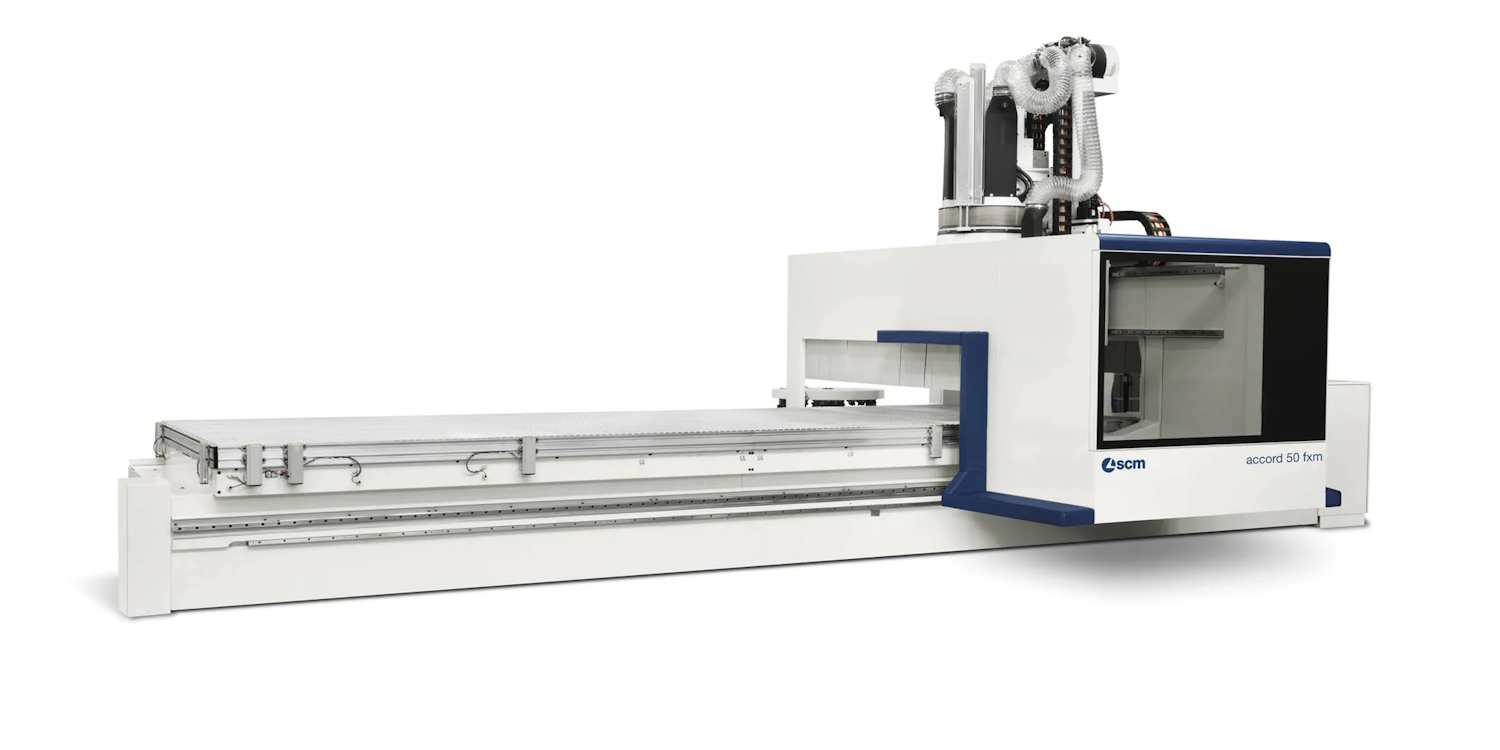

SCM Accord 50 FXM CNC Machining Centre
The SCM Accord 42FXM CNC Machining Centre is a 5-axis CNC machining center featuring a mobile gantry structure, specifically engineered for the production of complex-shaped and large-sized items.
It caters to the requirements of various industries, ranging from wooden design components to specialized applications.
Manufacture – SCM
Condition – New
Price – POA

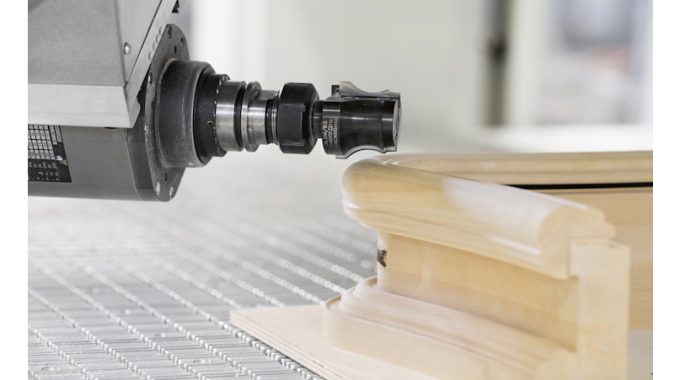

HEAVY DUTY PROFILING

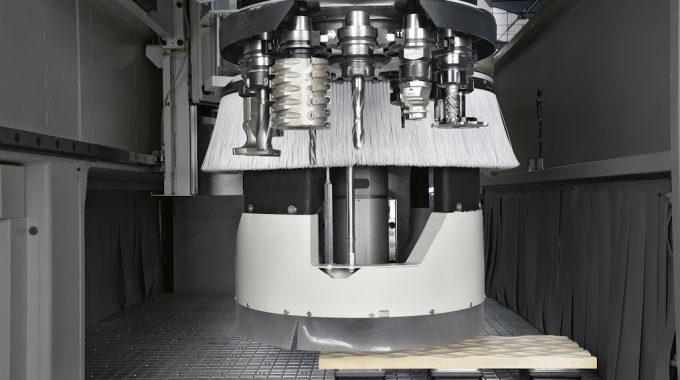

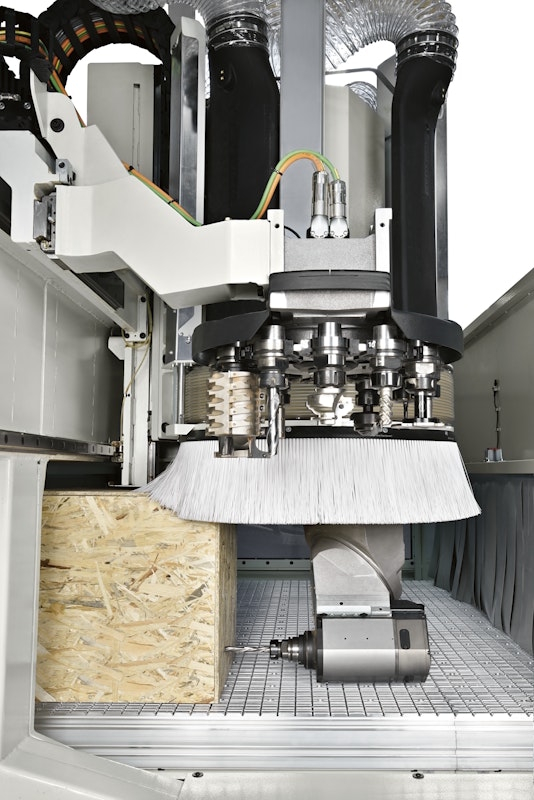

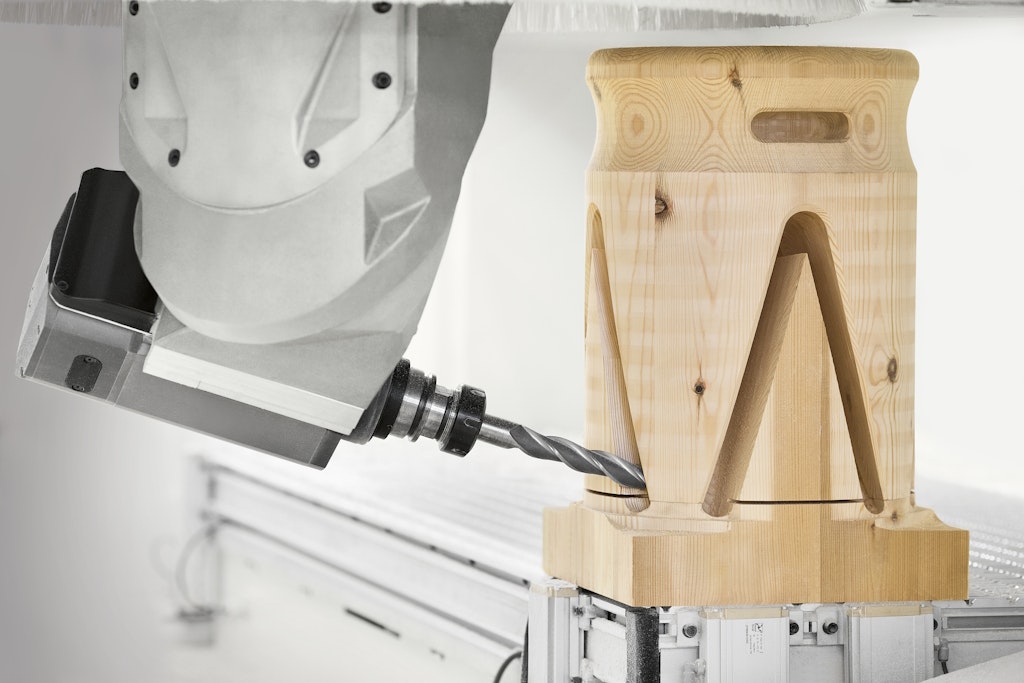

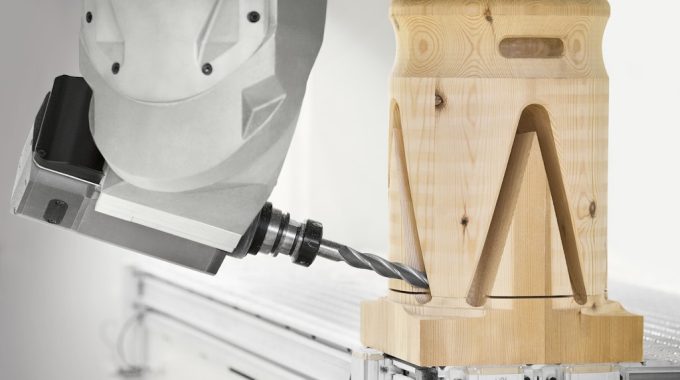

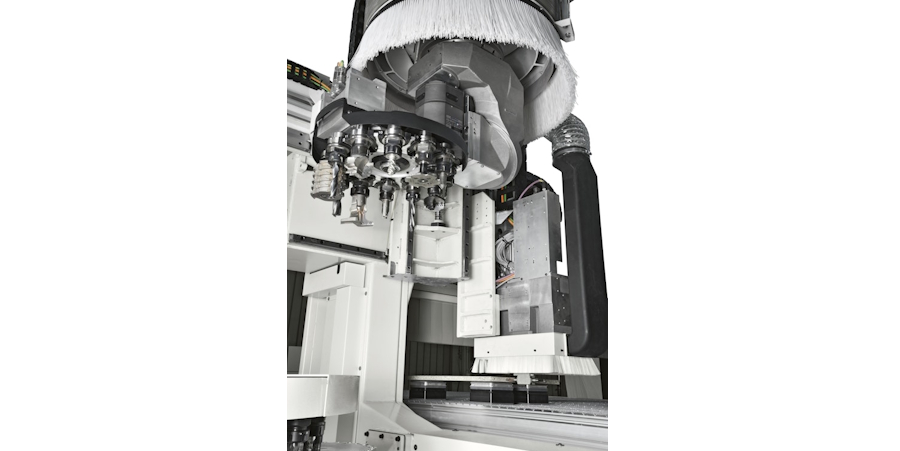

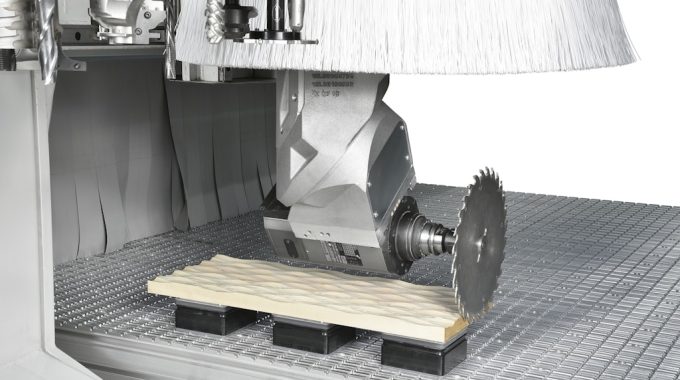

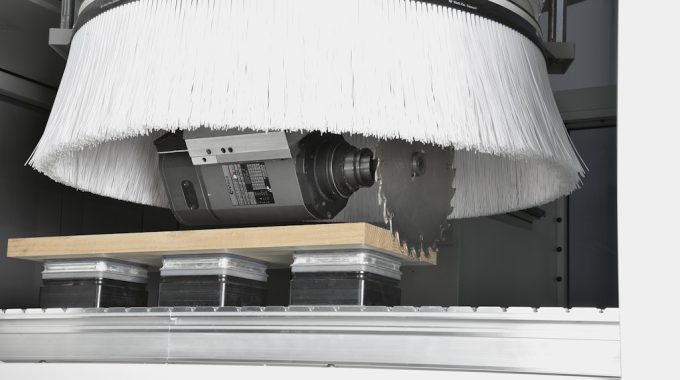

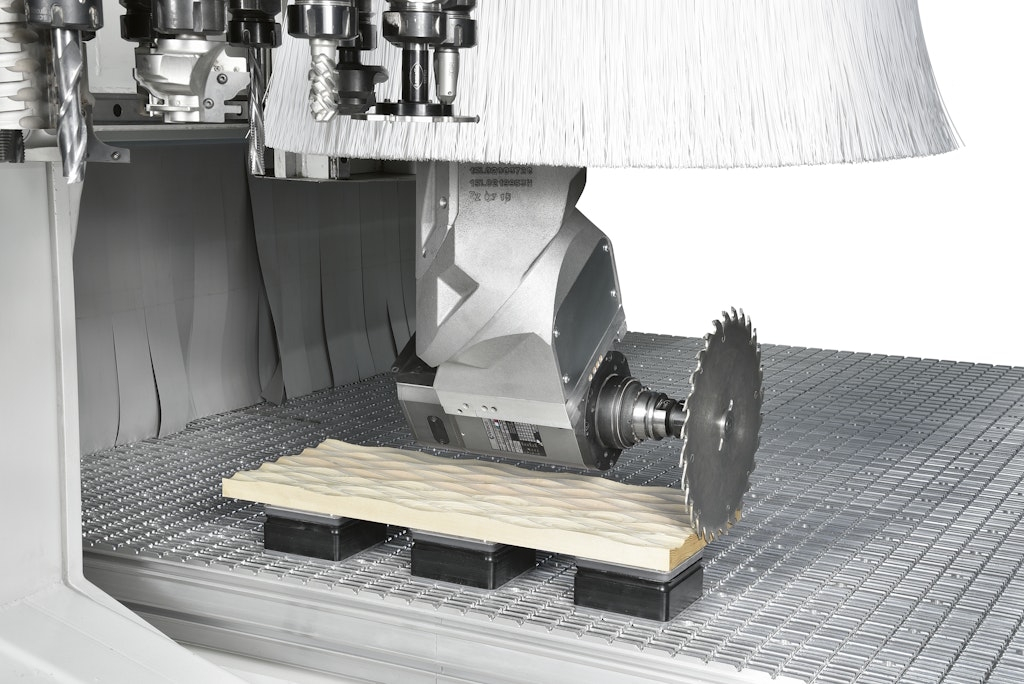

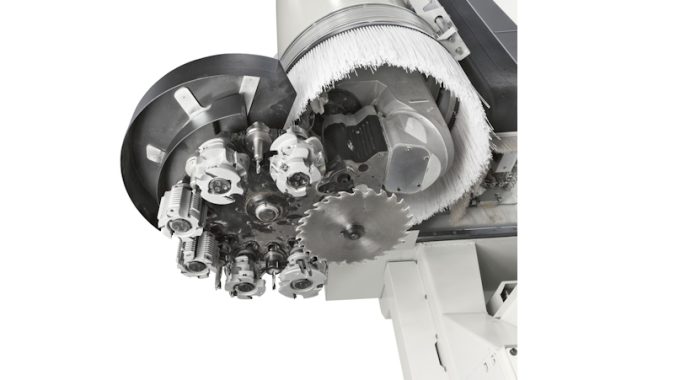

The PRISMA machining heads with 5 interpolating axes are designed for the processing of solid wood.
The ideal solution for windows, doors and stairs.
LARGE WORKING VOLUME
The increased Z-axis stroke allows the machining of work-pieces up to 500 mm in height, using large dimensioned tools.
RELIABLE TECHNOLOGY

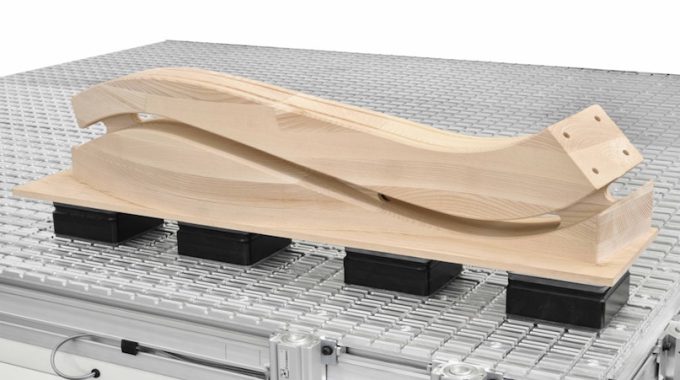

The SCM aluminium multi-function worktable guarantees perfect lasting planarity.

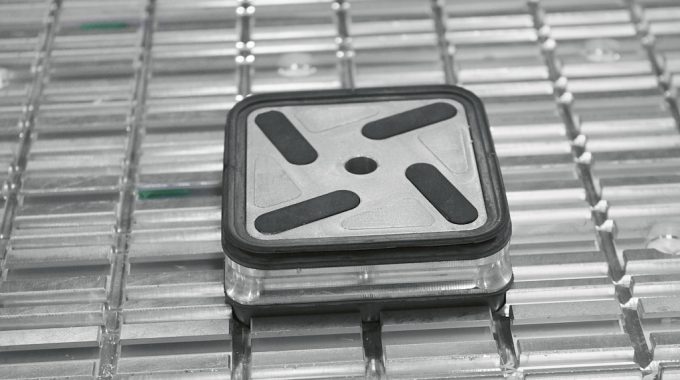

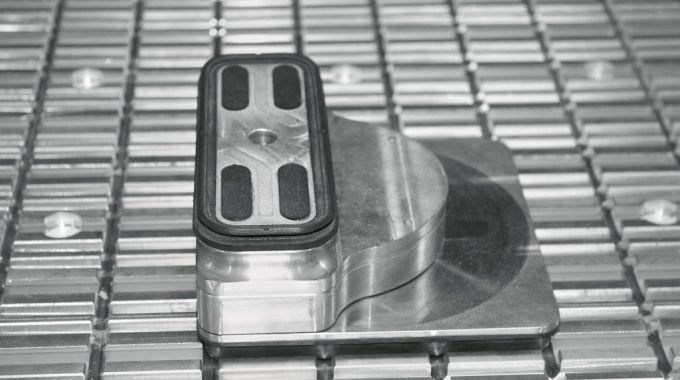

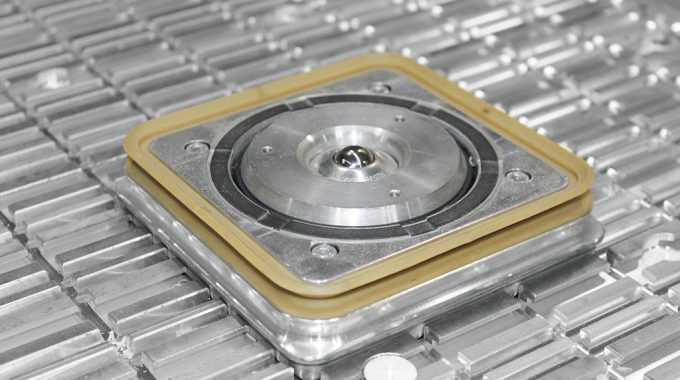

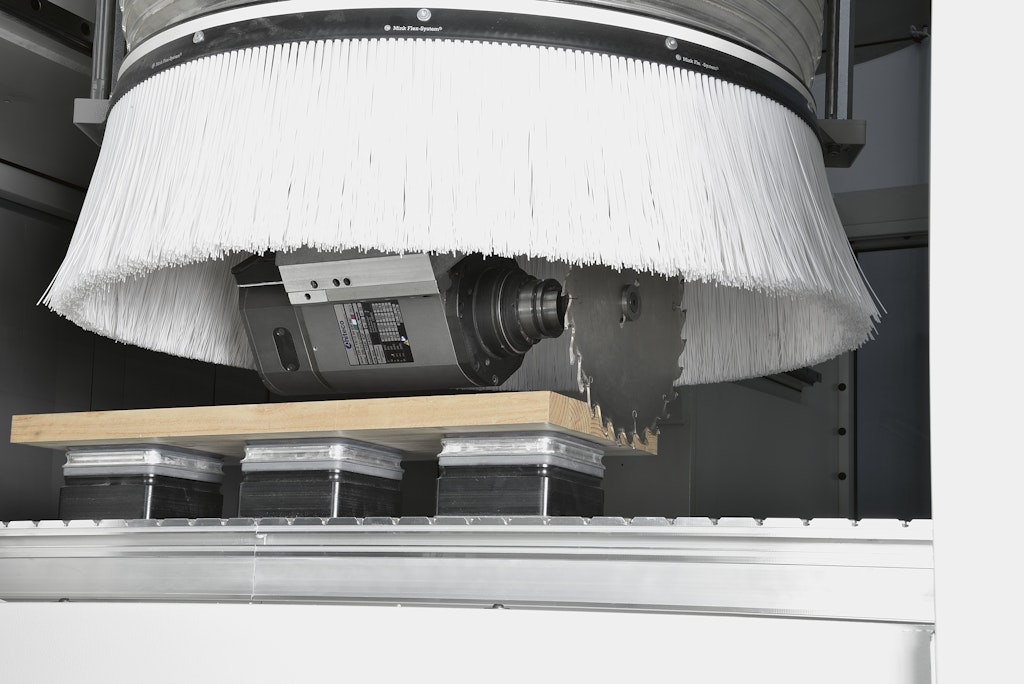

The direct integrated vacuum system allows the optimum work-piece hold down and the T-grooves are ideal for fitting of any type of mechanical locking equipment.
INTELLIGENT PROGRAMMING
Simple and intuitive programming, thanks to the MAESTRO software that includes modules for different applications.
| Function | Measurement |
|---|---|
| Working areas | |
| X-Y-Z axes dimensions | 3650 x 1600 x 500mm 4970 x 1600 x 500mm 6170 x 1600 x 500mm 3650 x 2120 x 500mm 4970 x 2120 x 500mm 6170 x 2120 x 500mm |
| Axes | |
| X-Y-Z axes max. speed | 95-80-30 m/min |

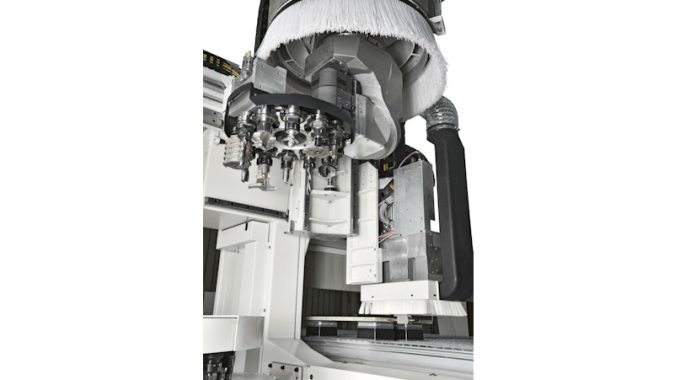

| Machining head | |
| 5 axes electrospindle motor power (max.) | 17kW |
| 5 axes electrospindle rotation speed (max.) | 2400rpm |

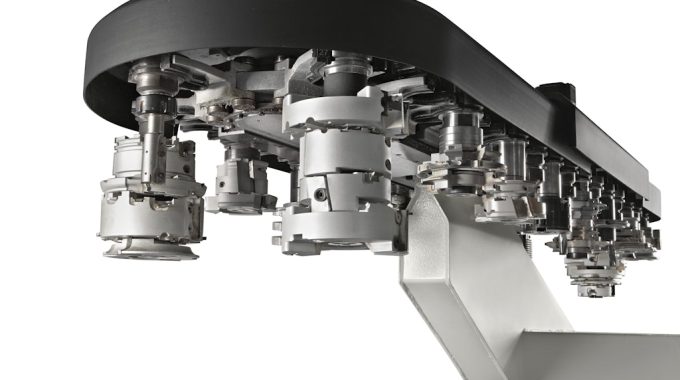

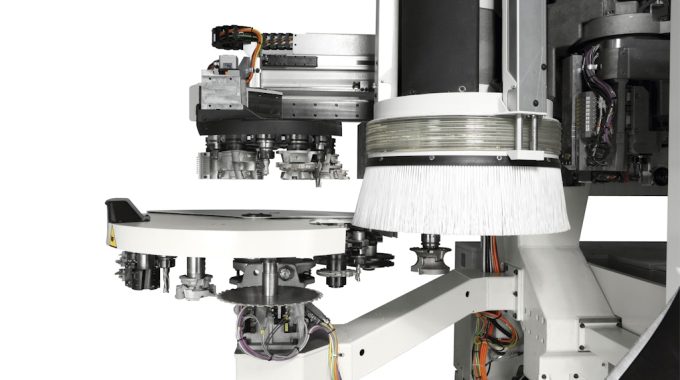

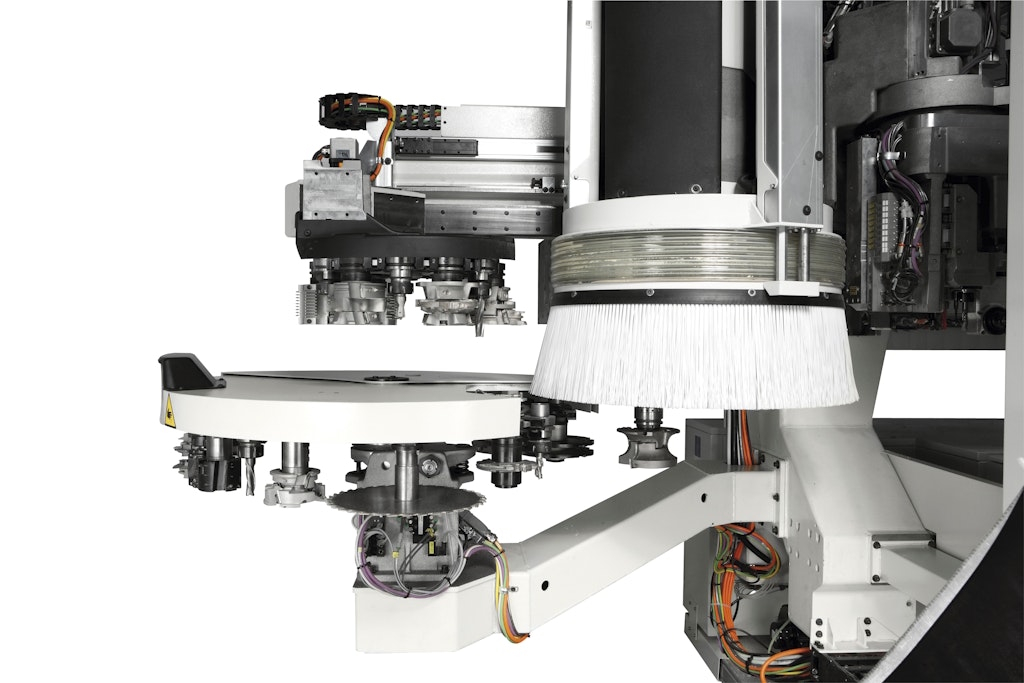

| Tool stores | |

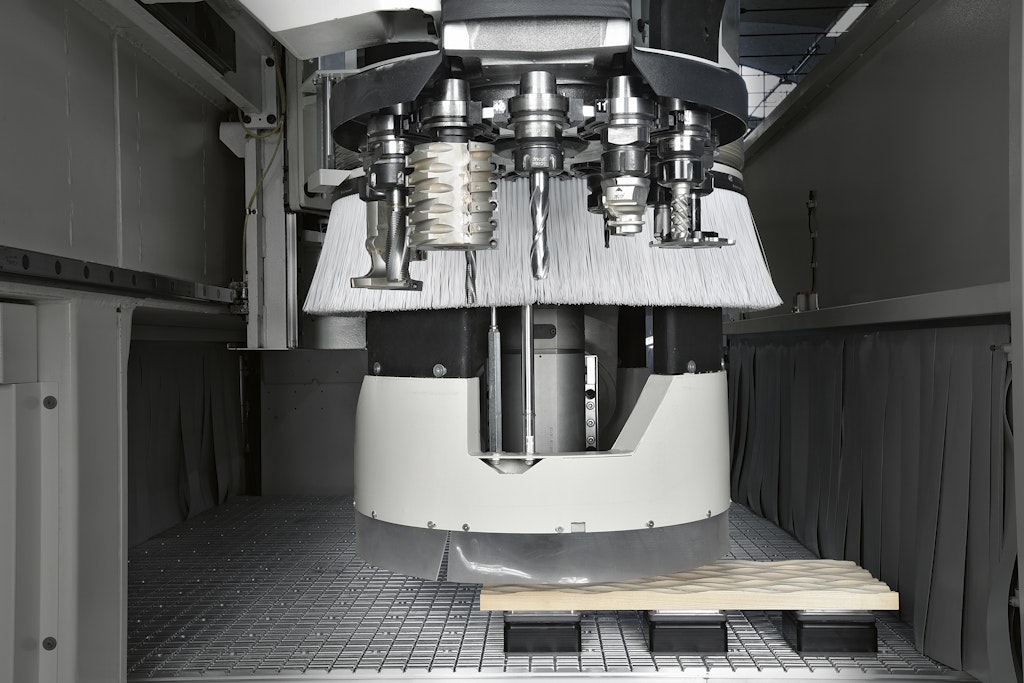

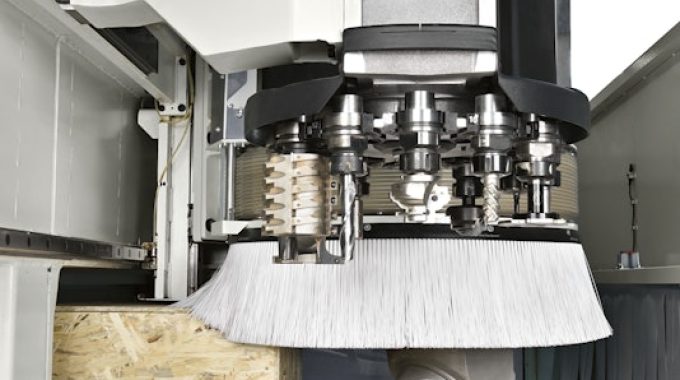

| Tool store on machining head | 12 positions |
| Rear tool store | 48 positions |
| Side tool store | 12 positions |

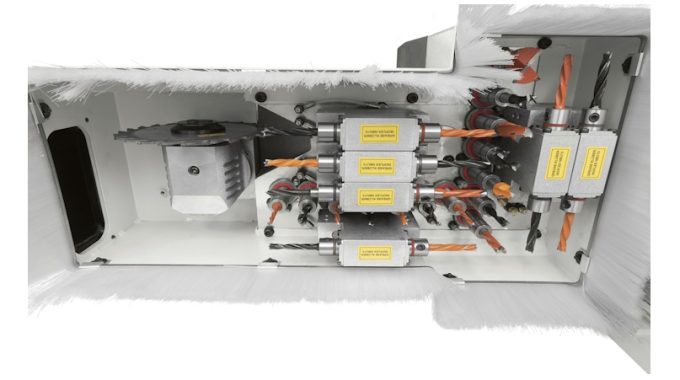

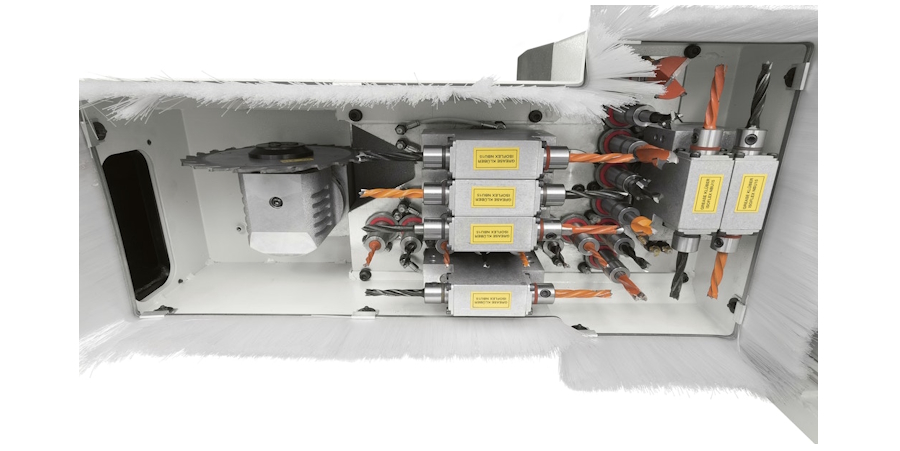

| Drilling unit | |
| Vertical and horizontal spindles (max.) | 26n. |
| Rotation speed (max.) | 8000rpm |
