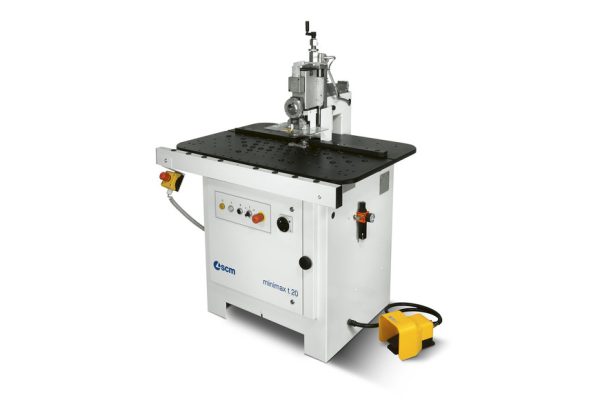

SCM Minimax t20 Edgebander
The SCM Minimax t20 Edgebander is ideal for the trimming of shaped panels and with tilted edge.
Manufacture – SCM Minimax
Condition – New
Price – From £5,755 (ex VAT)

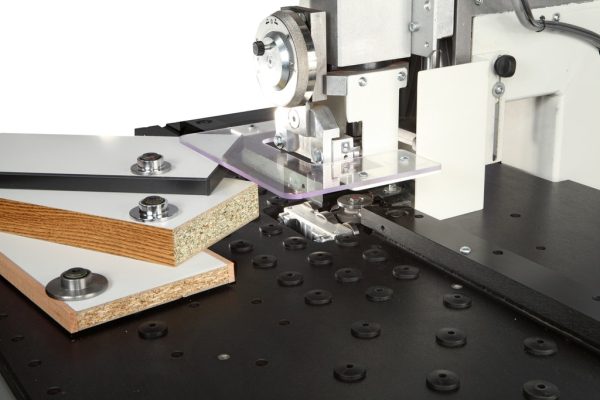

Simple and precise setting up of the trimming group. The trimming adjustment is carried out in few seconds and without errors by means of the Scm exclusive device which provides a pivoting ring with a decimal dial which allows the adjustment of the vertical copier without using any tool
.

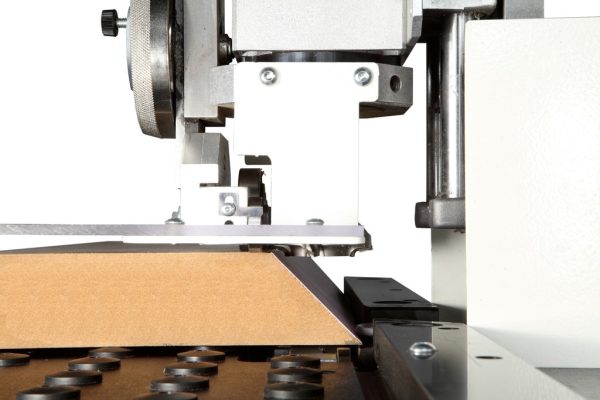

Possibility to work panels with tilted edge up to 45°.
Interchangeable copying devices for a rapid and precise set up during machining changeover, eliminating the horizontal adjustment.
| Function | Measurement |
|---|---|
| Edge Thickness | 4mm |
| Panel Thickness | 14 ÷ 80mm |
| Minimum Panel Width | 100mm |
| Minimum Panel Length | 200mm |
| Minimum Internal Radius | 25mm |
| Variable Cutters Speed | 9.000 ÷ 15.000rpm |
| Motor Power | 1,5kW |
| Overall dimensions | 1000 x 800 x 1400(H)mm |
| Options |
|---|
| Single-phase machine version |
| Pneumatic heads opening with pedal control |
| Front extension for the support of large dimensions panels |
| Wheels to allow machine movement |
| Pair of multifunction diamond cutters R=2mm |
