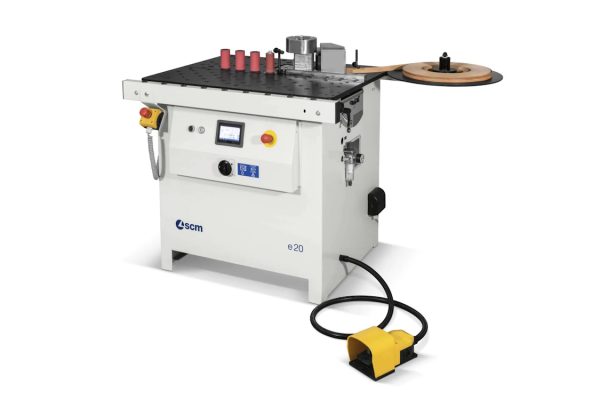

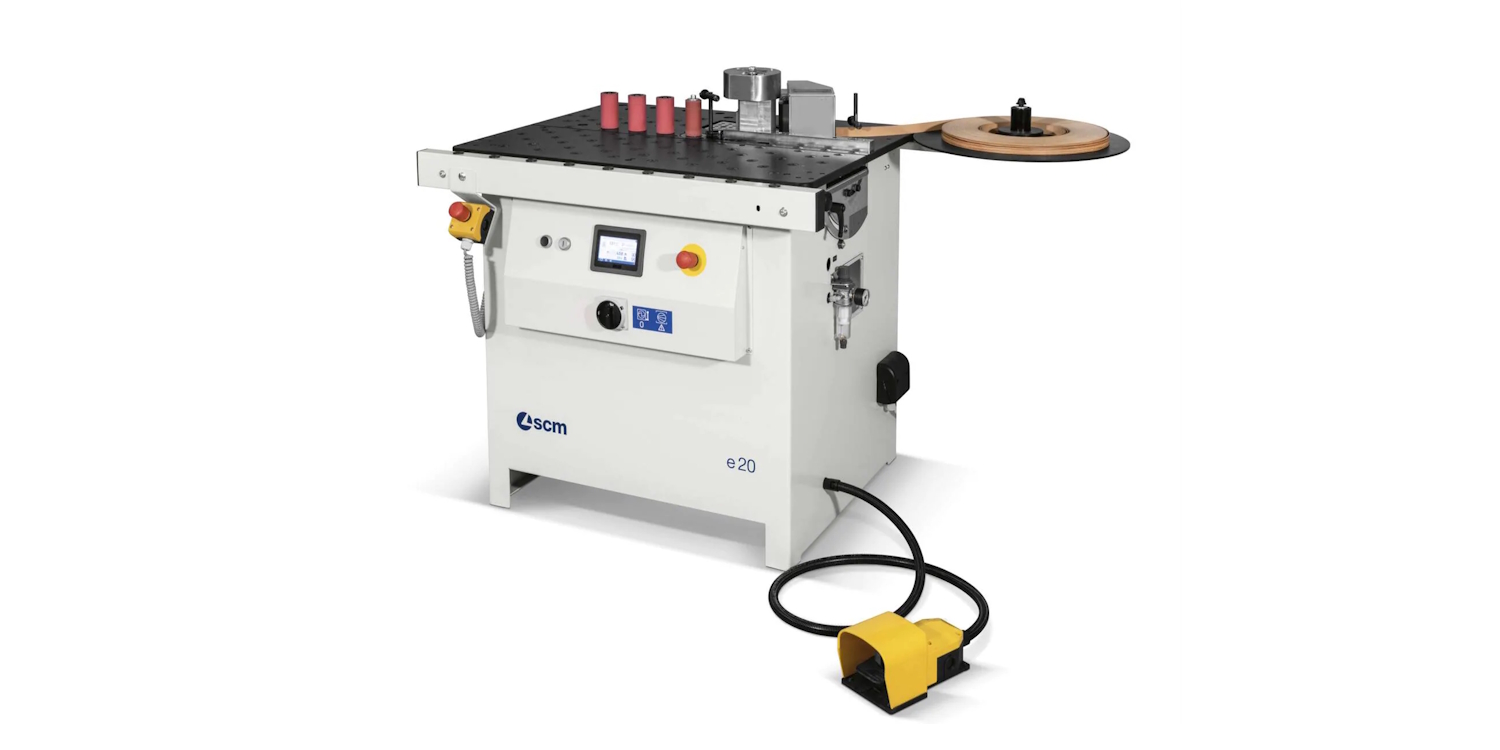

SCM e20 Edgebander

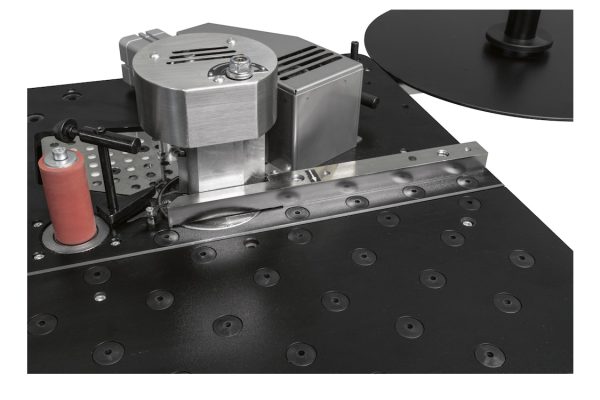

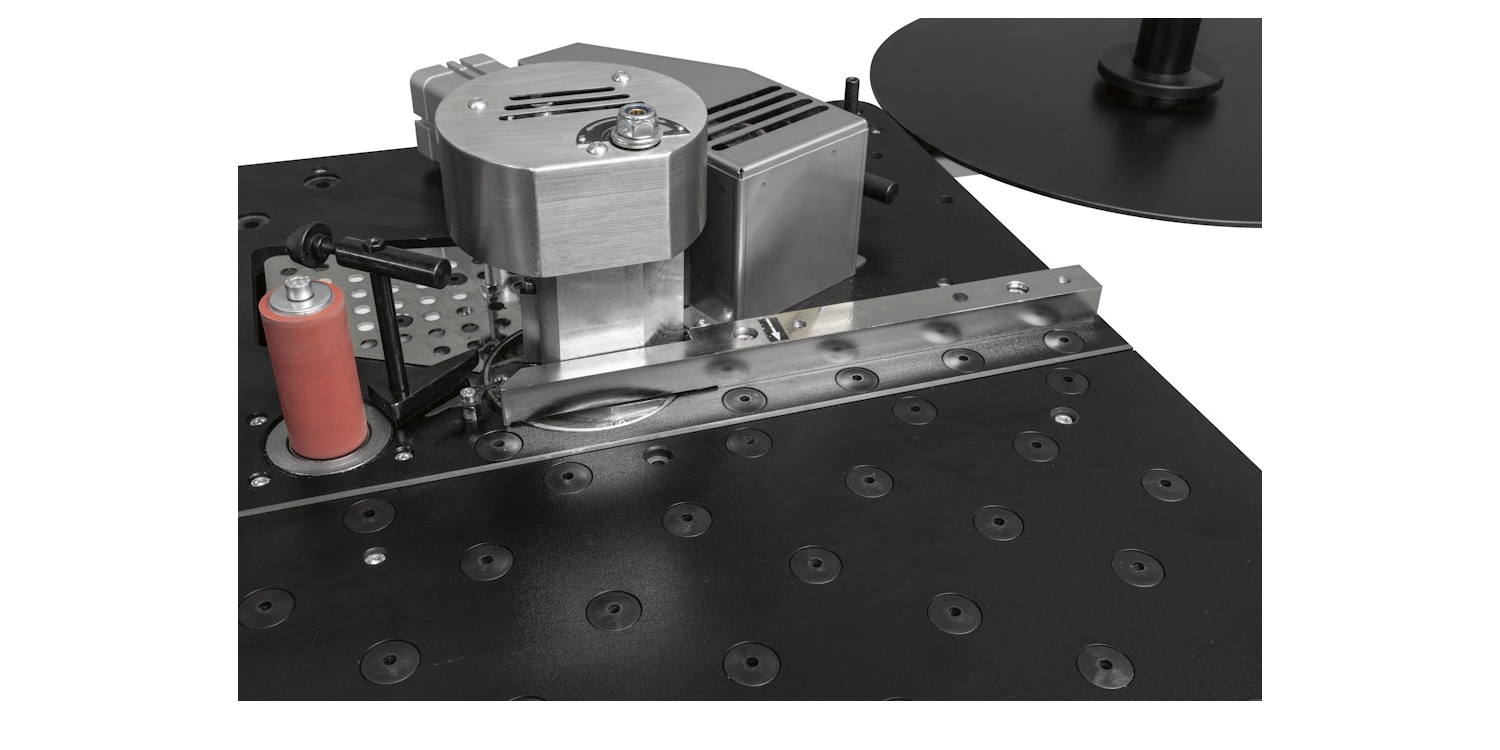

The SCM e20 edgebander provides edge banding with hot melt glue on edges in rolls and strips on shaped panels, simply essential and functional.

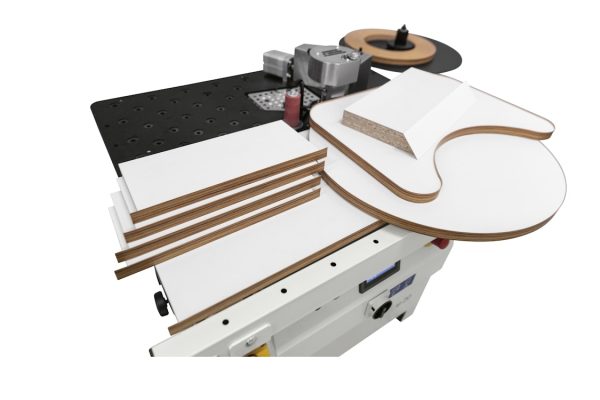

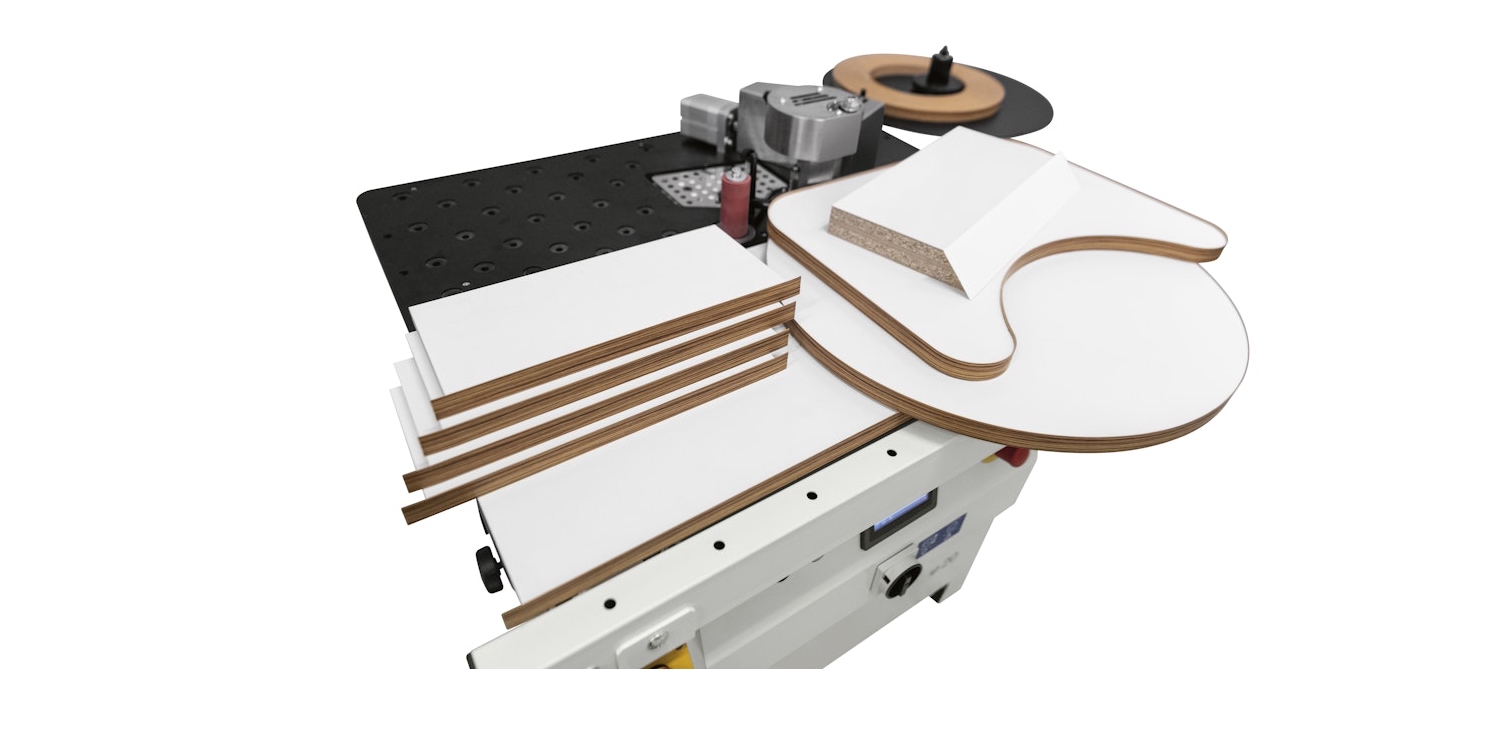

Designed to be economic, reliable and practical machine for the edge banding of straight and shaped panels.
Manufacture – SCM
Condition – New
Price – From £6,056 (ex VAT)

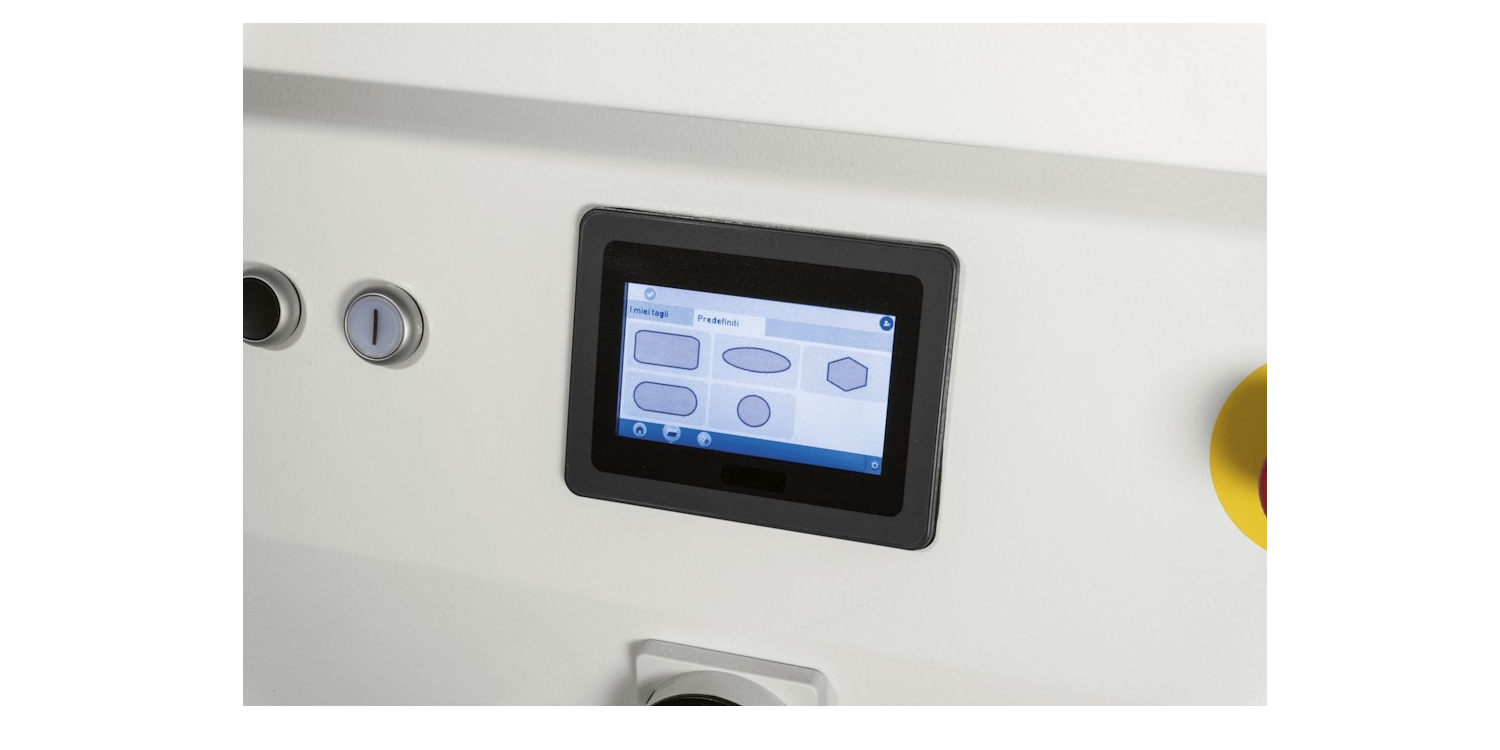

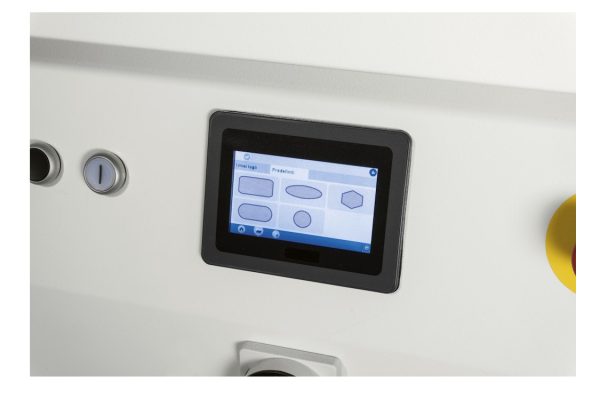

4,3″ touch-screen electronic control – Simple and intuitive, it enables an easy selection of all the main functions.

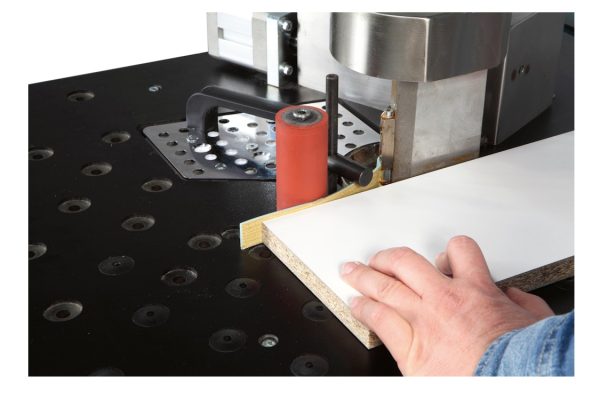

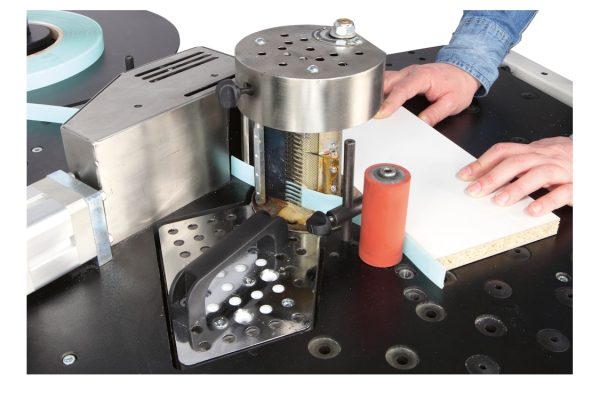

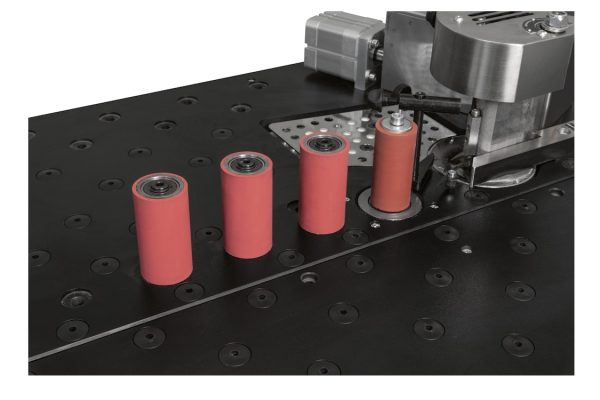

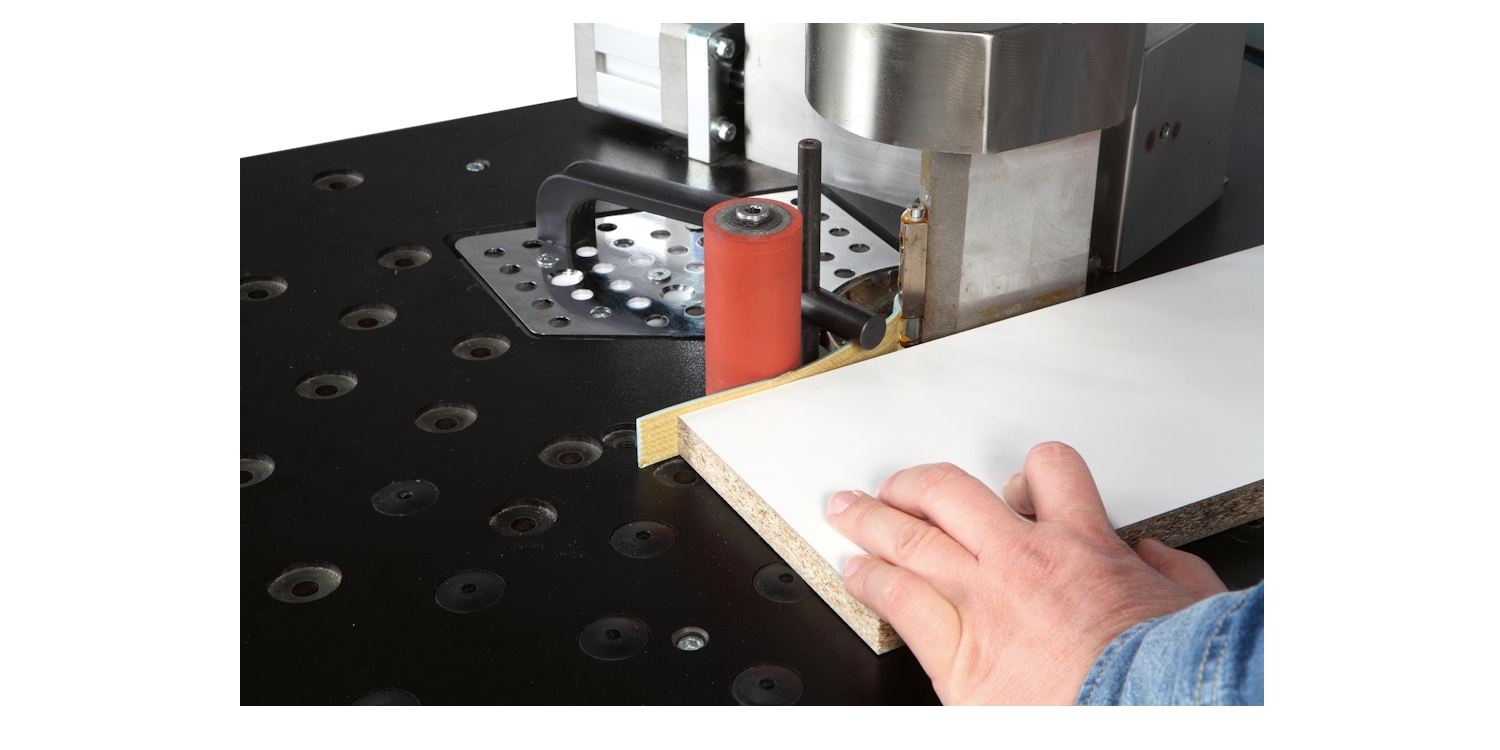

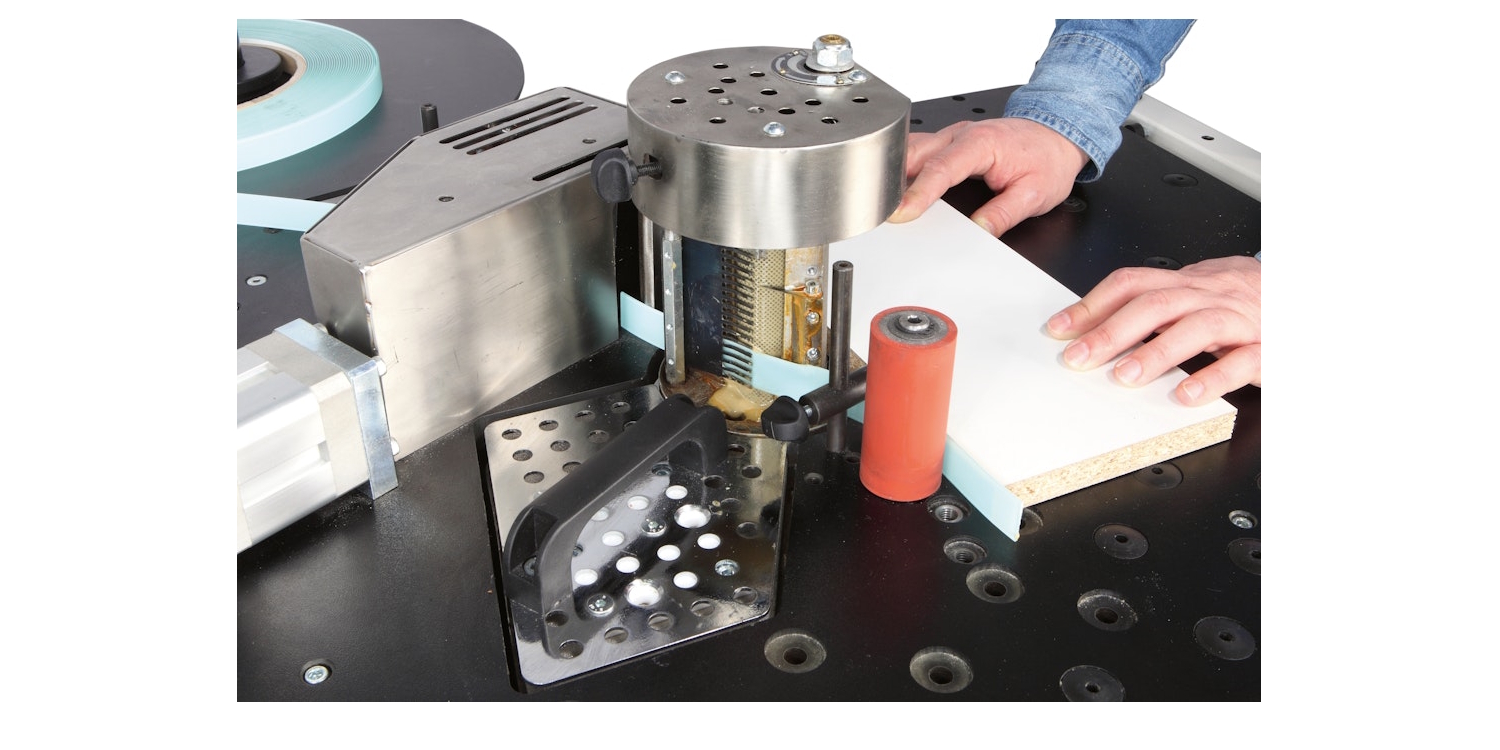

Powered pressure roller – It facilitates the panel feeding during the machining.

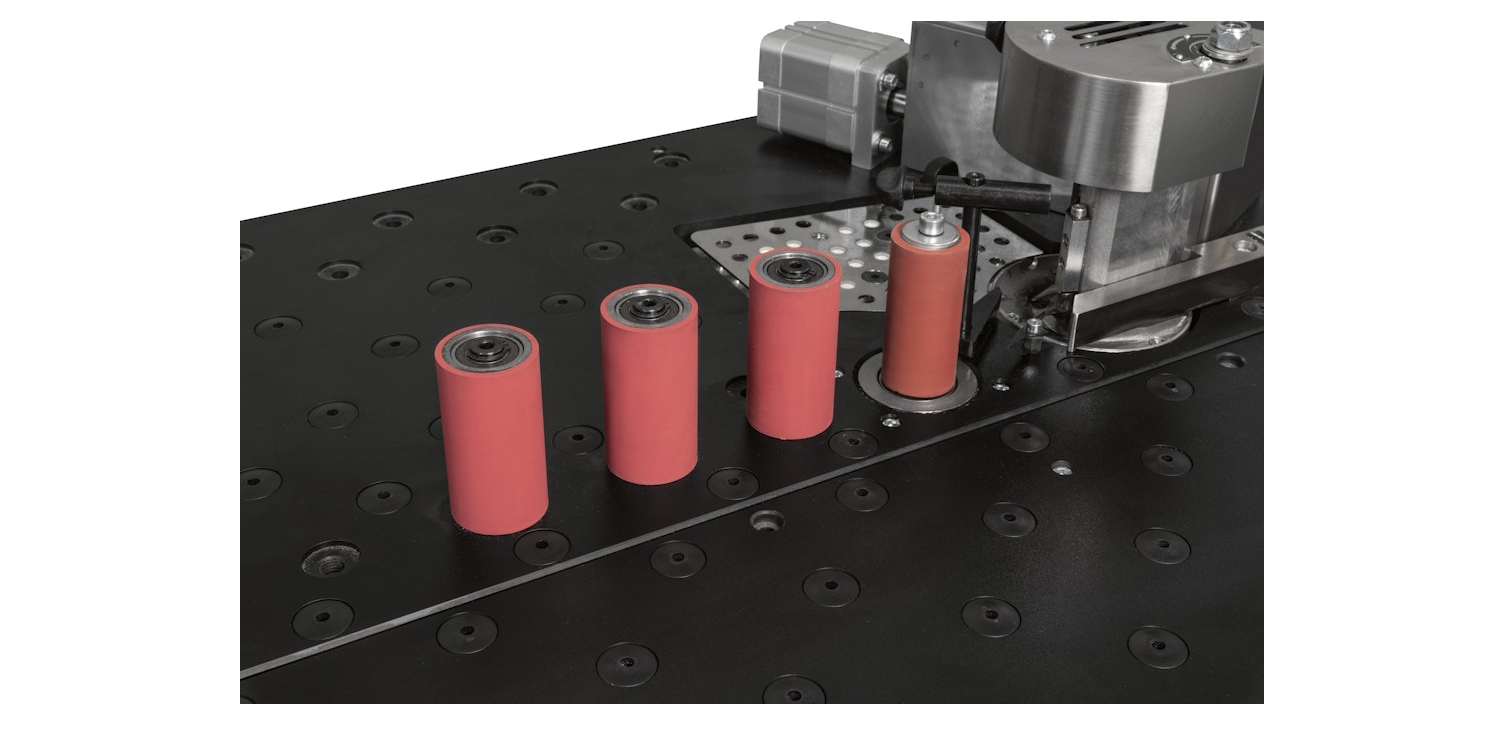

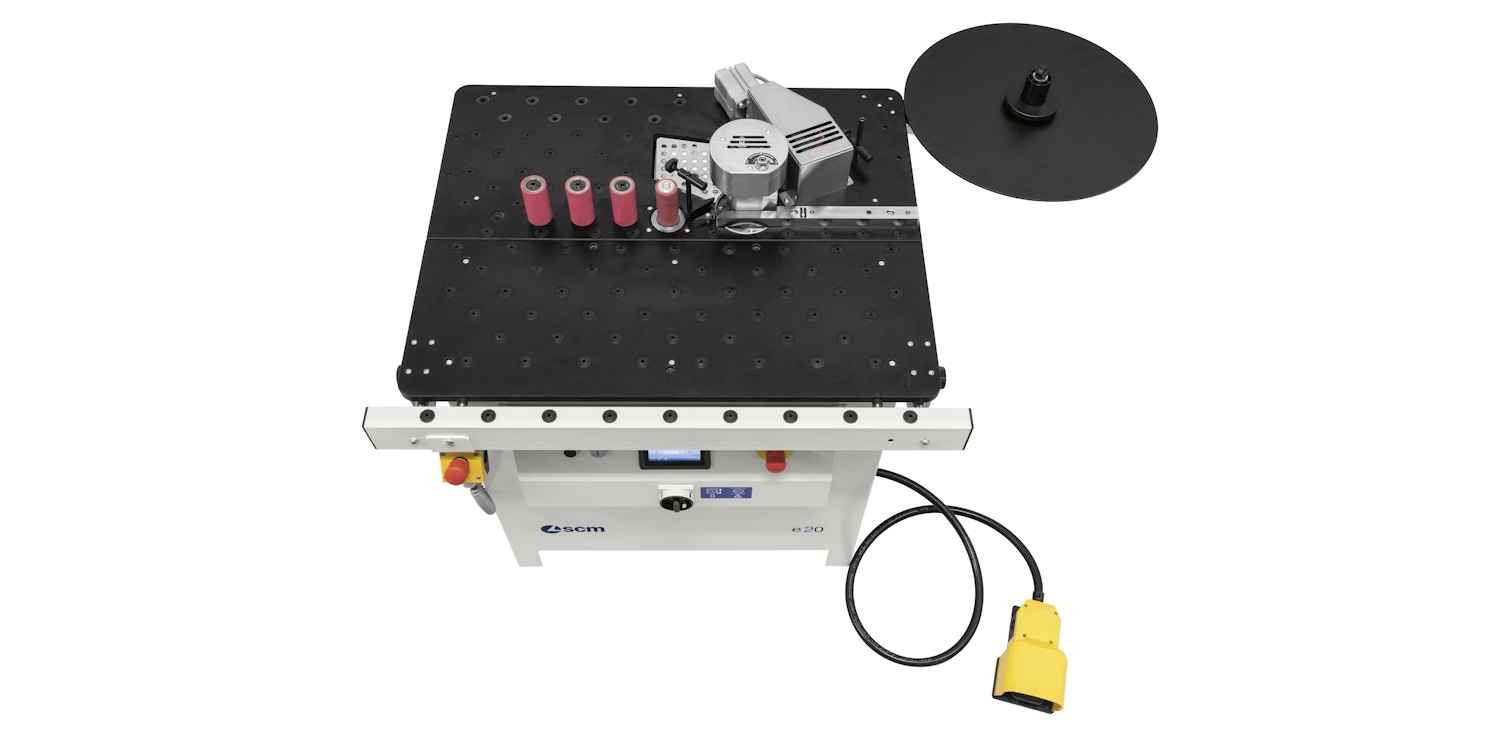

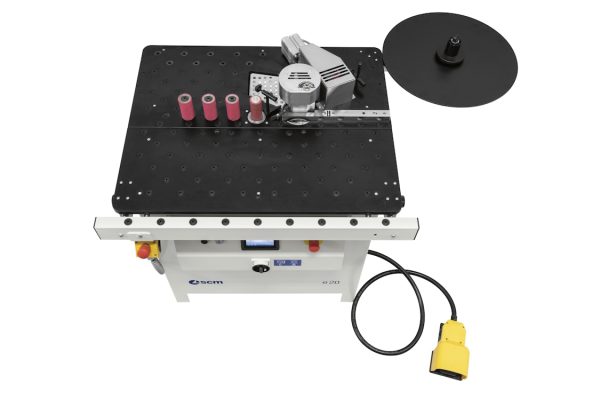

Anti-scratch phenolic multilayer worktable – No surface damage to the work piece during machining thanks to the special worktable with modular holes complete with panel supports.
| Function | Measurement |
|---|---|
| Min. ÷ max. edge thickness | 0,4 ÷ 3mm |
| Min. ÷ max. edge height | 10 ÷ 84mm |
| Min. ÷ max. panel height | 8 ÷ 80mm |
| Min. panels length/width | 290/50mm |
| Min. internal radius (concave), 0,4 mm thickness | 25mm |
| Min. external radius (convex), 0,4 mm thickness | 5mm |
| Feed speeds | 3 – 4 – 5 – 6 – 7 – 8m/min |
| Options |
|---|
| Single-phase machine version |
| 780 mm coil-holder plate |

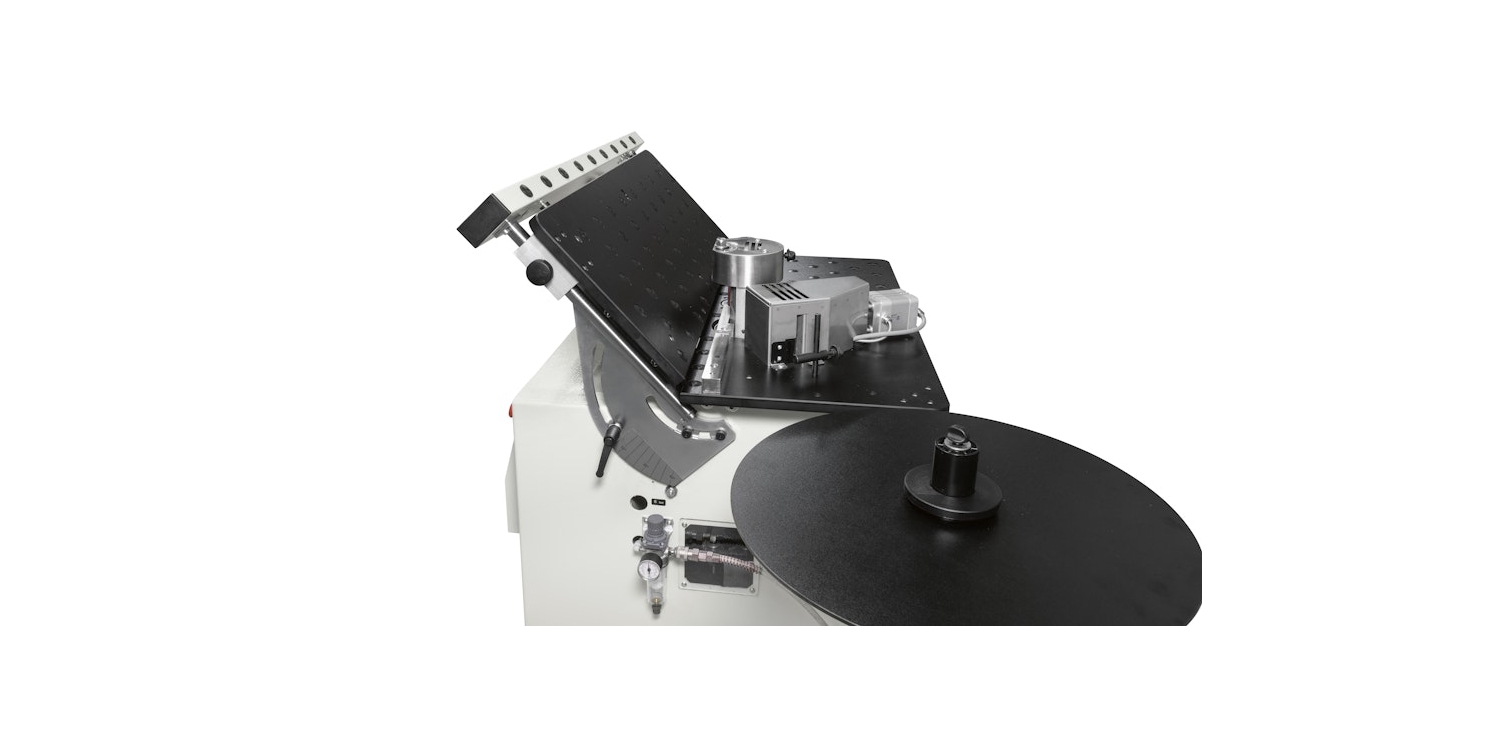

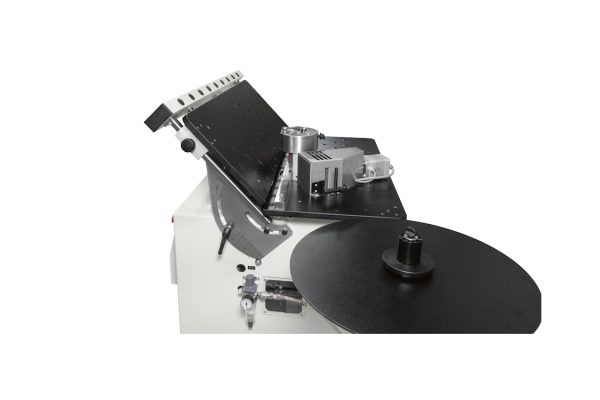

| Adjustable tilting table from 0 to 45° |

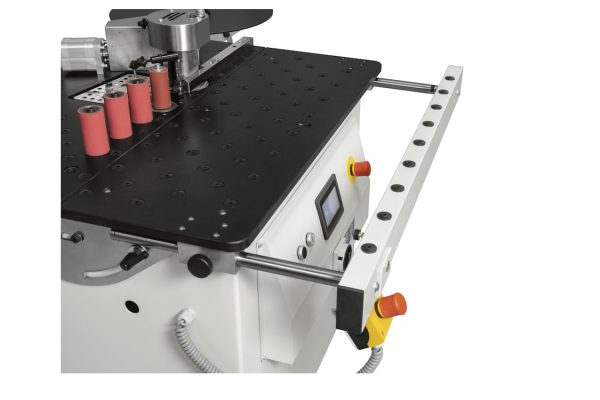

| Infeed fence for linear panels |
| 3-roller outfeed fence |

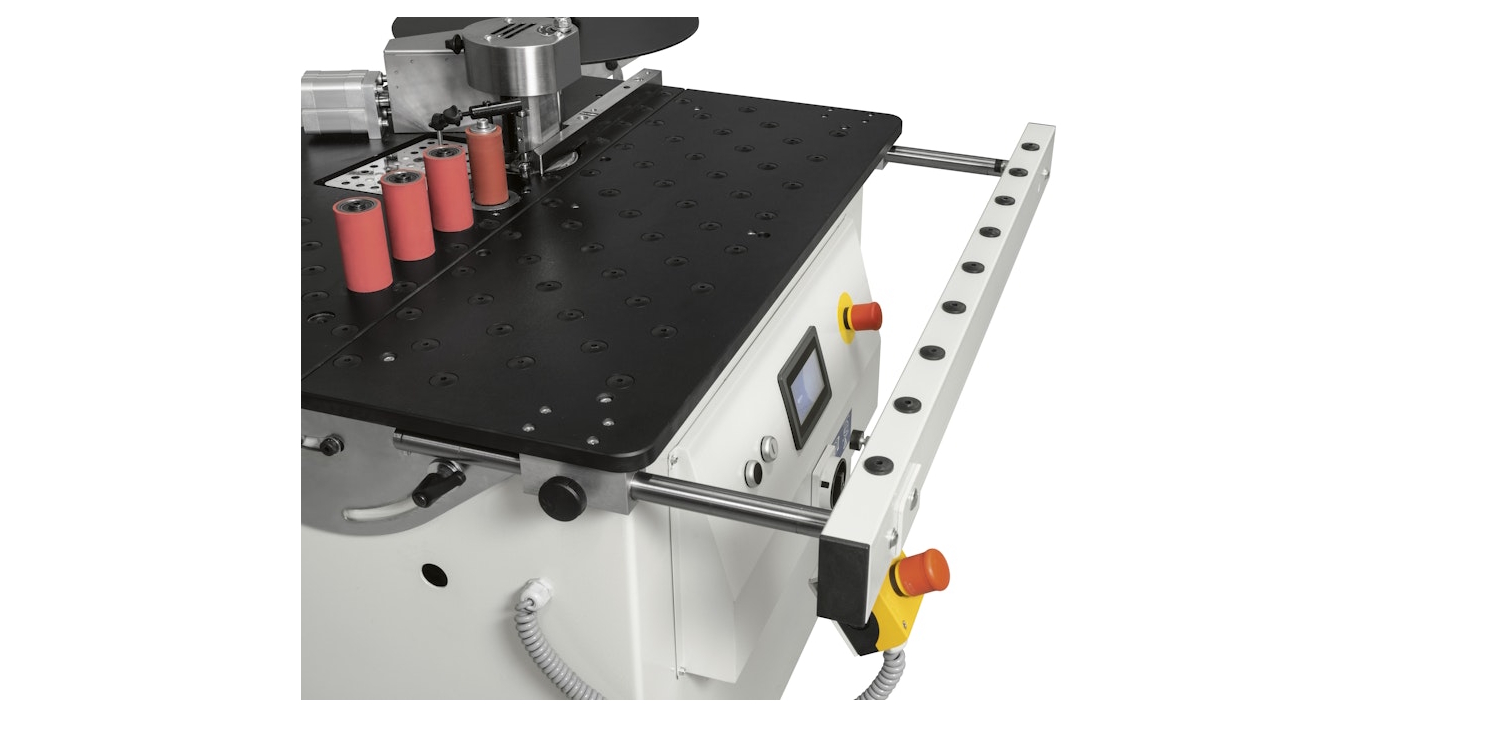

| Front extension for the support of large dimensions panels |
| Wheels to allow machine movement |
