SCM L'invincibile ti5 Spindle Moulder
SCM L’invincibile ti5 Spindle Moulder – The exclusive choice for your success.
Buying a “L’invincibile ti 5” machine means you get a customised solution, the result of years of experience, technical research, Italian creativity.
Console eye-S main functions:
– connectivity among machines belonging to the same company network and 4.0 Industry preset
– sharing of work programs and tools database
– activity monitoring and reporting on the use of the machine
– self-diagnosis, tele-service and link to troubleshooting
Manufacture – SCM
Condition – New
Price – From £30,699 (ex VAT)

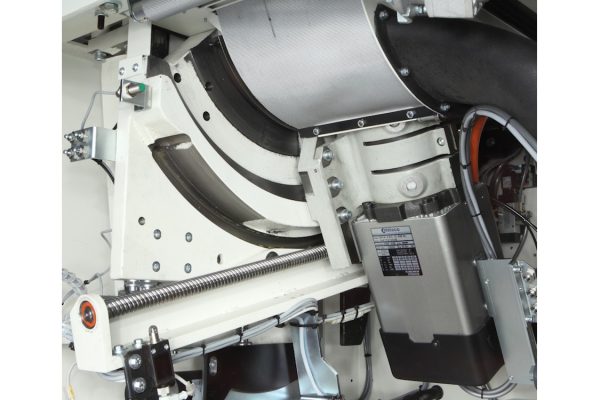

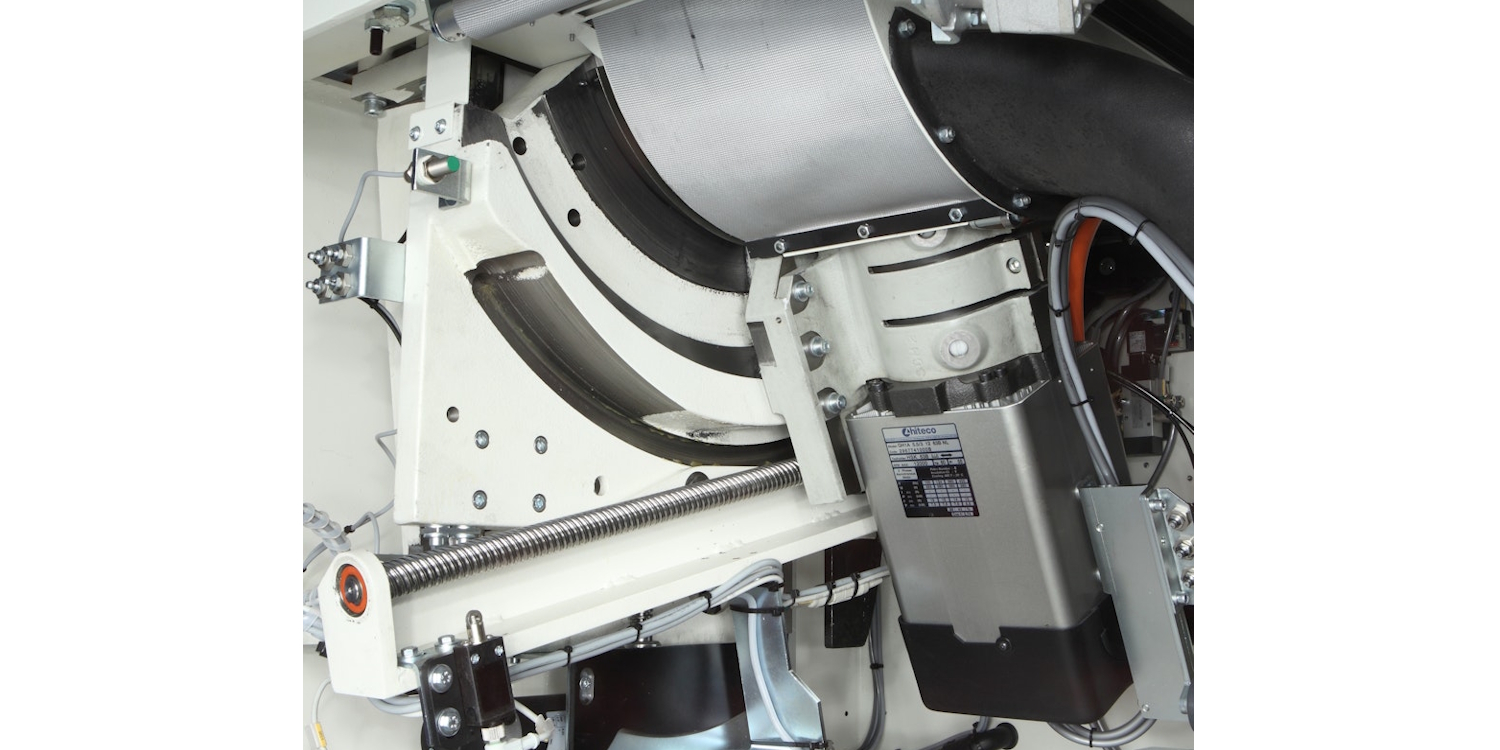

Electrospindle (option): machining centre technology for the woodworker. Absolute machining precision and absence of vibration due to the perfectly balanced structure of the electrospindle. The electrospindle’s direct drive eliminates any maintenance procedures that are common with conventional belt driven systems.
“FAST” sectional worktable: the best support for the workpiece. Provides support for the work piece being machined also close to the tool, allowing the adjustment with mounted tools.
“FLEX” fence: immediately in the correct position. A single simple movement to retract and re-position in an instant and accurately position the fence on the worktable with such precision that no other control is necessary (Scm patent).
eye-S console: the pleasure of controlling all machine functions from the control panel. The new control panel, with its attractive design, allows easy and intuitive machine programming, combining the 15” colour touch-screen display and the Maestro active user interface.
| Function | Measurement |
|---|---|
| Worktable Dimensions | 1200 x 780mm |
| Spindle Tilting | +/- 45.50° |
| Spindle Base Projection From Table | 50mm |
| Max. Tool Diameter Retractable Under Worktable | 300 x 80mm |
| Electrospindle | Standard |
| Max. useful spindle length | 140 / 5.5 mm / inches |
| Spindle speed | 900 – 12000 rpm |
| Max. diameter of the profiling tool | 250 / 10 mm / inches |
| Max. diameter of the tenoning tool | 300 / 11.8 mm / inches |
| Three-phase motor power | 13 Hp |
