SCM L'invincibile ti7 Spindle Moulder
SCM L’invincibile ti7 Spindle Moulder – The exclusive choice for your success.
Buying a “L’invincibile ti 7” machine means you get a customised solution, the result of years of experience, technical research, Italian creativity.
Console eye-S main functions:
– connectivity among machines belonging to the same company network and 4.0 Industry preset
– sharing of work programs and tools database
– activity monitoring and reporting on the use of the machine
– self-diagnosis, tele-service and link to troubleshooting
Manufacture – SCM
Condition – New
Price – From £45,531 (ex VAT)

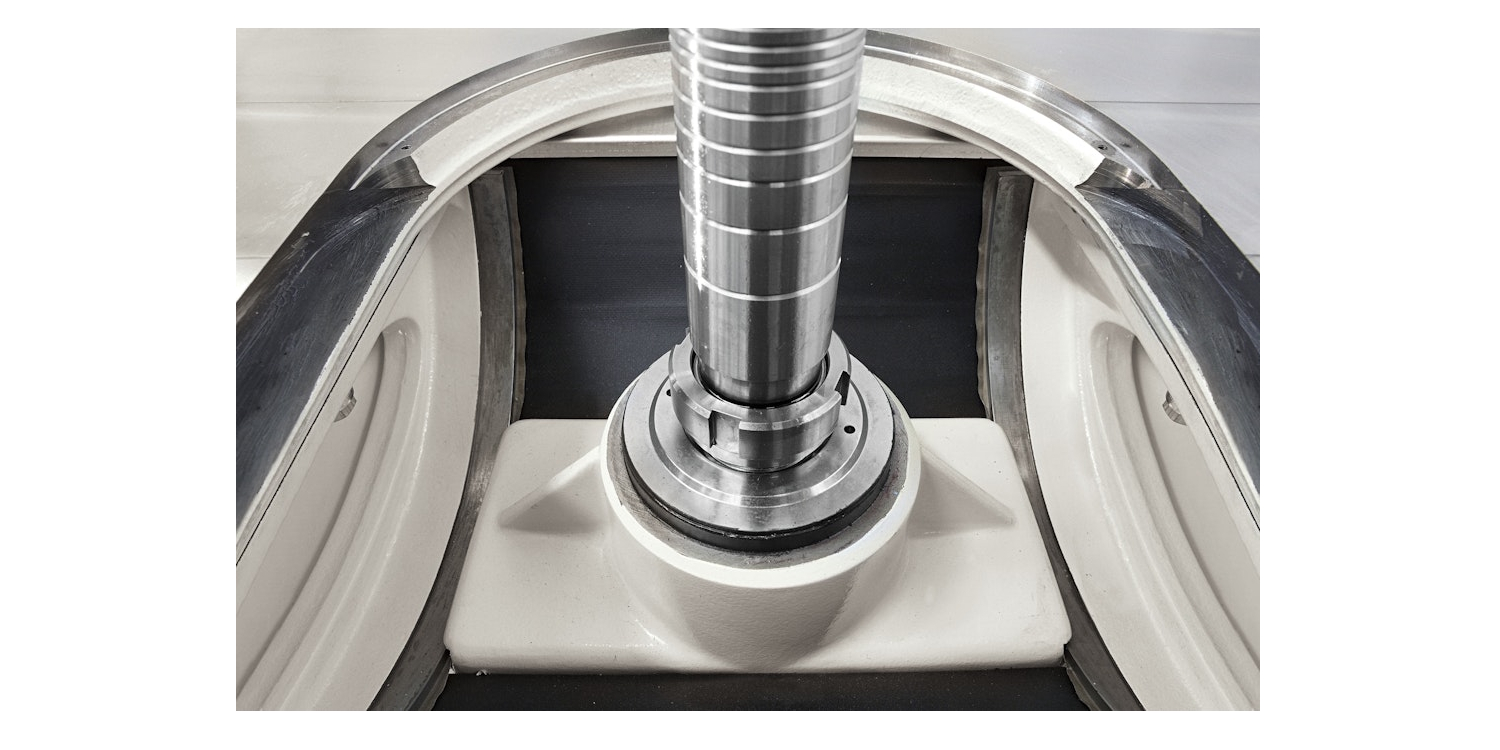

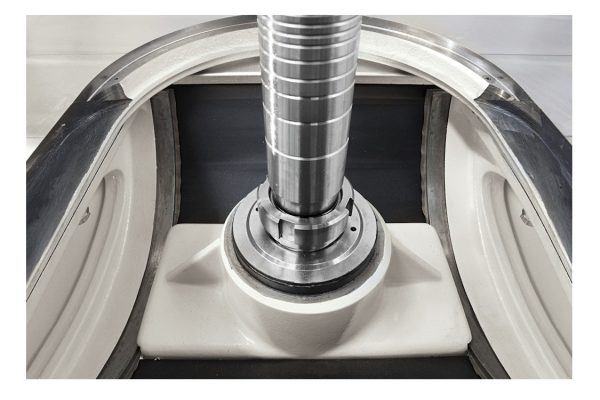

Electrospindle: machining centre technology service for the woodworker.
Absolute machining precision and absence of vibration due to the perfectly balanced structure of the electrospindle. The electrospindle’s direct drive eliminates maintenance procedures common with conventional belt driven systems.

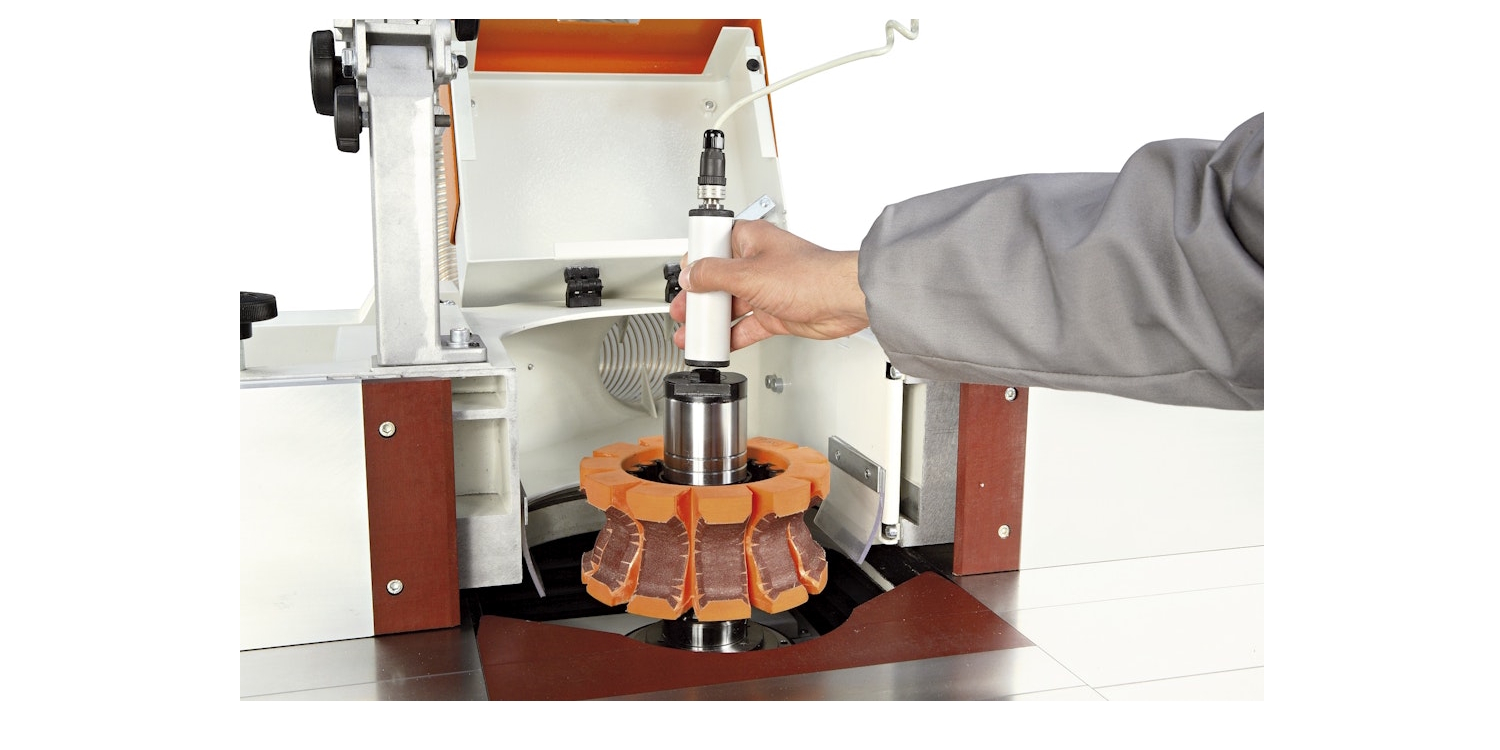

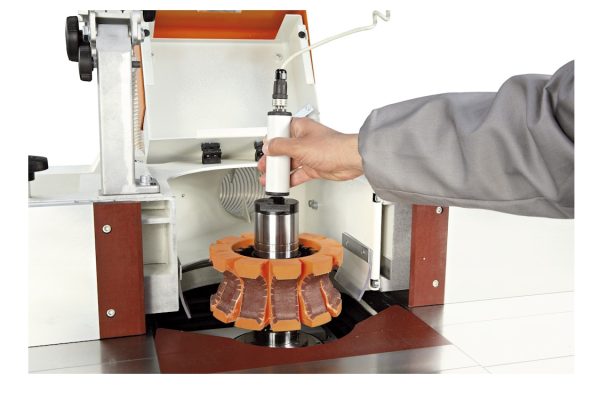

Rapid tool changeover: flexible and safe with a time saving of 75% in the machine set up compared to the traditional systems. Maximum coupling precisionwith the double air jet system that keeps contact surfaces clean.
Tool detection system: setting up speedily and safely. This system eliminates any manual operation for setting up the required work allowing the operator to automatically input all the work data.
eye-S console: the pleasure of controlling all machine functions from the control panel. The new control panel, with its attractive design, allows easy and intuitive machine programming, combining the 15” colour touch-screen display and the Maestro active user interface.
| Function | Measurement |
|---|---|
| Worktable Dimensions | 1200 x 750mm |
| Spindle Tilting | +/- 45.50° |
| Spindle Base Projection From Table | 54mm |
| Max. Tool Diameter Retractable Under Worktable at 90° | 300 x 80mm |
| Max. useful spindle length | 140 / 5.5 mm / inches |
| Spindle speed | 900 – 12000 rpm |
| Max. diameter of the profiling tool | 250 / 10 mm / inches |
| Max. diameter of the tenoning tool | 300 / 11.8 mm / inches |
| Three-phase motor power | 15 Hp |
