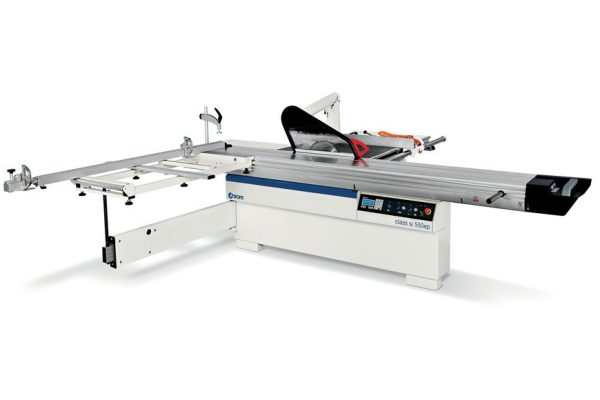

SCM Class si 550ep Panel Saw
The SCM Class si 550ep Panel Saw is a circular saw with 550 mm blade. The best solution for every application.
Very high cutting quality thanks to the sliding table structure with special ground-arch steel guides (Scm patented solution).
Torsional rigidity and total absence of vibration through the closed loop structure of the saw unit which ensures perfect alignment of the blades.
“Ready”: the practical advantage for automatic control of the main positions. Programming of the work simple and effective with the electronic control (programmed version).
Manufacture – SCM
Condition – New
Price – From £20,981 (ex VAT)

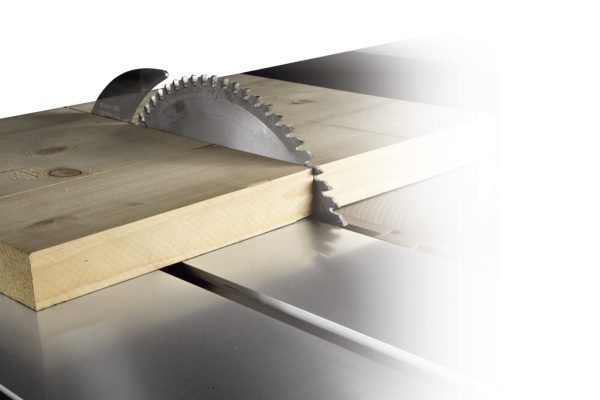

Saw unit: a perfect cut. Maximum torsional rigidity and the total absence of vibration through the closed loop structure of the saw unit.

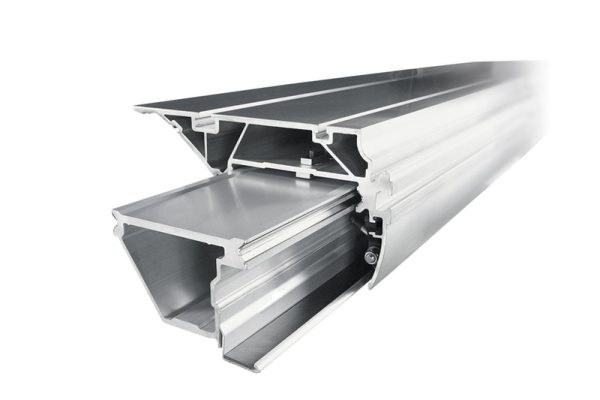

Sliding carriage: maximum cut quality guaranteed over time. The carriage will never require adjustment due to its structure with arch-ground steel slideways (developped by Scm).
READY: the practical advantage for automatic control of the main positions. The programming of the work becomes simple and effective with the electronic control with a 4” LCD colour screen.

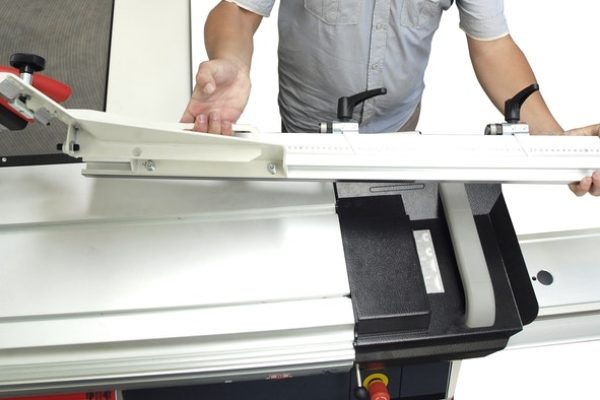

Practicality and safety ensured by the motorised programmable rip fence with steel cable and sliding on sturdy round steel bar. Position readout on magnetic band.
| Function | Measurement |
|---|---|
| Main Blade Diameter | 550mm |
| Cutting Height At 90°/45° | 200/130mm |
| Blade Tilting | 90°/46° |
| Blades Lifting & Tilt | Programmed |
| Control & Working Height Readout | Ready |
| Main Blade Rotating Speed | 2500-3500-5000rpm |
| Scoring Blade Rotating Speed | not installed |
| Main Blade Motor Power | 7kW (9,5Hp) |
| Scoring Blade Motor Power Hz 50 | not installed |
| Squaring Capacity With Carriage And Extended Stop | 3200 x 3200mm (3800 x 3200mm option) |
| Cutting Width On Parallel Fence | 1270mm |
