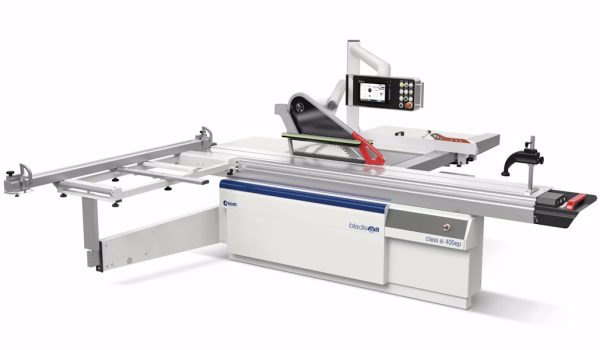

SCM Class si 400ep Blade Off Panel Saw
SCM Class si 400ep Blade Off Panel Saw.
The blade off system prevents any accidental contact with the blade thanks to an intelligent system that using smart sensors, can recognise the human body and trigger the system even before the operator gets too close to the blade, protecting the danger zone around it, at all times and in all environmental conditions.
The system automatically excludes the blade in a rapid, repeatable and non-distructive way, activating in a few milliseconds, avoiding contact between the blade cutting edge and the human body even at high feed speeds of up to 2 m/s.
Moreover, in the event of an intervention, the system can be rearmed without affecting the accuracy and the performance of the machine.
Manufacture – SCM
Condition – New
Price – From £46,771 (ex VAT)
SMART SOLUTION

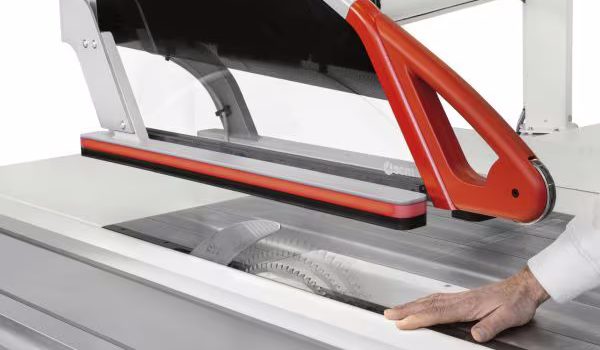

Due to the detection type, blade off activates regardless of the hand position and any other part of the human body inside the danger zone.
The system operates despite of the personal protective equipment the operator wears; in fact, it also performs perfectly with any type of glove worn.
SAFETY AND ERGONOMICS
The new system for circular saws is the innovative technological solution designed by SCM to work in total safety.
The essential design ensures movement freedom related to overall dimensions and aesthetics impact.

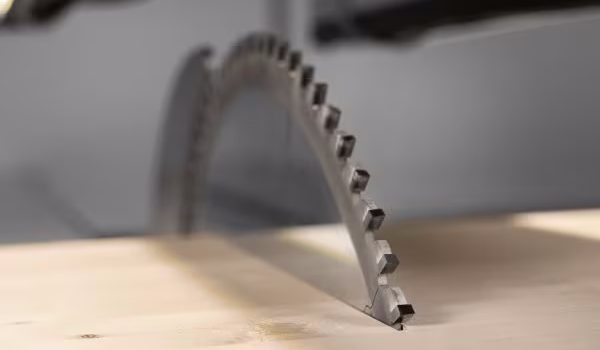

REPEATABILITY AND RELIABILITY OVER TIME
The system provides the possibility of quick reset without compromising the machine quality and stability over time.

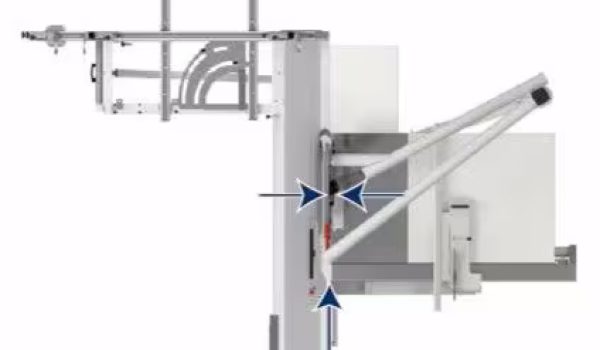

EXPANDED PROTECTION
The protection is guaranteed on the 3 areas next to the blade (work-piece infeed and side areas) to prevent any possible contact even caused by inappropriate or accidental movements.
| Function | Measurement |
|---|---|
| Max. main blade diameter | 400mm |
| Scoring blade diameter | 120mm |
| Max. diameters to be used simultaneously | 400 x 120mm |
| Max. cutting height at 90° | 120 with 400mm blade |
| Max. cutting height at 45° | 89 with 400mm blade |
| Blade tilting | 0 ÷ 45° |
| Blades lifting and tilting | programmed |

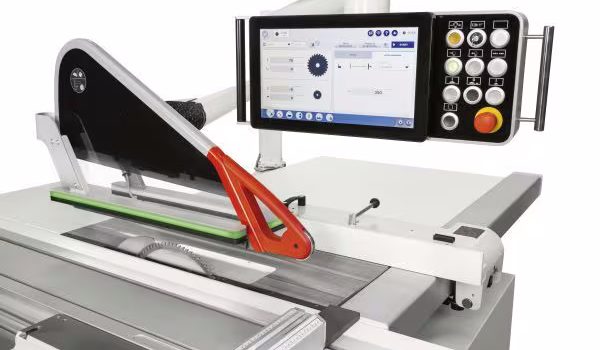

| Electronic control | eye-S 10” |
| Main blade rotating speed | 3000 ÷ 5000rpm with inverter |
| Scoring blade rotating speed | 8500rpm |
| Main blade motor power kW | 9 (12Hp) Hz50 |
| Scoring blade motor power kW | 1,3 (1,7Hp) Hz50 |
| Squaring capacity: – with carriage 2200mm – with carriage 3200mm – with carriage 3800mm | – 2200 x 3200mm – 3200 x 3200mm – 3800 x 3200mm |
| Max. cutting width on parallel fence | 1500mm |
| Exhaust outlet diameter: – at base – on overhead saw guard base | – 120mm – 100mm |
