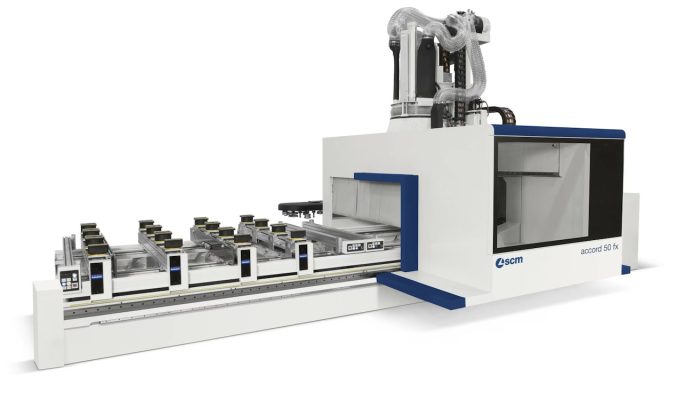

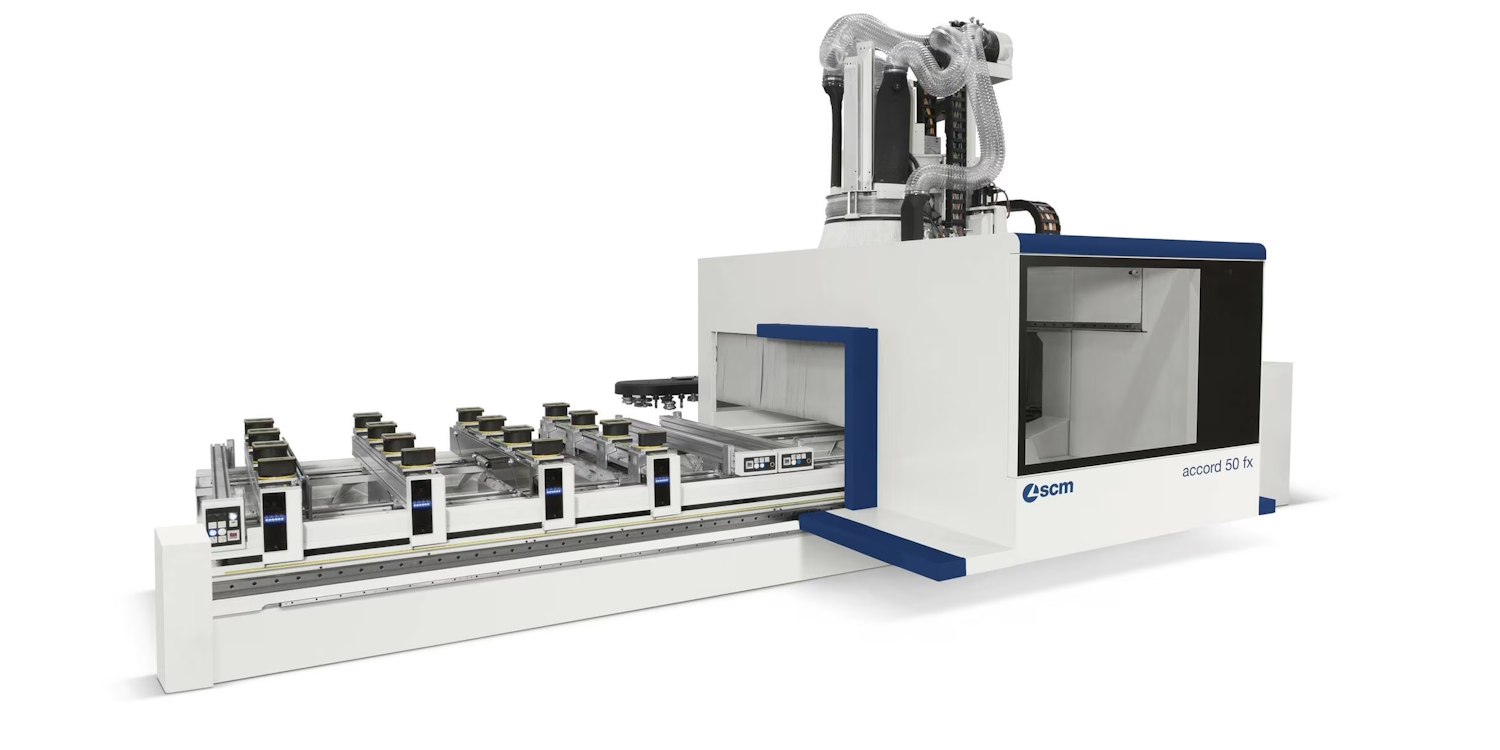

SCM Accord 50FX CNC Machining Centre

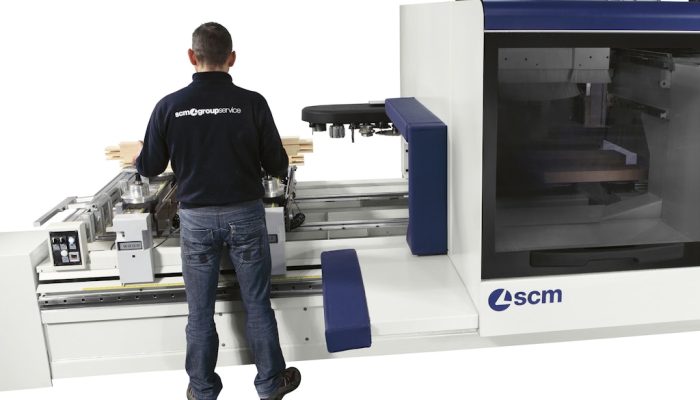

The SCM Accord 50FX is a 5-axis CNC machining centre with mobile gantry structure, designed for manufacturing complex-shaped and large-sized objects.
This versatile machine caters to a variety of industries, ranging from woodworking to specialized applications, effectively addressing diverse manufacturing requirements.
Manufacture – SCM
Condition – New
Price – POA
HEAVY DUTY PROFILING

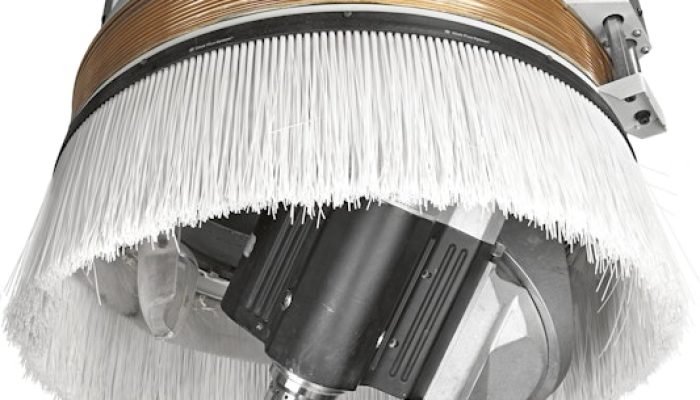

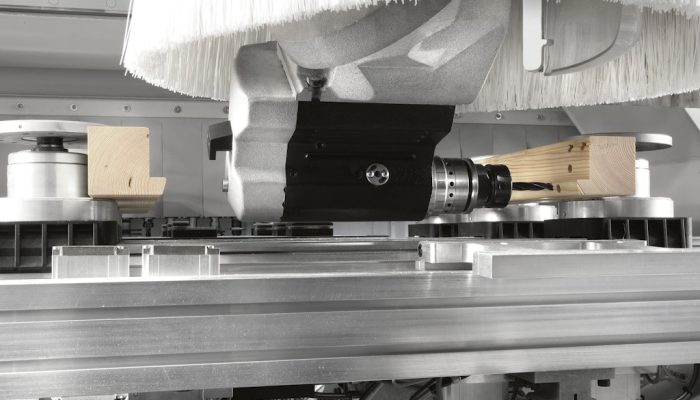

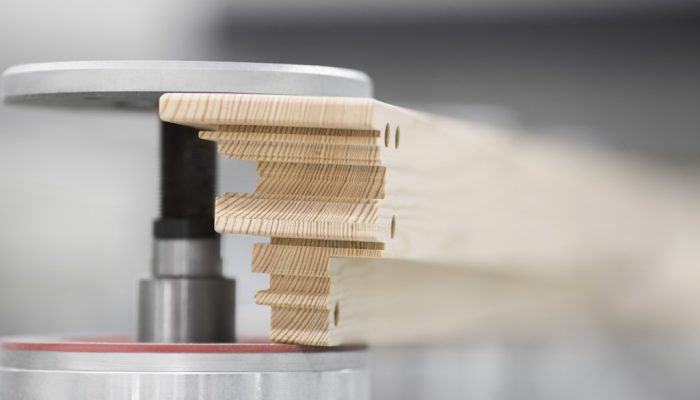

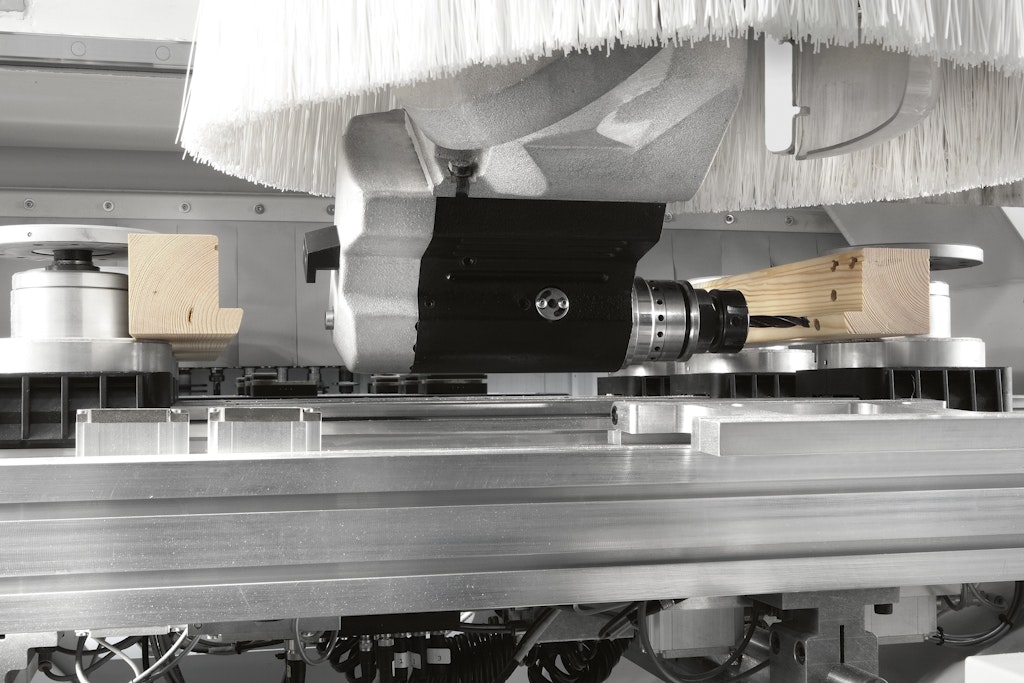

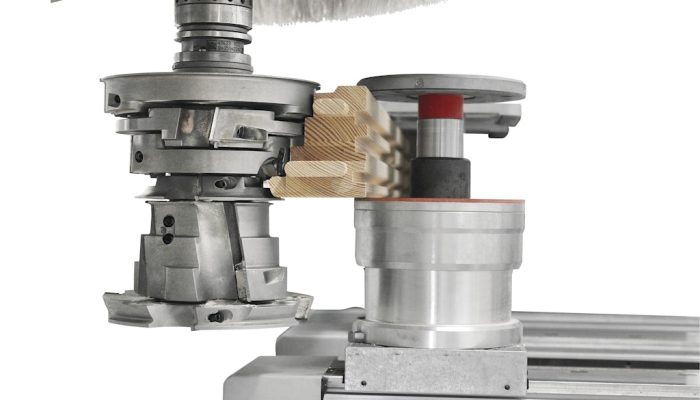

The PRISMA machining heads with 5 interpolating axes are designed for the processing of solid wood.
The ideal solution for windows, doors and stairs.
LARGE MACHINING VOLUME
The architecture of the machine is designed to perform routing and drilling of work pieces up to 500 mm in height.
RAPID AND PRECISE SET-UP

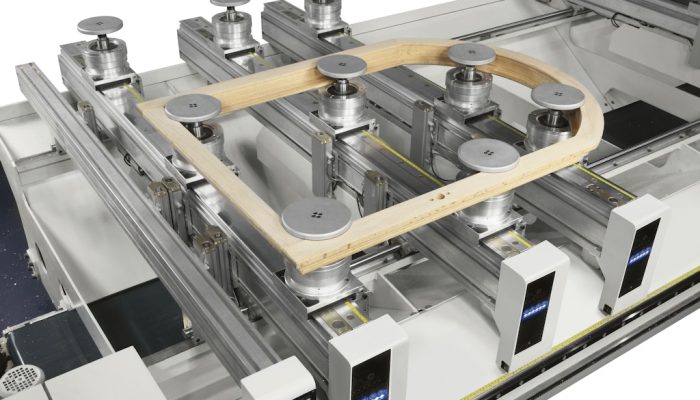

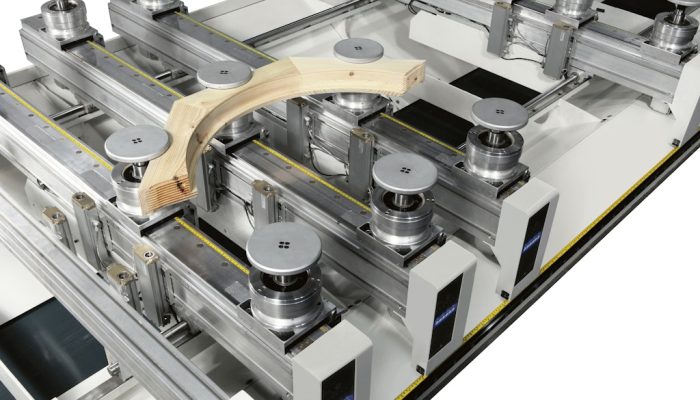

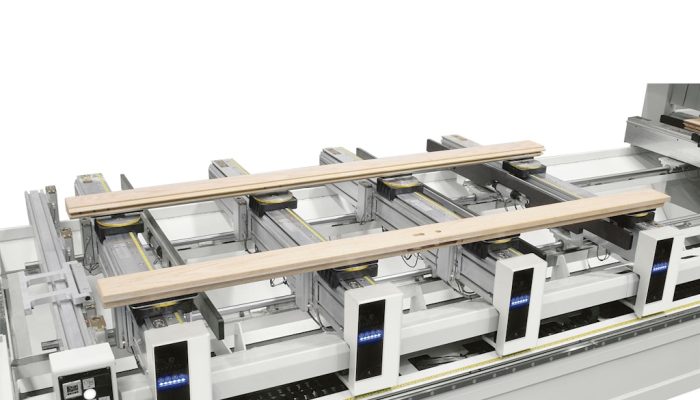

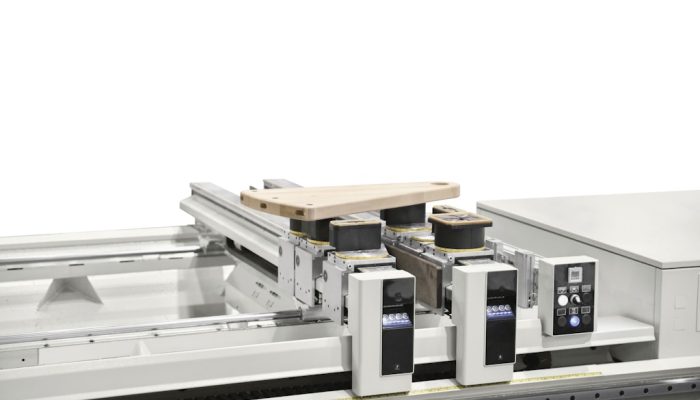

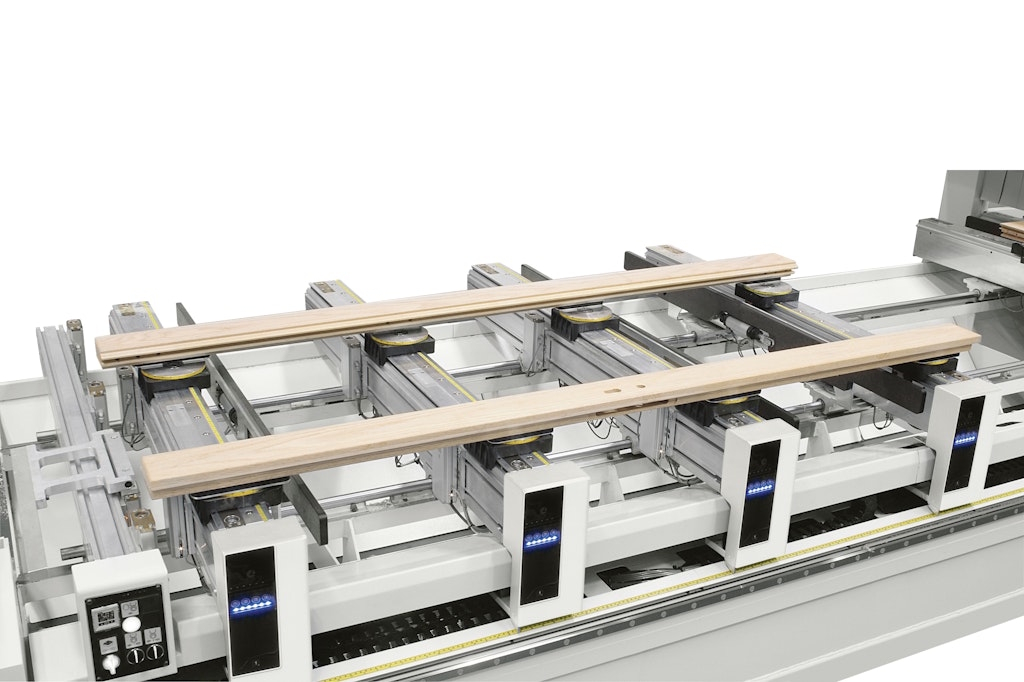

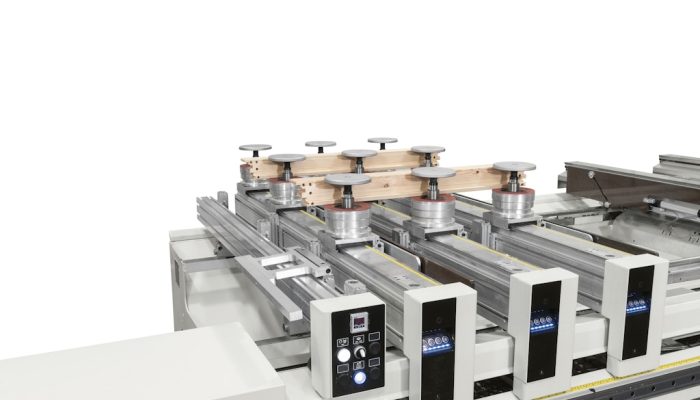

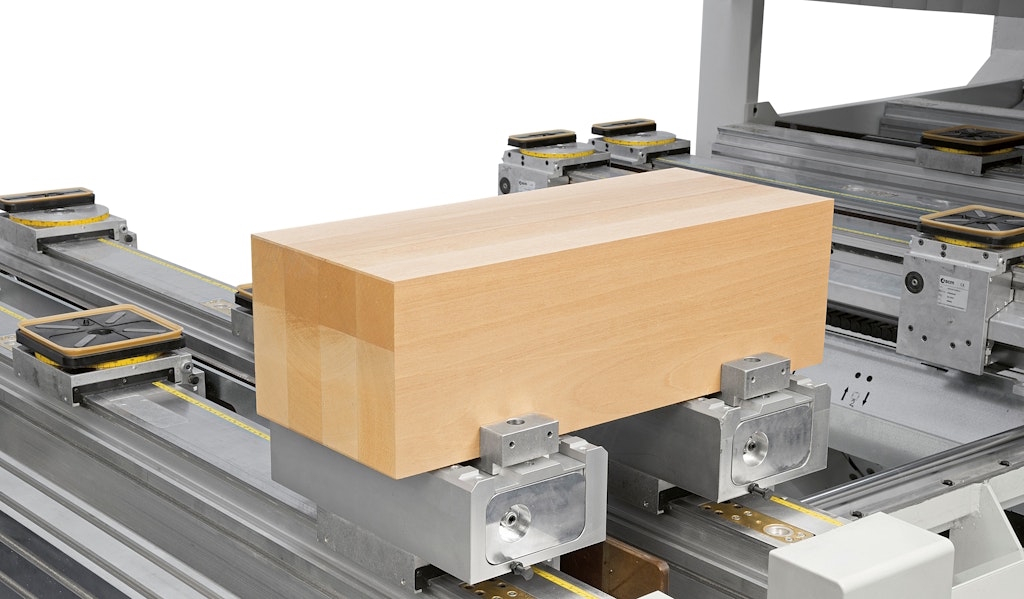

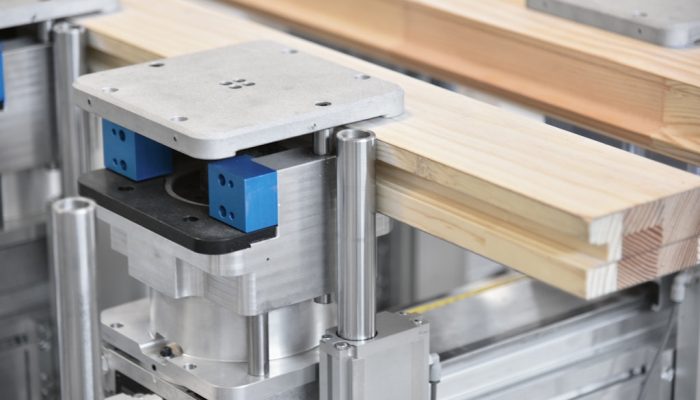

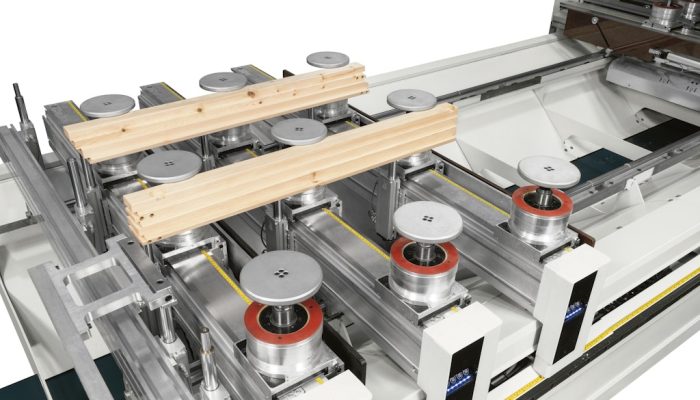

The MATIC bars worktable with direct transmission system and independent drive units, assures the complete set-up in seconds.

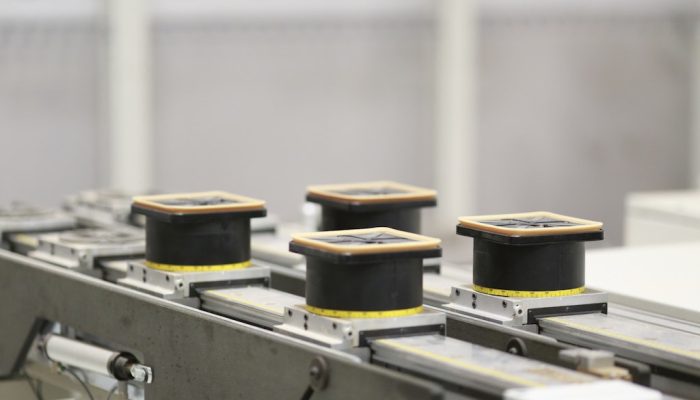

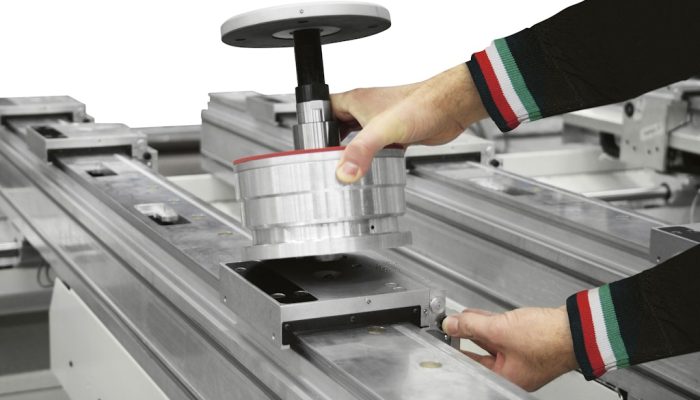

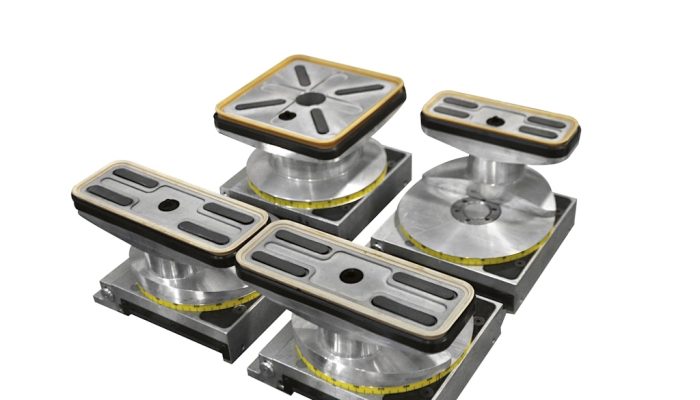

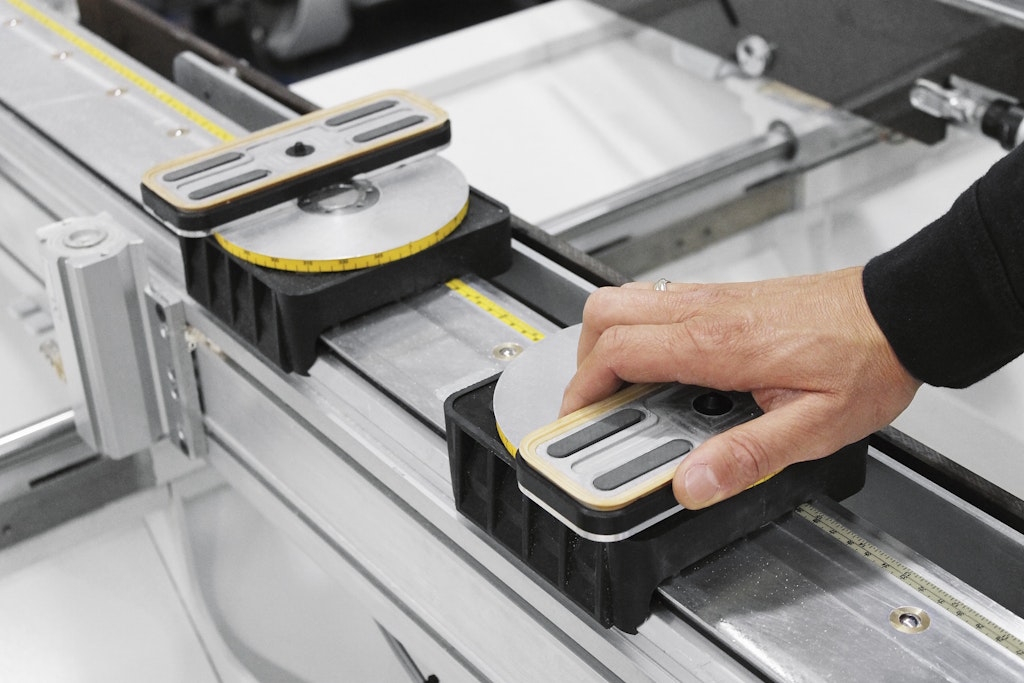

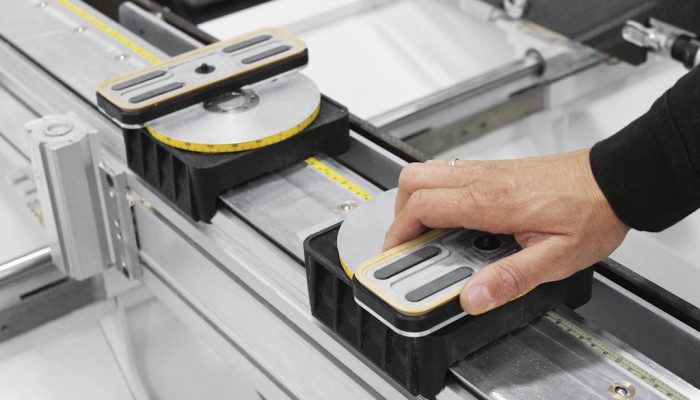

Simple and quick replacement of clamps and suction cups through the exclusive rapid locking device.
INTELLIGENT PROGRAMMING
Simple and intuitive programming, thanks to the MAESTRO software that includes modules for different applications.
| Working areas | |
|---|---|
| X-Y-Z axes dimensions | 3680 x 1680 x 500mm 5020 x 1680 x 500mm 6360 x 1680 x 500mm 3680 x 1905 x 500mm 5020 x 1905 x 500mm 6360 x 1905 x 500mm |
| Axes | |
| X-Y-Z axes max. speed | 95-80-30m/min |

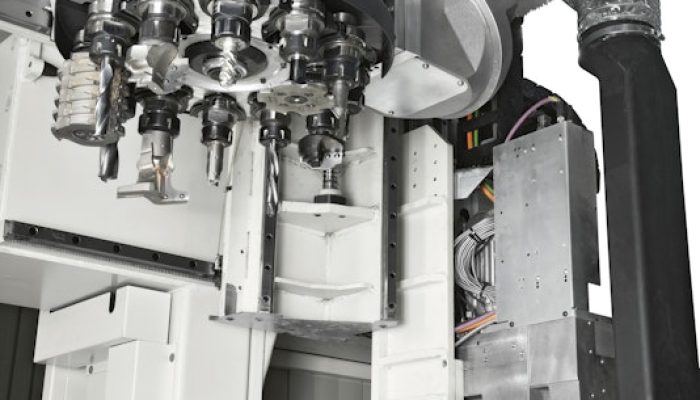

| Machining head | |
| 5 axes electrospindle motor power (max.) | 17kW |
| 5 axes electrospindle rotation speed (max.) | 24000rpm |

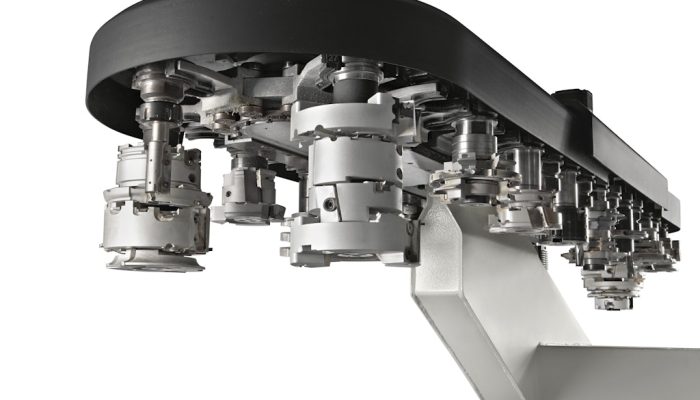

| Tool stores | |

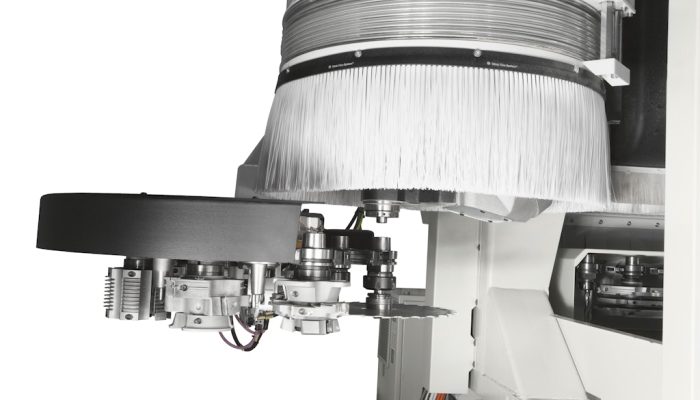

| Tool store on machining head | 12 positions |
| Rear tool store | 48 positions |
| Side tool store | 12 positions |

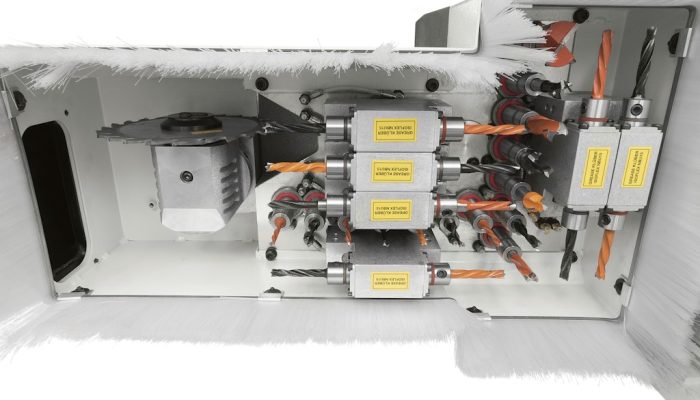

| Drilling unit | |
| Vertical and horizontal spindles (max.) | 26n. |
| Rotation speed (max.) | 8000rpm |
