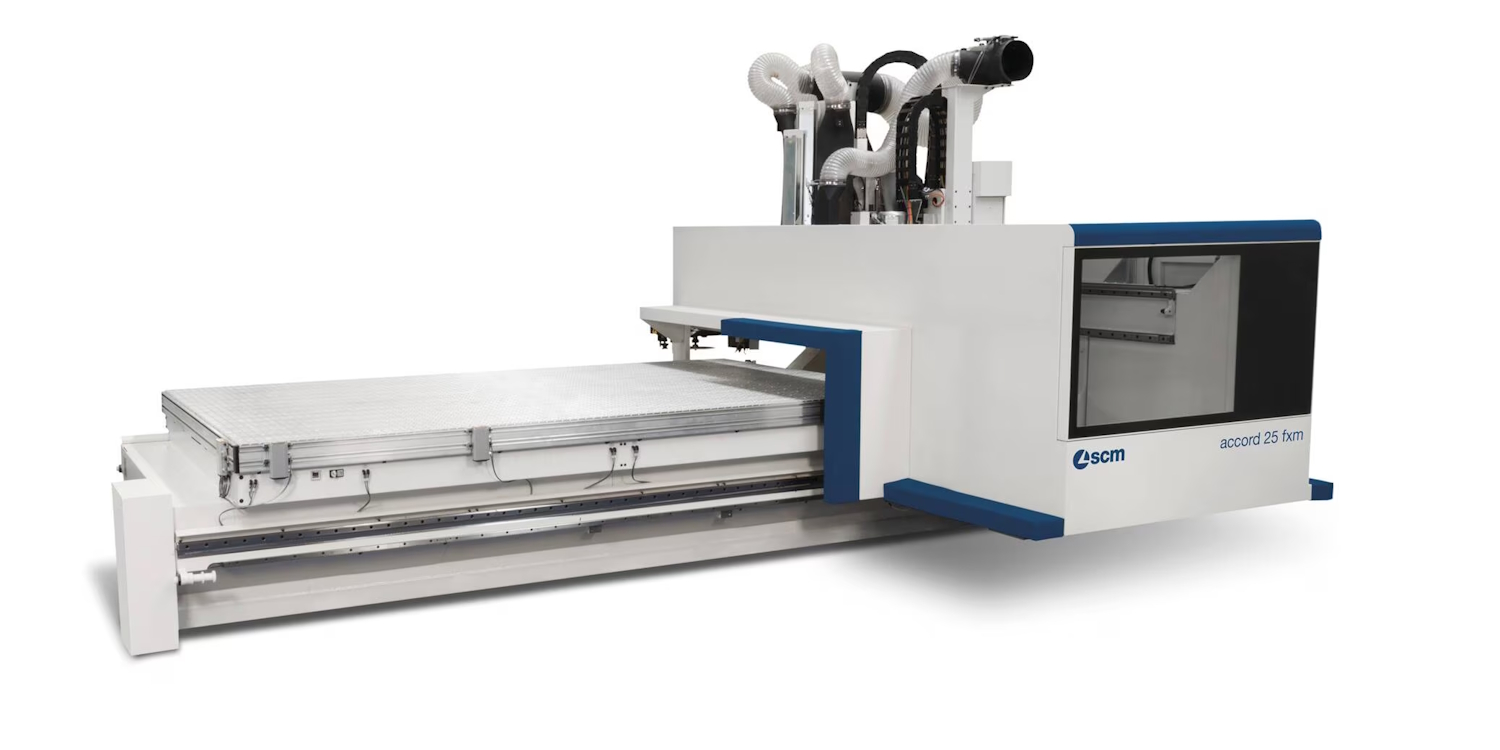

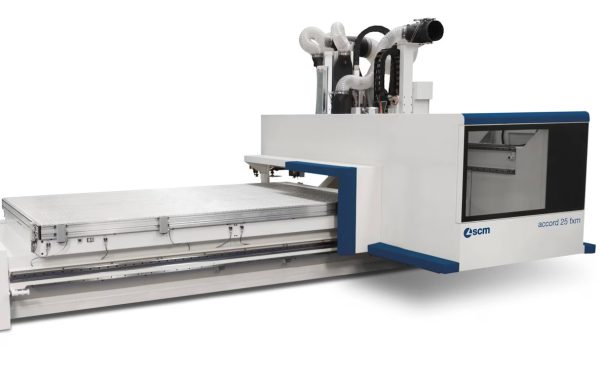

SCM Accord 25FXM CNC Machining Centre
The SCM Accord 25FXM CNC Machining Centre is designed for highly flexible productions requiring superior precision and finish quality regardless of component shape and dimensions.
The ideal solution for routing and drilling operations on solid wood components and lamellar wood, plywood, chipboard, MDF, etc. panels.
Manufacture – SCM
Condition – New
Price – POA

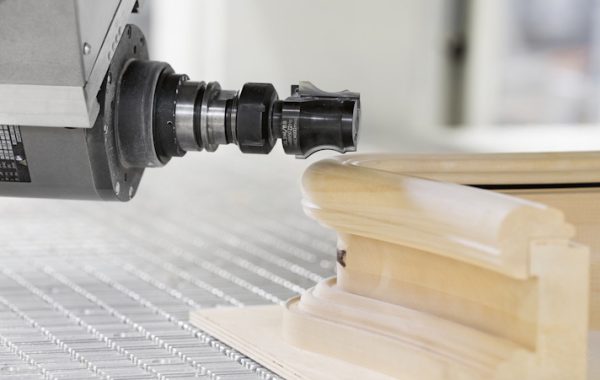

HEAVY DUTY PROFILING

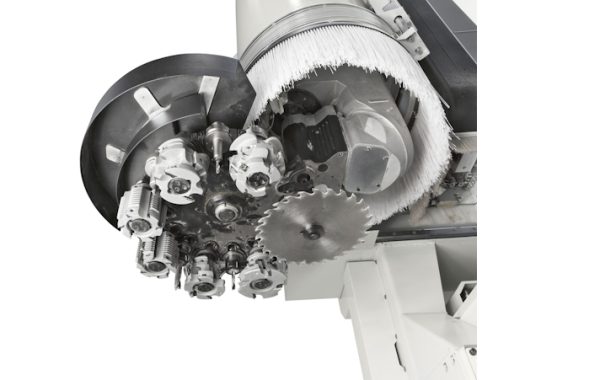

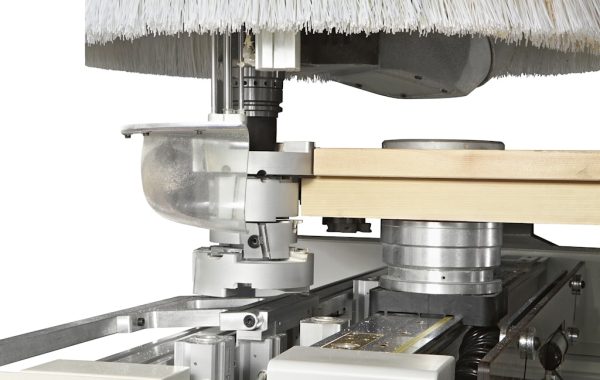

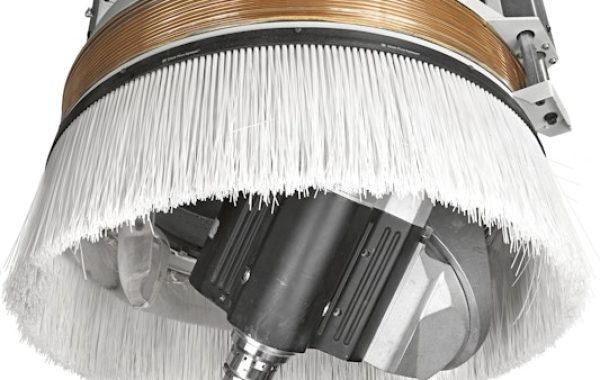

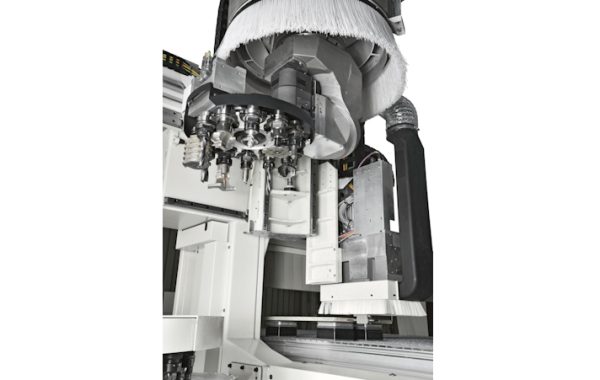

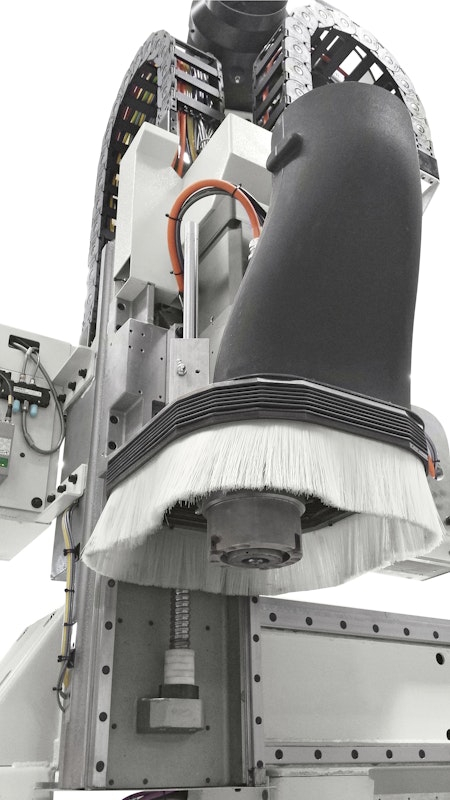

The PRISMA machining heads with 5 interpolating axes are designed for the processing of solid wood.
The ideal solution for windows, doors and stairs.
RELIABLE TECHNOLOGY

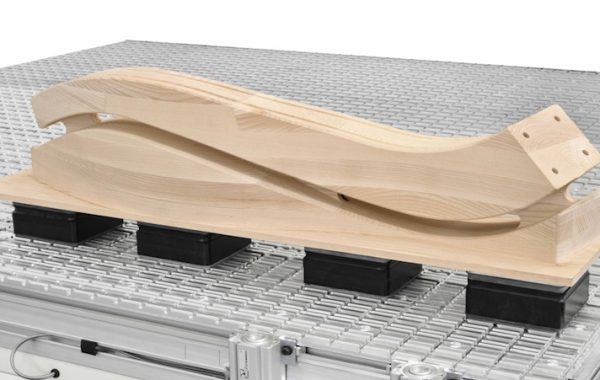

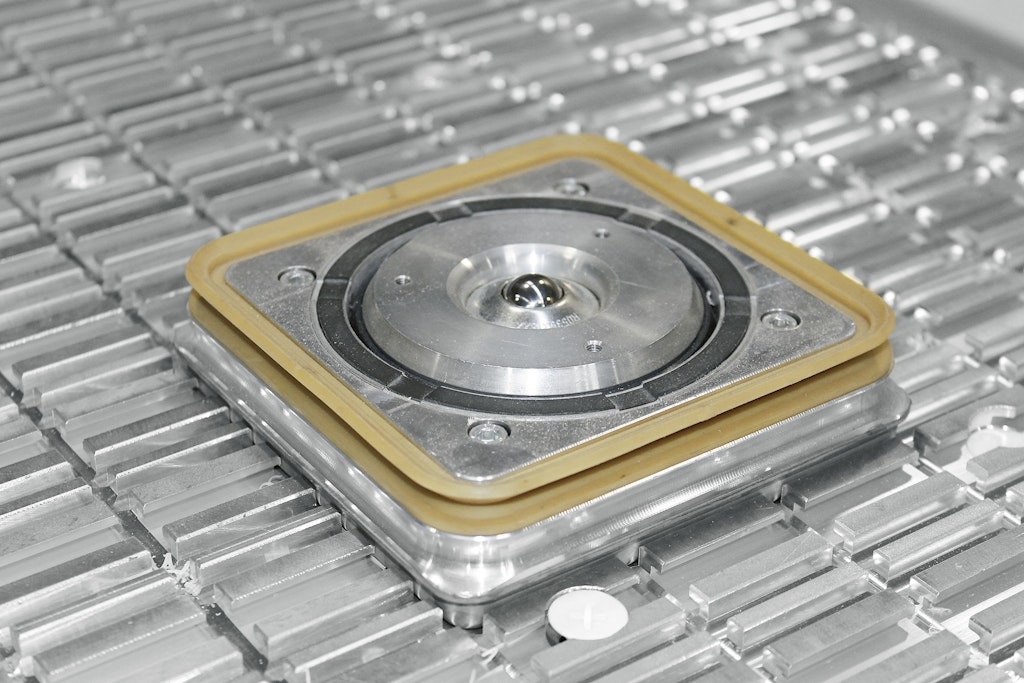

The SCM aluminium multi-function worktable guarantees perfect lasting planarity.

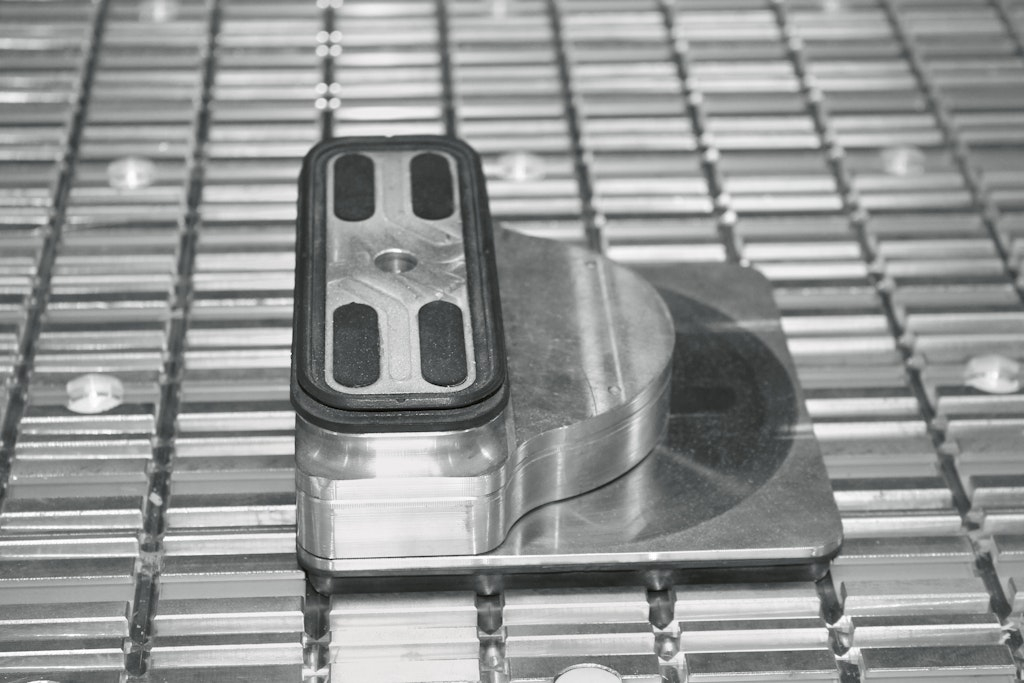

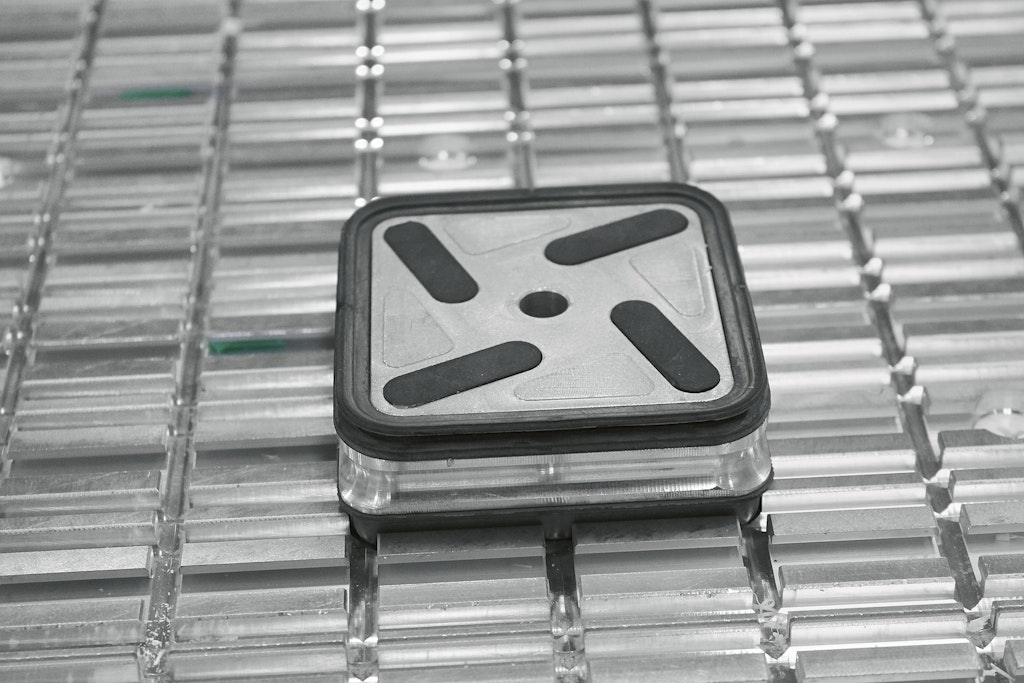

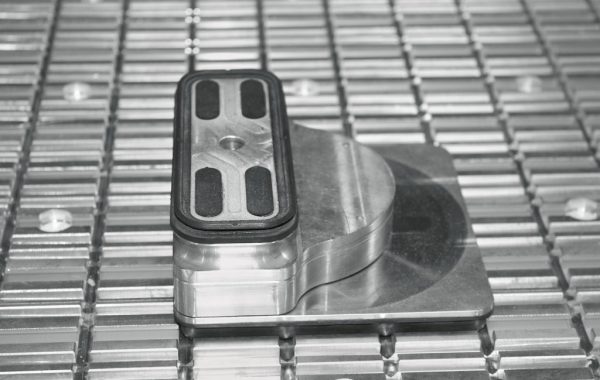

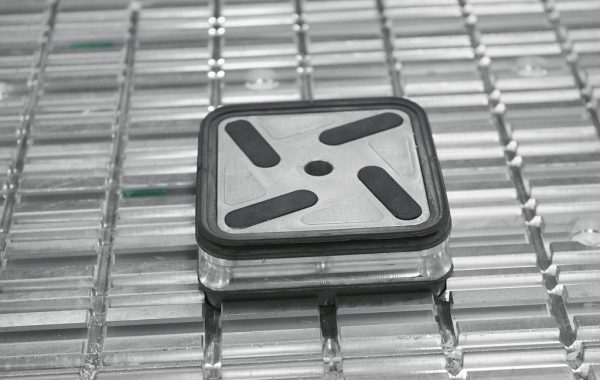

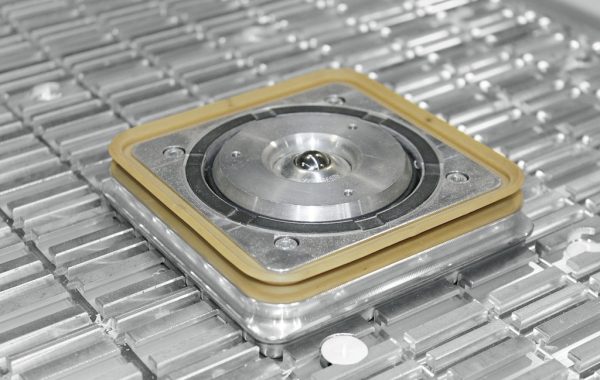

The direct integrated vacuum system allows the optimum work-piece hold down and the T-grooves are ideal for fitting of any type of mechanical locking equipment.
PERFECT FINISH QUALITY

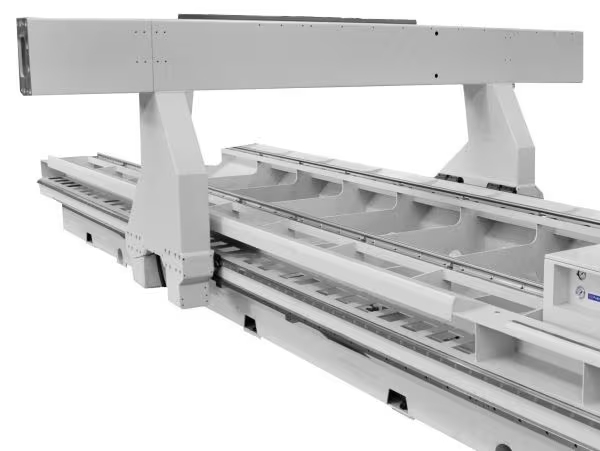

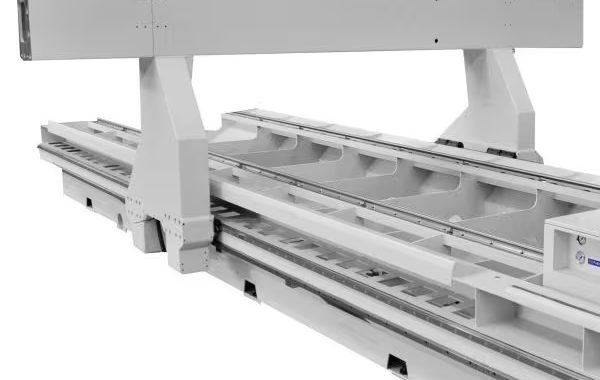

The architecture with fixed table and mobile gantry structure, consisting of a sturdy construction equipped with front and rear sliding guides, ensures maximum accuracy and finish quality over the entire work area.
INTELLIGENT PROGRAMMING

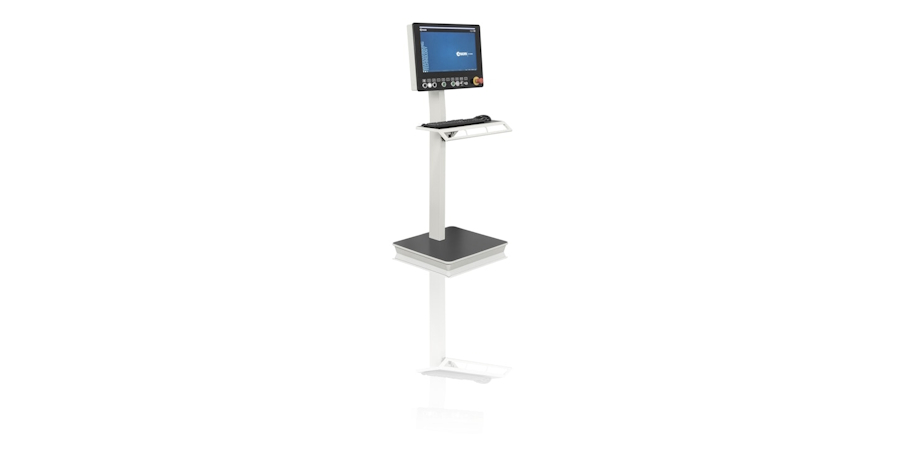

Simple and intuitive programming, thanks to the MAESTRO software that includes modules for different applications.
| Function | Measurement |
|---|---|
| Working areas | |
| X-Y-Z axes dimensions | 3650 x 1320 x 250mm 4970 x 1320 x 250mm 6170 x 1320 x 250mm 3650 x 1600 x 250mm 4970 x 1600 x 250mm 6170 x 1600 x 250mm 3650 x 2120 x 250mm 4970 x 2120 x 250mm 6170 x 2120 x 250mm |
| Axes | |
| X-Y-Z axes max. speed | 60-60-30 m/min |
| Machining head | |
| 5 axes electrospindle motor power (max.) | 12kW |
| 3/4 axes electrospindle motor power (max.) | 15kW |
| 5 axes electrospindle rotation speed (max.) | 24000rpm |
| 3/4 axes electrospindle rotation speed (max.) | 24000rpm |

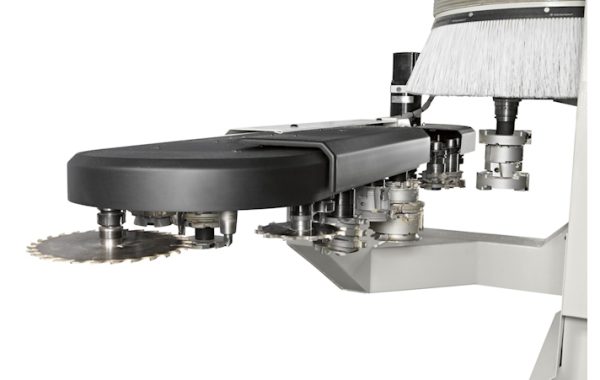

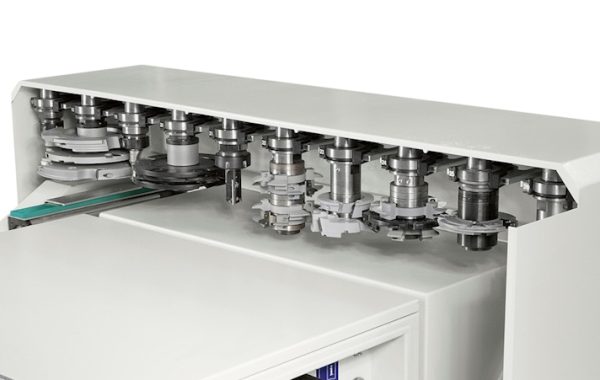

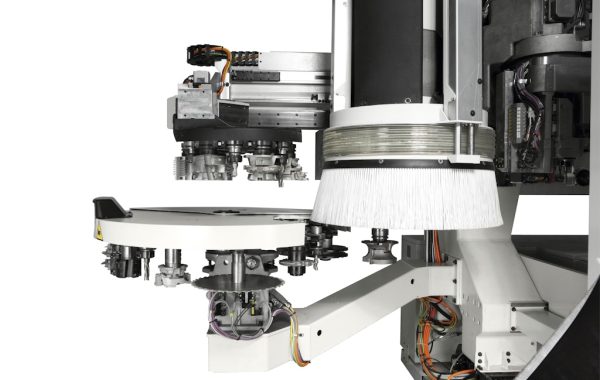

| Tool stores | |

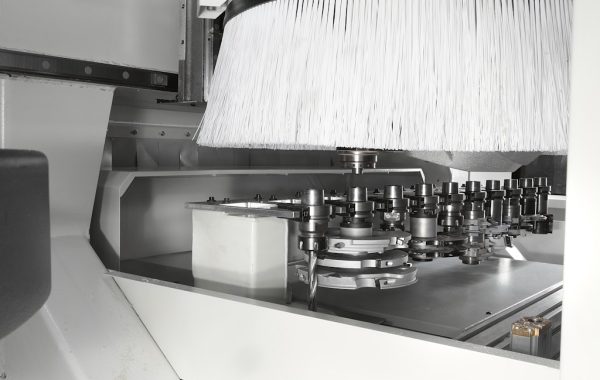

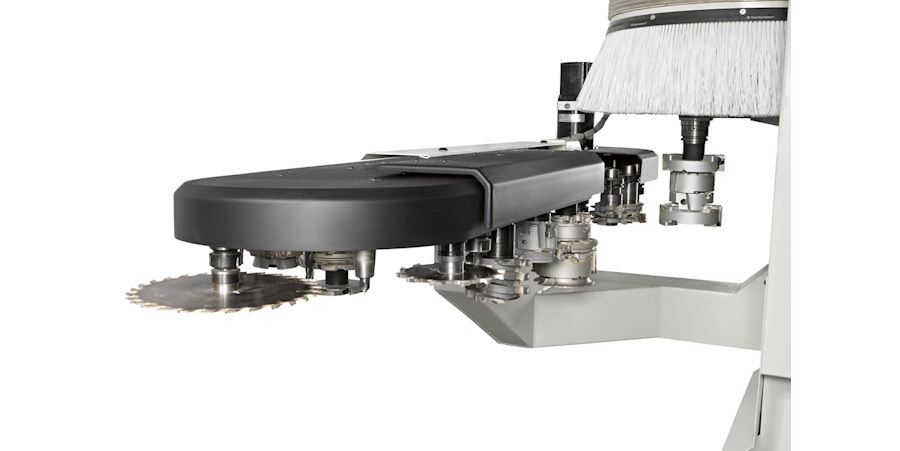

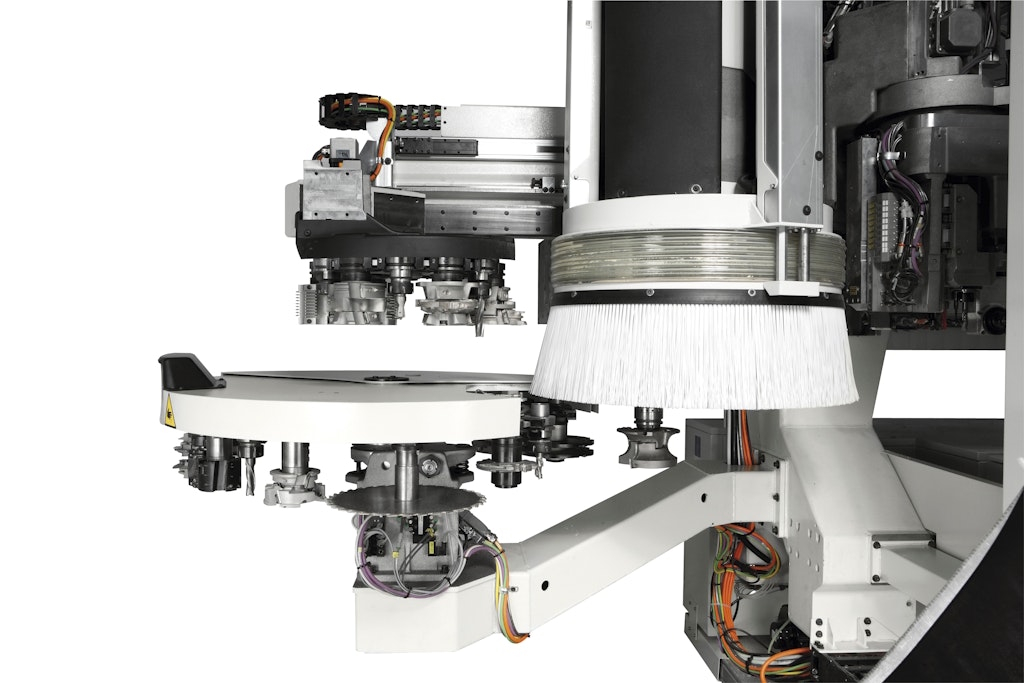

| Tool store on machining head | 12 positions |

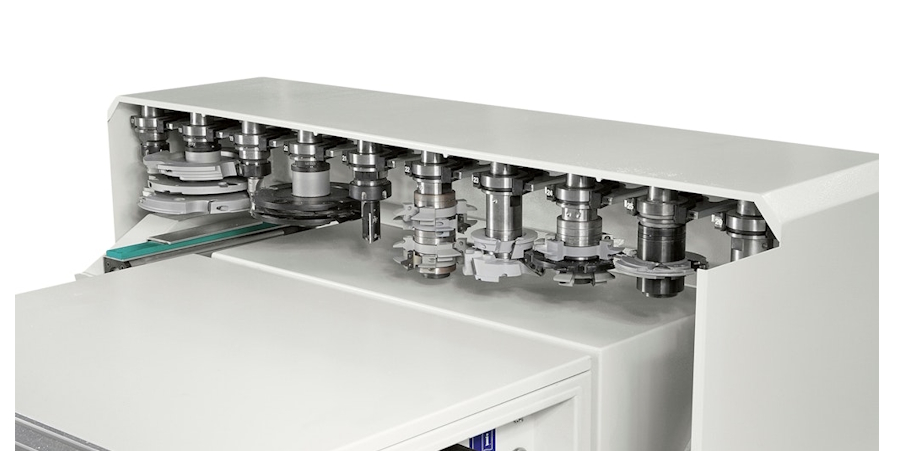

| Rear tool store | 32 positions |
| Side tool store | 12 positions |
| Drilling unit | |
| Vertical and horizontal spindles (max.) | 30n. |
| Rotation speed (max.) | 8000rpm |
