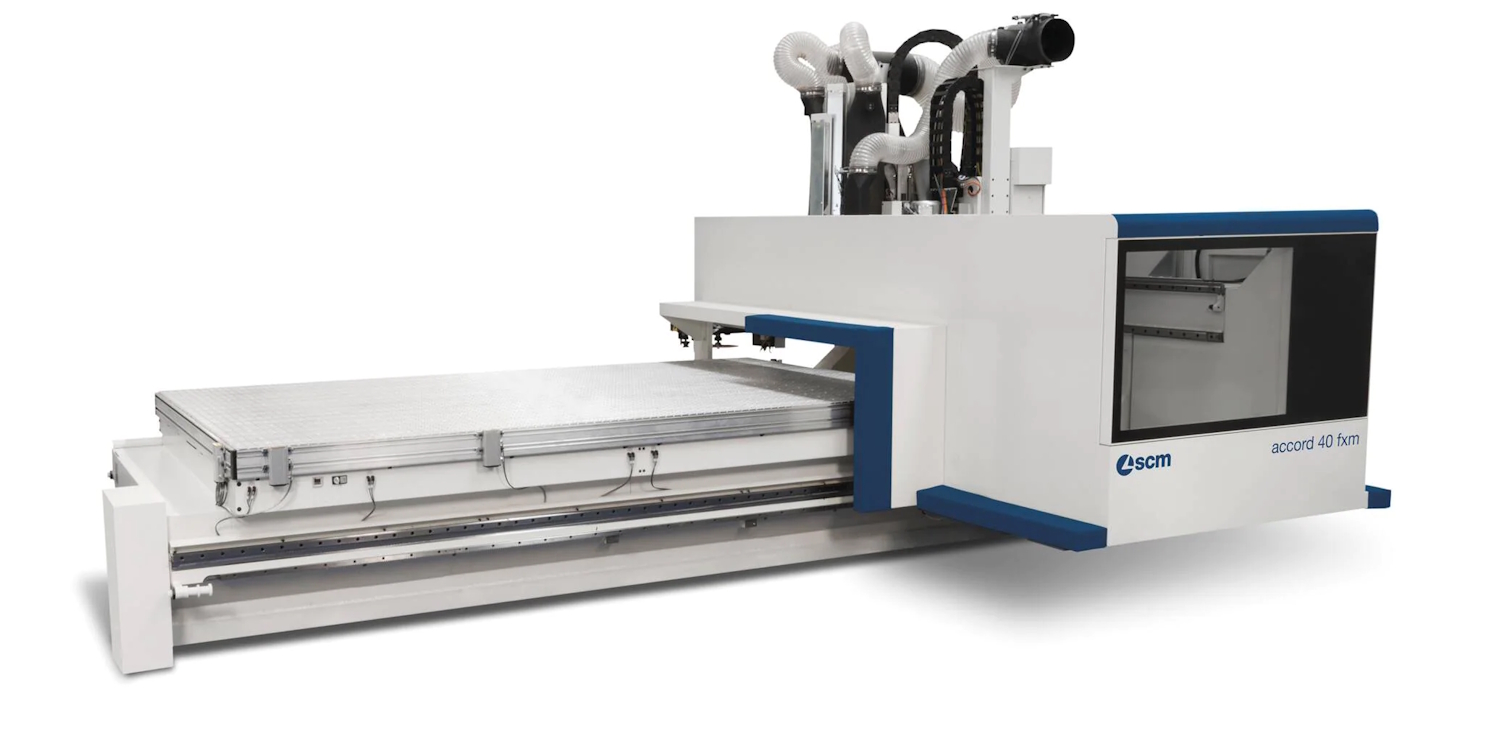

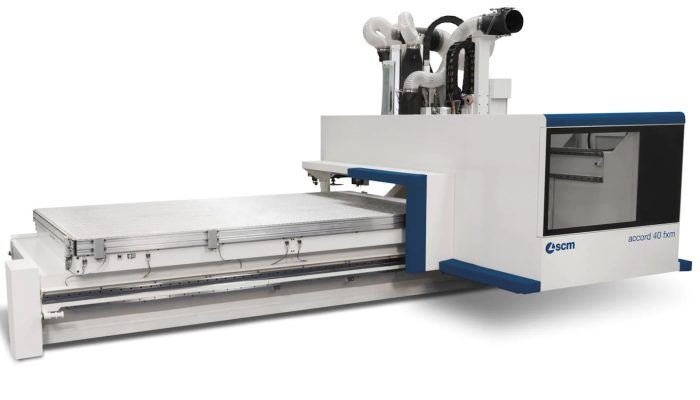

SCM Accord 40FXM CNC Machining Centre
The SCM Accord 40FXM CNC Machining Centre is equipped with a mobile gantry structure, for production of high flexibility, regardless of form, which require high standards of accuracy.
Optimal solutions to meet the specific needs of a flexible production with nesting tecnology and suitable to process panels of different materials: lamellar wood, plywood, chipboard, MDF, etc.
Manufacture – SCM
Condition – New
Price – POA

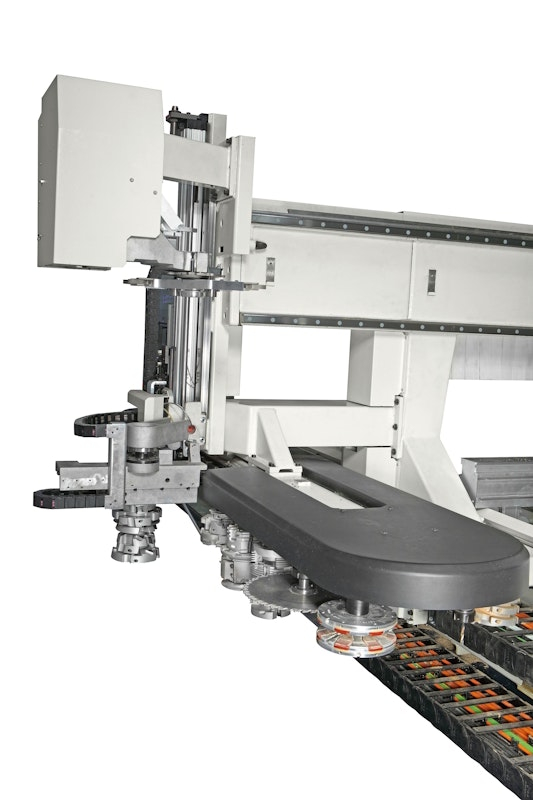

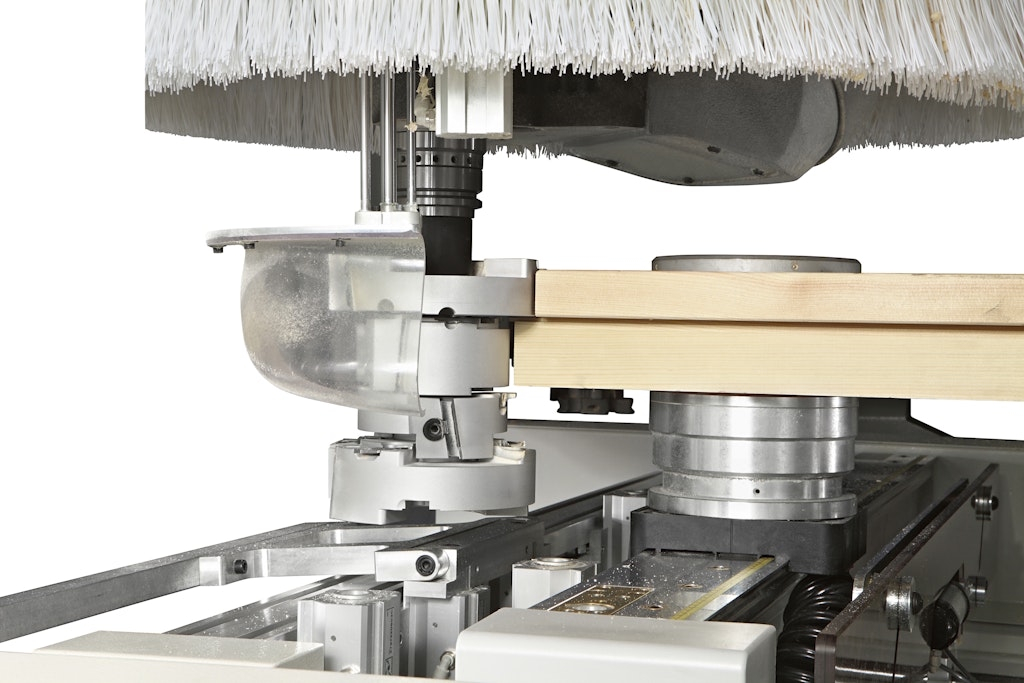

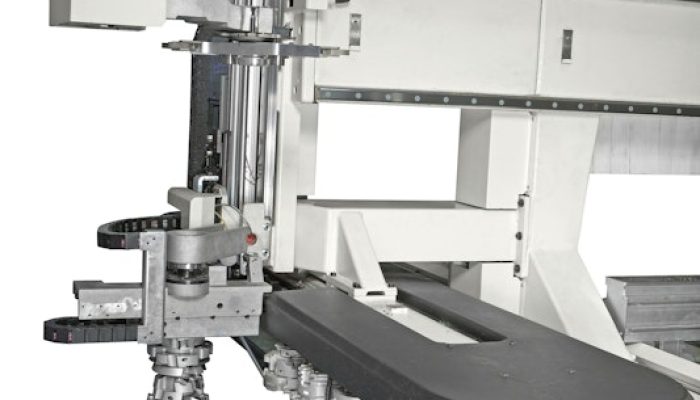

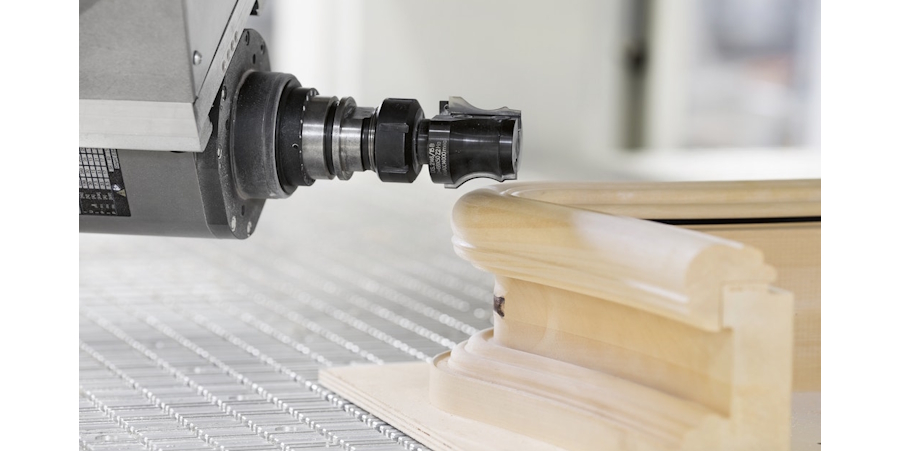

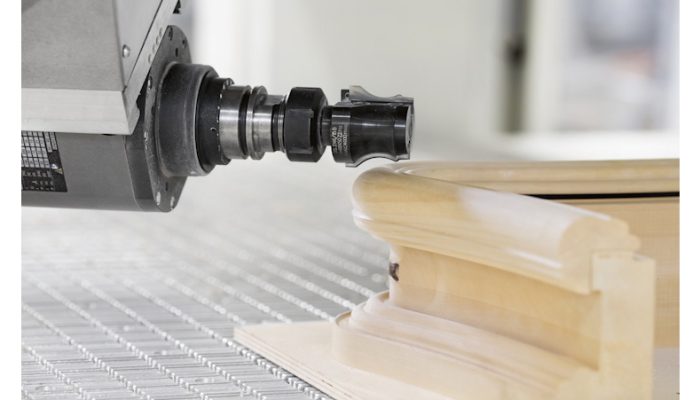

HEAVY DUTY PROFILING
The PRISMA machining heads with 5 interpolating axes are designed for the processing of solid wood.
The ideal solution for windows, doors and stairs.

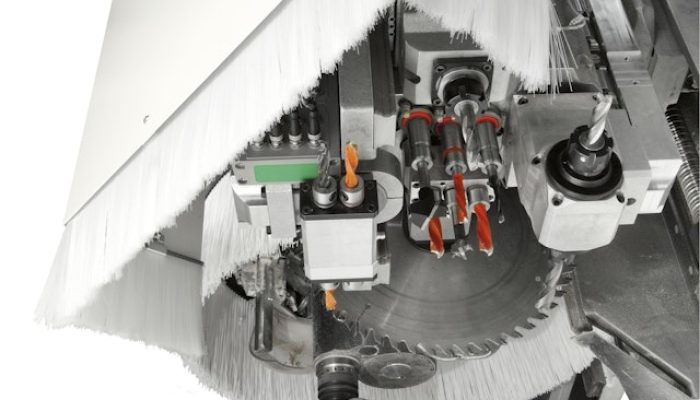

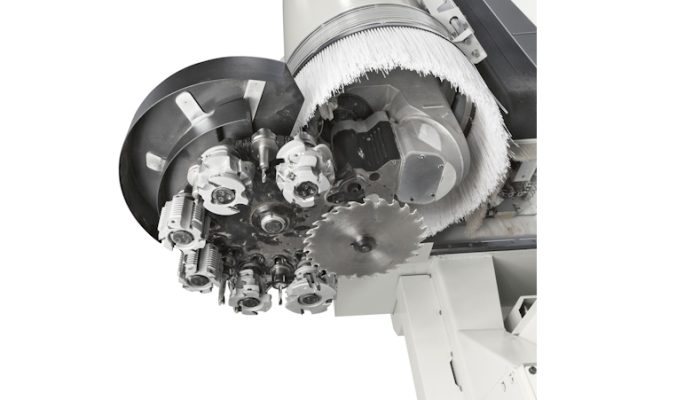

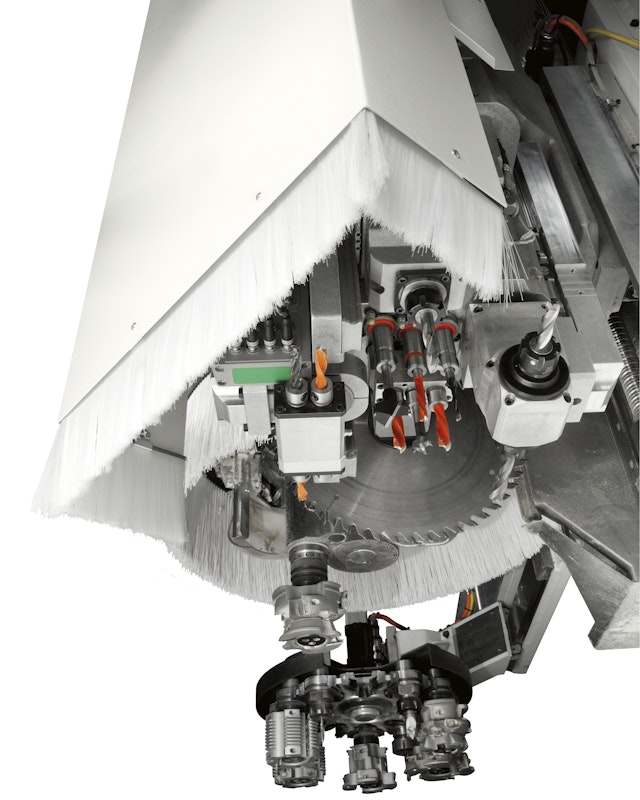

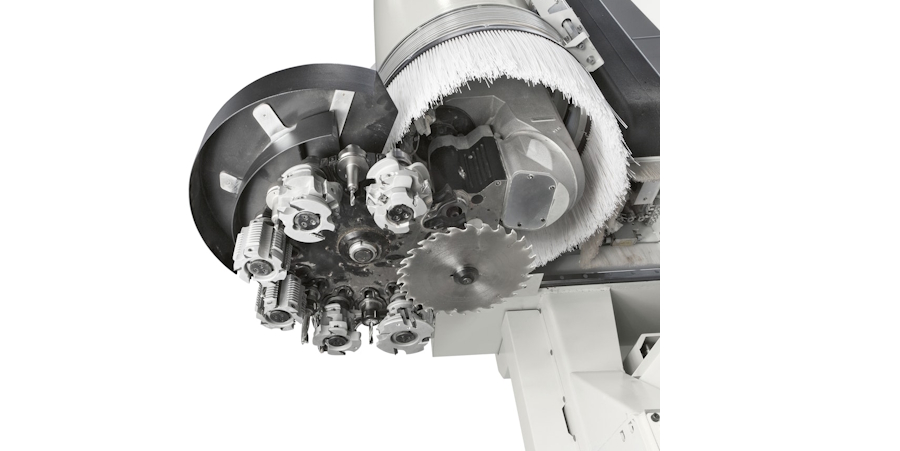

BRC WORKING UNIT
Boring, Routing and Cutting both vertically and horizontally, without needing to tool change.
Fast and efficient, all additional machinings are carried out by this unit that has an independent Z-axis and a dedicated inverter.

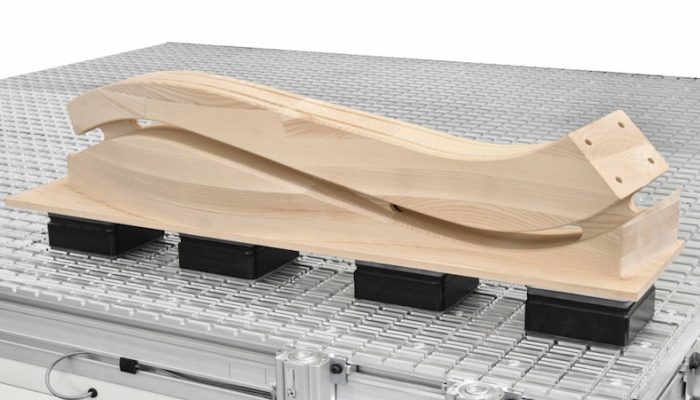

RELIABLE TECHNOLOGY

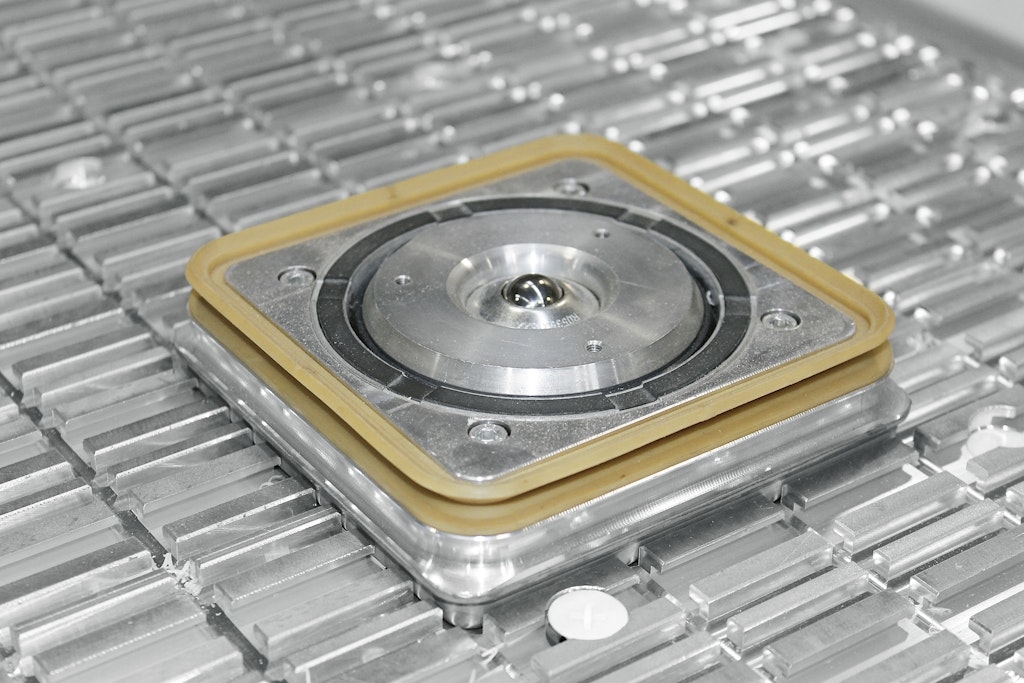

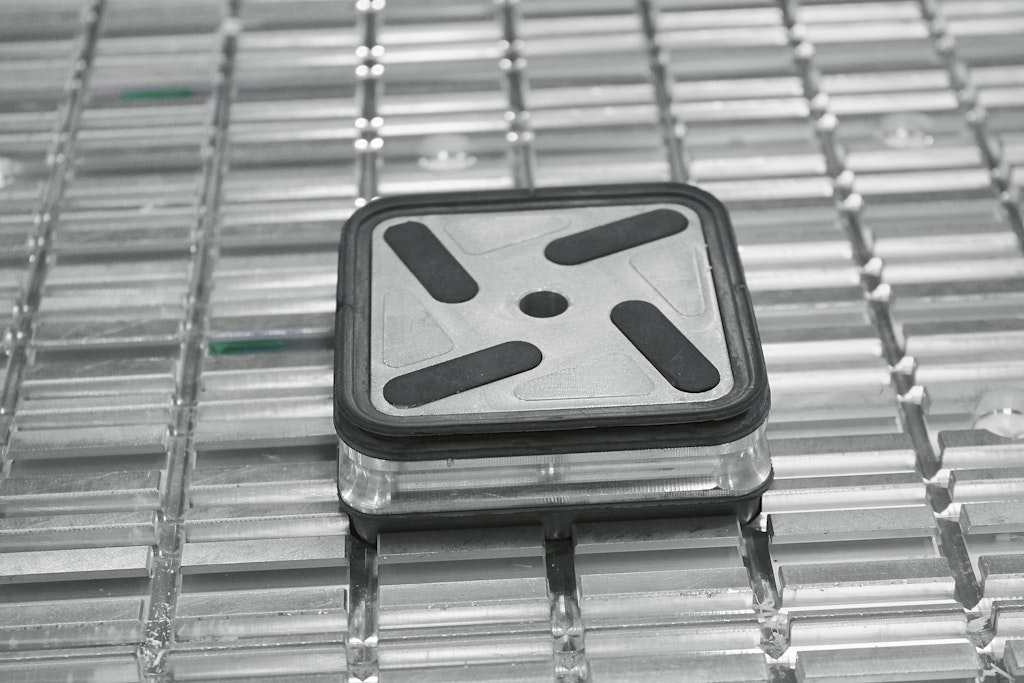

The SCM aluminium multi-function worktable guarantees perfect lasting planarity.

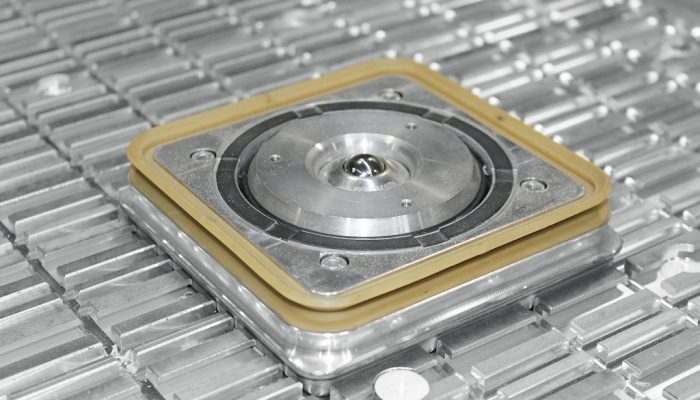

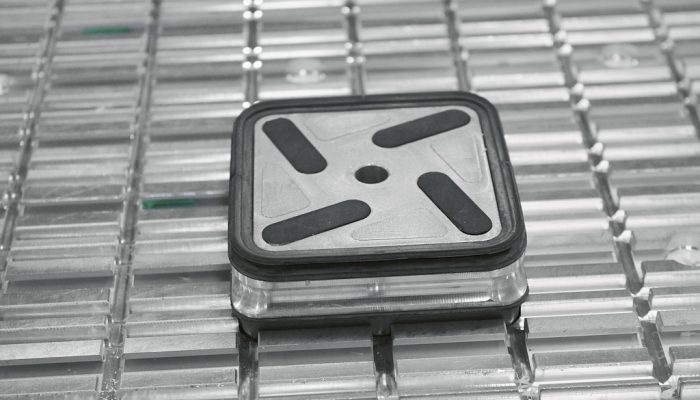

The direct integrated vacuum system allows the optimum work-piece hold down and the T-grooves are ideal for fitting of any type of mechanical locking equipment.

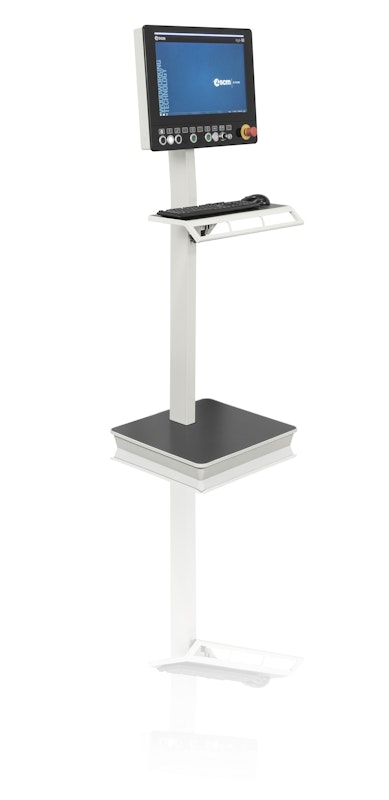

INTELLIGENT PROGRAMMING
Simple and intuitive programming, thanks to the MAESTRO software that includes modules for different applications.
| Function | Measurement |
|---|---|
| Working areas | |
| X-Y-Z axes dimensions | 3650 x 1600 x 350mm 4970 x 1600 x 350mm 6170 x 1600 x 350mm 3650 x 2120 x 350mm 4970 x 2120 x 350mm 6170 x 2120 x 350mm |
| Axes | |
| X-Y-Z axes max. speed | 90-90-30 m/min |
| Machining head | |
| 5 axes electrospindle motor power (max.) | 17kW |
| 3/4 axes electrospindle motor power (max.) | 15kW |
| 5 axes electrospindle rotation speed (max.) | 2400rpm |
| 3/4 axes electrospindle rotation speed (max.) | 2400rpm |
| Tool stores | |

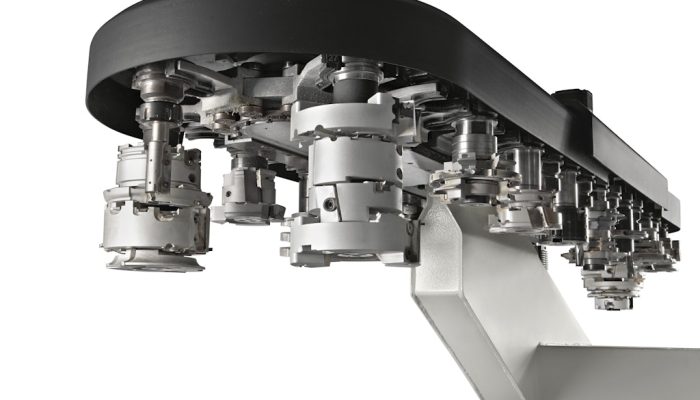

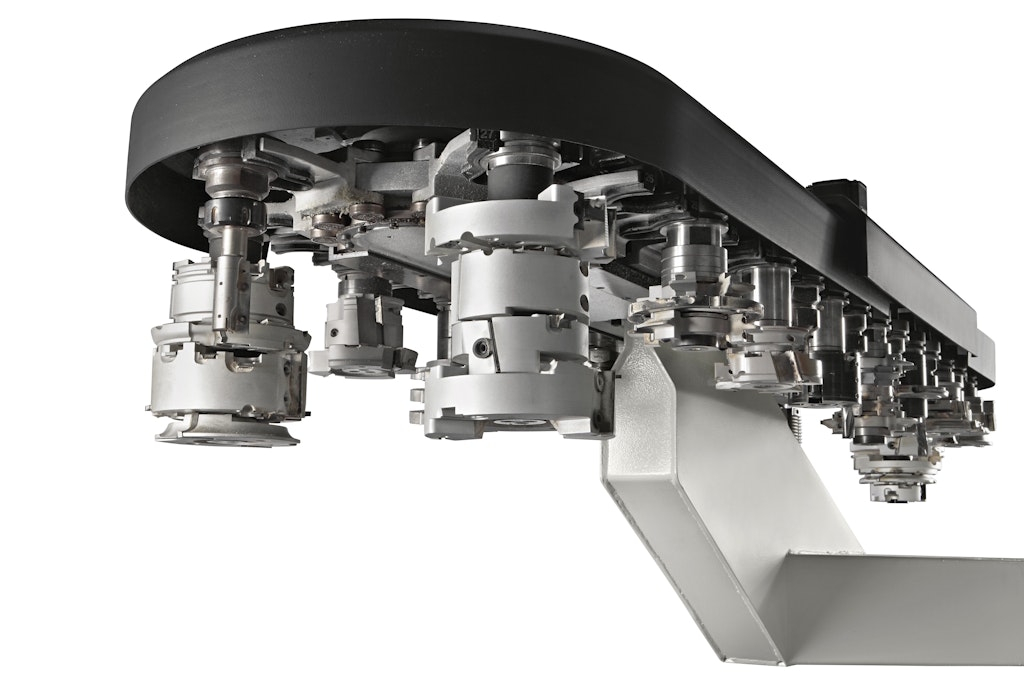

| Tool store on machining head | 12 positions |
| Rear tool store | 48 positions |
| Side tool store | 12 positions |
| Drilling unit | |
| Vertical and horizontal spindles (max.) | 30n. |
| Rotation speed (max.) | 8000rpm |
