Early Bird Deal

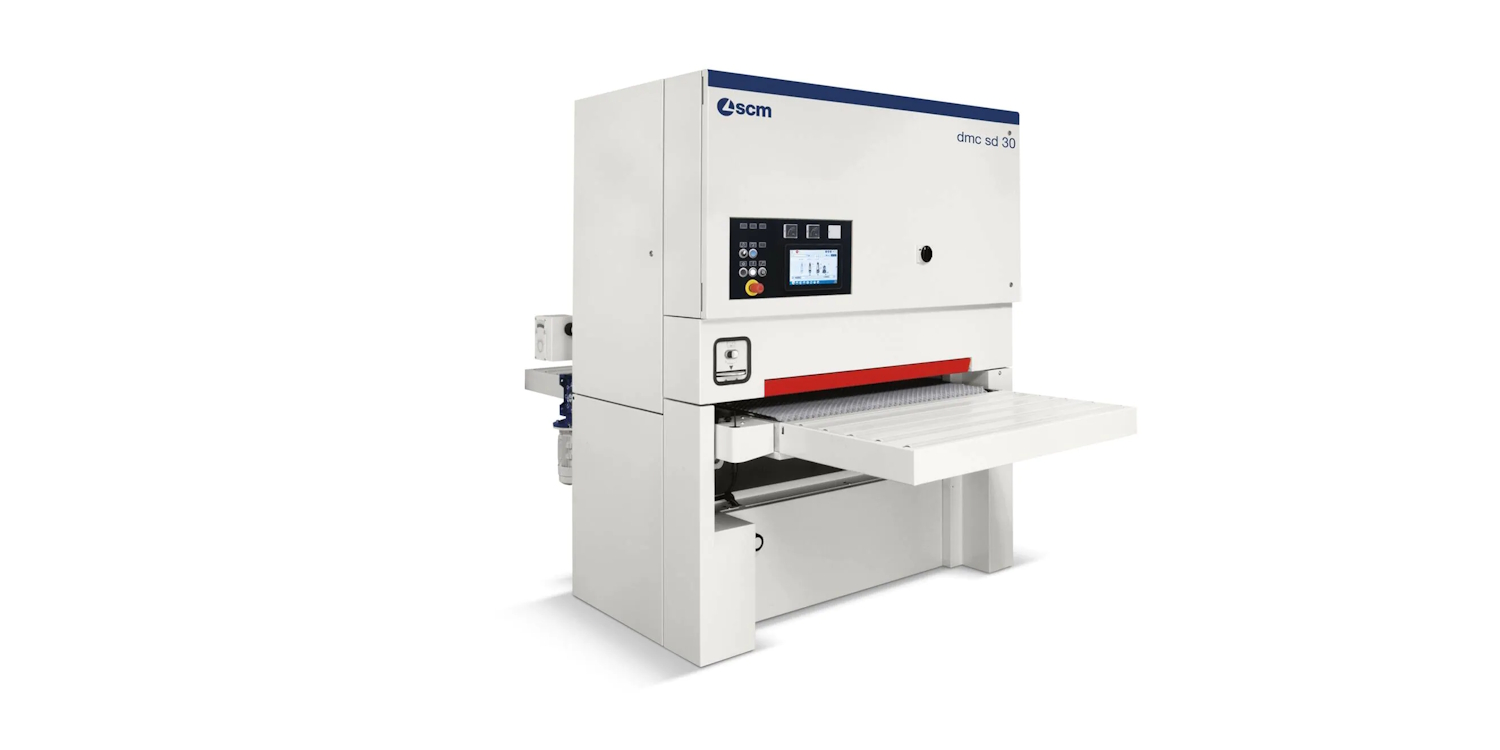

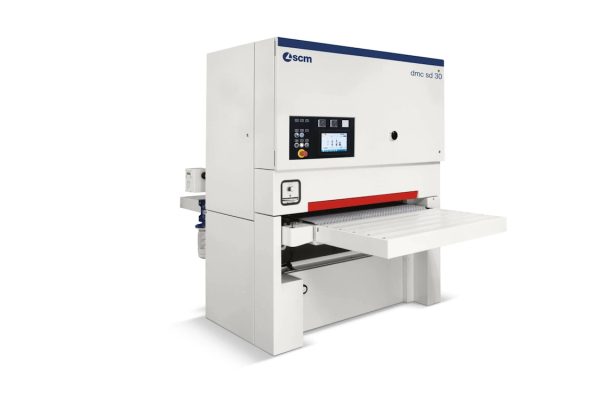

SCM DMC SD30 Wide Belt Sander

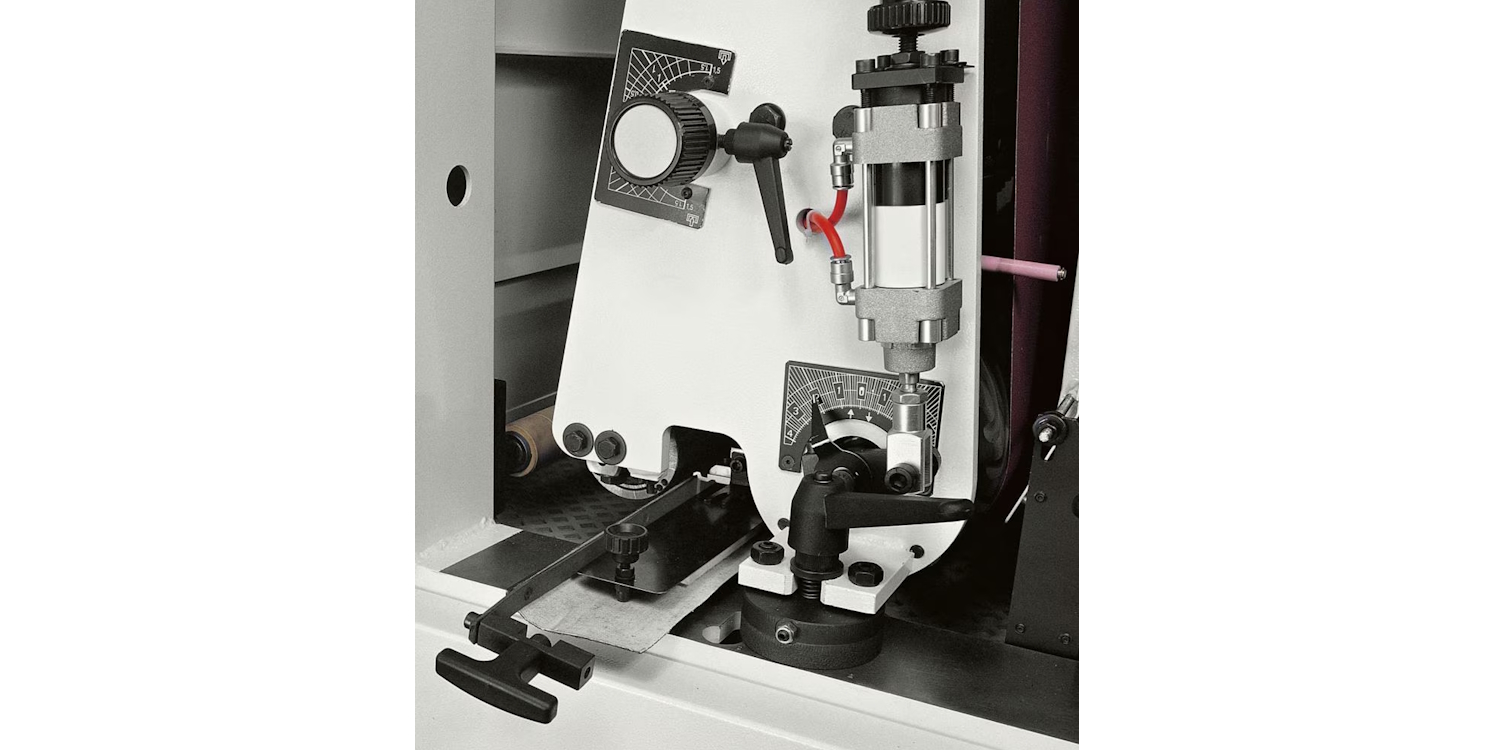

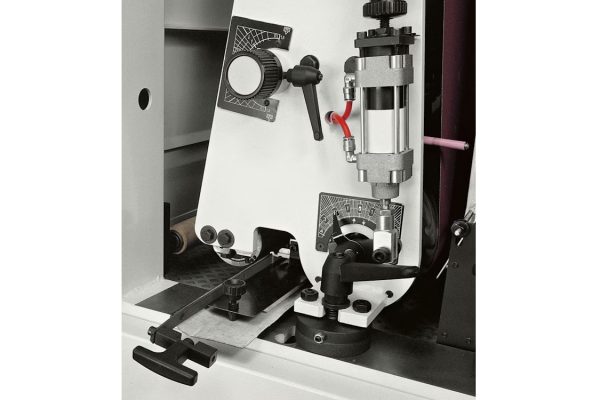

“Mesar” sectional pad: the best finish with any material. Higher quality results due to the special shape of the sectors that allows the operator to intervene “softly” but also in an “aggressive” way, simply by varying the working pressure. The setting of the pad position and the possibility of using foils of different thickness increases its versality.
“eye-S” electronic programmer: easiliy avoid mistakes. Simple and intuitive, allowing the operator to set all processing parameters in sequence and then launch them with the touch of a button. The possibility to store various work programs to retrieve the machine settings most commonly used makes it ideal even for unskilled operators.
diamond-shaped belt: no slipping of the work pieces. The special geometry of the diamond-shaped profile of the transport belt provides the best traction surface for the work piece and with the increased support area also ensures maximum stability.
Led indicator for panel intoduction. Simple and intuitive, communicating to the operator where and when the panel has to be introduced into the machine and optimising the standard wear of the sanding belt; this ensures a better quality finish and reduced machine costs.
| Function | Measurement |
|---|---|
| Working Width | 1100mm |
| Min./Max. Working Thickness | 4 – 170mm |
| Sanding Belt Width | 1115mm |
| Sanding Belt Length | 1900mm |
| Standard Main Motor Power | 18.5kW |
| Feed Belt Speed | 4,5/9m/min |
| RA grooved steel calibrating roller | |
| On/off pneumatic selector for roller | |
| On/off pneumatic selector for pad | |
| Electronic positioning for working table | |
| “MESAR” elastic sectional pad | |
| “Logic 50 K” electronic programmer |
