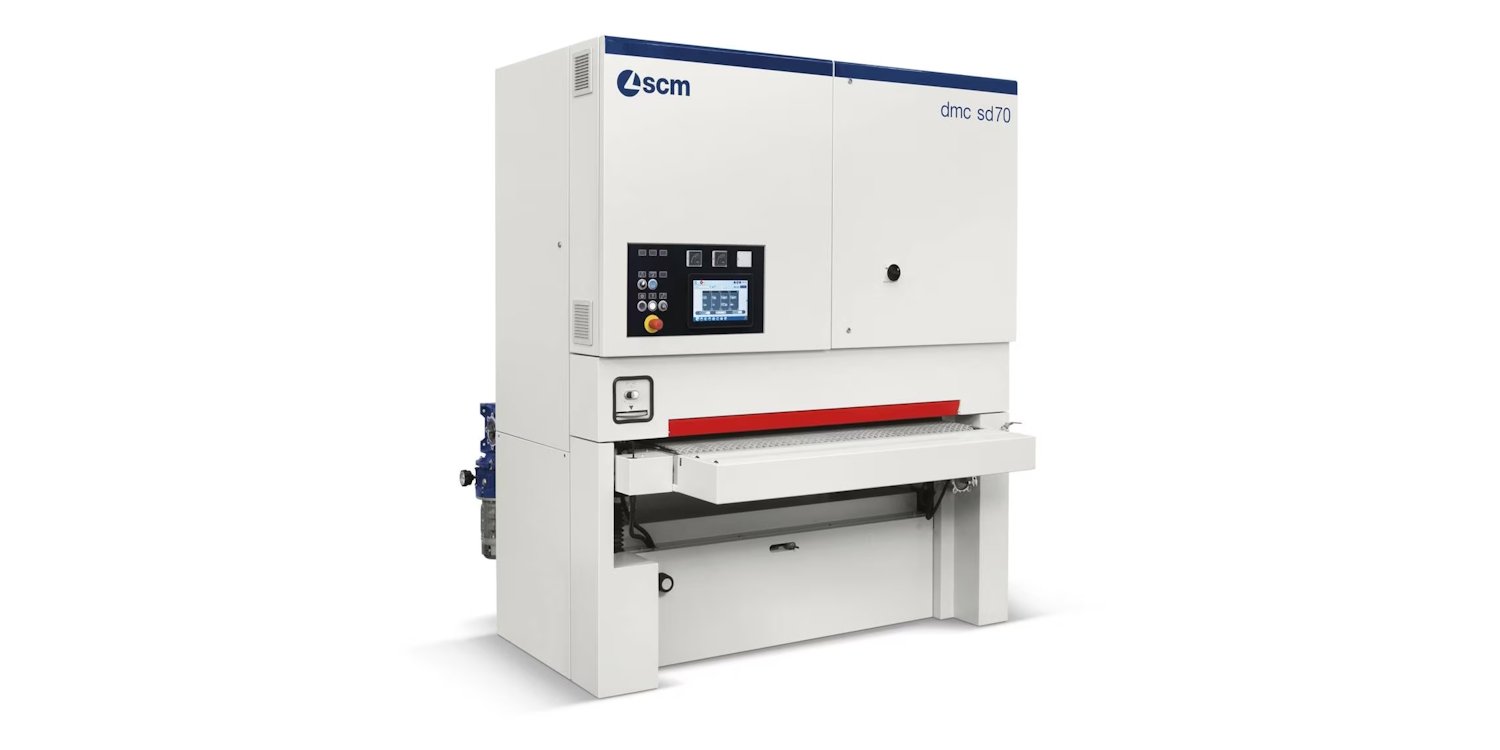

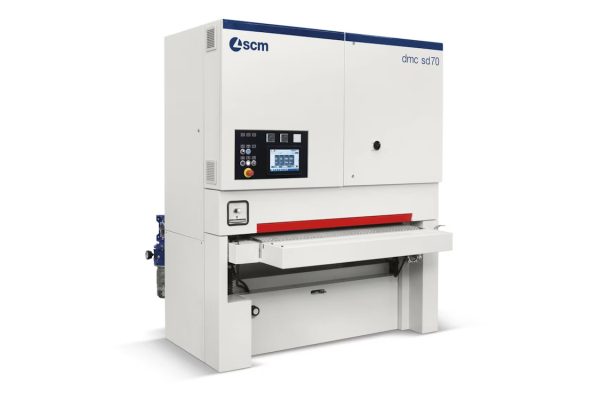

SCM dmc sd 70 Wide Belt Sander
Its high level of versatility makes the SCM dmc sd 70 Wide Belt Sander perfect for different types of machining. In the furniture sector (with veneered and painted panels) it excels in the provision of optimum level finishingthanks to the 2,620mm sanding belt length and the electronic sectional pad.
Manufacture – SCM
Condition – New
Price – From £26,444 (ex VAT)

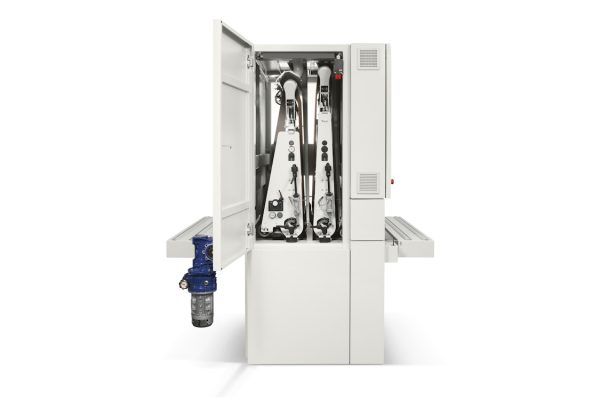

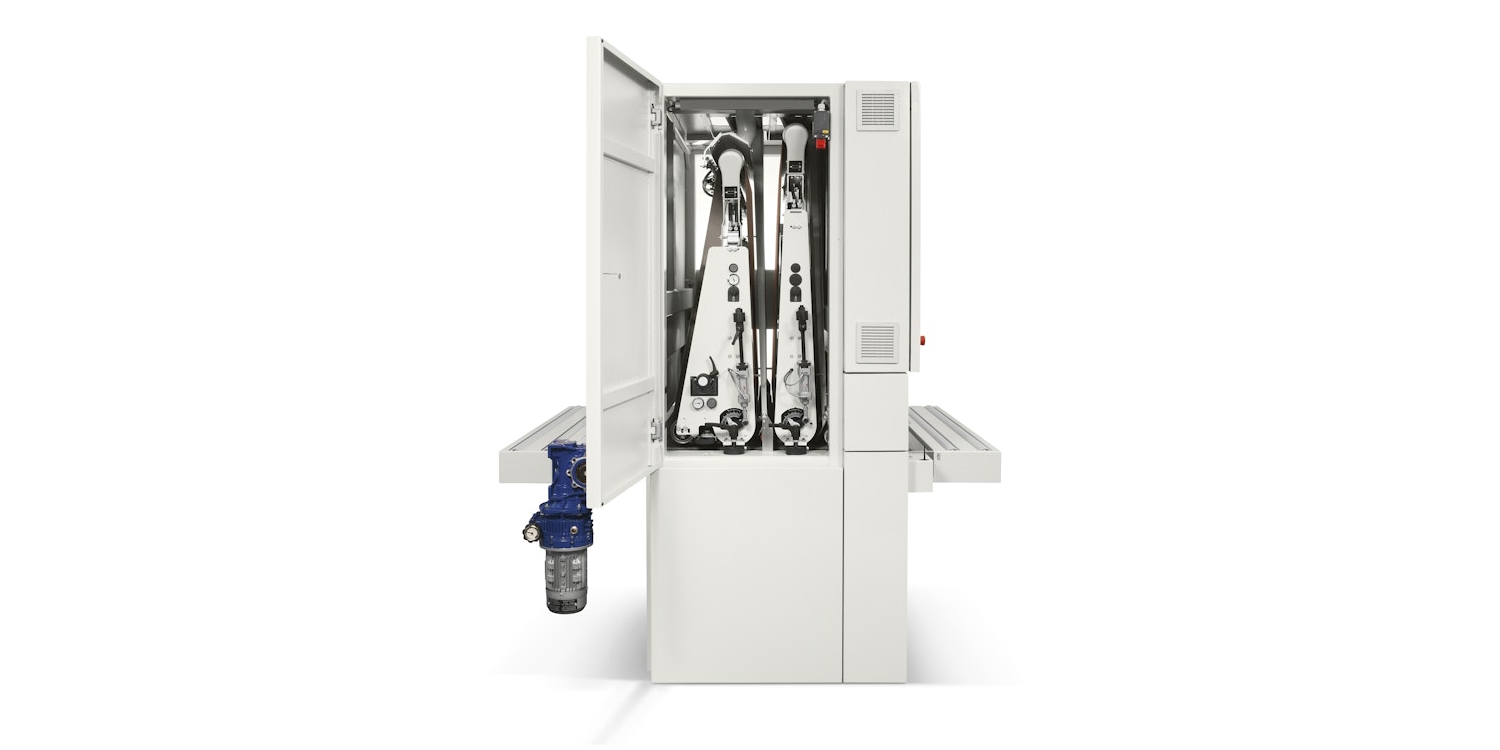

Long belts: 2.620 mm length for greater finishing and productivity
Better cooling of the abrasive grit due to the greater development of the belts that reduces the adherence of processed dust.
An extended belt length lasts longer, requires fewer replacements and consequently less downtime.

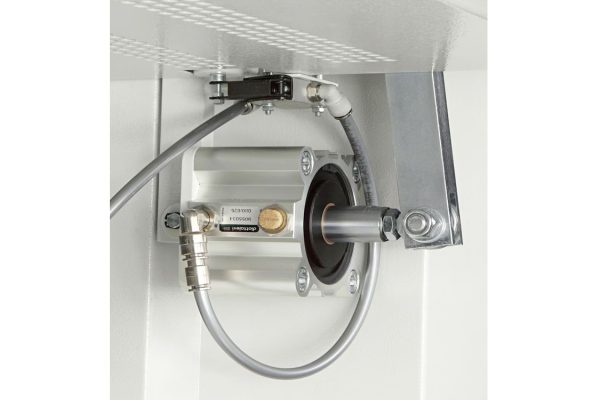

Automatic feed belt tensioning and centering: for an easy operation

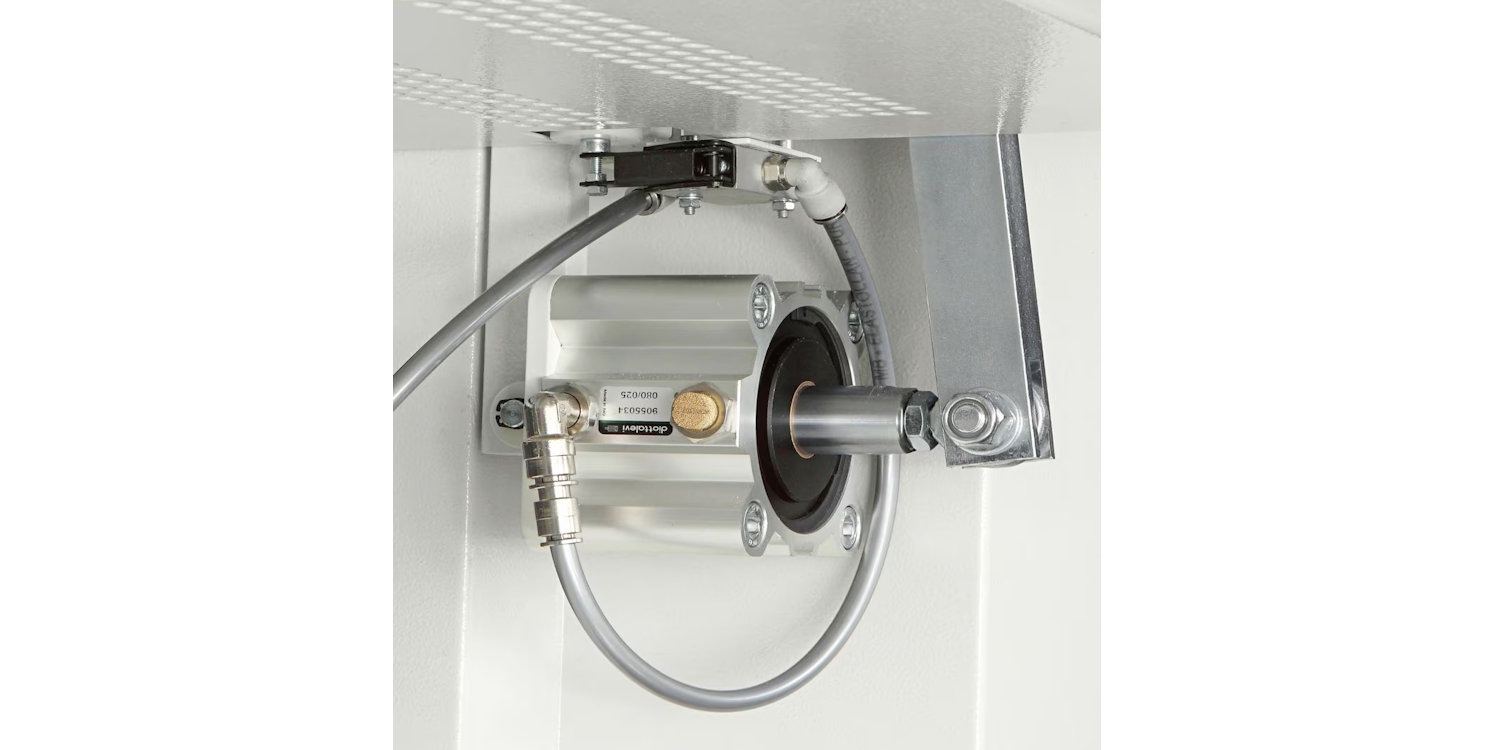

An electro-pneumatic system keeps the feed belt on track, perfectly centred and tensioned at all times. The system is automatic and no operator intervention is required.

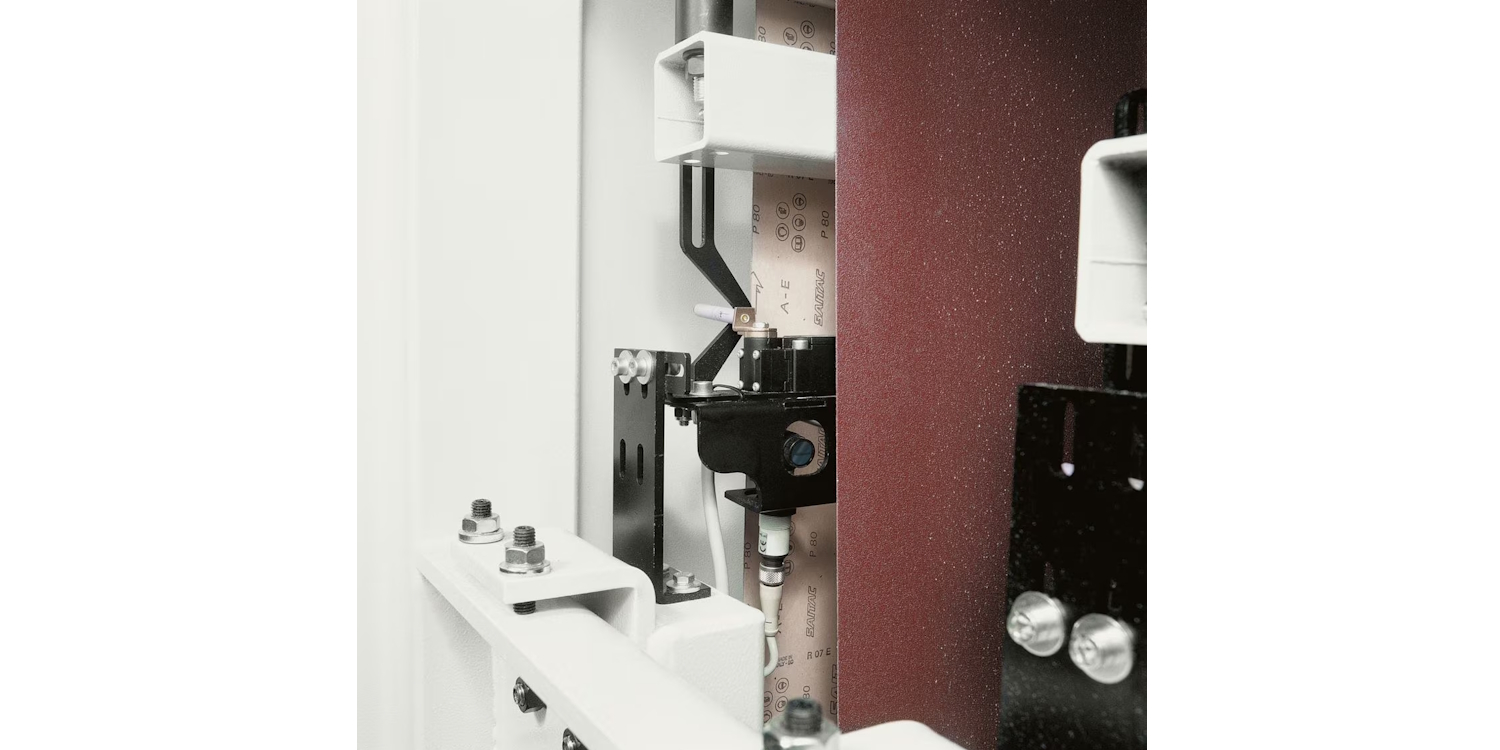

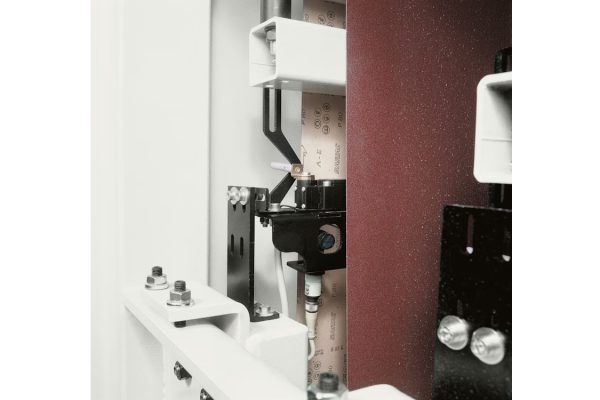

Belt oscillation controlled by an electronic photocell
This precision control system maximum uniformity in belt oscillation: this reduces the risk of belt breakage and improves finishing quality.
With LCD display and touch-screen function, it allows the complete and safe control of the machine, easily and intuitively.
The possibility to store up to 120 work programs to retrieve the machine settings most commonly used makes it perfect even for unskilled operators.
| Function | Measurement |
|---|---|
| Working Width | 1350mm |
| Min. – Max. Working Thickness (With Mobile Table) | 4 – 200mm |
| Min. – Max. Working Thickness (With Fixed Table) | 4 – 170mm |
| Sanding Belts Width | 1370mm |
| Sanding Belts Length | 2620mm |
| Standard Main Motor Power | 11kW (15Hp) |
| Motor Power 1st Group | 11kW (15Hp) |
| Motor Power 2nd Group | 11kW (15Hp) |
| Feed Belt Speed | 4,5/9m/min |
