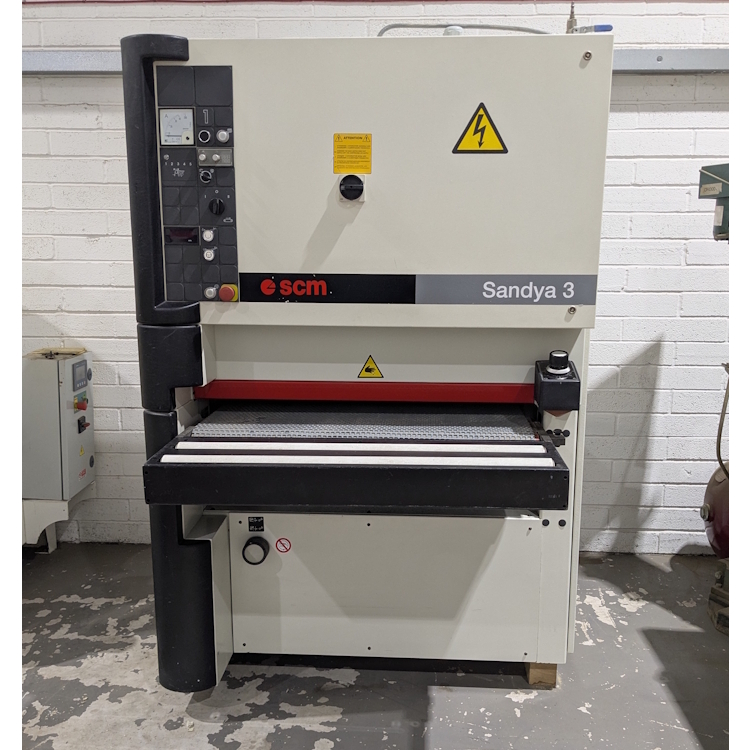

Used SCM Sandya 3 CS Wide Belt Sander
Used SCM Sandya 3 CS Wide Belt Sander.
Standard equipment
– Combined group equipped with 85 SH rubber-coated sanding roller, 120mm diameter and with a rigid pad
– electronic sanding belt oscillation
– powered rise & fall of the worktable
– digital display showing working thickness
– rubber coated pressure rollers in the front/rear side of each operating group
– infeed flexible steel pressure plate
– two infeed and two outfeed support rollers on the feed belt
– Automatic star-delta start on main motor
Manufacture – SCM
Condition – Used
Price – £4,950 (ex VAT)
TES – Elastic sectional pad
It consists of independent sectors with single adjustable pressure. This is ideal for machining honeycomb panels.

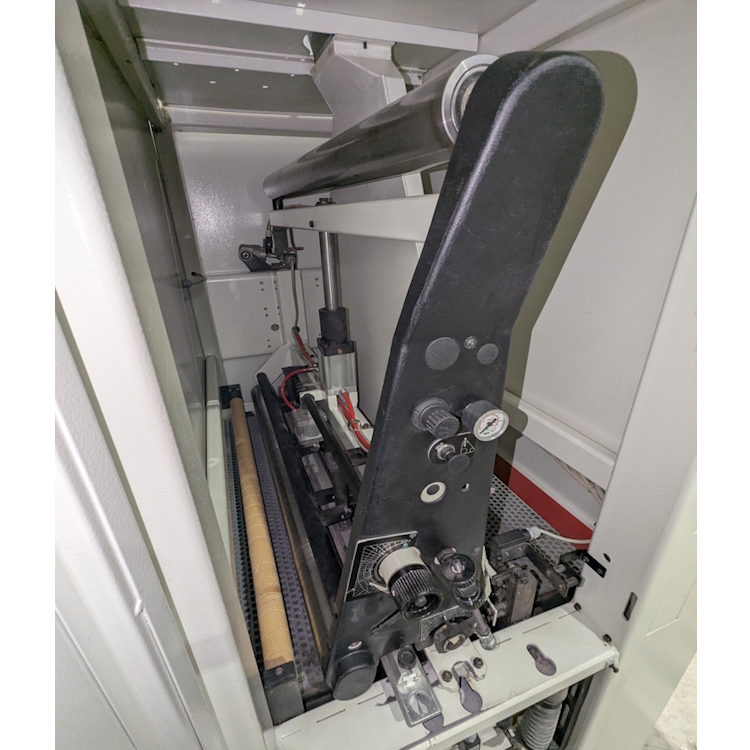

Support roller and automatic belt centering
The twin rollers at the infeed and outfeed positions of the belt facilitate workpiece loading and unloading. The automatic belt centering device ensures that the conveyor belt remains in the best machining conditions at all times.
Feed belt speed with inverter
The device allows the continuous feed belt speed adjustment from 3.5 up to 18m/min, directly from the control panel
Machining thickness electronic positioning device
This detects the thickness of the workpiece with remarkable precision. The device is fitted with a decimal adjustment function to automatically pre-set the machining depth required.
Working width – 950mm
Min/max working thickness – 4 – 170mm
Abrasive belts width – 970mm
Lengthways belt size – 1900mm
Main motor power – 15Hp
Feed belt speed – 4.5/9 m/min
