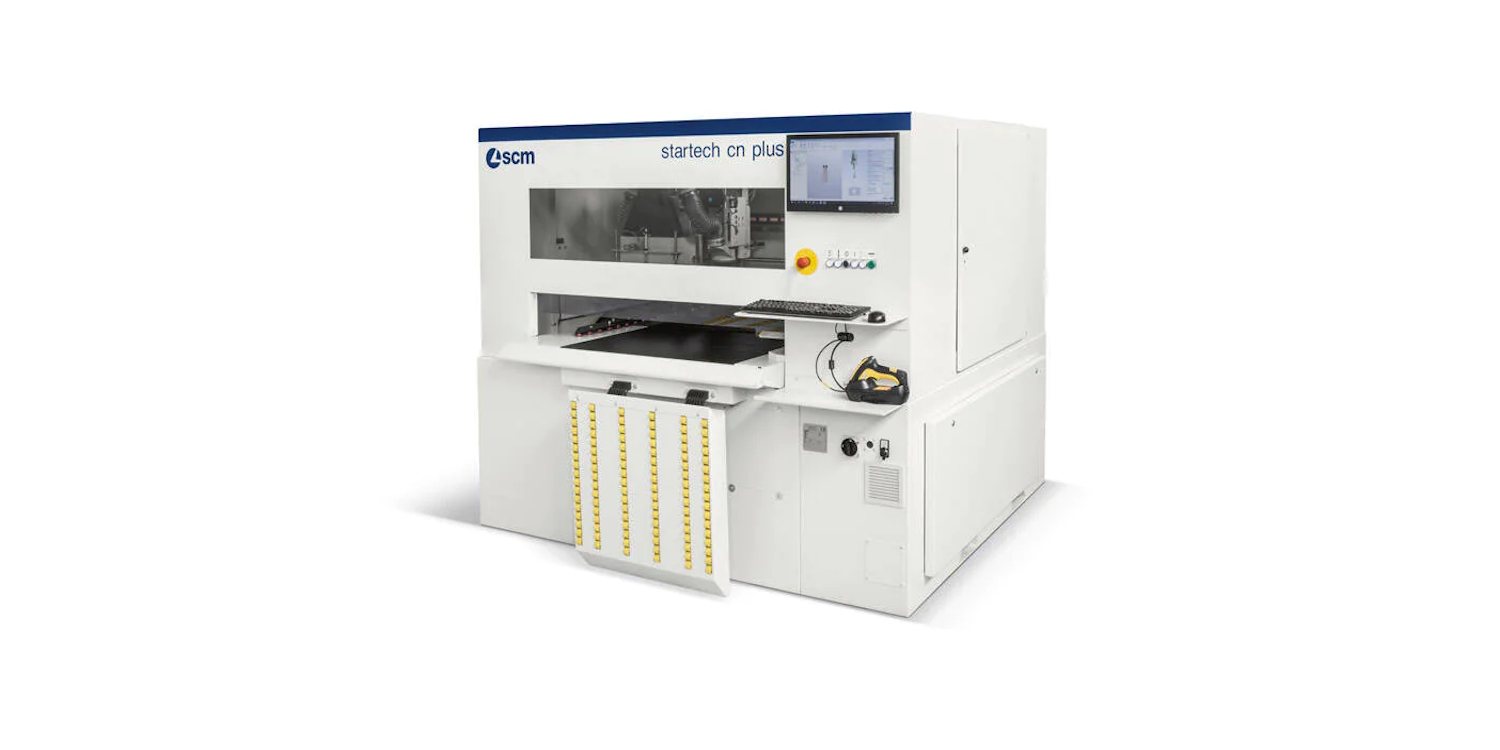

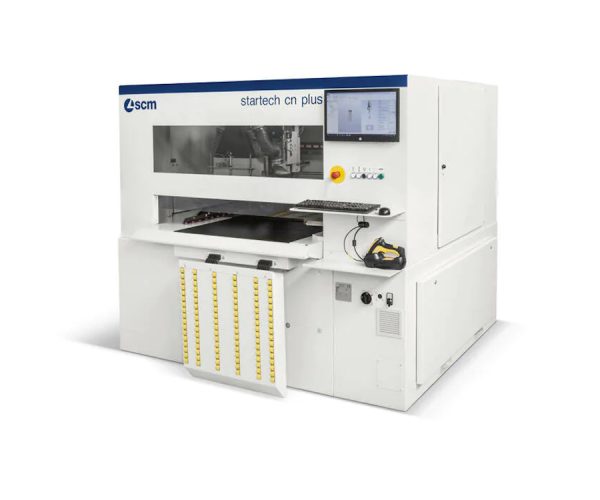

SCM Startech CN Plus

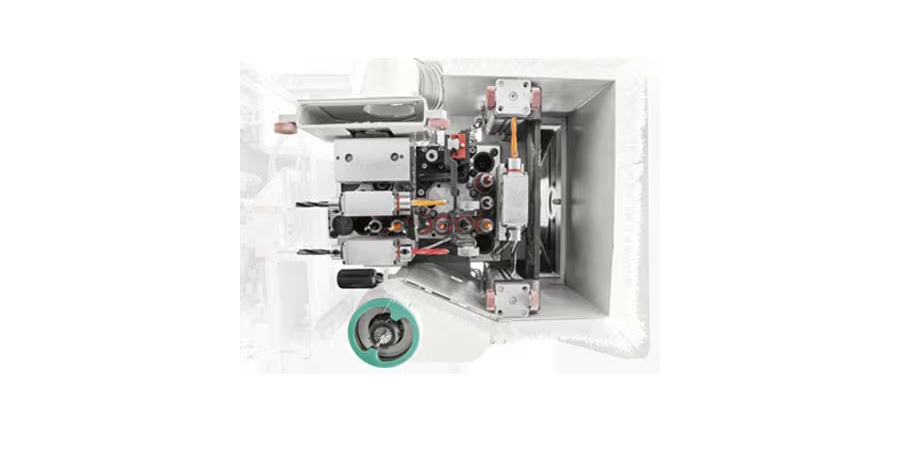

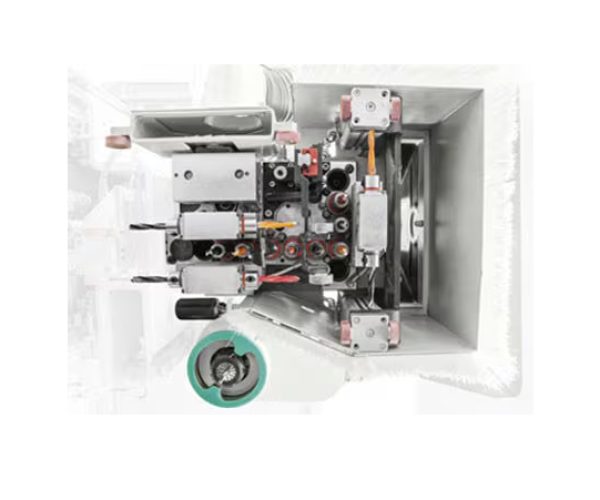

The SCM startech cn plus has been designed for the small-medium woodworking workshops but also for larger companies that produce customised products, with in house prototype development departments. Thanks to the 8 independent vertical spindles, the 6 horizontal spindles, the blade in “X” . There is a machine version with router.
Manufacture – SCM
Condition – New
Price – From £38,937 (ex VAT)
FLEXIBLE: IDEAL SOLUTION FOR TAILORED PRODUCTIONS
No operator’s intervention for the worktable and machine set-up according to the panel dimensions.
PERFORMING: TOP PERFORMANCE
Tooling and machining operations reduced to the minimum, with 40 m/min axes speed.
COMPACT: VERY REDUCED MACHINE OVERALL DIMENSIONS
With its 5 m2 overall dimensions, it can be installed in reduced spaces.
SIMPLE: AT EVERYBODY’S REACH
Easy-to-use machine and for every investment capability.

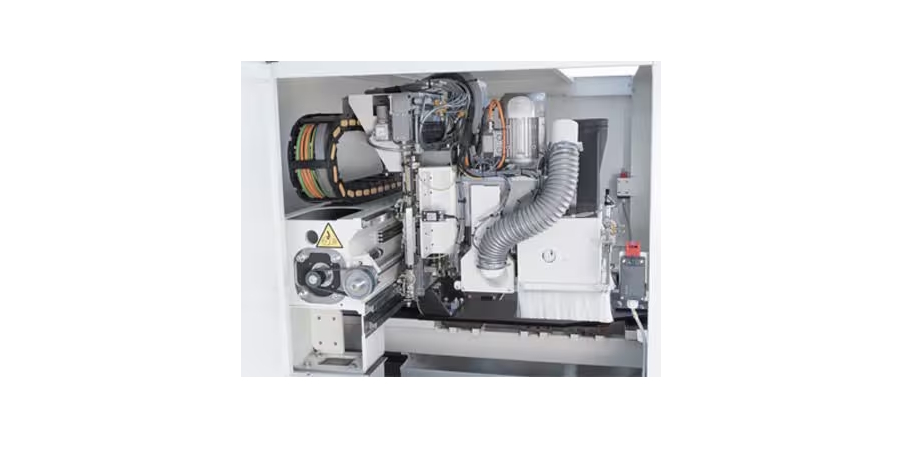

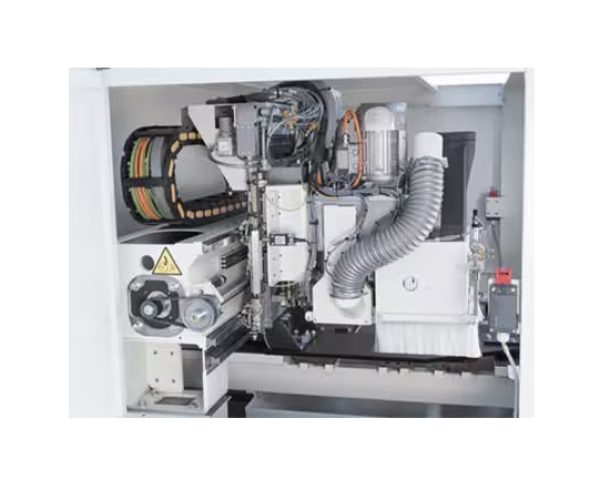

Effective: The operating unit above the panel allows a very precise and cleaned working. Furthermore any panel thickness imperfection is hidden inside the furniture (part not in sight).
Maximum versatility: The machine version with routing unit with electrospindle 5.5 kW motor power is suitable for all machining.
Totally automatic: thanks to the automatic side alignment device the panel is loaded, into the machine and recovered at the end of the boring-milling program, without any other intervention required by the operator.

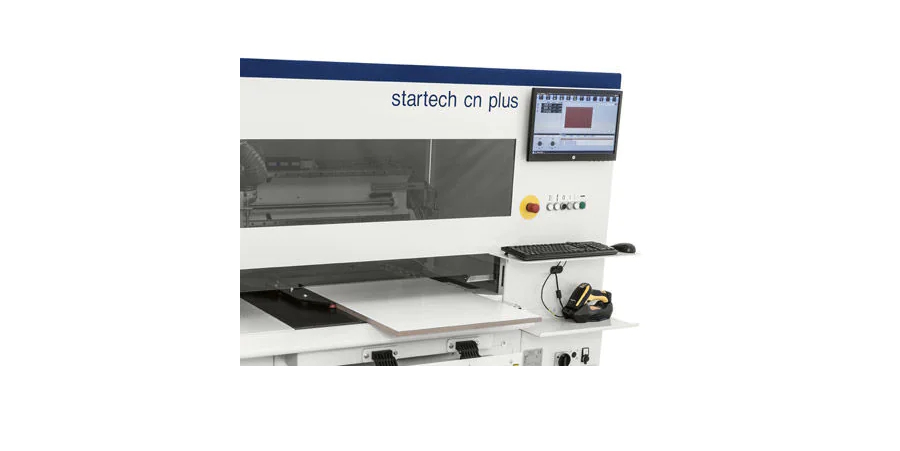

A “Maestro” at your disposal: 19″ PC with integrated software. The SCM “Maestro cnc” software allows to create projects and geometrical drawings to be automatically converted in drilling-routing programs for the machine.
| Function | Measurement |
|---|---|
| AXES | |
| Max/Min Work Piece Dimensions X-Y-Z | 3050 x 900 x 60 / 200 x 80 x 10mm |
| Drilling/Grooving Working Area | 40/ 40/10m/mm |
| Vertical Spindles | 8 (5X-3Y)no. |
| Horizontal Spindles | 6 (2+2X-2Y)no. |
| Blade, Diameter / Thickness | 125/6mm |
| Spindles / Blade Rotation Speed | 4200/5500g/min |
| Electrospindle Rotating Speed | 18.000g/min |
| Power | 15,2 (20,7 with electrospindle)KVA |
| Options |
|---|
| Voltage other than 380/400V 50/60Hz |
| Electric cabinet with air conditioning device |
| Uninterrupted power supply unit (UPS) |
| Pressure regulator for exhaust hood |
| Automatic lubrication |
| Internal machine lightening |
| Side supports for the machining of long workpieces |
| Additional hardware key for “Maestro cnc” |
| Wireless barcode reader |
