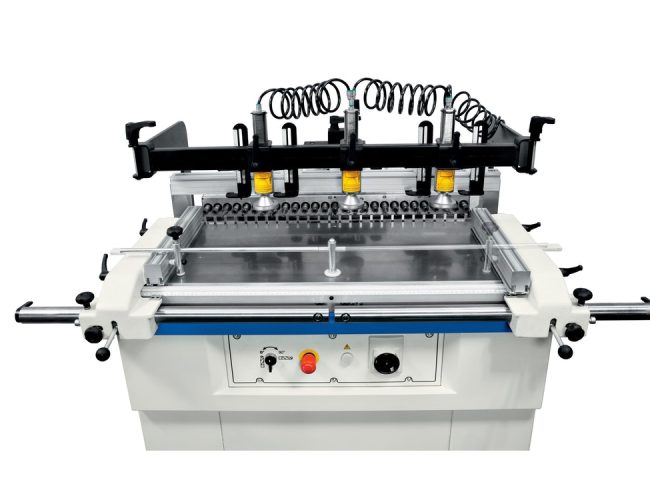

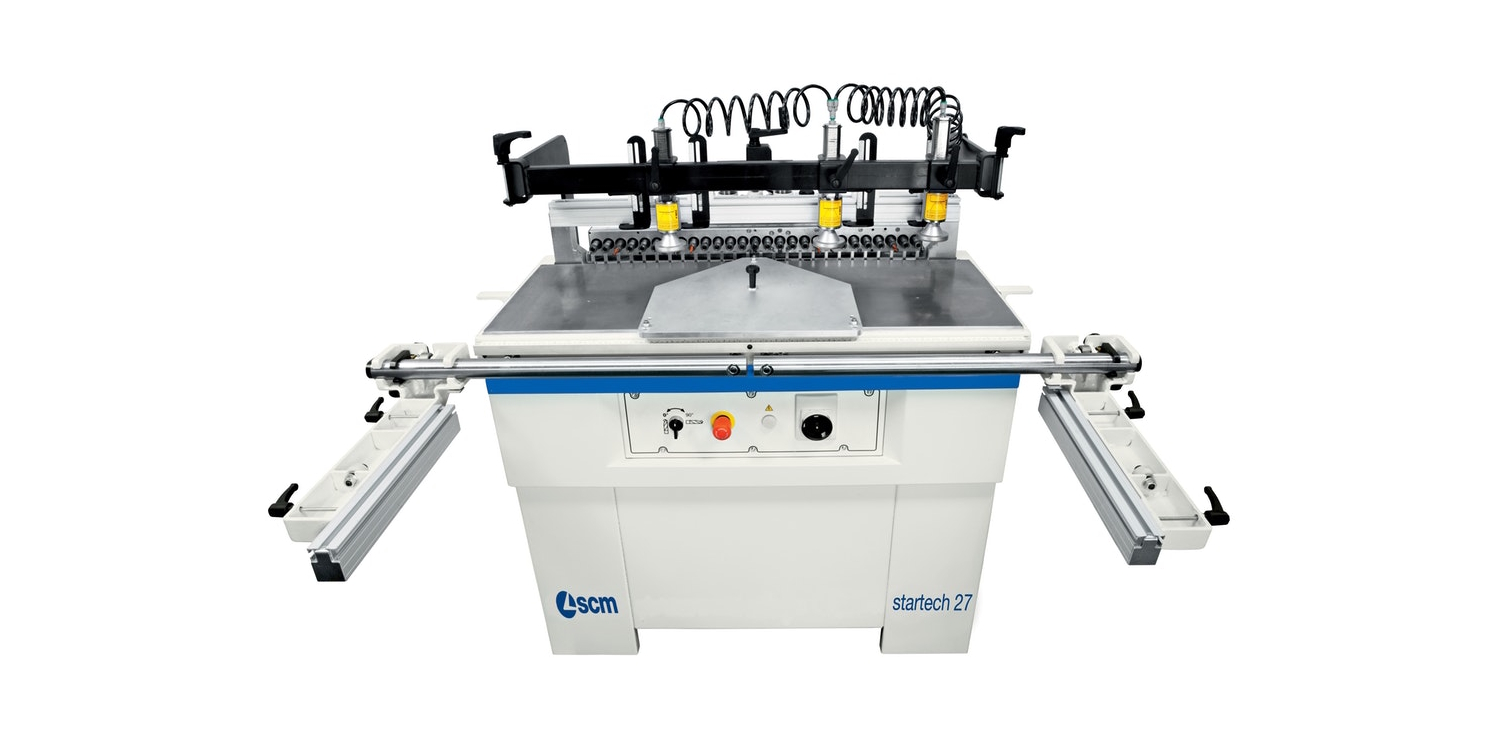

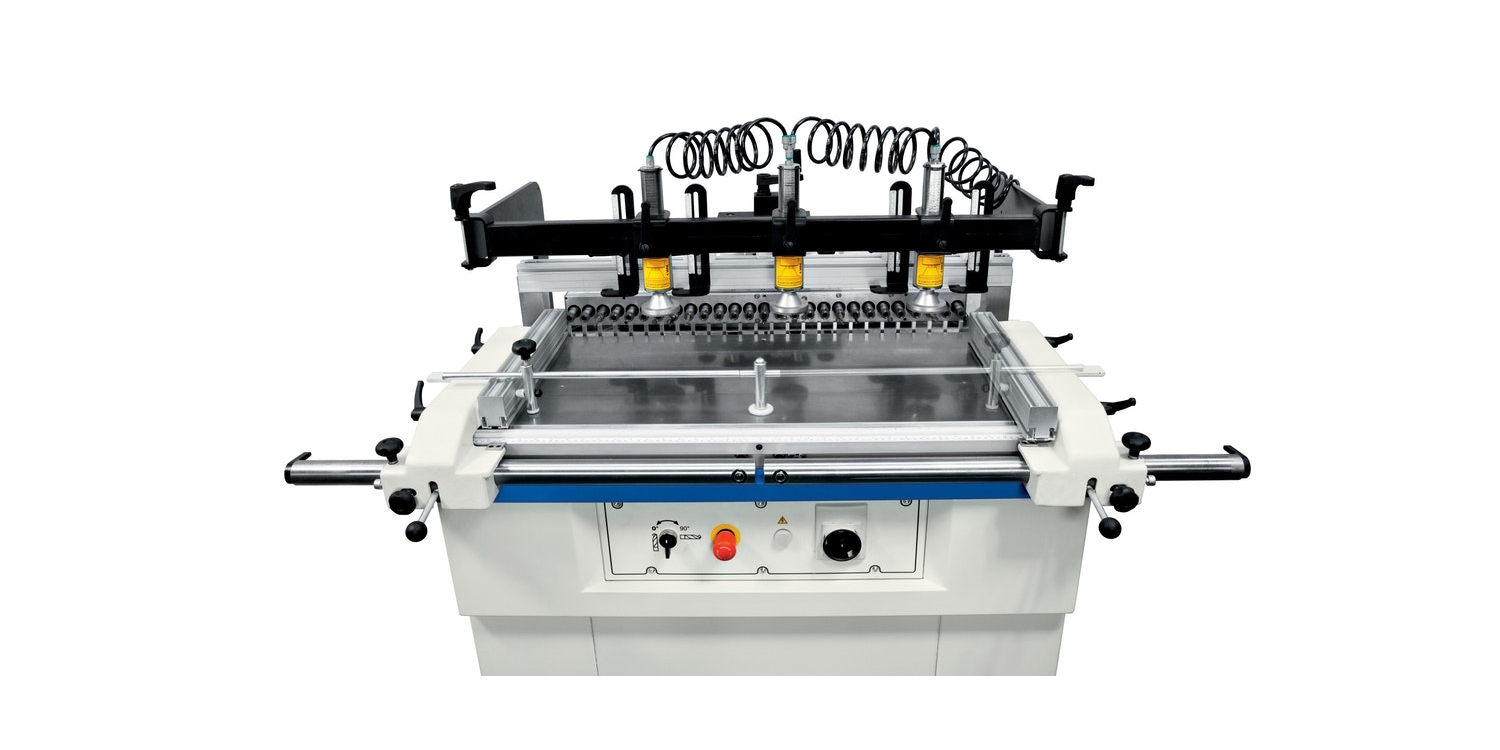

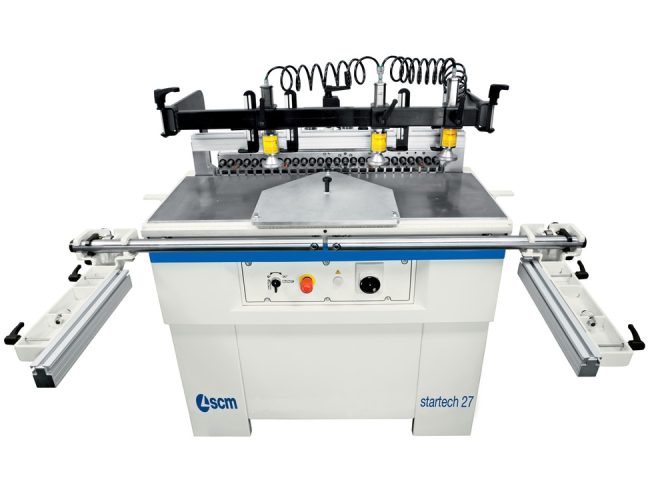

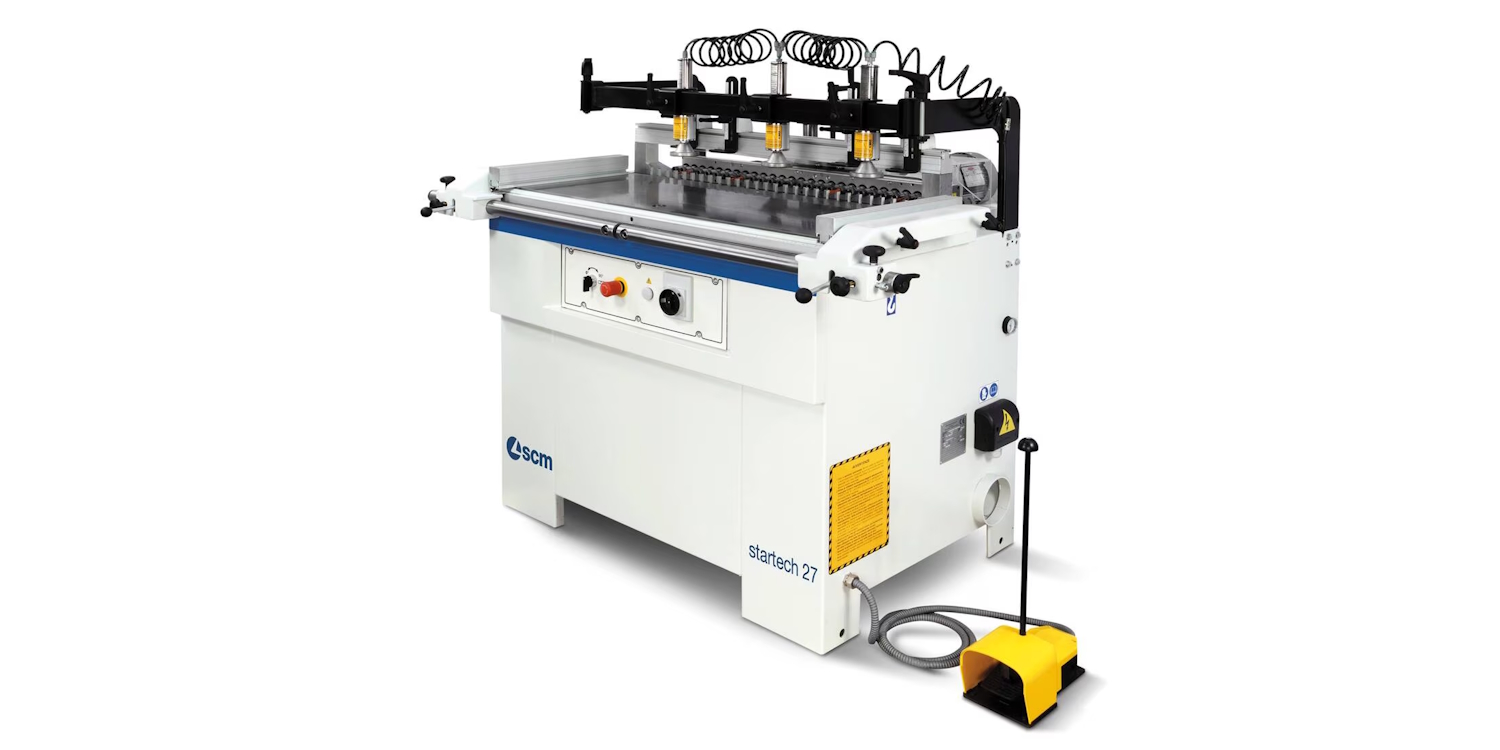

SCM Startech 27 Multi Drill
The SCM Startech 27 Multi Drill is an ideal machine for boring operations on panels, new model with 27 or 21 spindles.
Manufacture – SCM
Condition – New
Price – From £6,499 (ex VAT)
Rich basic equipment: it is complete with all accessories such as pnematic head adjustment, spindles with quick attachment, lateral guides L=3mm with reference stops for panel positioning.
Cost-effective: the single-head multiboring machine for everybody.

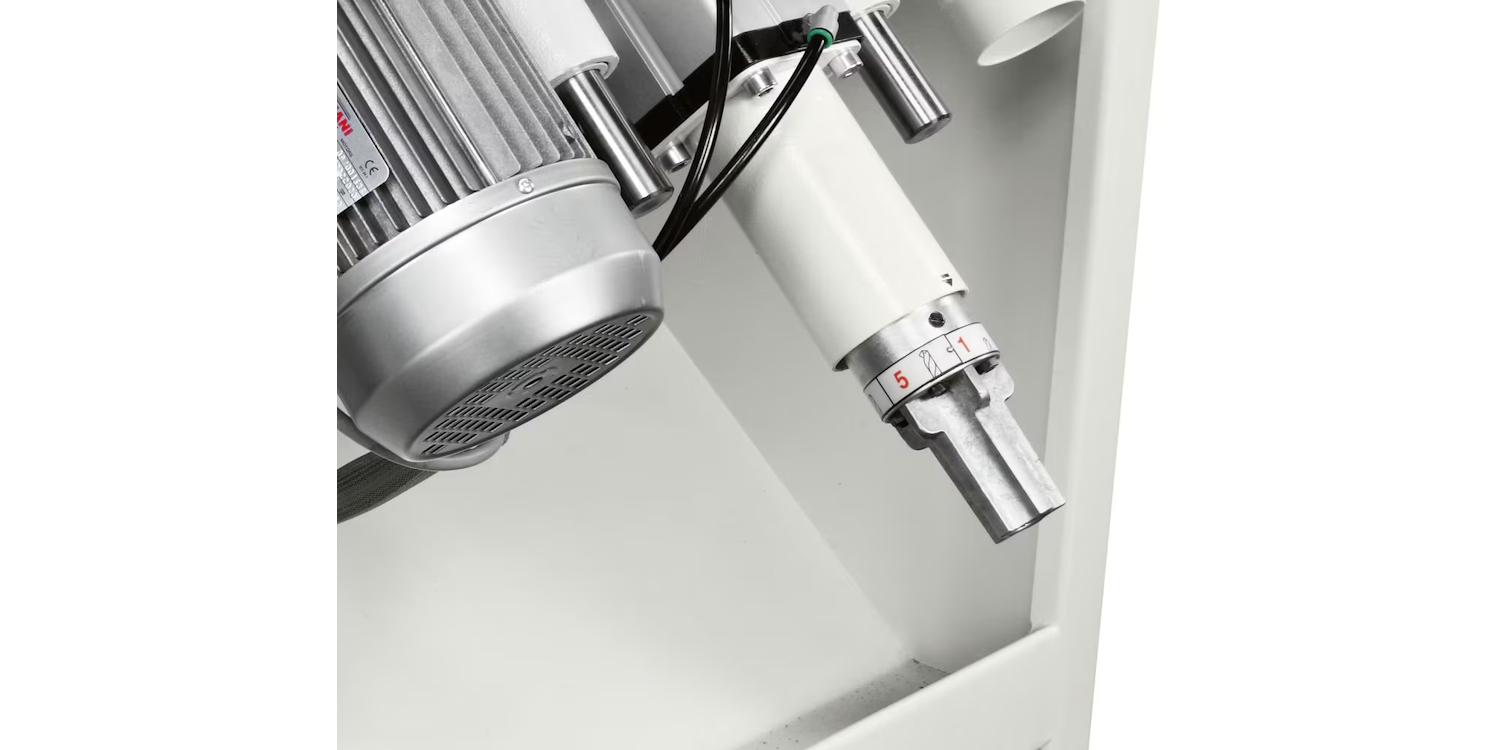

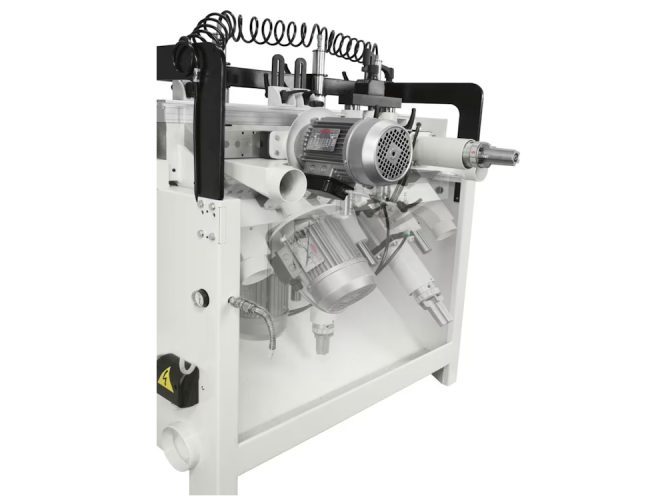

Versatile: thanks to 27 and 21boring spindles, which can be horizontally, vertically and at 45° positioned.

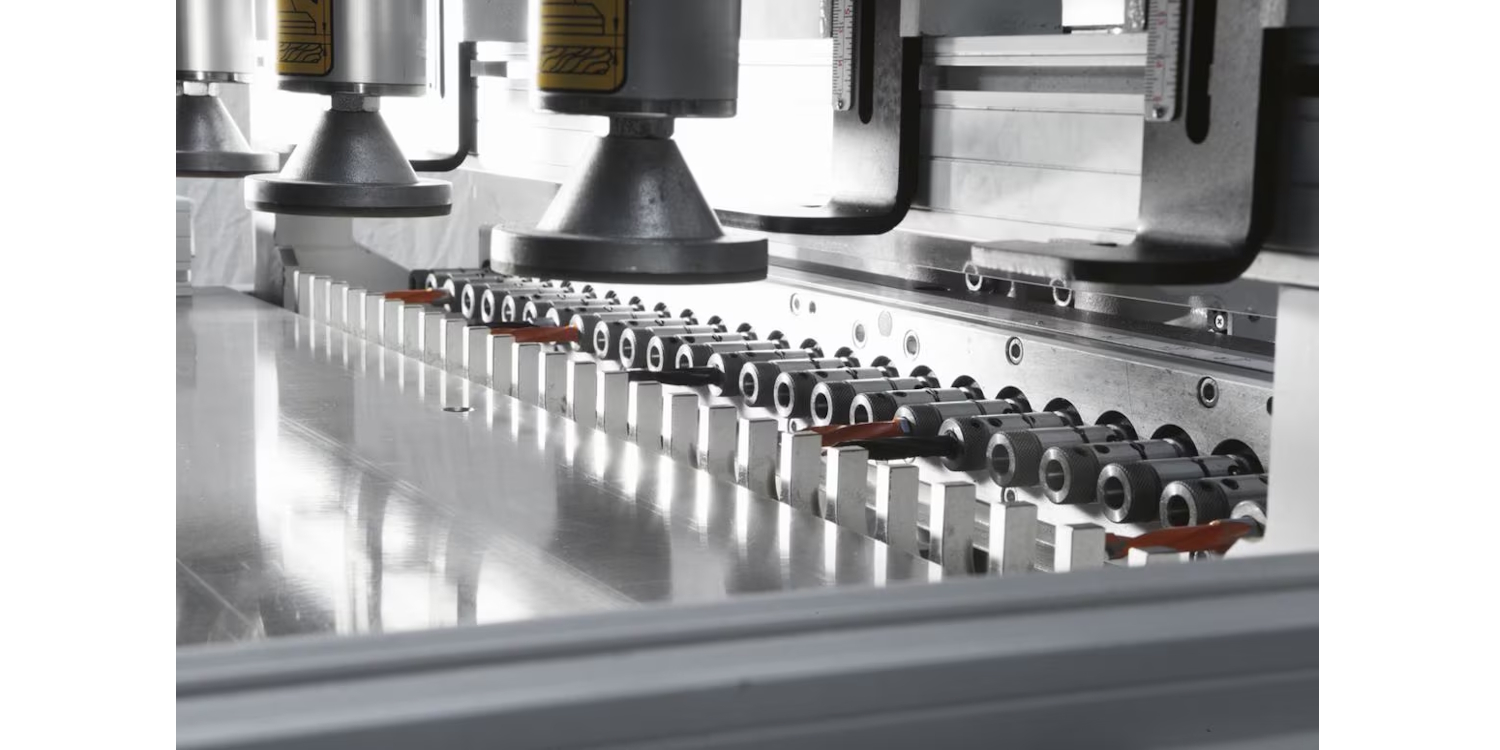

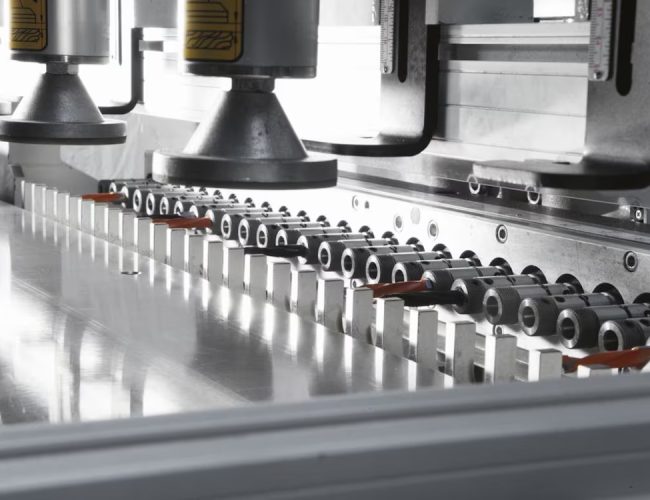

Quick attachments for easy setting up. This solution enables a quick tool replacement, essential to move smoothly from one job to another, eliminating downtime.

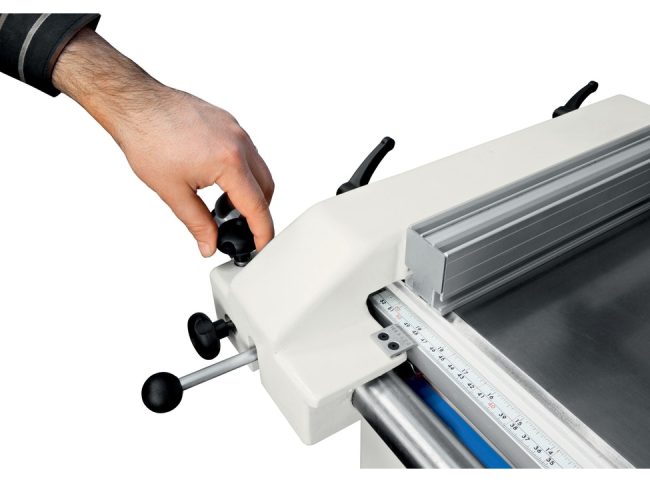

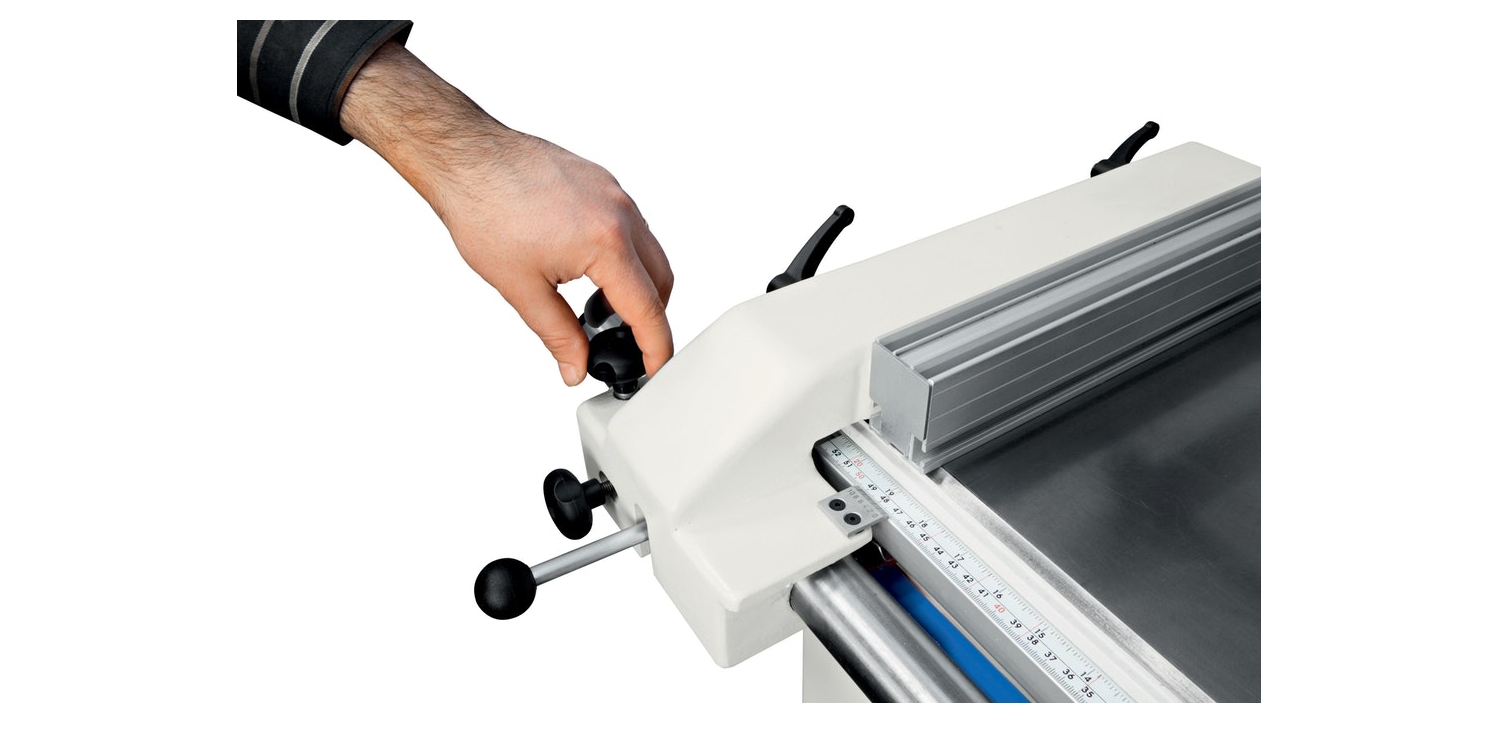

The “maximum”… available as standard. Reference guides with 3 metre total length with 4 retractable stops.
| Function | Measurement |
|---|---|
| No. Of Spindles | 27 |
| Centre Distance Of Spindles | 32mm |
| Spindles speed | 2800rpm |
| Motor power of spindles | 1.8kW |

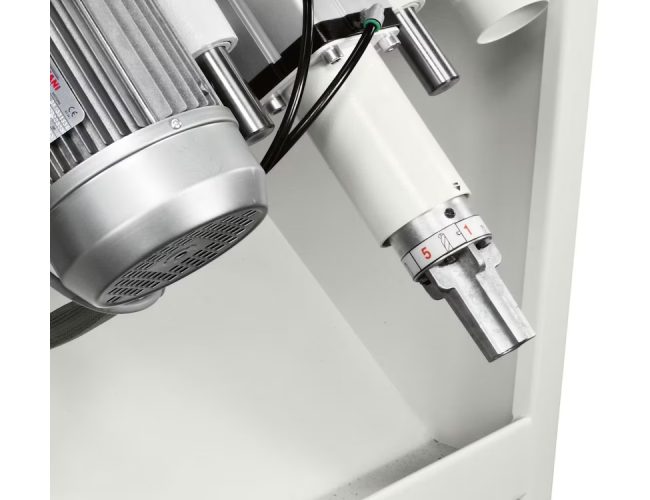

| No. of revolving turret positions | 5 |
| Max stroke of boring unit | 70mm |
| Max. Tool Length | 80mm |
| Max. Tool Diameter | 40mm |
| Max. horizontal boring height | 60mm |
| Max. Panel Width Within The Gantry | 1025mm |
| Max. distance of vertical borings from panel edge | 150mm |
| Min. Panel Thickness | 10mm |
| Max. Panel Thickness | 85mm |
| Exhaust outlets diameter | 120+80+80mm |
| Working table dimension | 1,096 x 407mm |
| Worktable height from floor | 900mm |
| Options |
|---|
| Servo-assisted boring unit down stroke speed adjustment |
| no. 9 drilling bit-holder bushes 10 mm diameter |
| Fence for horizontal boring at 45° |
| Supplementary top pressure cylinder (Qty 1) |
| Device for working narrow workpieces |
| Group for the machining of hinges for cabinet doors |
| Single-phase version |
