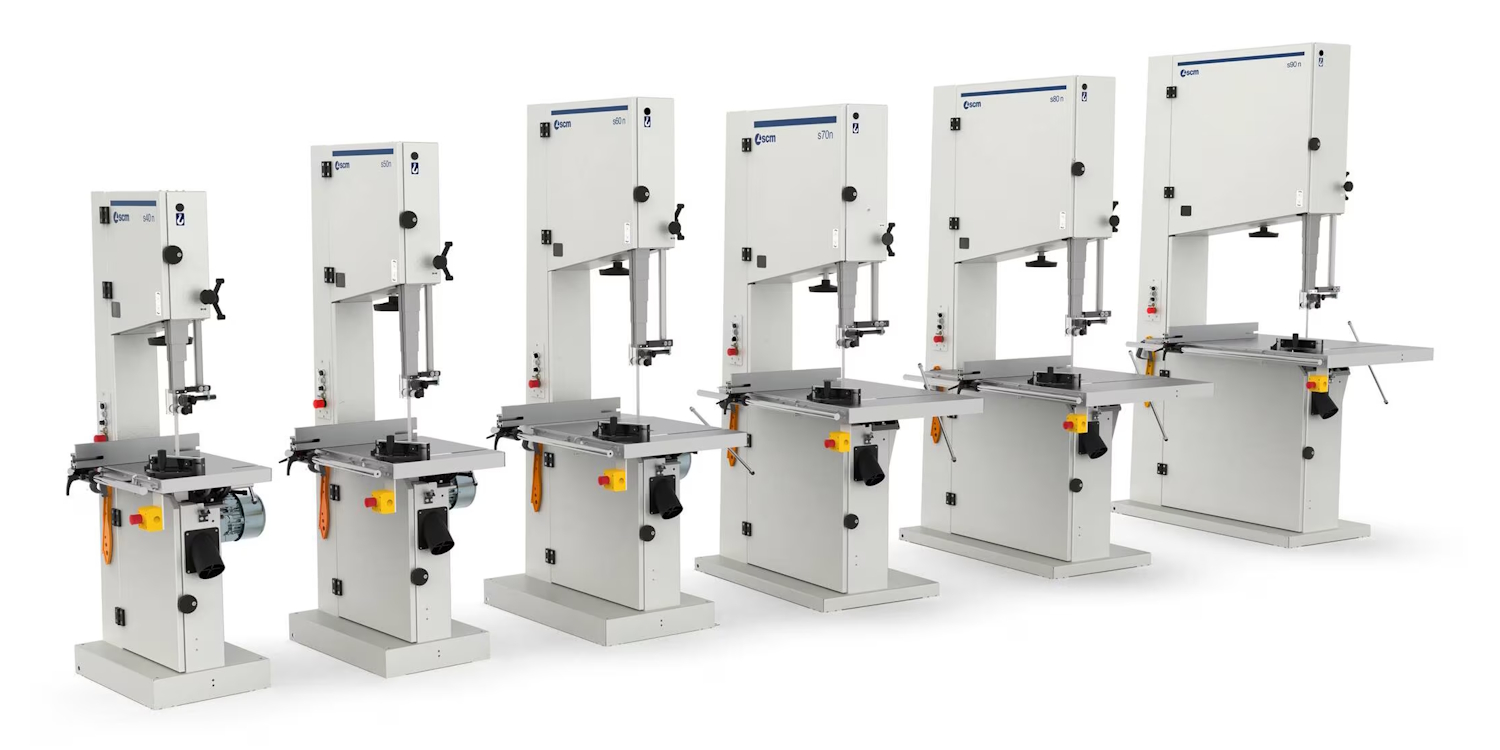

SCM s40n - s50n - s60n - s70n - s80n - s90n Bandsaw
Range of SCM professional, sturdy and reliable bandsaws. Precision engineering and heavy-duty performance. Designed for advanced joinery with high safety and durability. From the compact s40n to the industrial s90n : the right solution is available for every cutting need.
Manufacture – SCM
Condition – New
Price – From £3,135 (ex VAT)
ABSOLUTE STURDINESS & DURABILITY

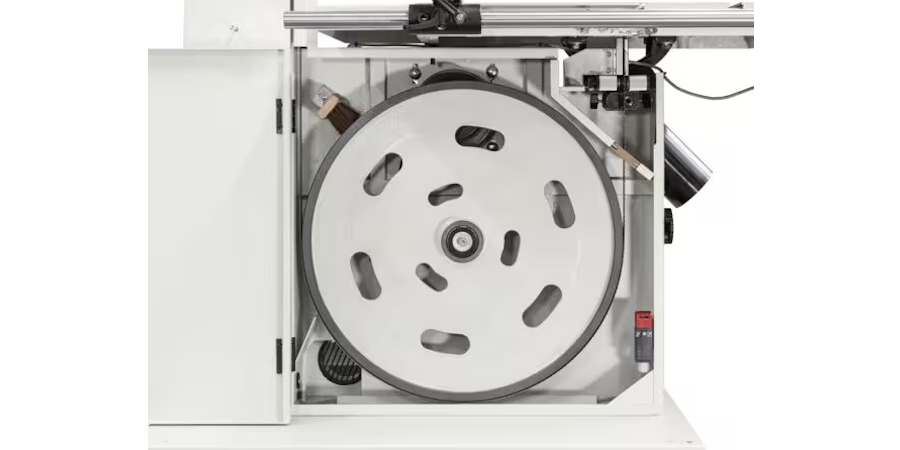

Heavy cast-iron construction (flywheels and worktable) ensures maximum stability and vibration dampening. Paired with industrial-grade three-phase motors across the entire lineup, powered by three-phase or single-phase supply via inverter, for superior robustness and long-term asset protection.
HIGH-PERFORMANCE CUTTING
Exceptional resaw capacity up to 628 mm, powerful motors, and dual blade speeds (via inverter) enable the machine to tackle oversized and demanding cuts with ease, delivering clean results even under heavy load.
CUTTING-EDGE ACCURACY & EFFICIENCY

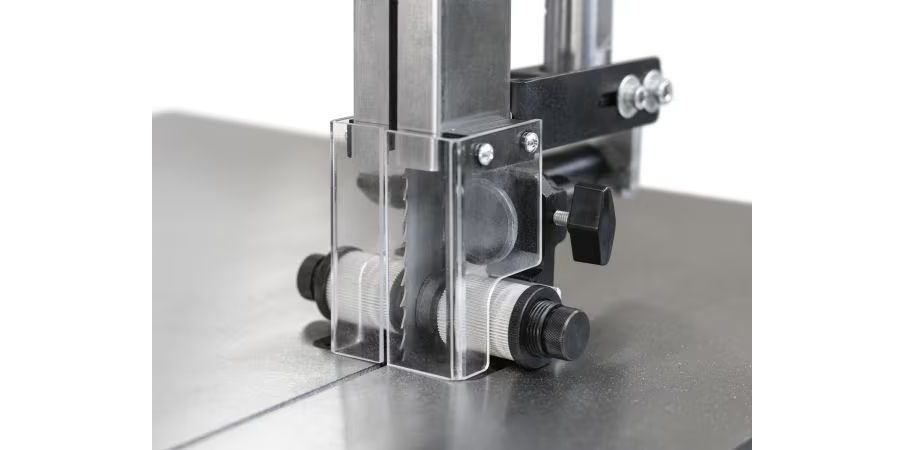

State-of-the-art guide ensure superior accuracy and minimal rework. Fast, precise setup is enabled by the ergonomic tilting worktable with crank (0°–45°) and the blade tensioner quick-release (S 40N / S 50N), drastically reducing downtime.
UNCOMPROMISING SAFETY AND CLEAN OPERATION

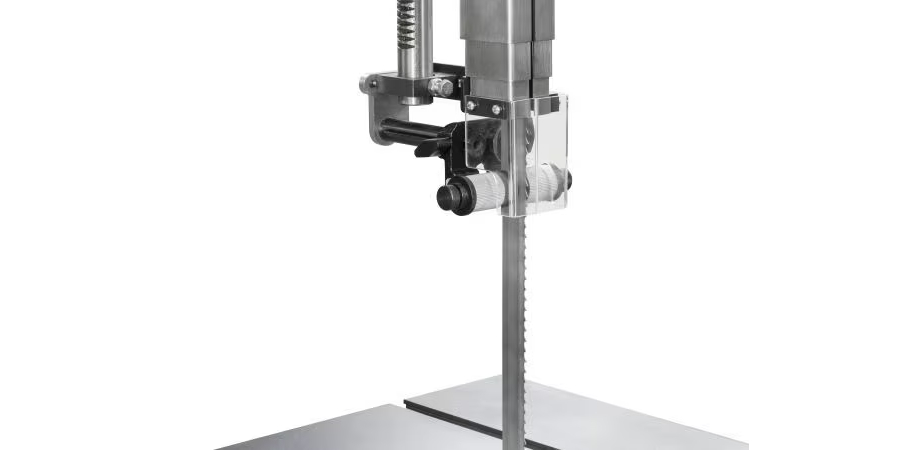

The telescopic blade guard ensures operator safety at every stage of operation. Two extraction ports: one under the worktable and one on the lower flywheel for a consistently clean workspace.
| Function | s40n | s50n | s60n | s70n | s80n | s90n | |
|---|---|---|---|---|---|---|---|
| Cutting Capacity | |||||||
| Height (Resaw) | mm | 430 | 536 | 628 | 459 | 546 | 554 |
| Width (Throat) | mm | 395 | 480 | 590 | 688 | 787 | 886 |
| Flywheel | |||||||
| Diameter | mm | 400 | 500 | 600 | 700 | 800 | 900 |
| Worktable | |||||||
| Dimensions | mm | 420 X 578 | 485 X 633 | 608 X875 | 730 X 1050 | 820 X 1200 | 820 X 1270 |
| Tilting | degrees | 0° – 45° | 0° – 45° | 0° – 45° | 0° – 45° | 0° – 45° | 0° – 45° |
| Motors | |||||||
| Power (S6) – Standard | kW-Hz | 2,6kW -50Hz | 2,6kW – 50H | 3,6kW – 50Hz | 3,6kW – 50Hz | 6,6kW – 50Hz | 6,6kW – 50Hz |
| Power (S6) – Optional | kW-Hz | 3,6kW – 50Hz | 3,6kW – 50Hz | 6,6kW – 50Hz | 6,6kW – 50Hz | – | – |
| Single Phase (via Inverter) | Yes | Yes | Yes | No | No | No | |
| Blade | |||||||
| Width | mm | 6-30 | 6-30 | 8-35 | 10-40 | 10-45 | 12-50 |
| Length | mm | 3756 | 4362 | 4870 | 5104 | 5581 | 6113 |
| Overall dimensions | |||||||
| Height x Width x Depth | mm | 1885 x 813 x 714 | 2076 x 941 x 762 | 2278 x 1201 x 863 | 2280 x 1391 x 870 | 2460 x 1574 x 929 | 2680 x 1610 x 899 |
| Dust Port (Number / Diameter) | n./mm | 2 X 100 | 2 X 100 | 2 X 100 | 2 X 100 | 2 X 100 | 2 X 100 |
| OPTIONS |
|---|
| Fence for angular cuttings |
| Industrial plug and socket (2.6 kW and 3.6 kW) S40N & S50N ONLY |
| Additional emergency pushbutton under the worktable |
| Wheels for machine movement |
| Single phase motor – S40N, S50N & S60N ONLY |
| N.2 blade speeds for 2.6 kW motor (only for inverter version) – S40N & S50N ONLY |
| N.2 blade speeds for 3.6 kW and 6.6 kW motor (only for inverter version) |
