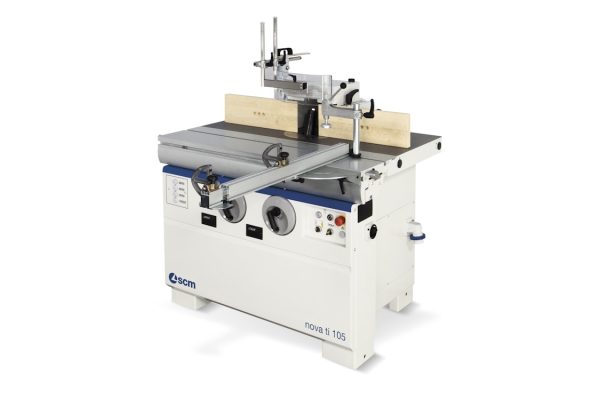

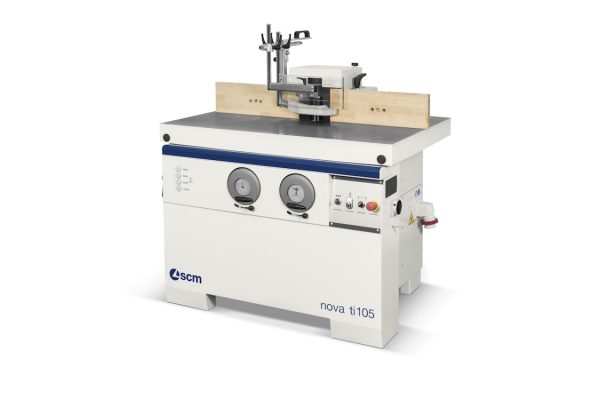

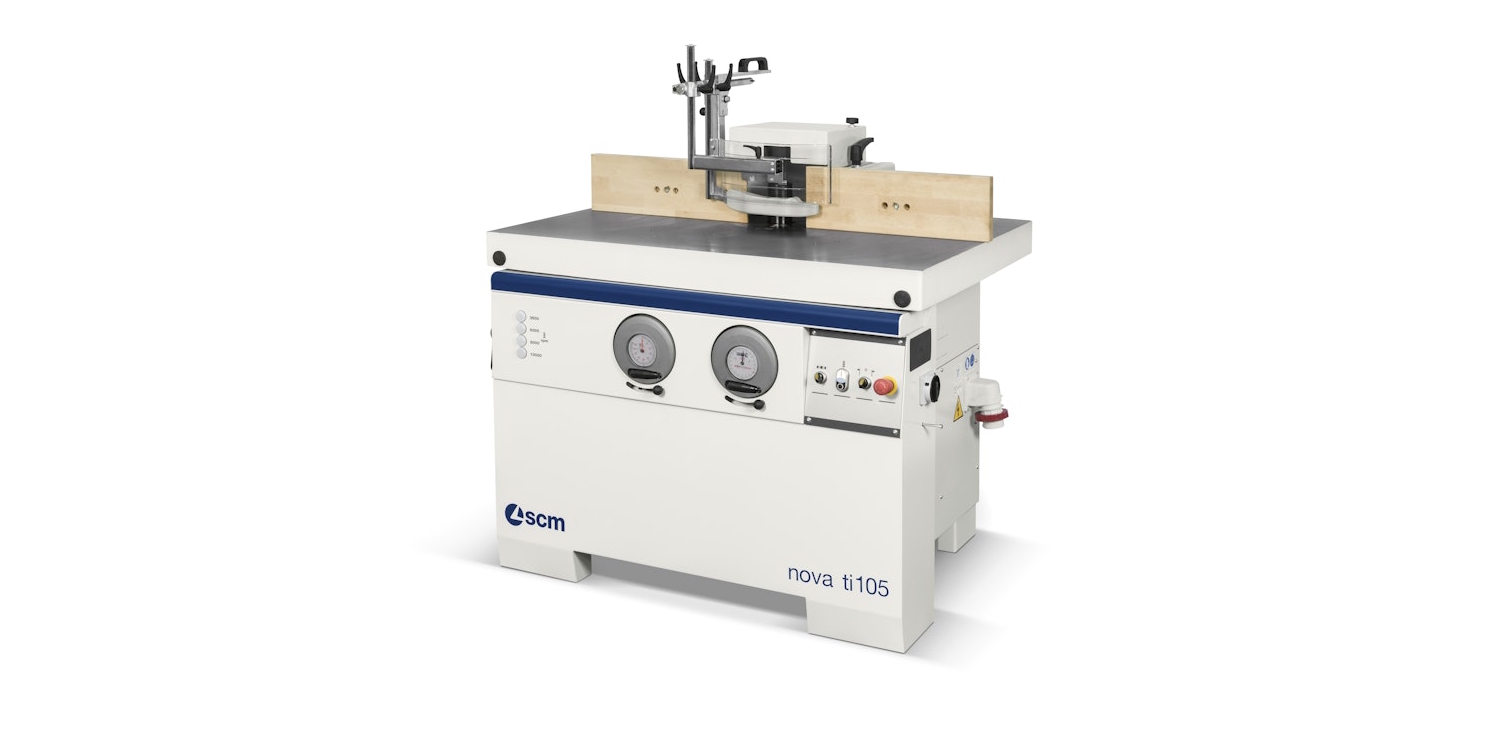

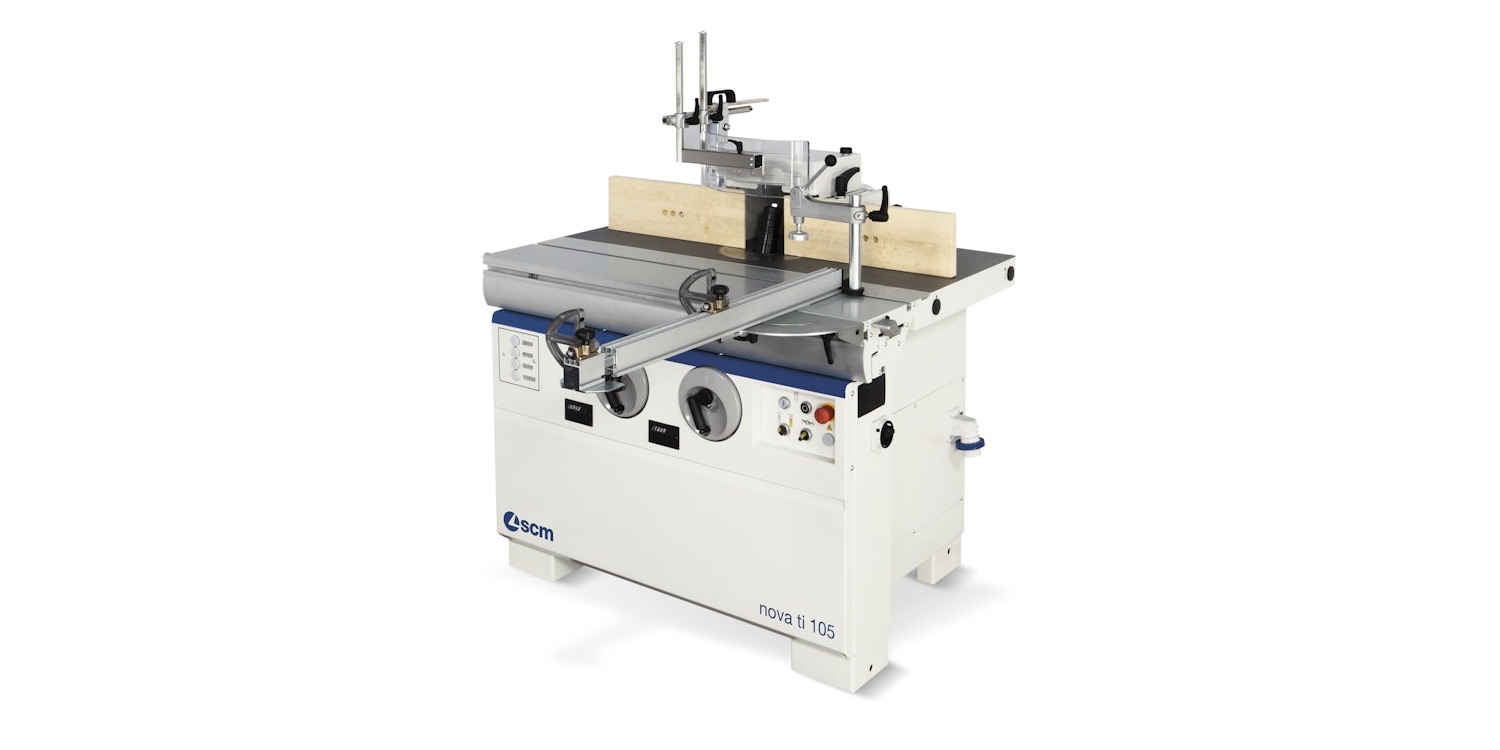

SCM Nova ti105 Spindle Moulder
SCM Nova ti105 Spindle Moulder – Guaranteed quality at your finger tips. Easy-to-use, productivity and efficiency, flexibility.
Set up precision and reliability. The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine.

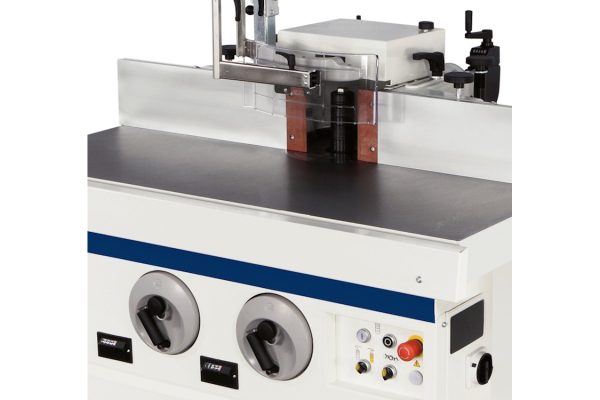

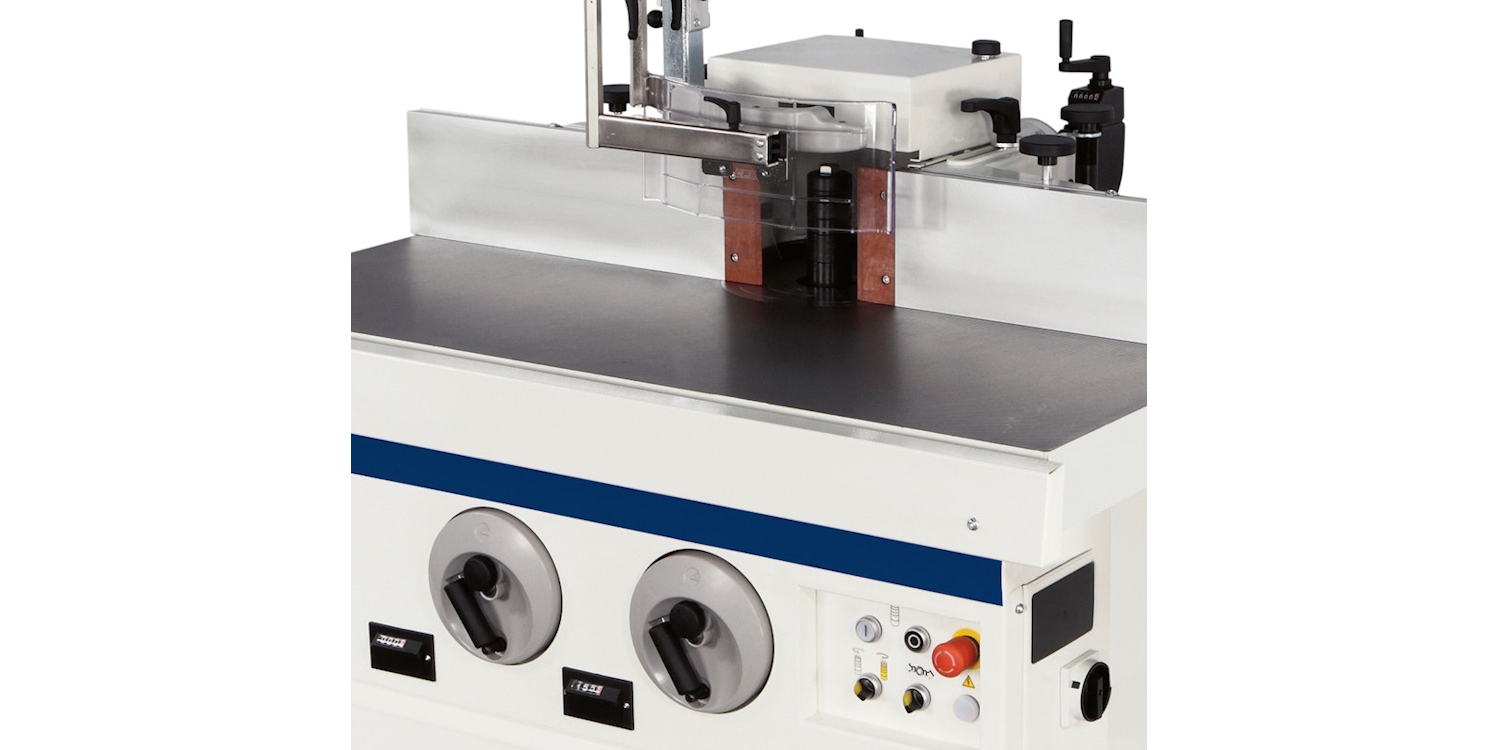

Spindle moulder fence with mechanical programming: maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.
Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The 4 standard speed are ideal for any type of machining, from moulding to routing and tenoning, with the possibility to fit tools up to 320 mm of diameter (300 mm no CE).
Manufacture – SCM
Condition – New
Price – From £7,404 (ex VAT)
Function | Measurement |
---|---|
Worktable Dimensions | 1200 x 835mm |
Spindle Tilting | 0° / +45° |
Working Length Of CE Spindle 30-35 (40-50) Diameter | 125 (125)mm |
Max. Tool Diameter Retractable Under Table | 240 x 80mm |
Options |
---|
Powered vertical movement and tilting of operating unit with digital displays |
Spindle moulder fence with mechanical adjustment |
Aluminium tables instead of wooden tables for fence |
Tenoning hood |
“LL” version with 2 profiling extensions |
“LL” version with 2 cast-iron profiling extensions |
Carriage on fixed table for small tenoning operations |
Interchangeable spindle |
Spare spindle |
Spare spindle for interchangeable spindle, 125 mm length |
Spare spindle for router bits |
Three-phase motor 7kW (9,5hp) with automatic star-delta starter |
