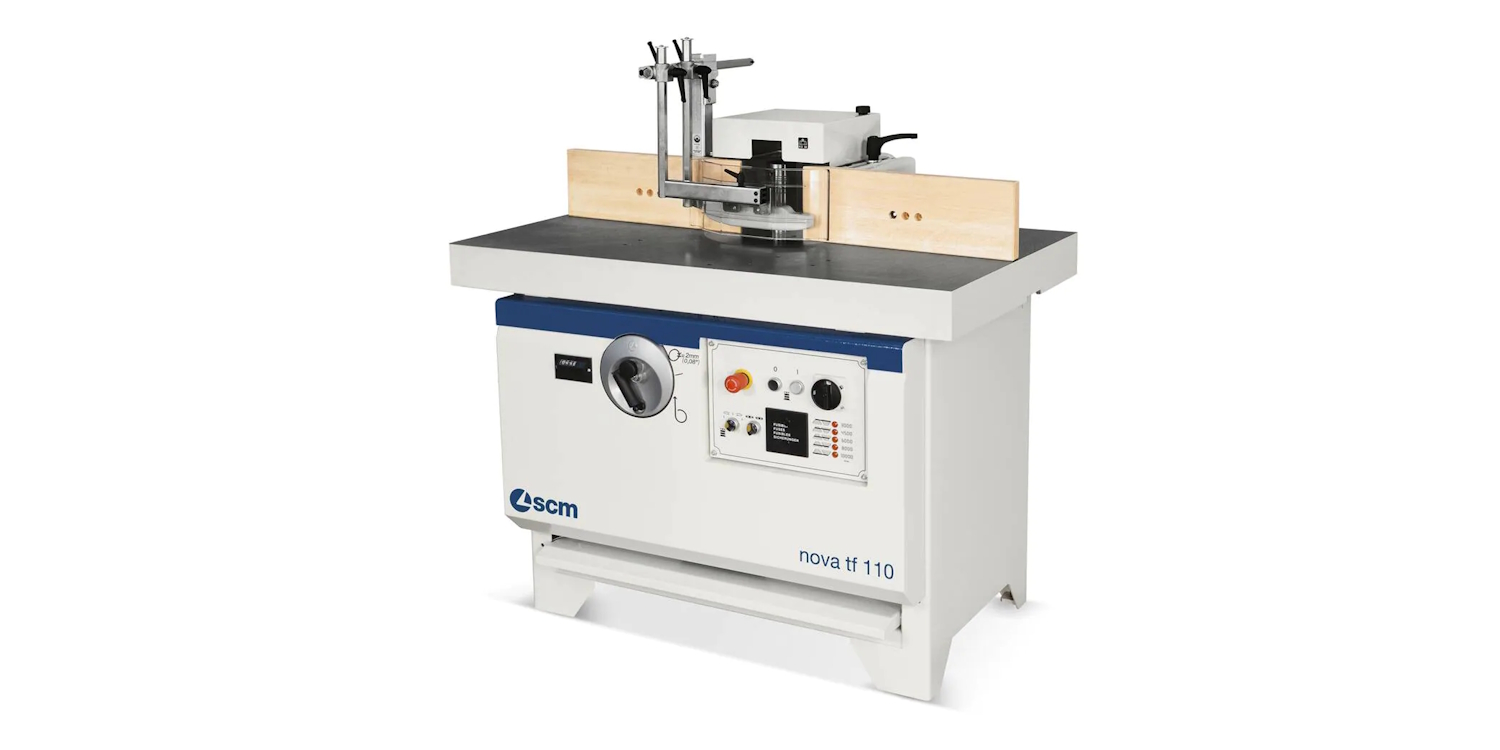

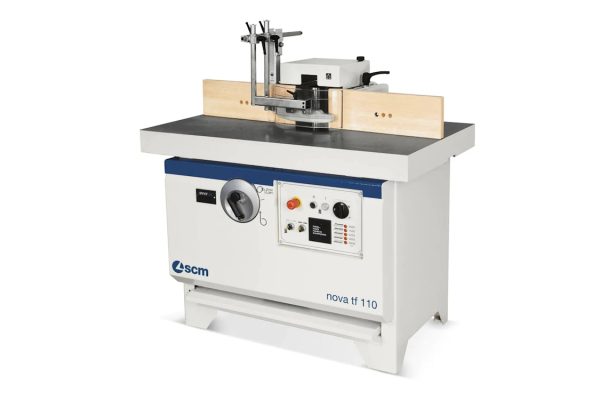

SCM Nova tf110 Spindle Moulder
SCM Nova tf110 Spindle Moulder – Guaranteed quality at your finger tips. Easy-to-use, productivity and efficency, flexibility.
Manufacture – SCM
Condition – New
Price – From £7,383 (ex VAT)
Set up precision and reliability. The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine.
Spindle moulder fence with mechanical programming: maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.
| Function | Measurement |
|---|---|
| Worktable Dimensions | 1200 x 730mm |
| Spindle Moulder Shaft Height C.E. Diam. 30-35 | 140mm |
| Spindle Base Projection From Worktable | 5mm |
| Spindle Base Projection From Worktable With Interchangeable Spindle | 33mm |
| Max. Tool Diameter Retractable Under Table (45°) | 320 x 85mm |
| External Diameter Of Exhaust Outlet (Spindle Moulder Hood) | 120mm |
| External Diameter Of Exhaust Outlet On Base | 120mm |
| Options |
|---|
| Spindle moulder fence with mechanical adjustment |
| Aluminium tables instead of wooden tables for fence |
| “LL” version with 2 cast-iron profiling extensions |
| Carriage on fixed table for small tenoning operations |
| MK4 Interchangeable spindle |
| Spare spindle (for MK4 interchangeable spindle) |
| MK4 right tool taper, complete with ring and collet |
| MK4 left tool taper, complete with ring and collet |
| 1300/3000/4500/6000/9000 rpm spindle speeds |
| Three-phase motor 7kW (9,5hp) with automatic star-delta starter |
