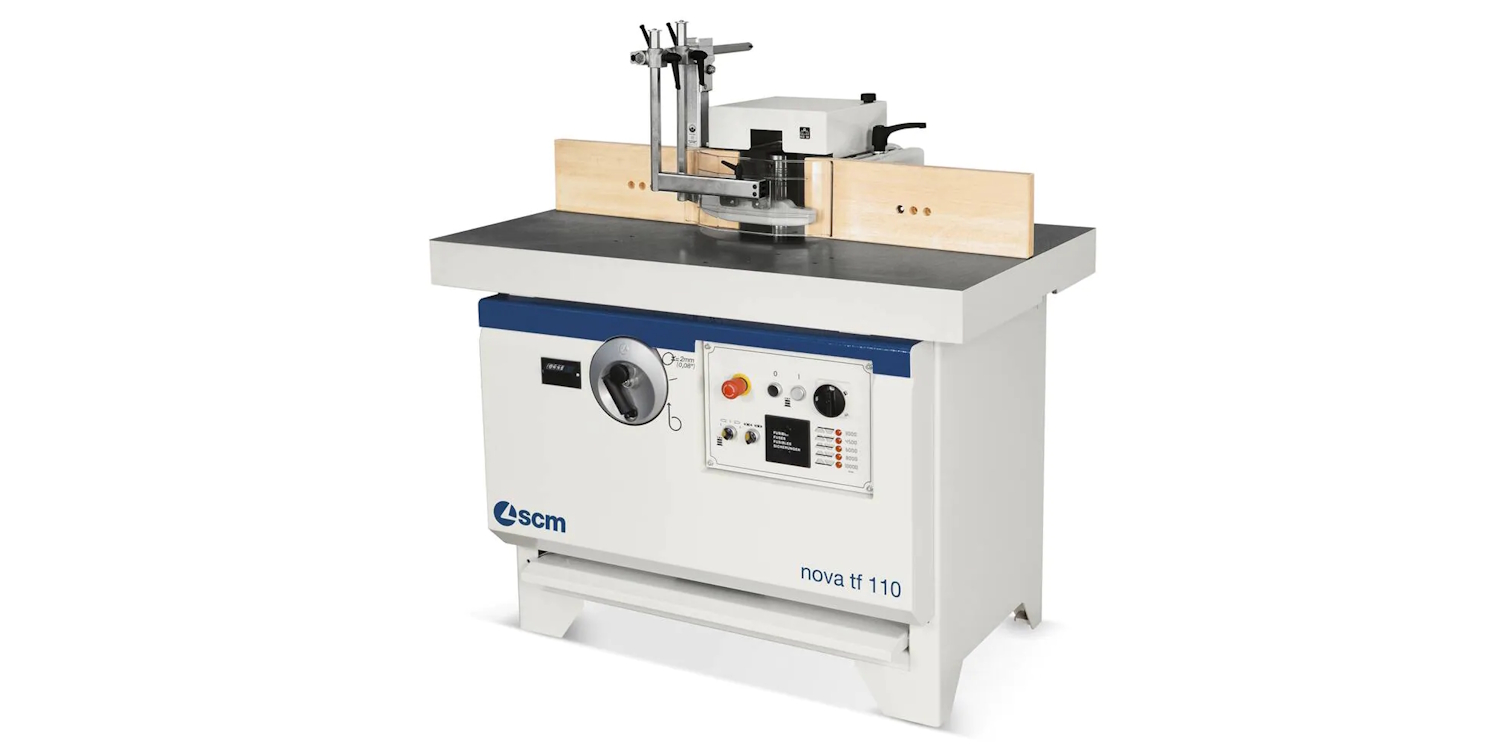

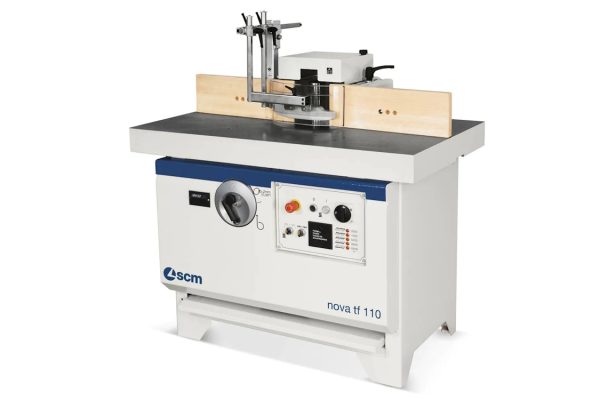

SCM Nova TF110 Spindle Moulder
In Stock!
Special offer on an SCM Nova tf 110 spindle moulder, in stock & ready for immediate delivery.
Manufacture – SCM
Condition – New
Price – Was £8,213 | Now £7,695 (ex VAT)
SAVE £518
SCM Nova tf110 Spindle Moulder – Guaranteed quality at your finger tips. Easy-to-use, productivity and efficency, flexibility.

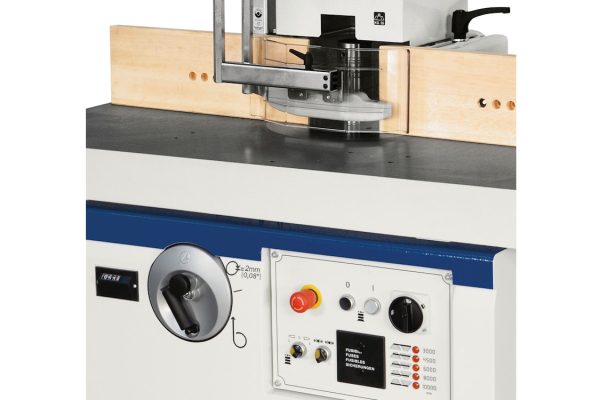

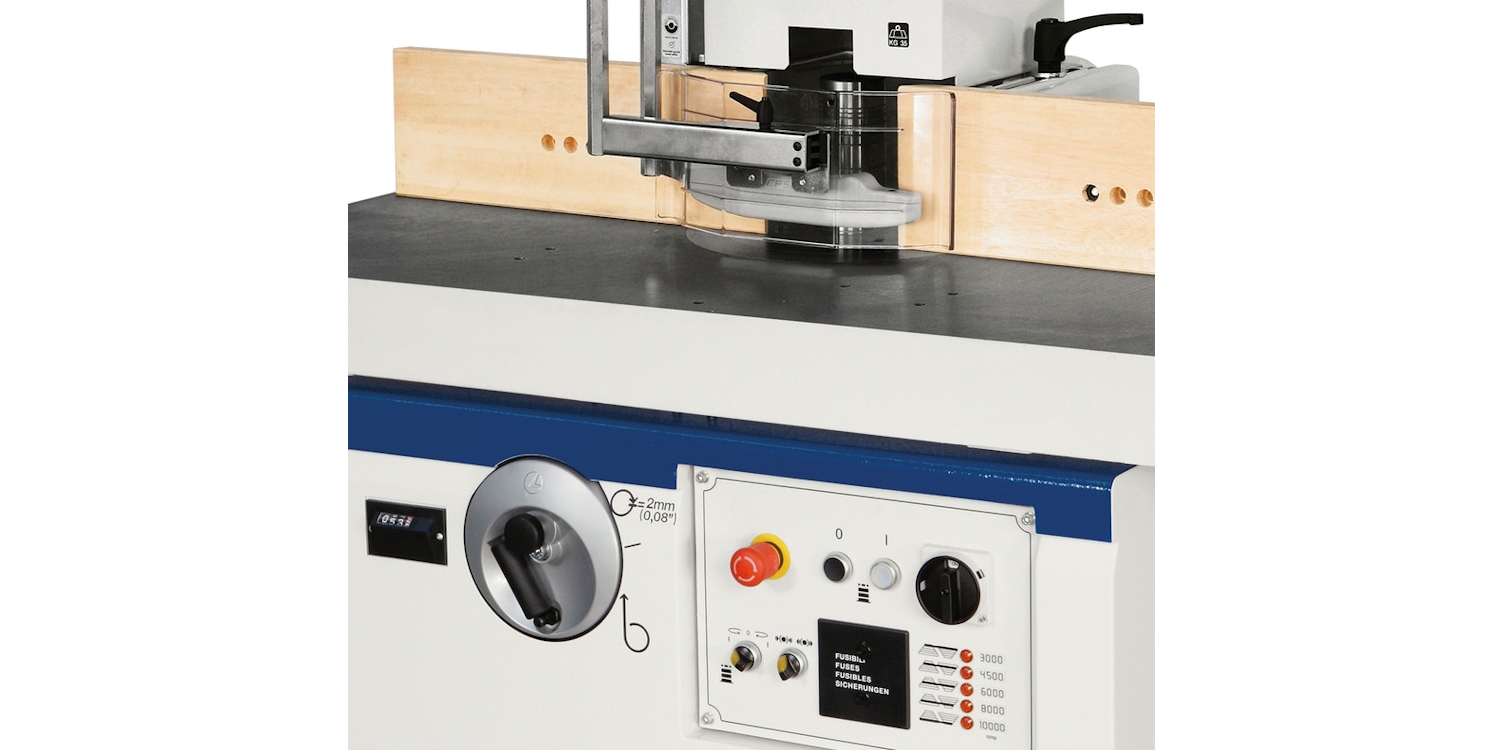

Set up precision and reliability. The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine.
| Function | Measurement |
|---|---|
| Worktable Dimensions | 1200 x 730mm |
| Spindle Moulder Shaft Height C.E. Diam. 30-35 | 140mm |
| Spindle Base Projection From Worktable | 5mm |
| Spindle Base Projection From Worktable With Interchangeable Spindle | 33mm |
| Max. Tool Diameter Retractable Under Table (45°) | 320 x 85mm |
| External Diameter Of Exhaust Outlet (Spindle Moulder Hood) | 120mm |
| External Diameter Of Exhaust Outlet On Base | 120mm |
| Spindle Moulder Shaft | 1 1/4″ |

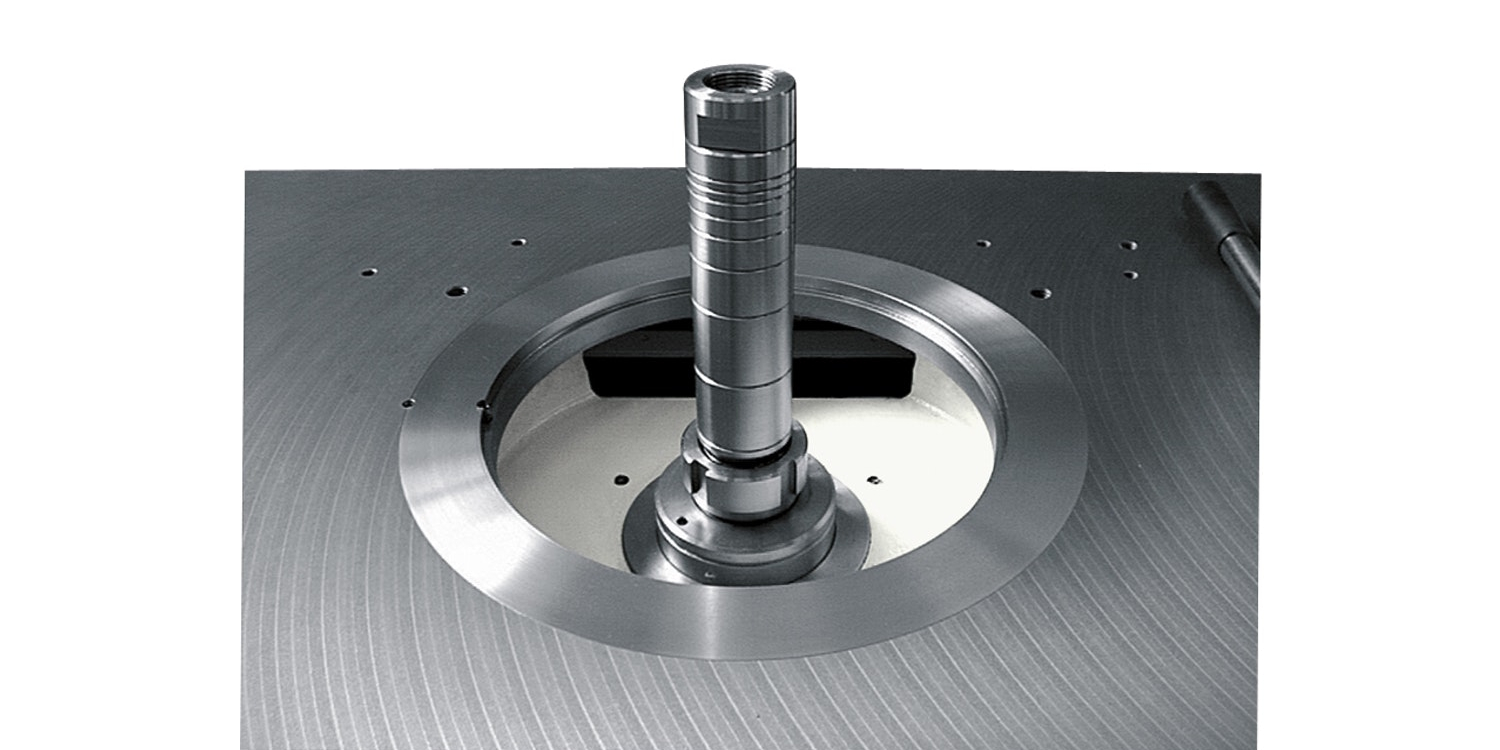

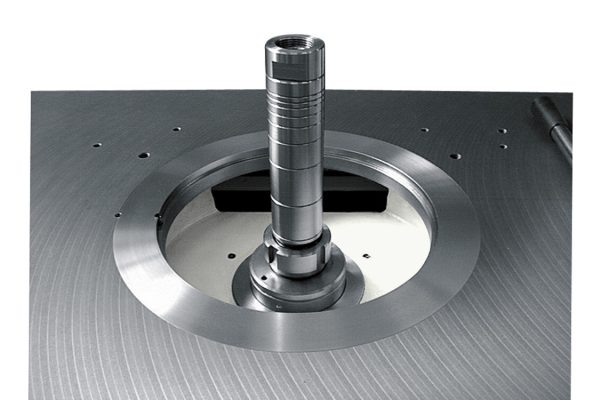

| MK4 Interchangeable Spindle | |
| Locking by nut | |

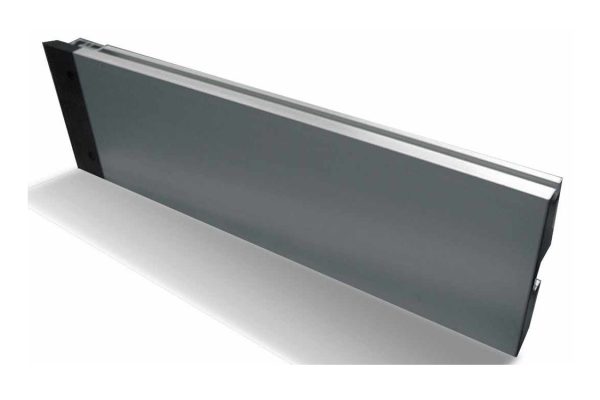

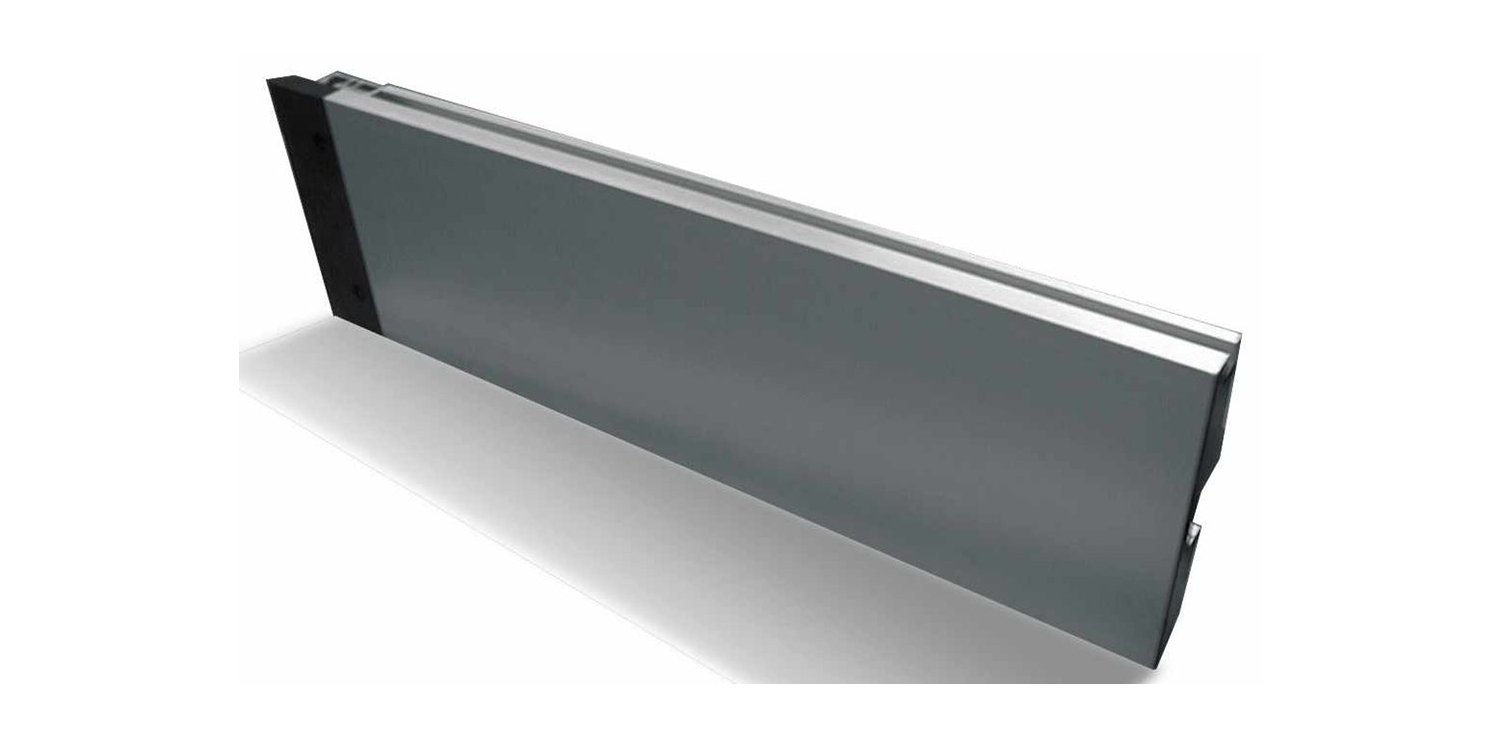

| Aluminium fences |
