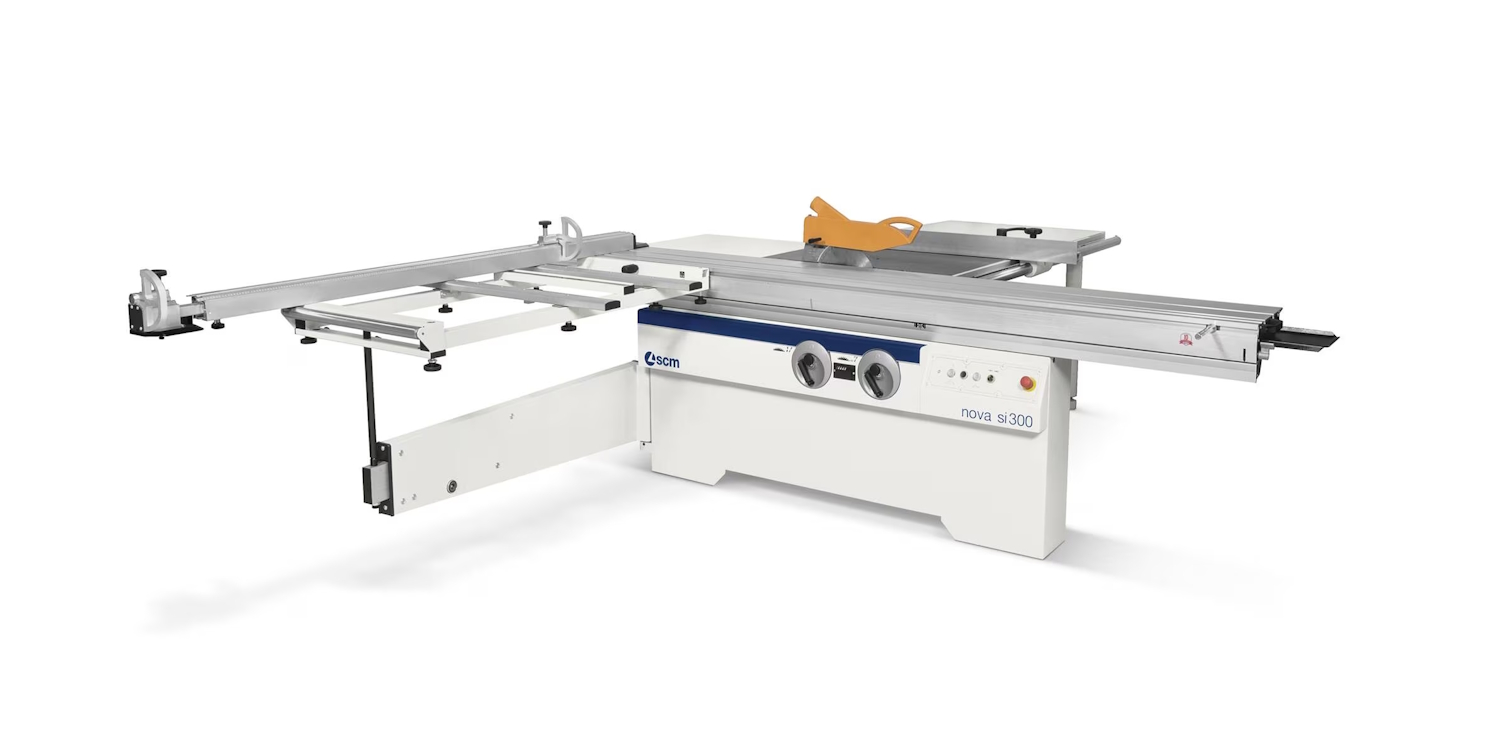

SCM Nova si300 Panel Saw In Stock!

SCM Nova si300 Panel Saw in stock, ready for immediate delivery!

Manufacture – SCM
Condition – New
Price – Was – £11,433 | Now – £10,518 (ex VAT)

SAVE £915

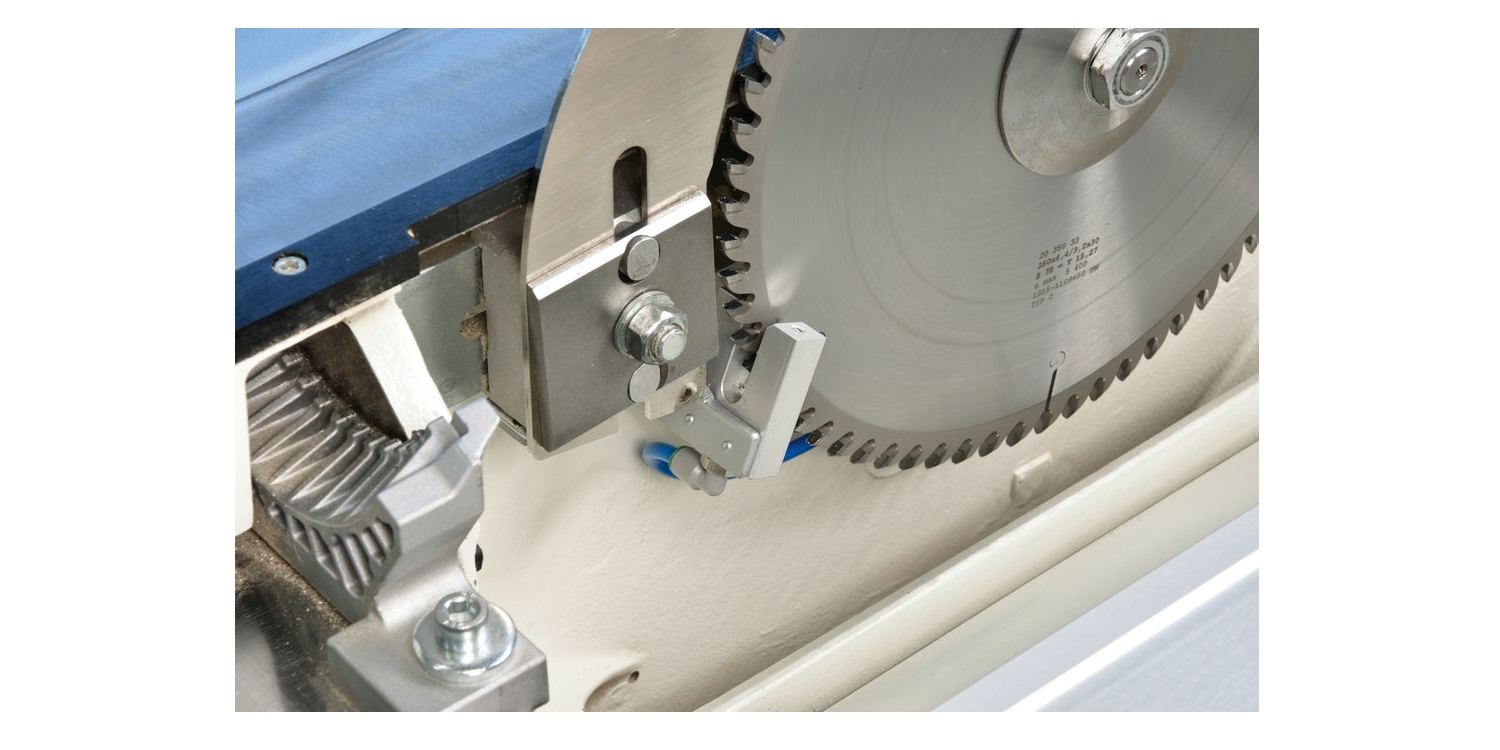

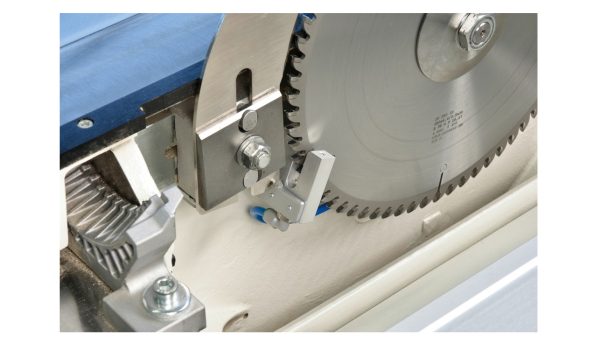

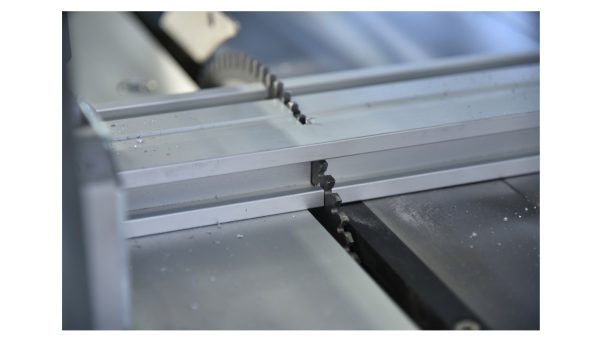

Saw unit: a perfect cut. Maximum torsional rigidity and the total absence of vibration through the closed loop structure of the saw unit which ensures perfect alignment of the blades during tilted and difficult cuts.

Manual movements: always user friendly and precise. Ease of use in every day operation due to the dedicated gear box, fully protected from dust (Scm patented solution), that provides a smooth and direct transmission. Every minimum handwheel movement corresponds to a precise blade adjustment.

Manual adjustment of the scoring unit: simple and effective. Vertical and horizontal adjustments are carried out by user-friendly mechanical levers that operate directly making precise and smooth movements. The useful mechanical stops allows immediately finding of the set position. The positioning of the controls allows their use without moving from the front of the machine.

FunctionMeasurement
Max Cutting Height At 90°100mm with 315mm blade
Max Cutting Height At 45°70mm with 315mm blade
Blade Tilt45°
Blades Lifting & Tilt
Manual
Main Blade Rotating Speed4000rpm
Scoring Unit Rotating Speed8500rpm
Saw Unit Motor Power5kW (7Hp) 50Hz
Scoring Unit Motor Power1,3kW (1,7Hp) 50Hz
Squaring Capacity
3200 x 3200mm
Cutting Width On Parallel Fence1270mm
Main Blade Diameter
315mm
Motor Start/Stop Push Buttons
Overhead Saw Guard
