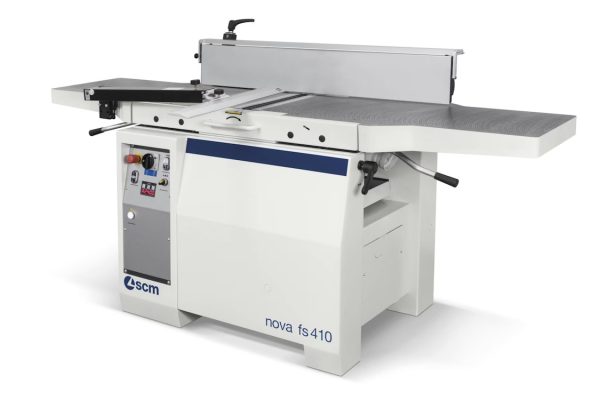

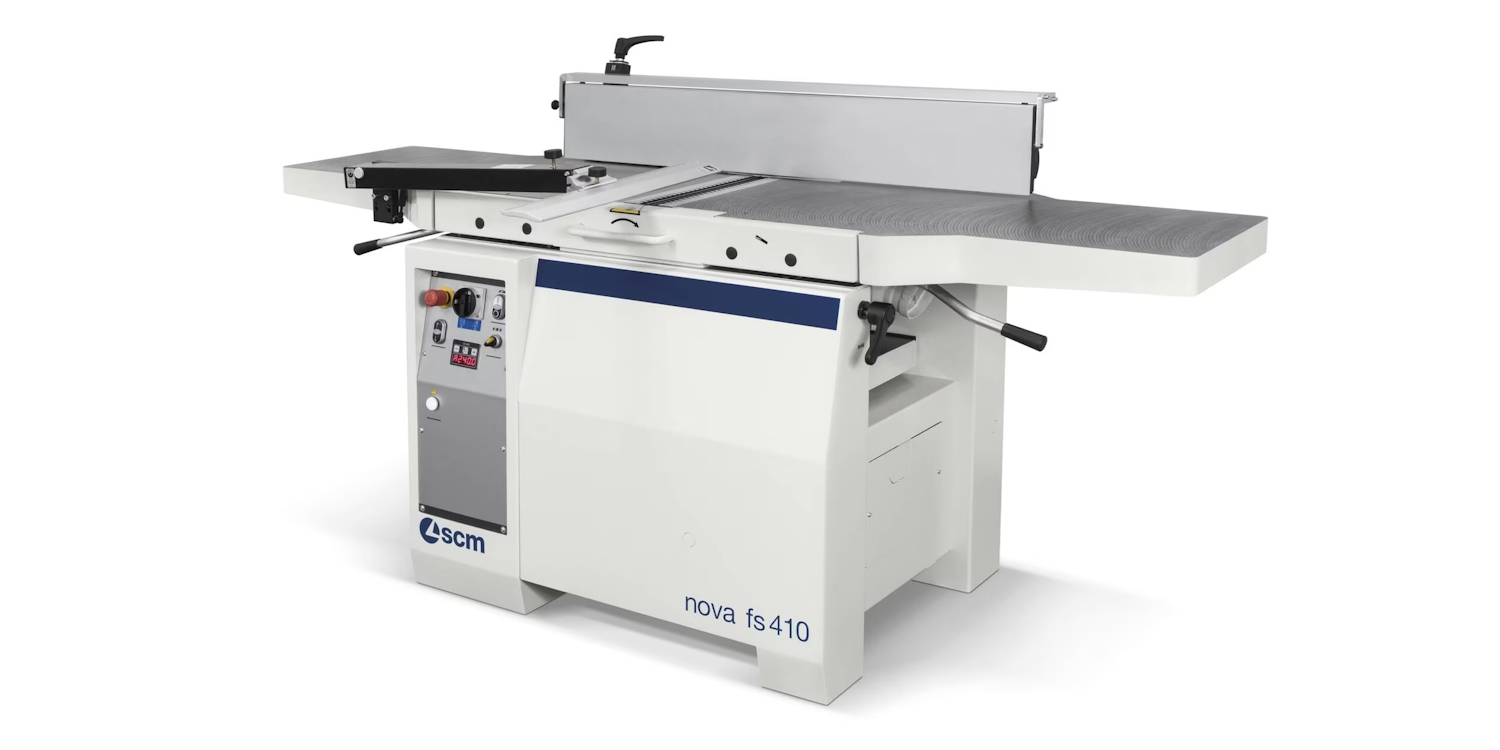

SCM Nova fs 410 Combined Planer Thicknesser

The SCM Nova fs 410 Combined Planer Thicknesser is an easy to use machine with rapidity combined with high productivity and great performance in a limited space.

Discover the Xylent cutterhead, available for this machine.

Manufacture – SCM
Condition – New
Price – From £9,188 (ex VAT)

STANDARD EQUIPMENT:
Precision-ground cast iron tables w/ spring assist
“Tersa” 4 knife cutterhead with quick-change knives
Digital mechanical readout for planing thickness
Industrial jointer fence, supported directly over cutterhead
Dual dust extraction ports, both exit toward planer outfeed side
American-style jointer guard
Tool set & operator’s manual

Minimax jointer/planers include the quick change knife head by Tersa. This cutterhead eliminates the necessity of gauging the knives each time to ensure proper height positioning. The Tersa knives automatically lock into position when the machine is turned on. Removal of the knives is as simple as tapping down the wedge blocks and sliding out the knives. Since the knives are double-sided, they can be flipped over, reinserted, and used again.

Precision that lasts a lifetime without noise with the system on connecting rods. The system guarantees the maximum movement fluidity and avoids deformations of the work table. This guarantees maximum stability, reliability and ergonomics.

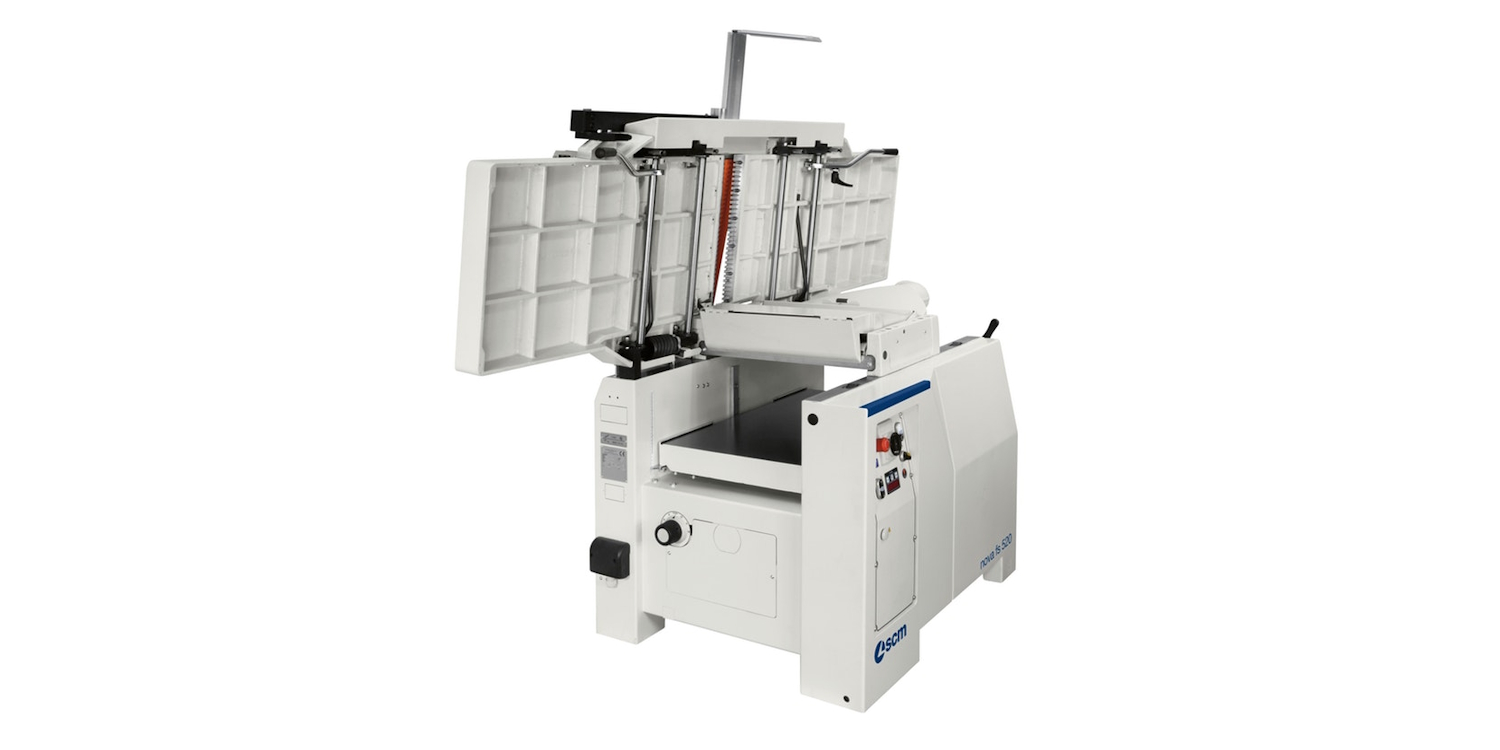

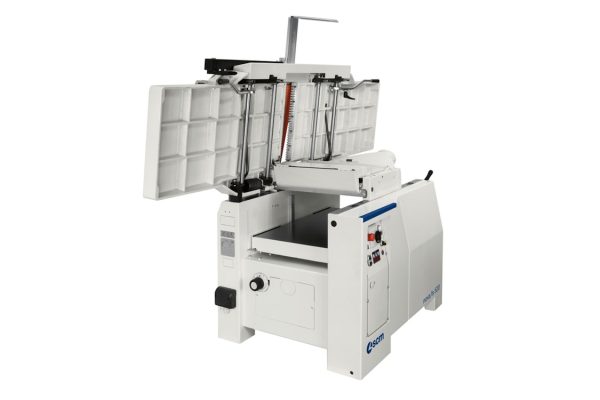

Simultaneous raising of the work tables: a guarantee of perfect planarity. The system allows the changeover from planer to thicknesser with a single movement ensuring working rapidity and precision.

FUNCTIONMEASUREMENT
Max Working Width410mm
Total Length Of Surfacing Tables2200mm
Cutterblock Diameter95mm
Spindle Speed5000rpm
Aluminium Surfacing Fence1200 x 190mm
Surfacing Fence Tilt
from 90° to -45°
Min/Max Working Thickness3/240mm
Feed Speed Thicknesser6 – 12m/min

Options
P1 version CE versionPowered lifting of thicknessing table, 2 speeds, with micrometric approach, complete with
electronic digital readout for table position.
P2 version CE version-7kW Hz 50 motor power with automatic star delta start:
kW7 HP9,5 Hz50
P3 version CE versioncomplete with:
– powered lifting of thicknessing table, 2 speeds, with micrometric approach, complete with
electronic digital readout for table position
– 7kW Hz 50 with automatic star-delta start:
kW7 HP9,5 Hz50
“TERSA” type cutter block with throwaway knives
“Xylent” spiralknife cutterblock with 3 series of knives
Xylent maintenance kit
10 spare inserts kit (15x15x2,5) for Xylent spindle
Mortiser
Additional overturning fence
