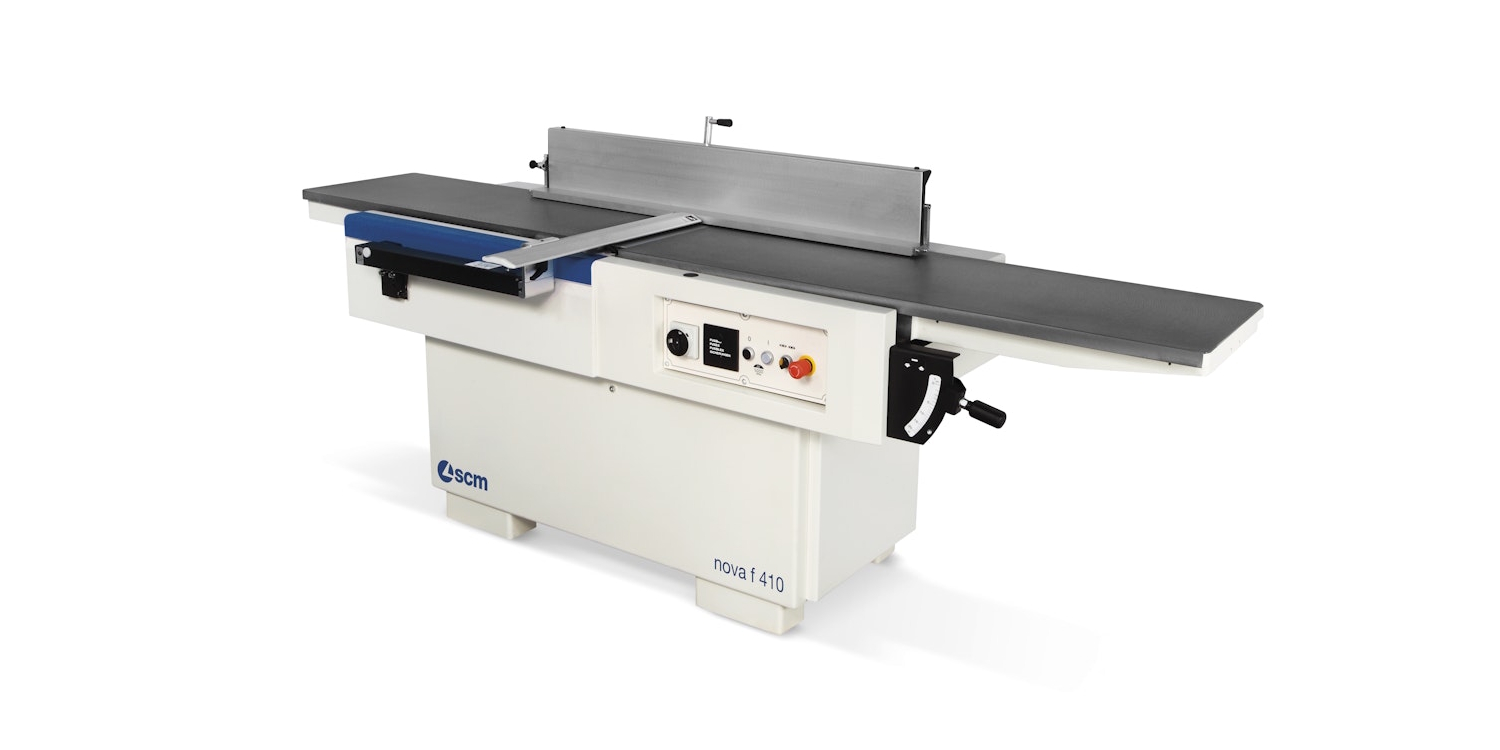

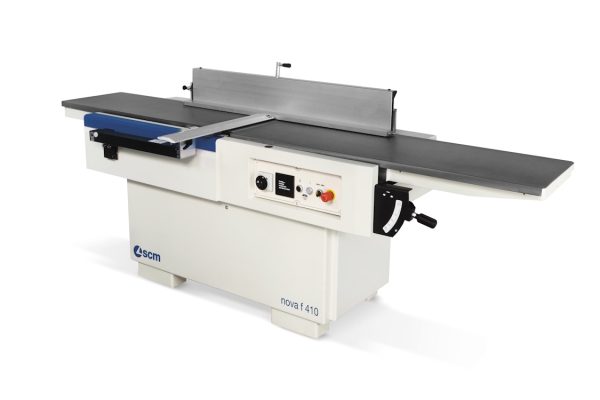

SCM Nova f 410 Surface Planer
Precision that lasts a lifetime without noise with the system on connecting rods.
The system guarantees the maximum movement fluidity and avoids deformations of the work table. This guarantees maximum stability, reliability and ergonomics.
Total absence of vibration thanks to the large worktables made from ribbed cast-iron.
Exceptional finish with the “Xylent” spiral knife (3 spiral knives)
Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
| Function | Measurement |
|---|---|
| f 410 | |
| Working Width | 410mm |
| Total Worktables Length | 2610mm |
| Cutterblock Diameter | 120mm (4knives) |
| Spindle Speed | 5000rpm |
| Surface Fence Tilting | from 90° to -45° |
| Main Motor Power | 5kW (7Hp) |
| Options |
|---|
| “TERSA” type cutter block with throwaway knives |
| “Xylent” spiralknife cutterblock with 3 series of knife |
| Xylent maintenance kit |
| 10 spare inserts kit (15x15x2,5) for Xylent spindle |
| Additional overturning fence |
