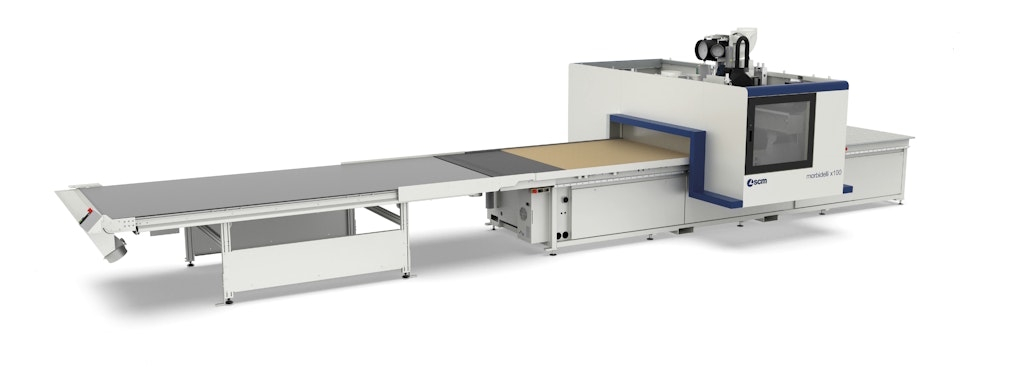

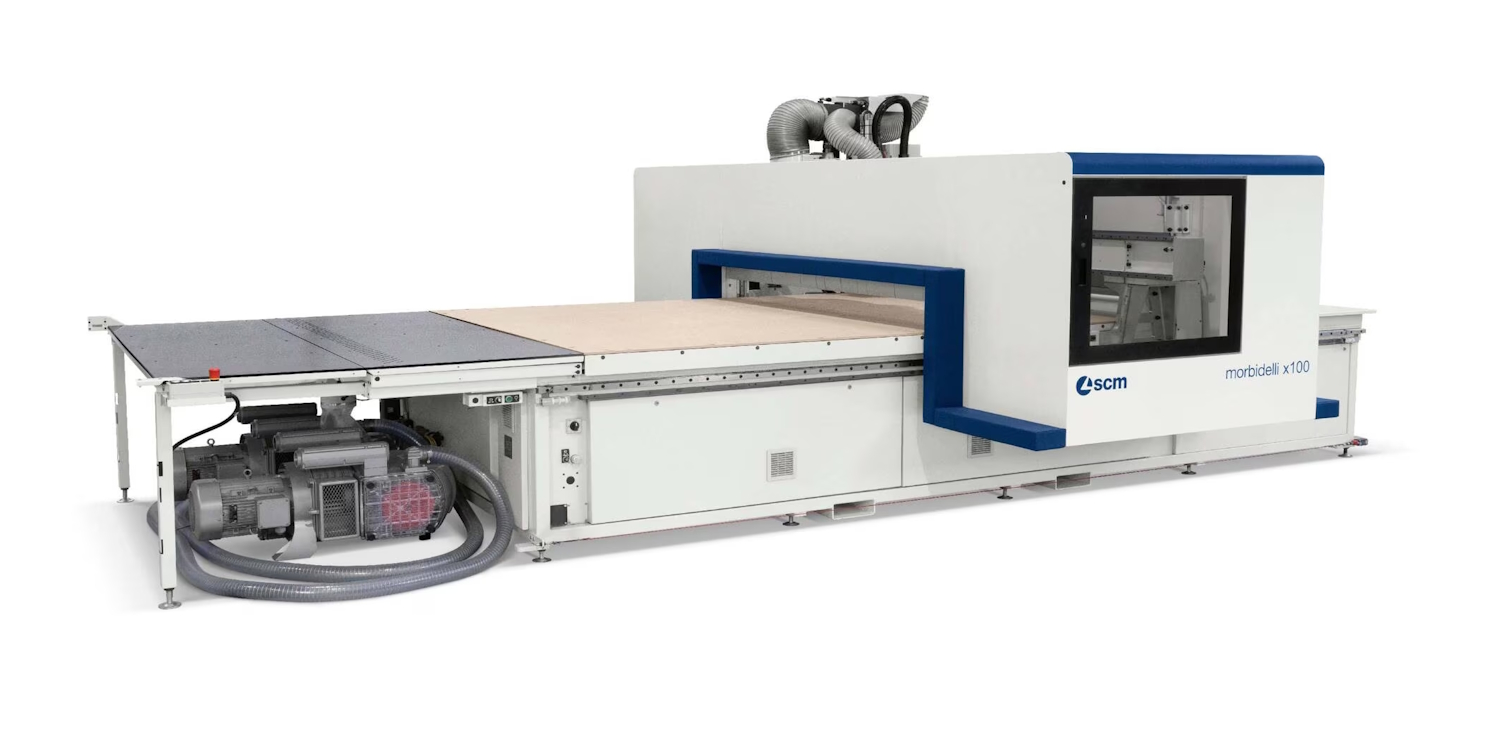

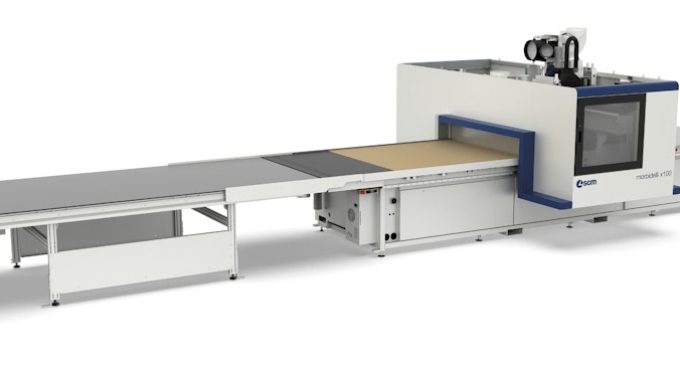

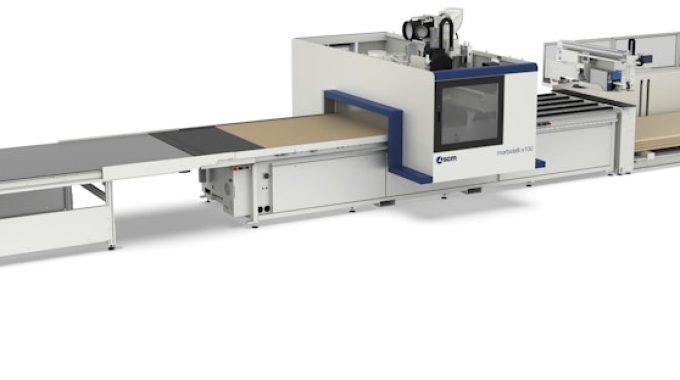

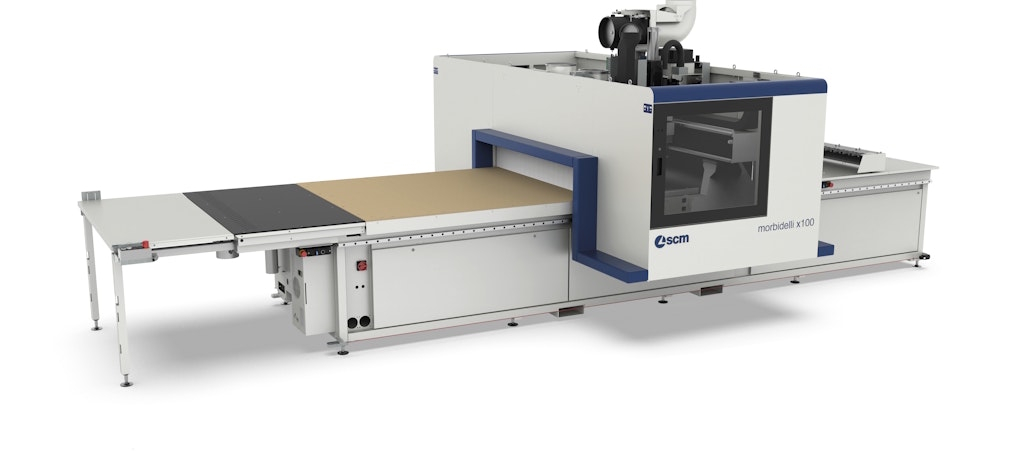

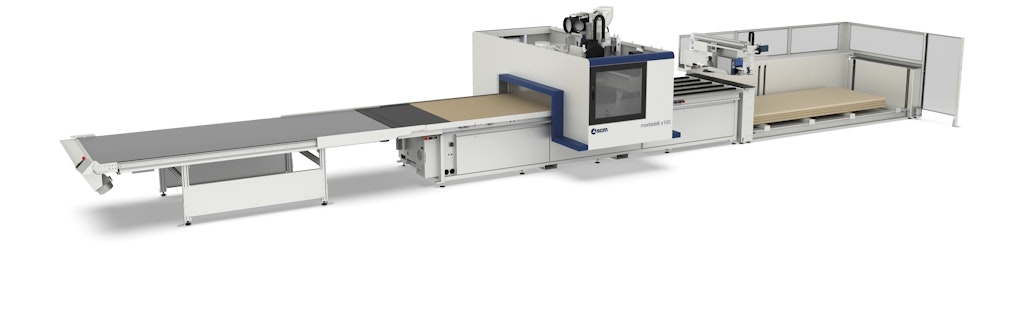

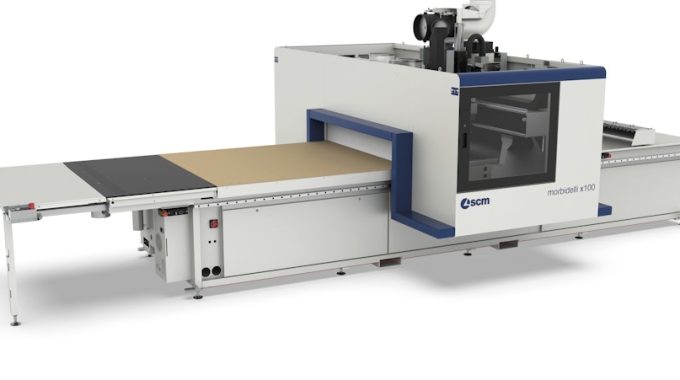

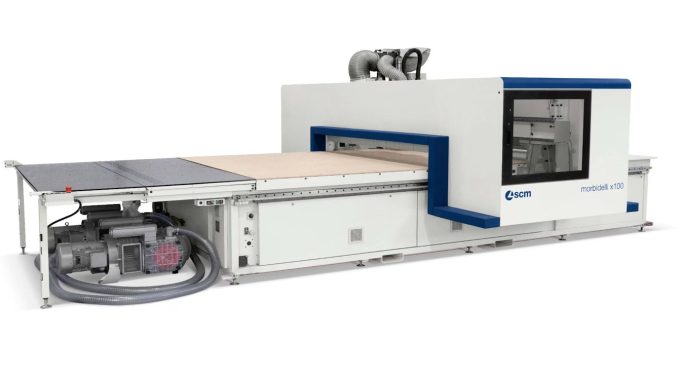

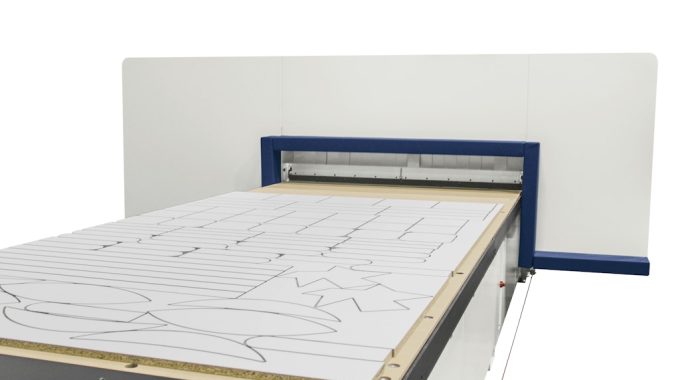

SCM Morbidelli X100 CNC Machining Centre
The SCM Morbidelli X100 is part of the latest generation of Nesting CNC machining centers, designed to cater to a market that increasingly demands flexibility and the capability for 1 batch production.
This machine ensures an excellent balance between cost and performance while enhancing productivity.
Manufacture – SCM
Condition – New
Price – POA

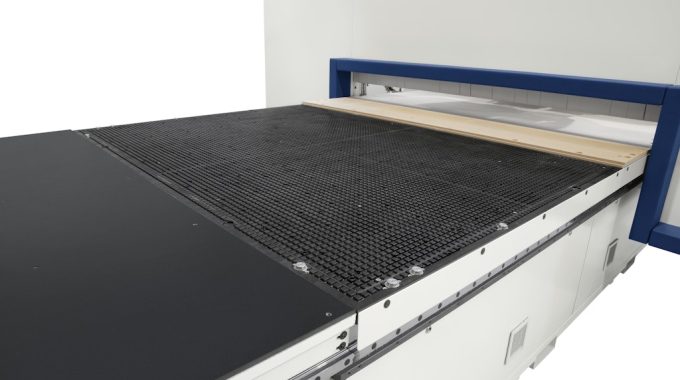

VACUUM MANAGEMENT
While programming, set the best parameters for your work and choose which areas to turn on or off during processing. The vacuum will no longer disperse in areas where it is not needed.

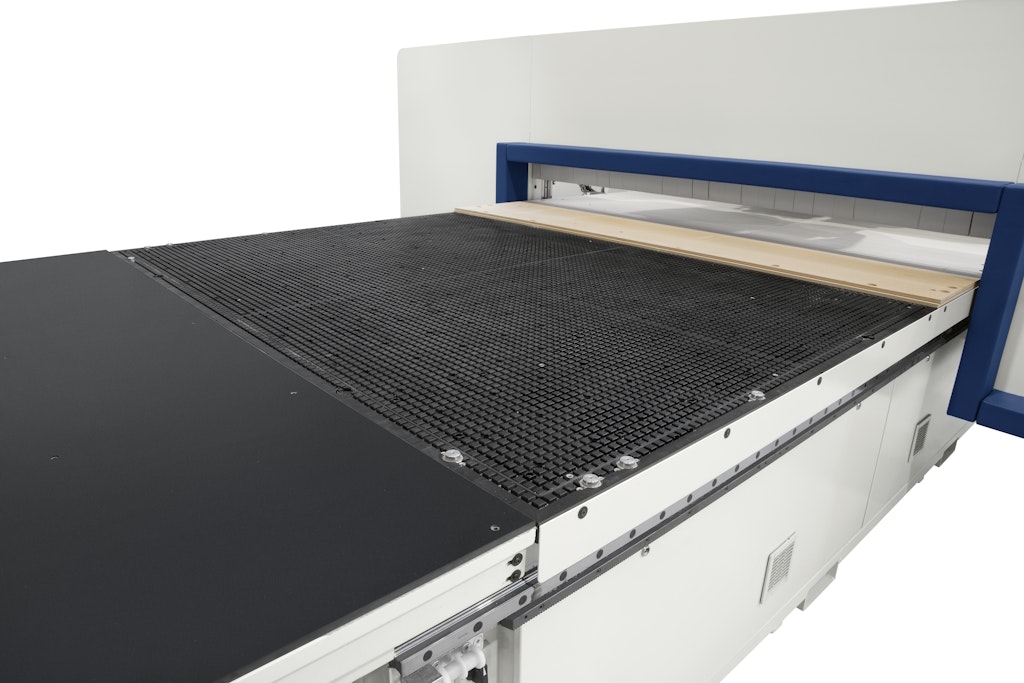

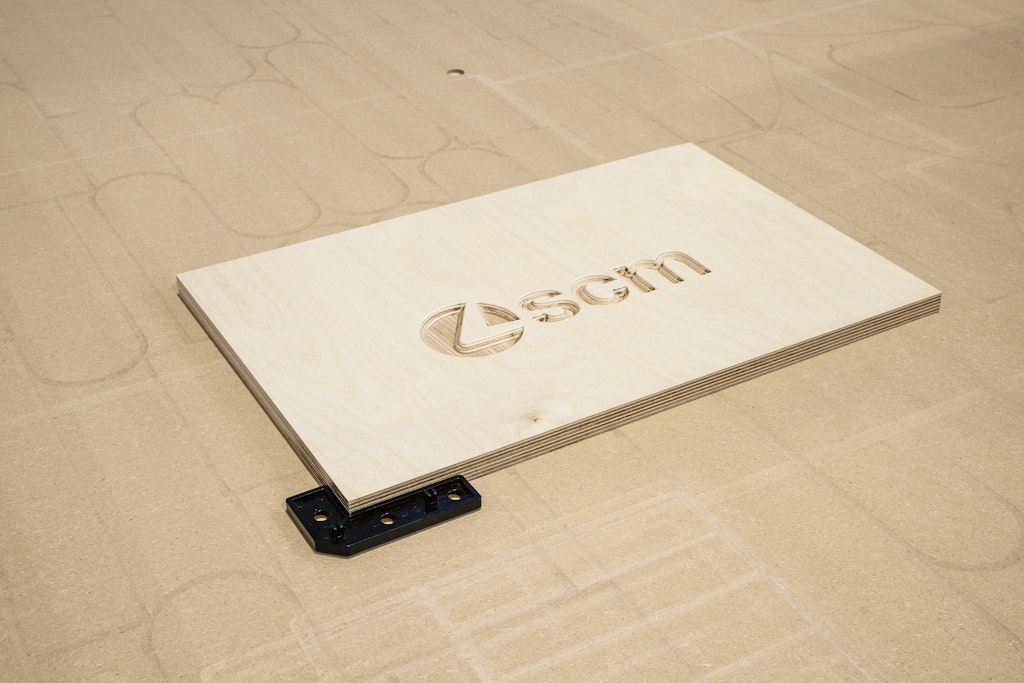

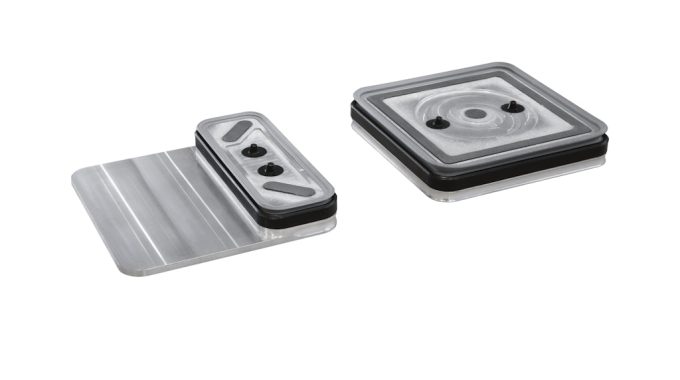

X-PODs

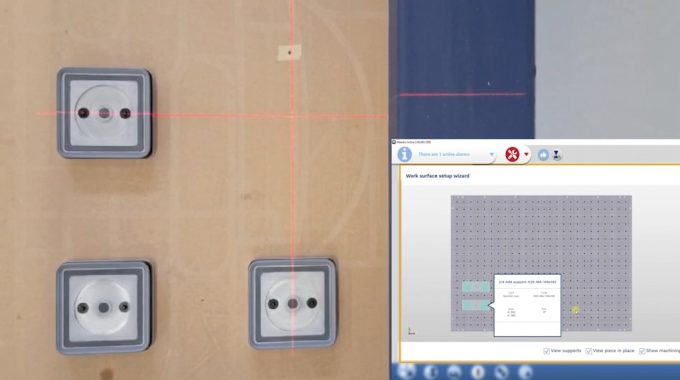

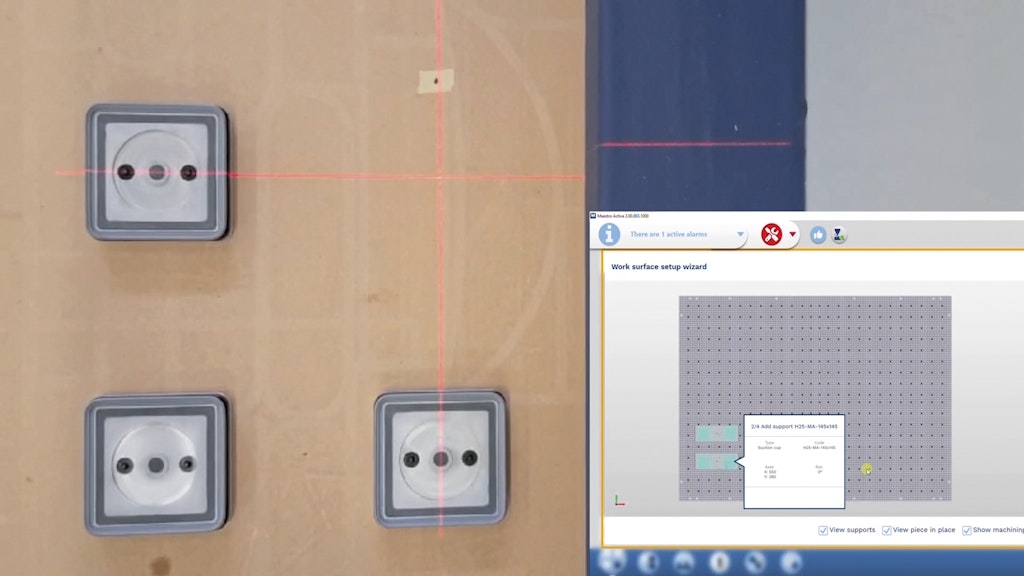

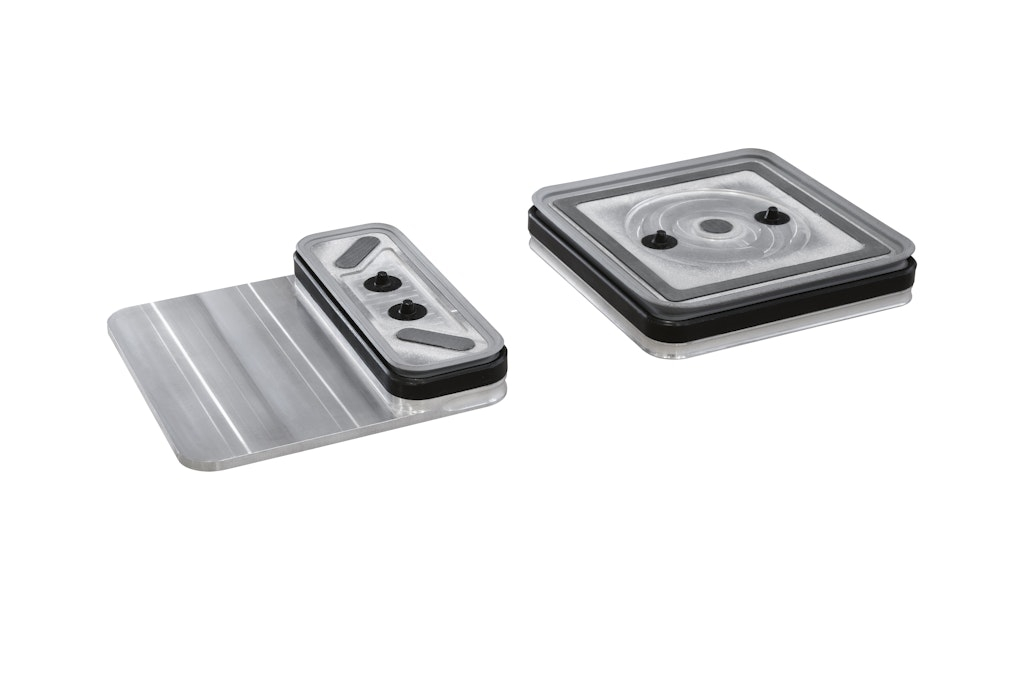

Any machining process without removing the spoilboard thanks to the X-PODs. As a plus it is possible to reference both suction cups and piece to be machined thanks to our cross laser function.

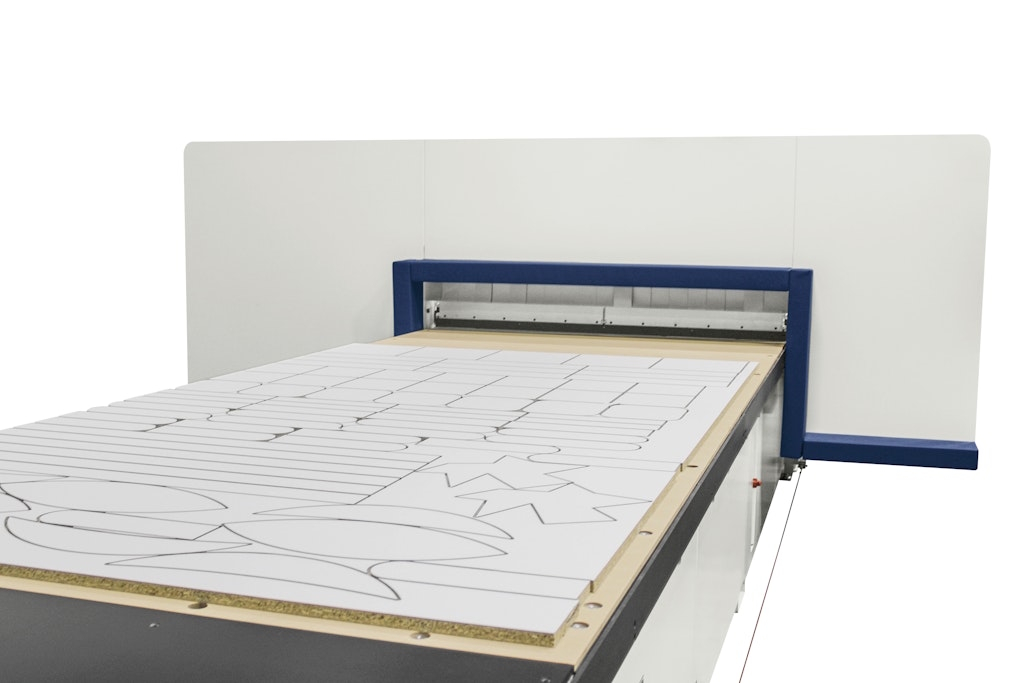

SMART CUT
Innovative cutting algorithm that does not affect the result of the nesting optimization but applies a cutting sequence and strategy to improve the clamping of the pieces.
HIGHLY MODULAR
The ultimate solution to simplify work: several versions available to configure the machine based on different production needs no matter the material flow required.
| morbidelli x100 | |
|---|---|
| Working areas | |
| X-Y axes dimensions | 2556 x 1296mm 3756 x 1596mm 3756 x 1896mm 3156 x 2216mm 4356 x 2216mm |
| Axes | |
| Vectorial speed X-Y axes “PRO-SPACE” version | 70m/min |
| Z-axis panel passage | 150mm |

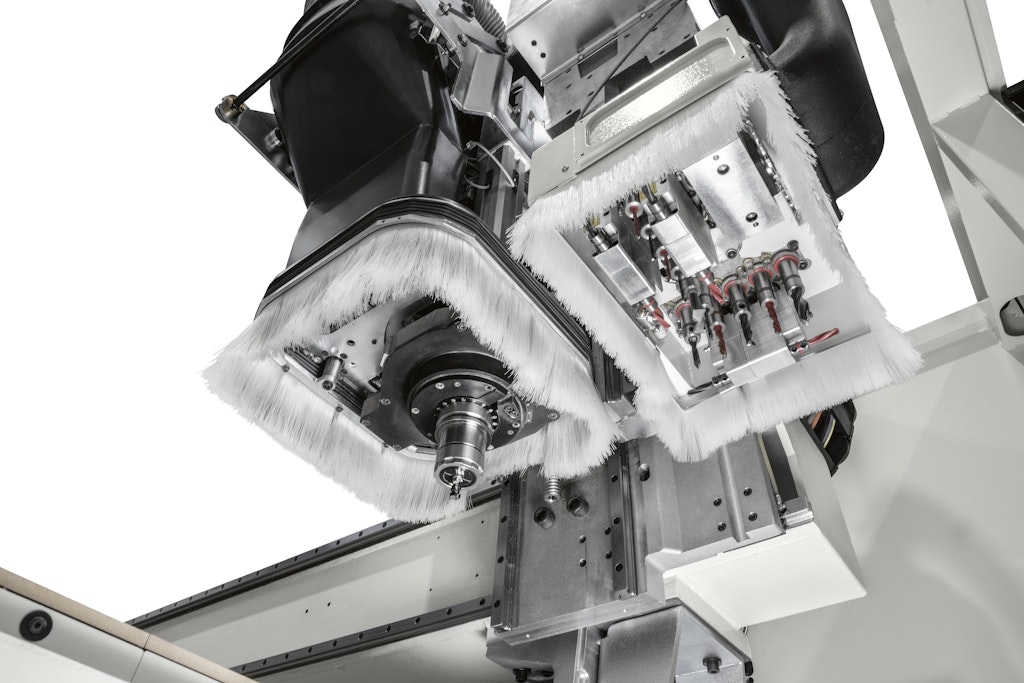

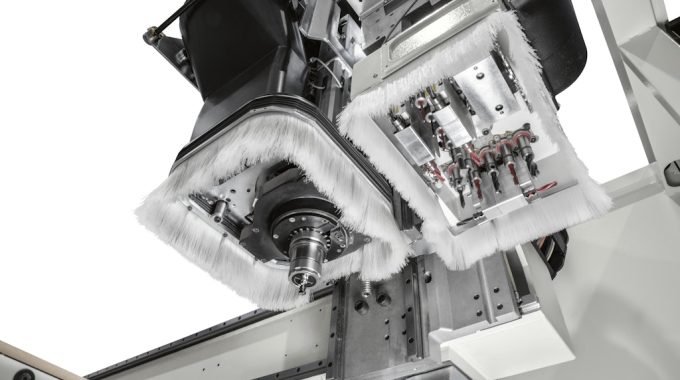

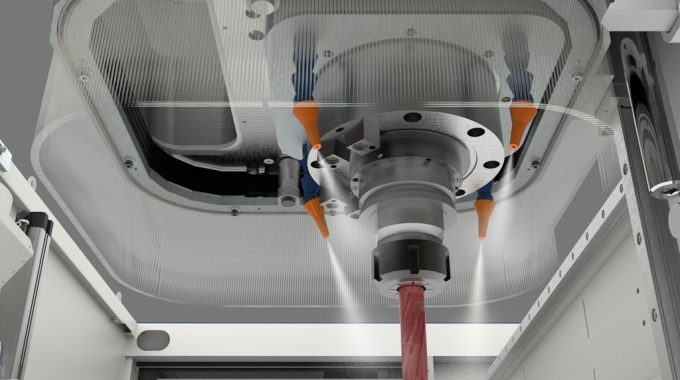

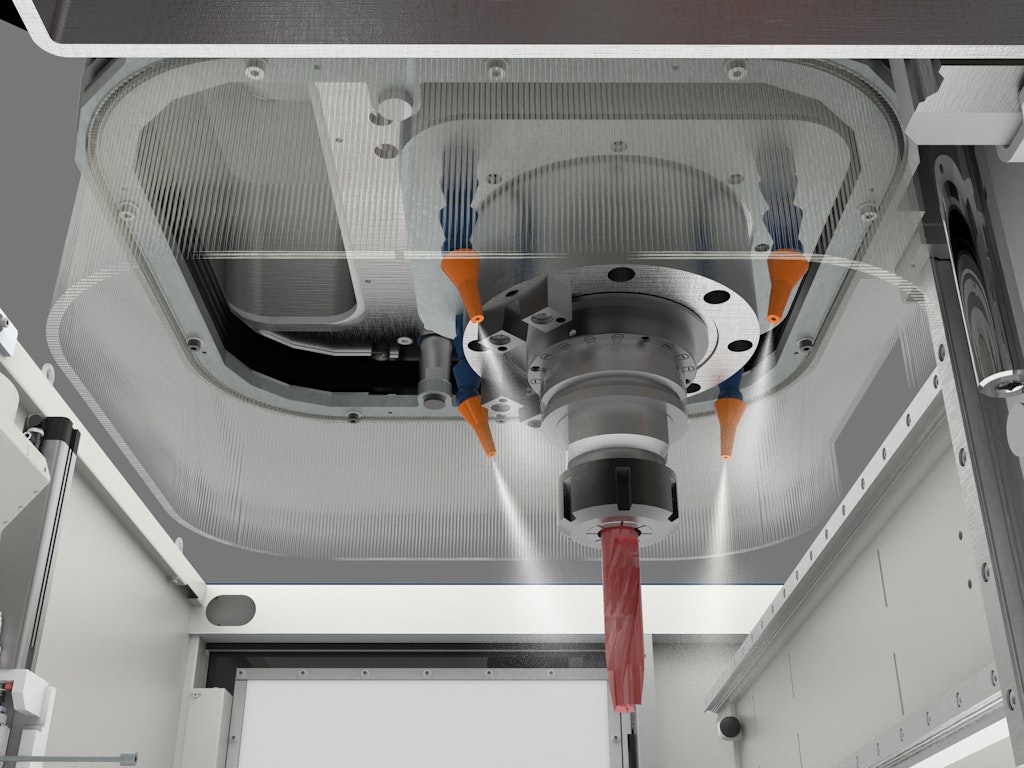

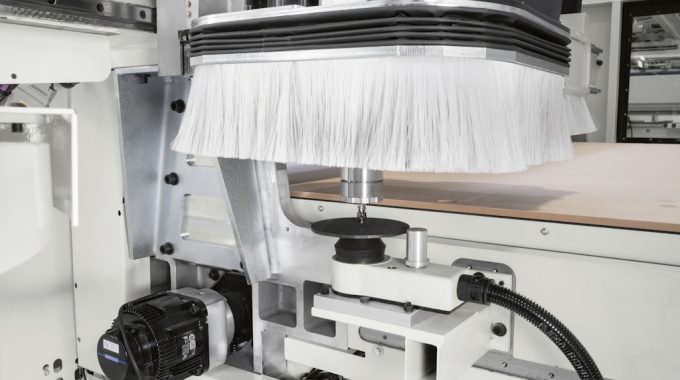

| Routing unit | |
| 3-4 axis motor power (up to) | 15kW (20,5Hp) |
| Rotation speed (up to) | 24000rpm |

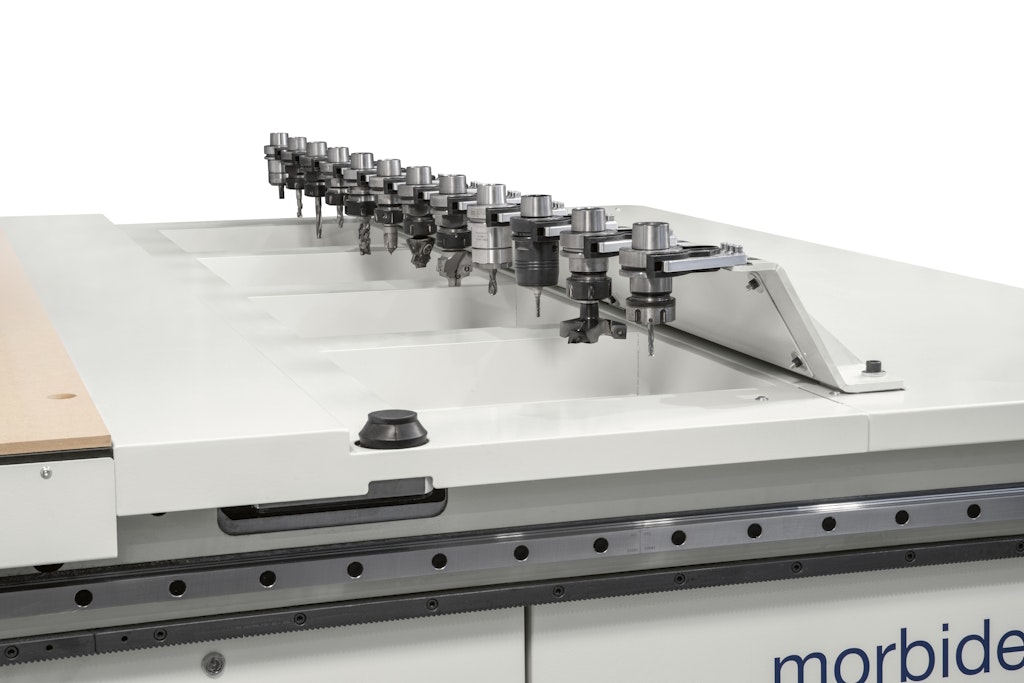

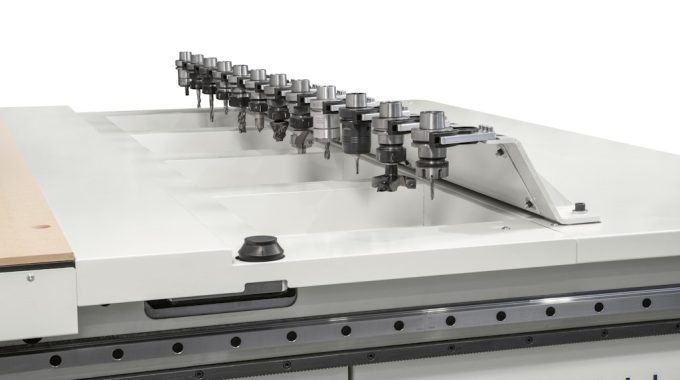

| Available tools on tool changer (up to) | 31 positions |

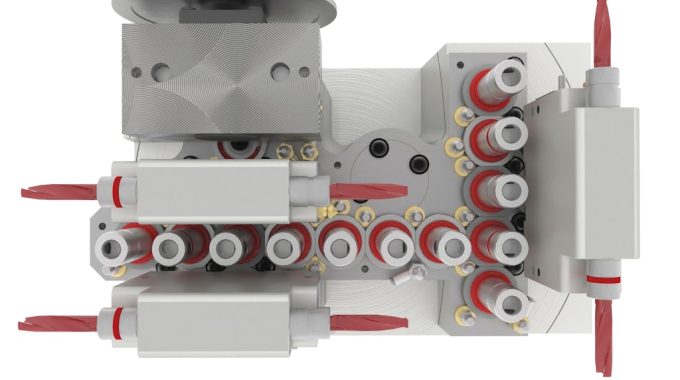

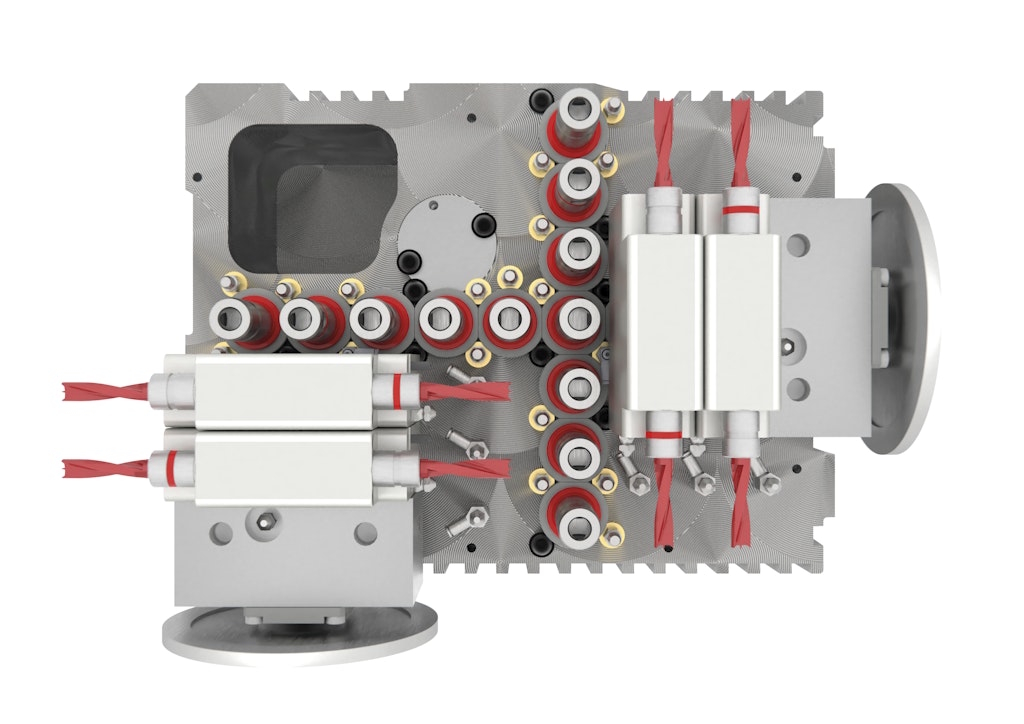

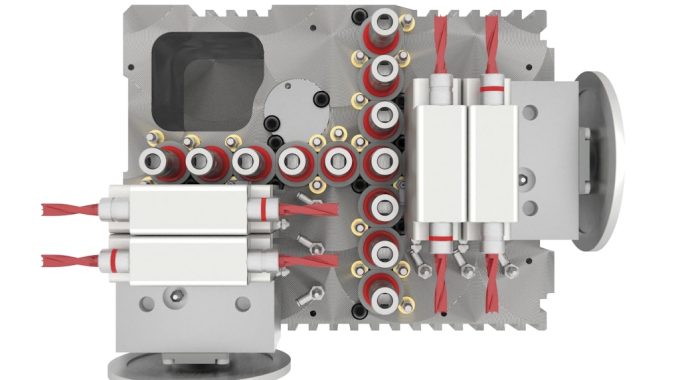

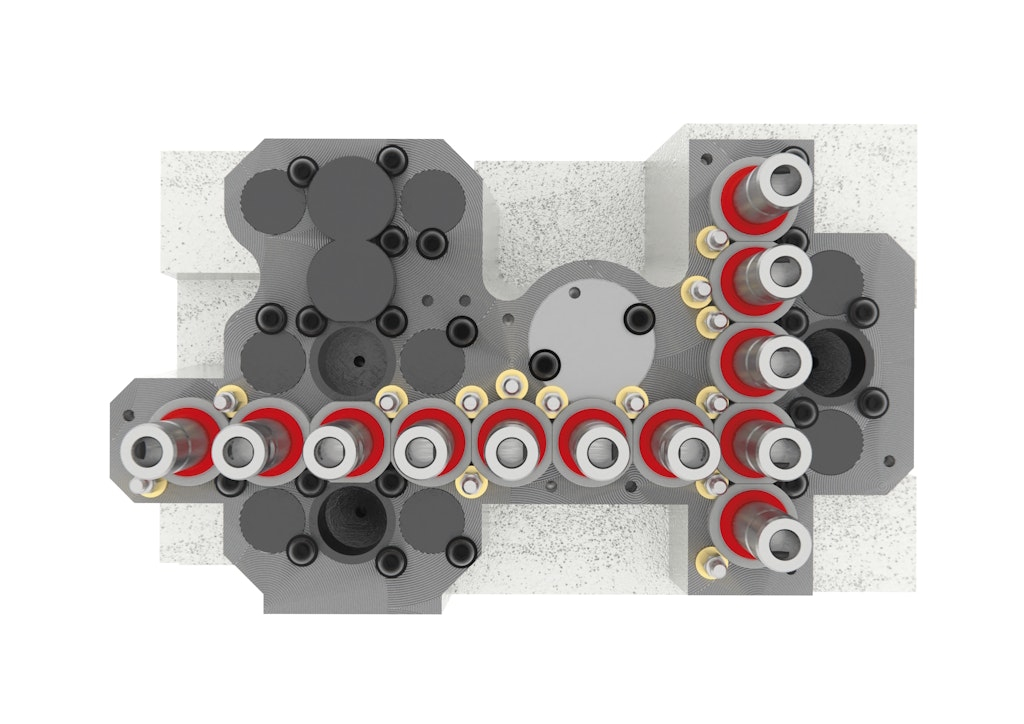

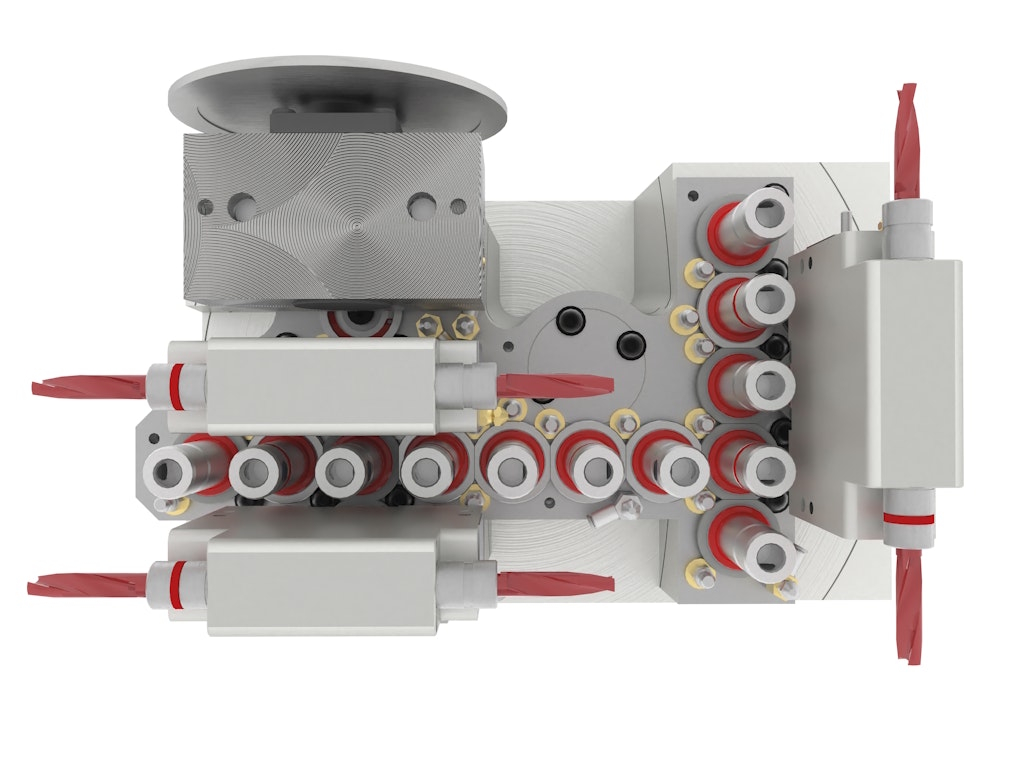

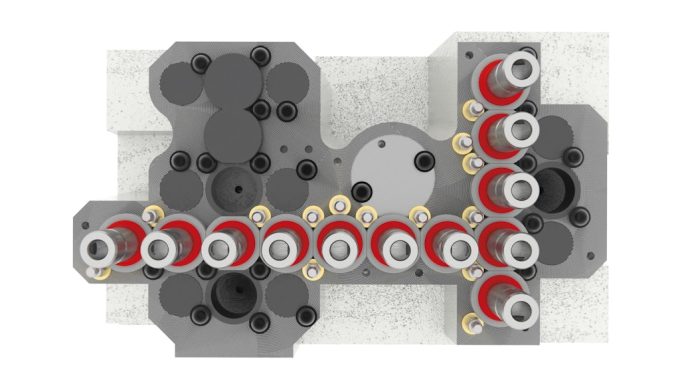

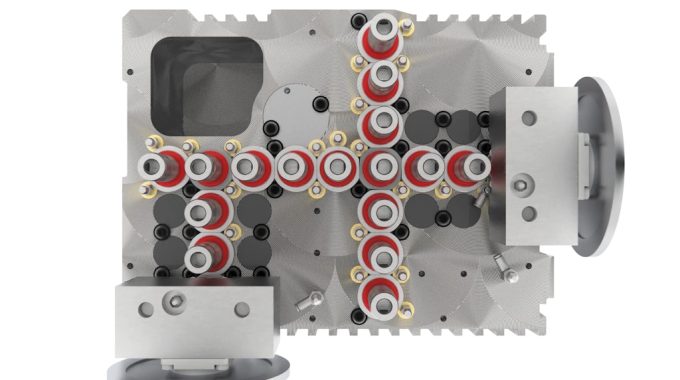

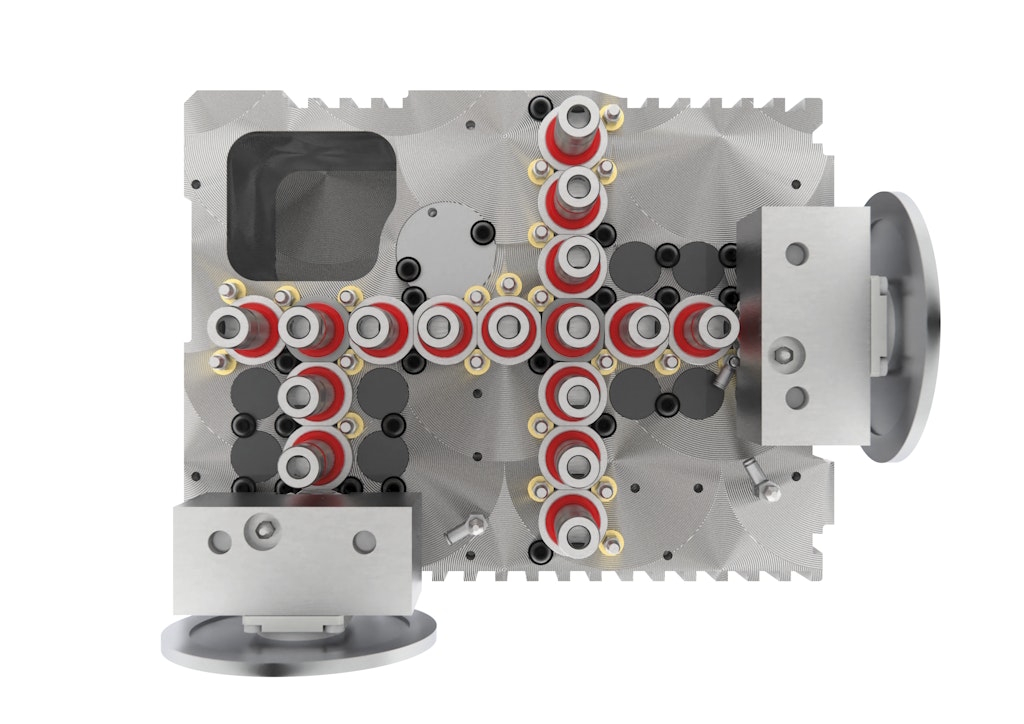

| Drilling unit | |
| Independent vertical spindles (up to) | 16n. |

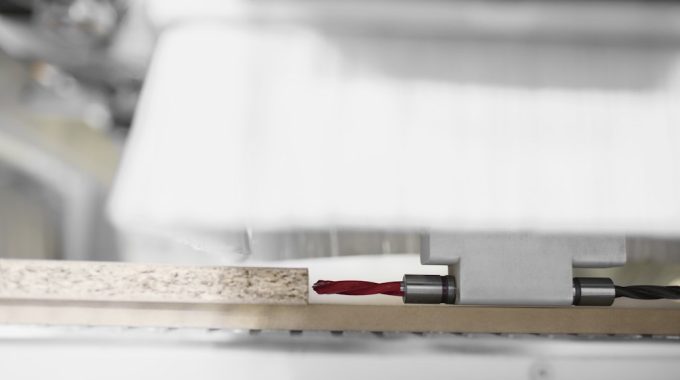

| Independent horizontal spindles (up to) | 8n. |
| Rotation speed (up to) | 8000rpm |
| Integrated blades (up to) | 2n. |
| Integrated blade in X, diameter | 125mm |
