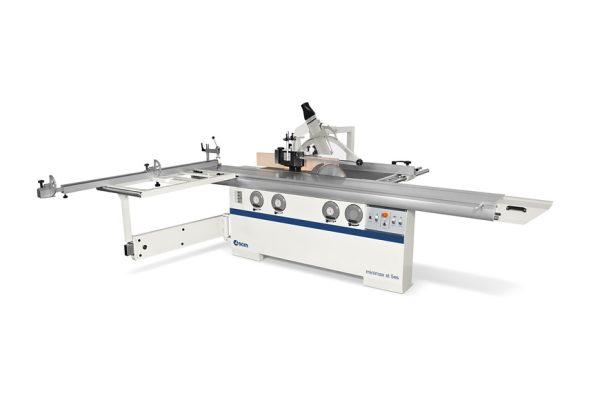

SCM Minimax st 5es Saw Spindle Moulder
The SCM Minimax st 5es Saw Spindle Moulder – a machine whose professional technical solutions adopted give it unrivalled performance and reliability.
Top-tier performance. Sliding table up to 10.5′ in length, multi-speed saw unit, integrated power feeder mount, digital-mechanical or LED readouts with powered movements (in three-phase configuration). The most advanced saw/shaper on the market.
Manufacture – SCM Minimax
Condition – New
Price – From £14,075 (ex VAT)
| Function | Measurement |
|---|---|
| Max. Saw Blade Diameter With Scoring Blade Installed | 350mm |
| Max.Squaring Stroke | 2250mm |
| Max. Useful Spindle Length | 125mm |
| Spindle Moulder Speeds | 3500/6000/8000/10000 mt/sec |
| Three-Phase Motor Power Starting From | 5 (6)kW – 50 (60)Hz |
SIMILAR PRODUCTS
Max. saw blade projection from table at 90° – 80mm
Squaring stroke – 120mm
2 spindle moulder speeds – 5000/7500rpm
Cutting width on parallel fence – 700mm
Max. dimensions of tool lowered under table at 90° – 145 x 38mm
£3,836
Max. saw blade projection from table at 90°/45° – 100/79mm
Max.squaring stroke – 1600 ÷ 2600mm
Cutting width on parallel fence – 1900 ÷ 1270mm
Max. saw blade diameter with scoring blade installed – 315mm
£7,476
Max. saw blade projection from table at 90° – 100mm
Max.squaring stroke – 1600 ÷ 3200mm
Saw-spindle moulder worktable dimensions – 430 x 1250mm
Max. saw blade diameter with scoring blade installed – 315mm
£9,128
