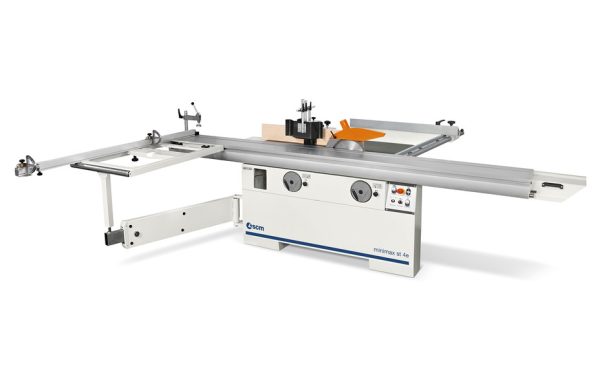

SCM Minimax st 4e Saw Spindle Moulder
The SCM Minimax st 4e Saw Spindle Moulder is the machine for the demanding craftsmen and carpentries looking for flexibility and an “elite” quality finishing.

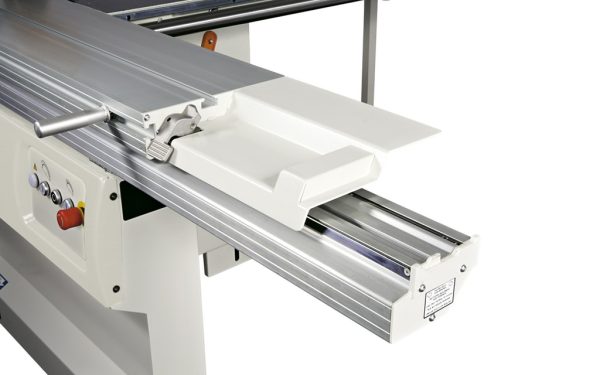

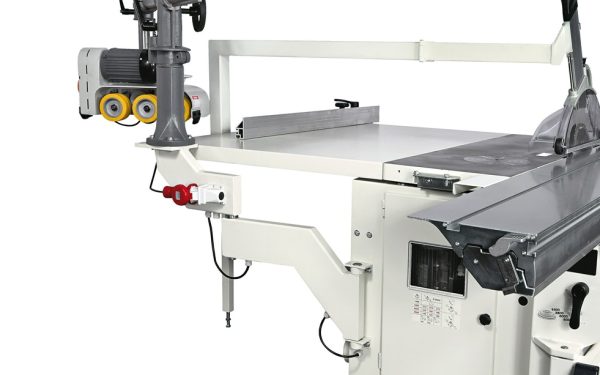

Production-level performance. 8.5′ sliding table, double-hung cast iron saw unit with scoring, rearward tilting shaper spindle for use with power feeder, digital-mechanical readouts, and many other key features.
Manufacture – SCM Minimax
Condition – New
Price – From £9,128 (ex VAT)
| Function | Measurement |
|---|---|
| Saw-Spindle Moulder Worktable Dimensions | 430 x 1250mm |
| Max. Saw Blade Diameter With Scoring Blade Installed | 315mm |
| Max. Saw Blade Projection From Table At 90° | 100mm |
| Max.Squaring Stroke | 1600 ÷ 3200mm |
| 4 Spindle Moulder Speeds | 3500/6000/8000/10000rpm |
SIMILAR PRODUCTS
Max. saw blade projection from table at 90° – 80mm
Squaring stroke – 120mm
2 spindle moulder speeds – 5000/7500rpm
Cutting width on parallel fence – 700mm
Max. dimensions of tool lowered under table at 90° – 145 x 38mm
£3,836
Max. saw blade projection from table at 90°/45° – 100/79mm
Max.squaring stroke – 1600 ÷ 2600mm
Cutting width on parallel fence – 1900 ÷ 1270mm
Max. saw blade diameter with scoring blade installed – 315mm
£7,476
Max.squaring stroke – 2250mm
Max. saw blade diameter with scoring blade installed – 350mm
Max. useful spindle length – 125mm
Spindle moulder speeds – 3500/6000/8000/10000 mt/sec
£14,075
