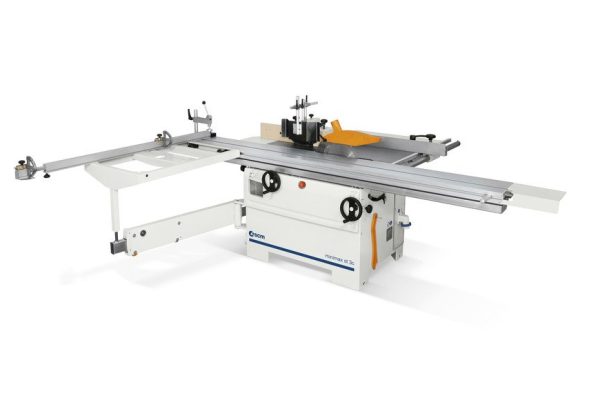

SCM Minimax st 3c Saw Spindle Moulder
The SCM Minimax st 3c Saw Spindle Moulder is the saw-spindle moulder for D.I.Y. woodworkers and craftsmen workshops essential, practical and with the best price/performances ratio.

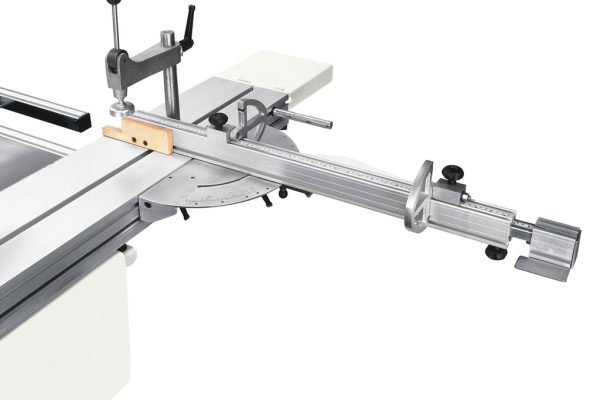

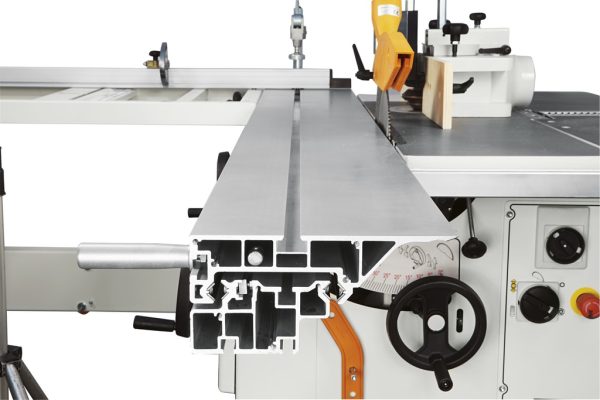

Incredible cutting of both very thick solid wood and panels, even those veneered, thanks to the new saw unit with a blade that has a maximum diameter of 315 mm with the scoring blade fitted. New scoring unit that can easily be adjusted from outside the machine, supplied on request. Easier, more precise cutting: a perfectly stable support is guaranteed, even for large workpieces, by the very wide sliding table and the large squaring frame (960 x 600 mm) provided as standard. Extraordinary power: the 5kW (6,6hp) 50Hz – 6kW (8hp) 60Hz three-phase motors are provided as standard.
Manufacture – SCM Minimax
Condition – New
Price – From £6,922 (ex VAT)
Function | Measurement |
---|---|
Cast Iron Saw-Spindle Moulder Worktable Dimensions | 1115 x 430mm |
Max. Saw Blade Diameter With Scoring Blade Installed | 315mm |
Max. Saw Blade Projection From Table At 90°/45° | 100/79mm |
Max.Squaring Stroke | 1600 ÷ 2600mm |
Cutting Width On Parallel Fence | 1900 ÷ 1270mm |
Max. Tool Diameter When Profiling | 210mm |
Max. Diameter Of Tool Lowered Under The Table At 90° | 180mm |
Max. Tool Diameter When Tenoning | 275mm |
