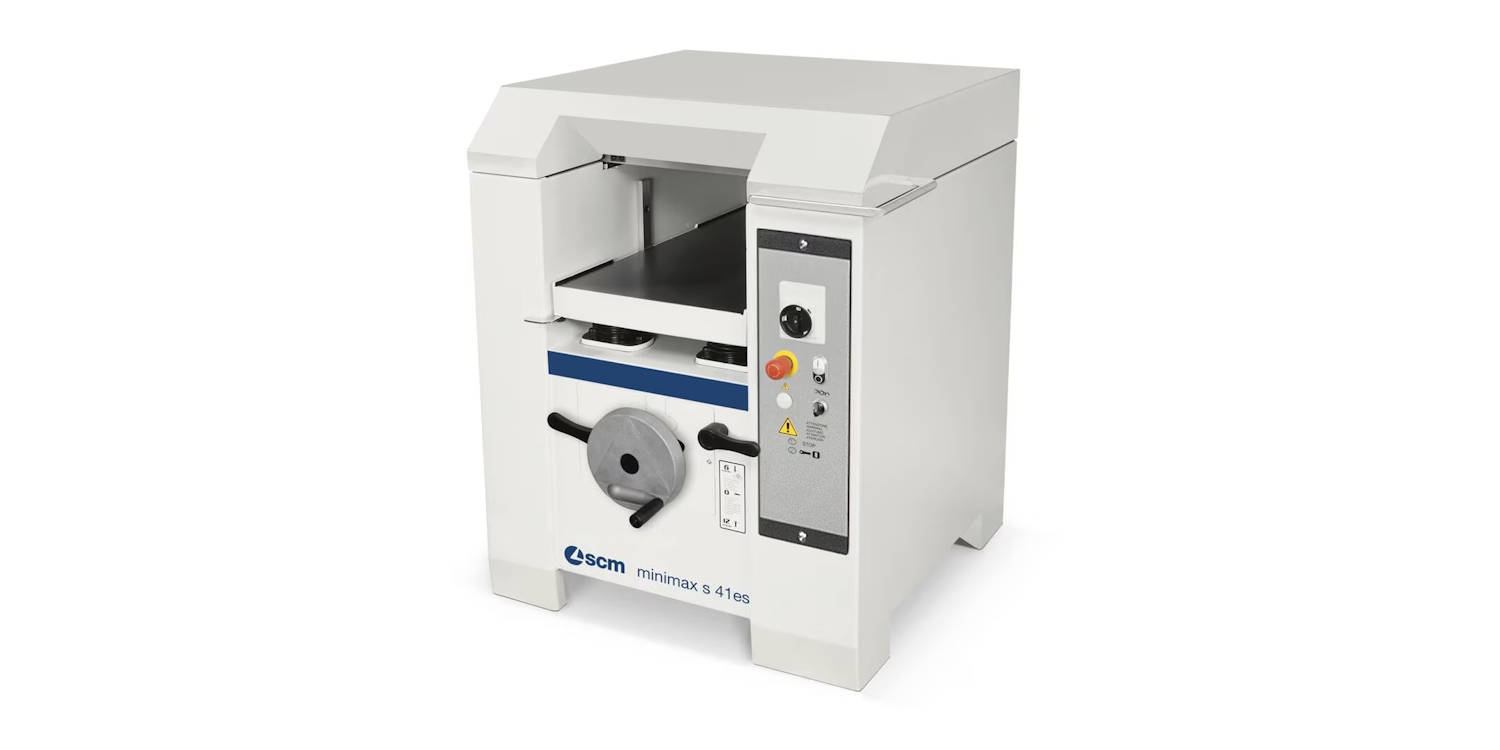

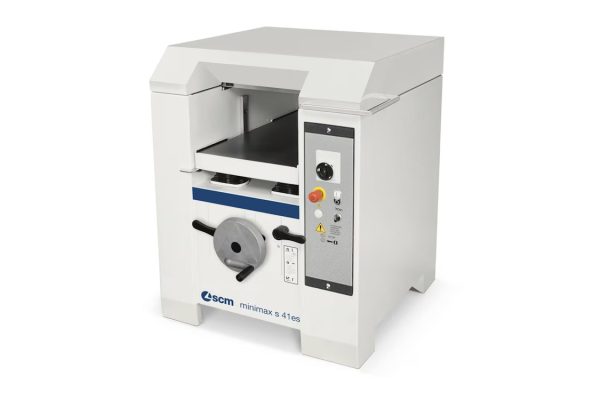

SCM Minimax s41es Thicknessing Planer
The SCM Minimax s41es Thicknessing Planer is a high technology machine at a competitive price in a thicknesser for demanding craftsmen and carpentries.
Discover the Xylent cutterhead, available for this machine.
Manufacture – SCM Minimax
Condition – New
Price – From £5,388 (ex VAT)
Perfect finish
An optimal planing with minimal effort, thanks to the 95 mm diameter cutter block and 4 knives. For an impeccable finish the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The roller infeed has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller in sandblasted steel maintains the perfect post-processing finishing.
For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threazds dust protected.
“Xylent” spiralknife cutter block with 3 series of knives
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
Function | Measurement |
---|---|
Planer Working Width | 410mm |
Cutter Block Diameter (mm)/N. Of Knives Standard | 95/4 |
Min. ÷ Max. Working Height On Thicknesser | 3 ÷ 240mm |
Three-Phase Motor Power Starting From | 5 (6) kW – 50 (60) Hz |
