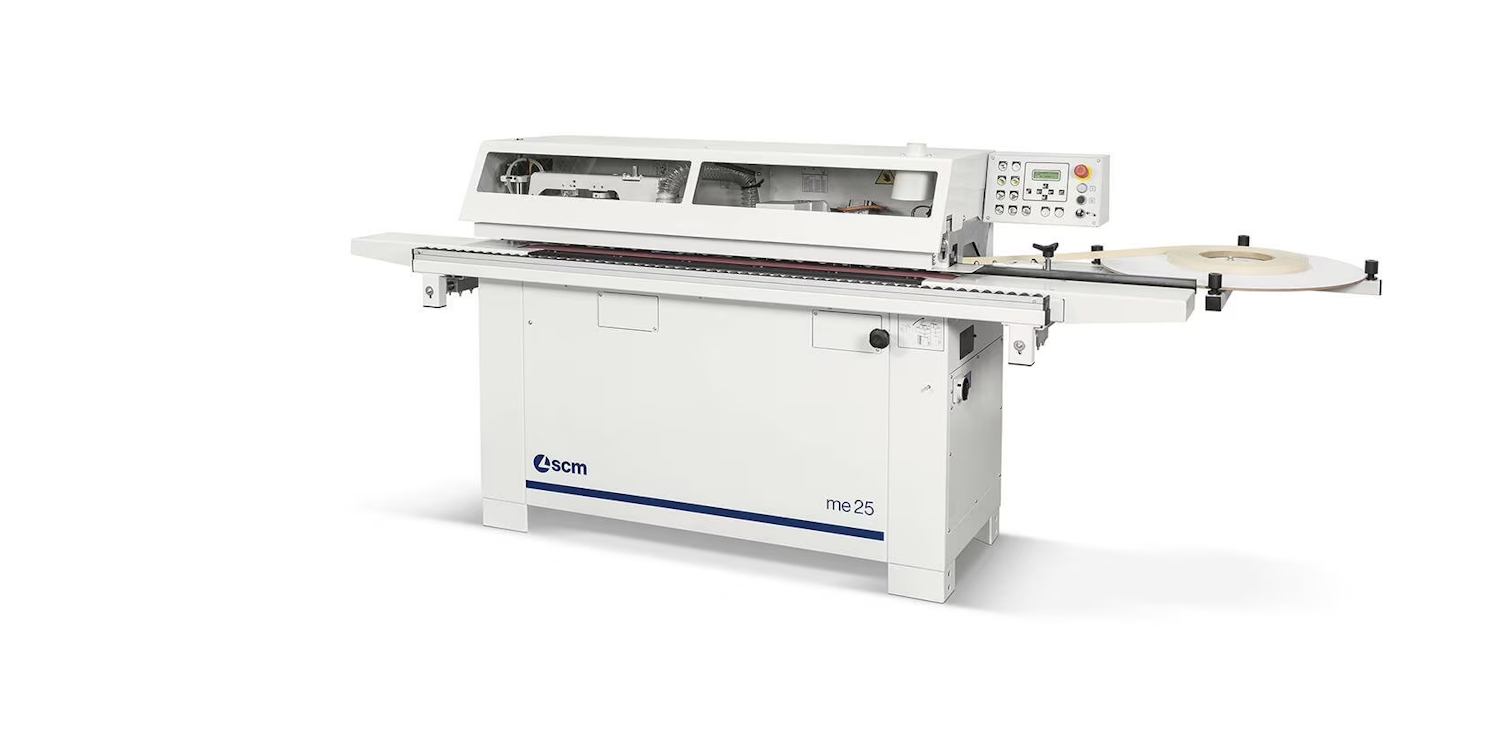

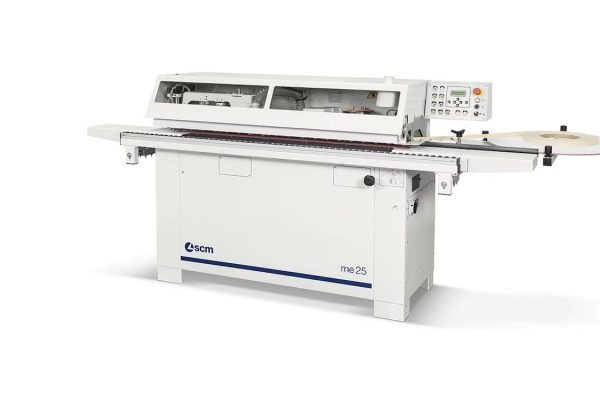

SCM Minimax me25 Edgebander
The SCM Minimax me25 Edgebander is an automatic machine with glue pot to edge band, with great flexibility, melaminic edges, PVC and ABS up to 3 mm and wooden strips up to 5 mm. Machine for professional craftsmen and joineries.
Maximum versatility: gluing, end cutting with blade and trimming, together with the possibility to equip the machine with scraping and brushing units. Semplicity and precision: automatic positioning of all operating units synchronised with presser lifting and based on the panel thickness. High-precision panel feed on a high-adherence belt with a top presser fitted with rubber wheels. Easy-to-use in all working conditions with the control panel on the machine front side.
Manufacture – SCM Minimax
Condition – New
Price – From £13,042 (ex VAT)

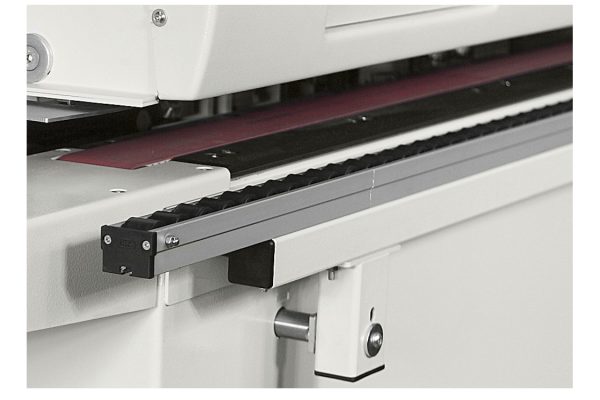

Designed for a perfect finish
The very best finishing of the panel edge is also guaranteed by the panel conveying track (exclusive solution), which prevents the panel having the feed affected by the typical pulses generatedby the pinion of a traditional feed track and ensures a smooth and linear panel movement.

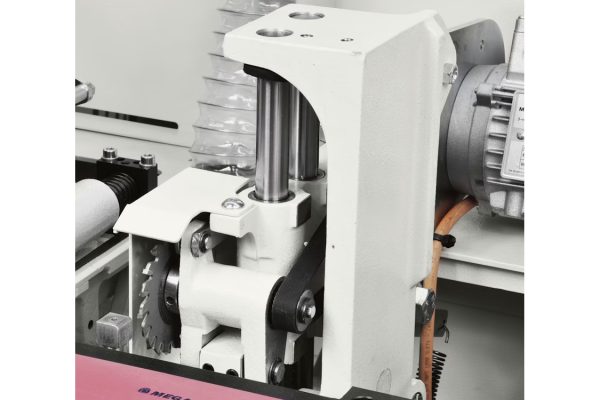

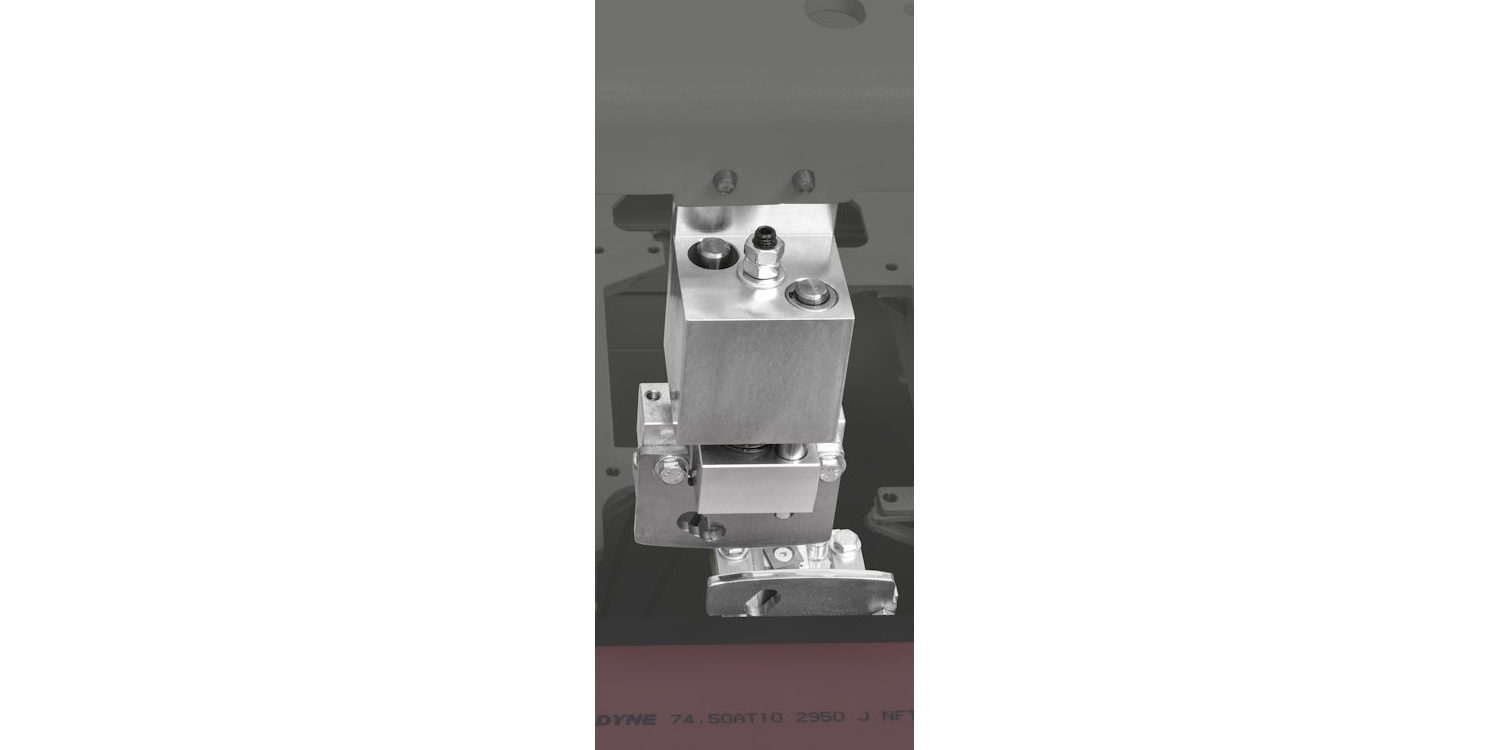

Always precise when cutting
Absolute precision offered by the unit, with a cutter and an independent asynchronous.
Simple and intuitive
Error-free machining is ensured by the control panel positioned on the front of the machine, that allows an easy selection of all the main functions, among them, the operating units switching on and off. The PLC guides the operator during maintenance, cleaning, diagnostic operations, etc.

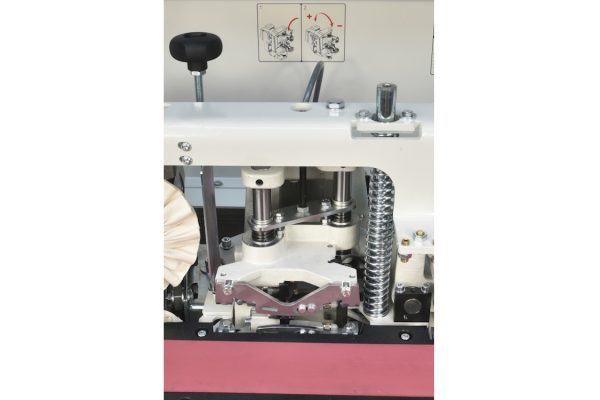

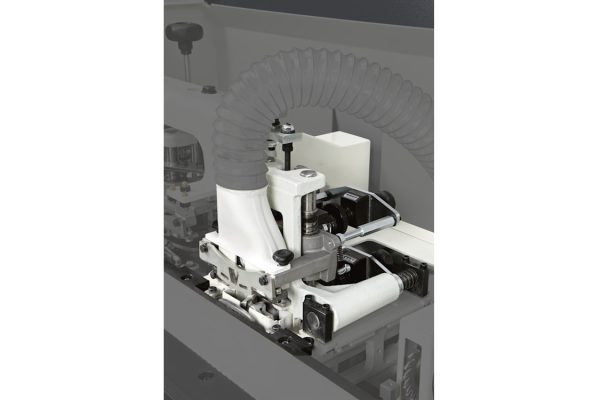

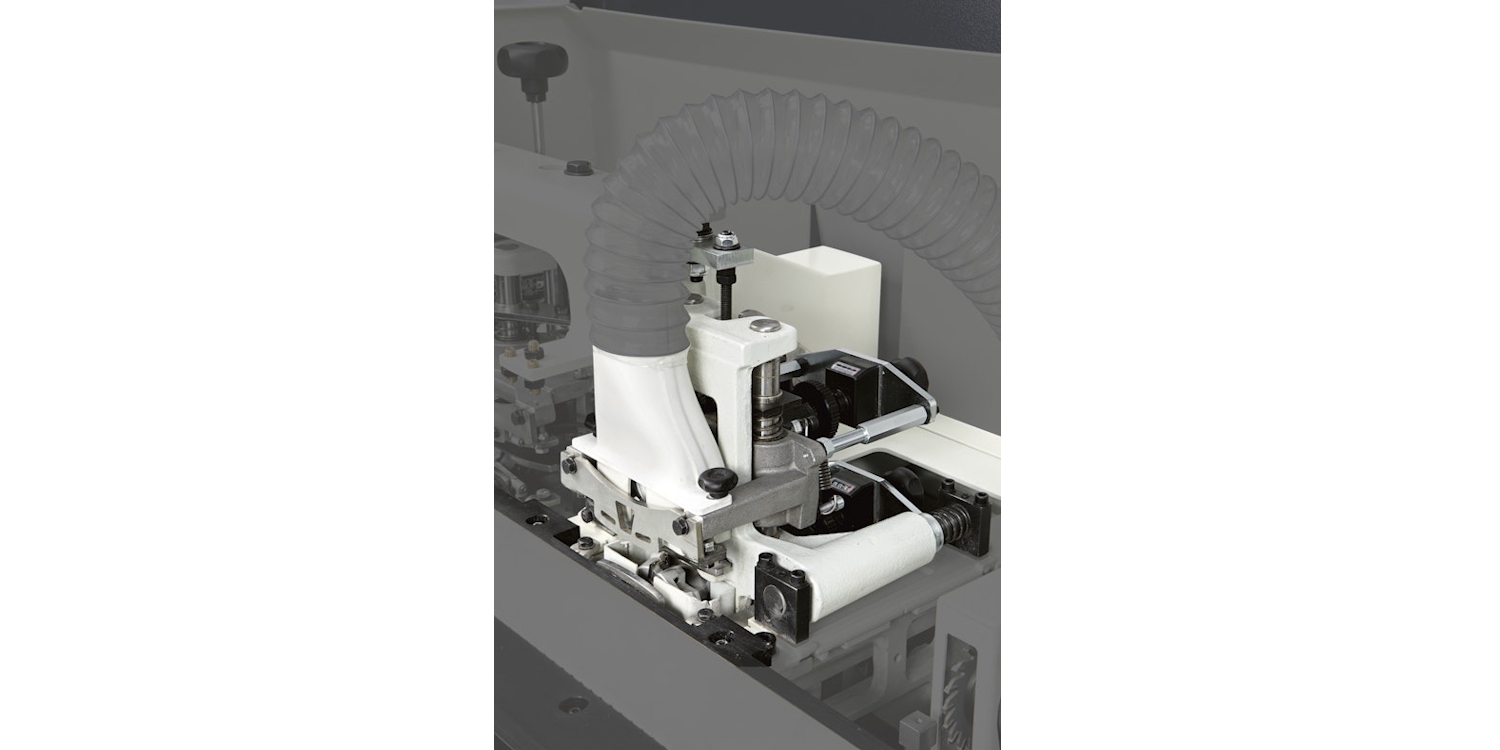

Perfect radius on pvc/abs edges

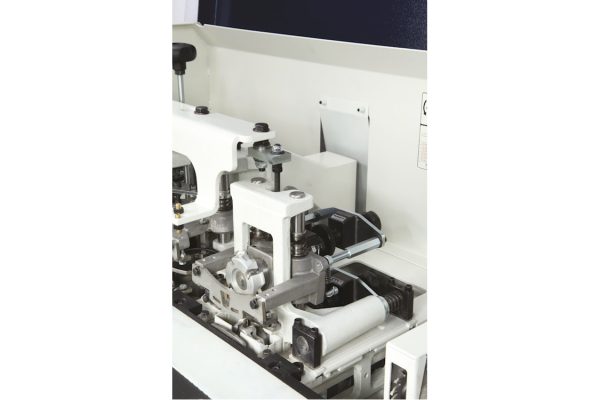

High finishing quality of plastic material edges thanks to the radius knives that ensure the complete elimination of any marks left from the rimming unit tools, all equipped with fronte and vertical copiers and a user-friendly device for exclusion of the unit when it is not in use.
| Function | Measurement |
|---|---|
| Worktable Dimensions | 2600 x 530mm |
| Worktable Height | 904mm |
| Thickness Of Rolled Edges | 0,4 ÷ 3mm |
| Thickness Of Edges In Strips | up to 5mm |
| Min. ÷ Max. Panel Thickness | 12 ÷ 50mm |
| Min. ÷ Max. Panel Thickness Using Edge Scraping Unit | 16 ÷ 50mm |
| Minimum Panel Length/Width With Rolled Edges | 190/65 mm |
| Min. Panel Length Cut Only On The Front | 120mm |
| Feed Speed | 7m/min |
| Options |
|---|

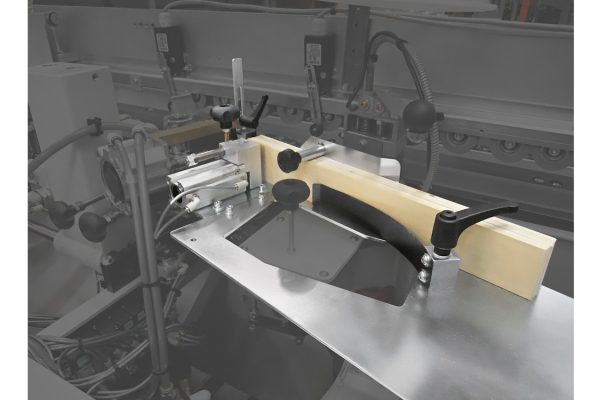

| Automatic loading device for edges in strips |
| Tools kit radius 3 mm instead of radius 2 mm |
| Pair of cutters for trimmers R=3mm |
| Pair of cutters for trimmers R =2mm |
| Pair of cutters for edge scraping unit R=3 mm |
| Pair of cutters for edge scraping unit R=2mm |
| Single-phase version 50 Hz |
