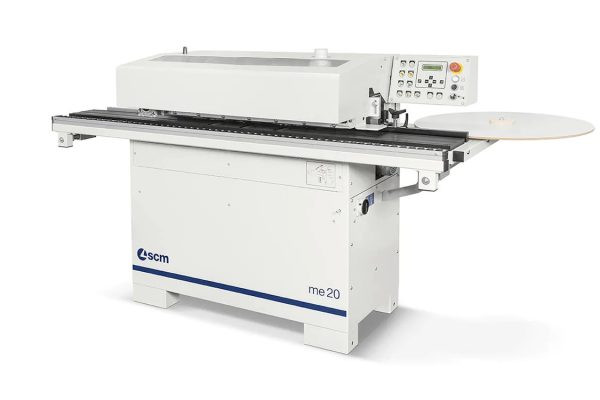

SCM Minimax me20 Edgebander
The SCM Minimax me20 Edgebander is the technological solution, for professional craftsmen and joineries, to edge band with amazing easiness.
Fast set-up: glue is heated rapidly and evenly by the resistances located in both the glue pot and inside the glue spreader roller. Practical gluing unit. Two rollers press the edge evenly and efficiently onto the panel. The pressing unit position is comfortably adjustable from the machine front side. Always clean, precise cut on the leading and trailing edges of the panel assured by the pneumatic end cutting unit. Edge trimming top finishing with the trimming unit operating at a cutting speed of 12.000 rpm. Total control of all the machine’s functions, quickly and intuitively. With the PLC it is possible to easily and comfortably exclude the shear and the end cutting unit to allow also edge banding with wooden strips of the maximum thickness of 5 mm.
Manufacture – SCM Minimax
Condition – New
Price – From £8,420 (ex VAT)
Simple and intuitive

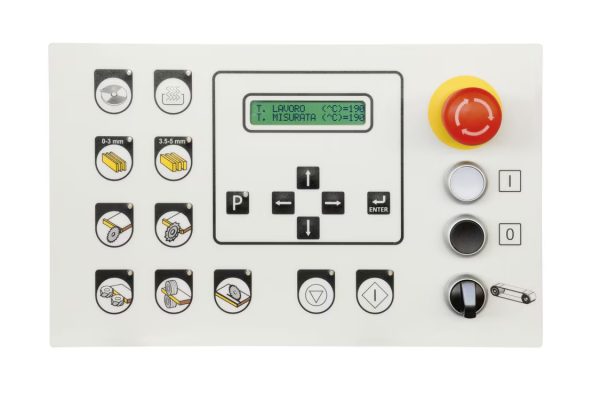

Error-free machining is ensured by the control panel positioned on the front of the machine, that allows an easy selection of all the main functions, among them, the operating units switching on and off. The PLC guides the operator during maintenance, cleaning, diagnostic operations, etc.
Ideal edge application

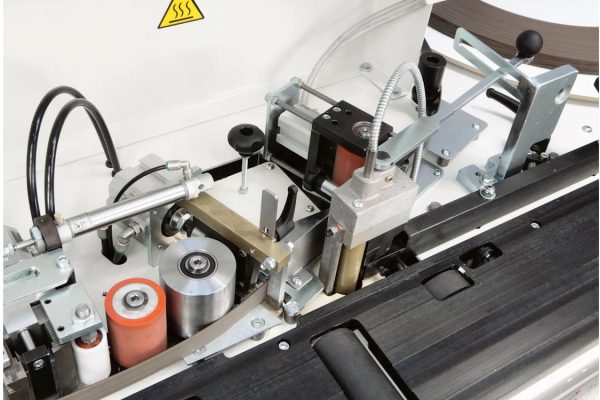

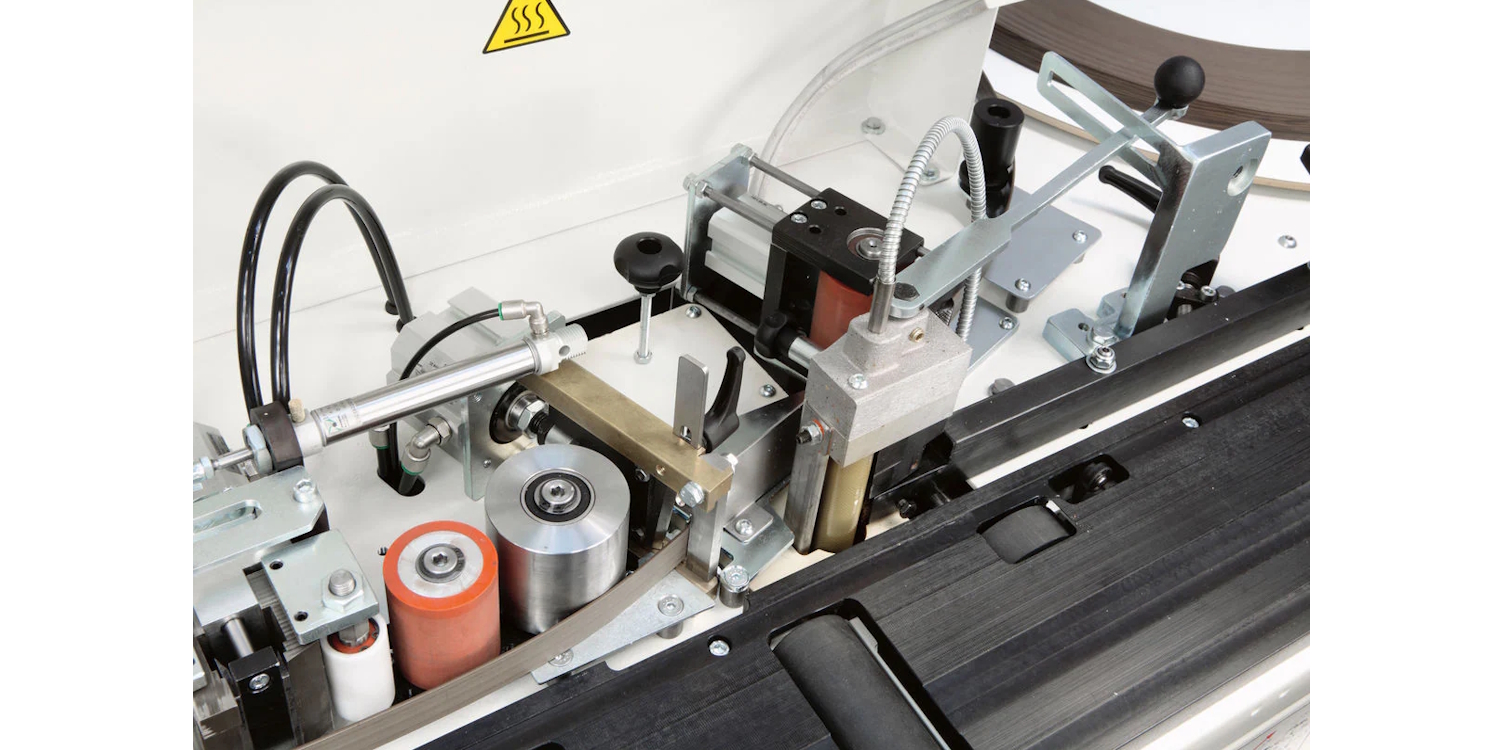

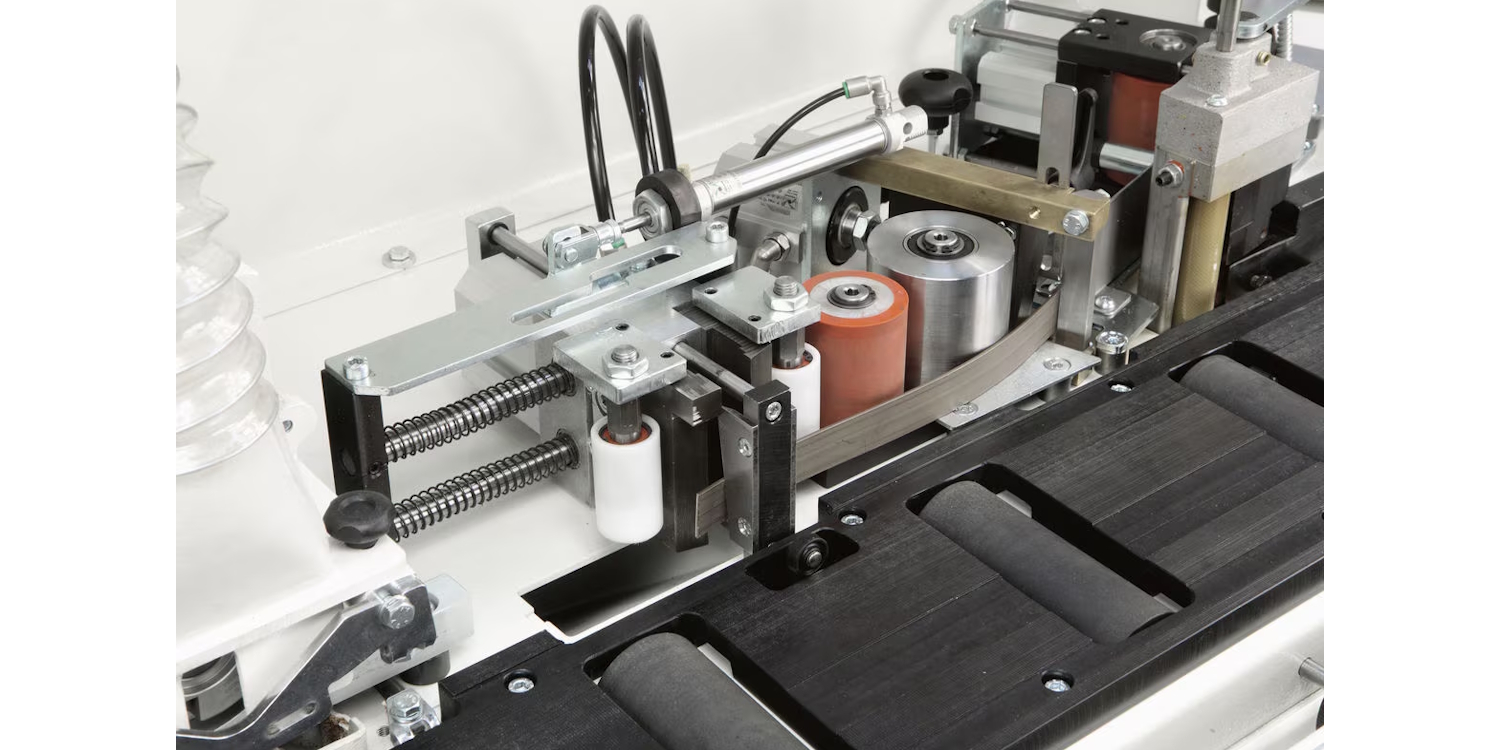

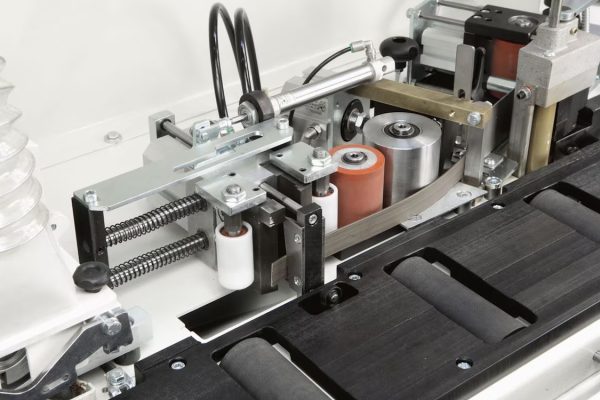

The glue is heated rapidly and evenly by the resistances. The automatic lowering of the glue temperature after a temporary halt in production when using the machine avoids burning of the glue. A new innovative system of self-lubrication of the glue pot, allows a more extensive use of the edge banding machine without the necessity of lubrication. Two rollers press the edge banding evenly and efficiently on to the panel edge. The glue spreading roller with electrical resistance inside provides a uniform glue spread and always at the maximum working temperature even on panels at the maximum working height.
Quality finishing and versatility

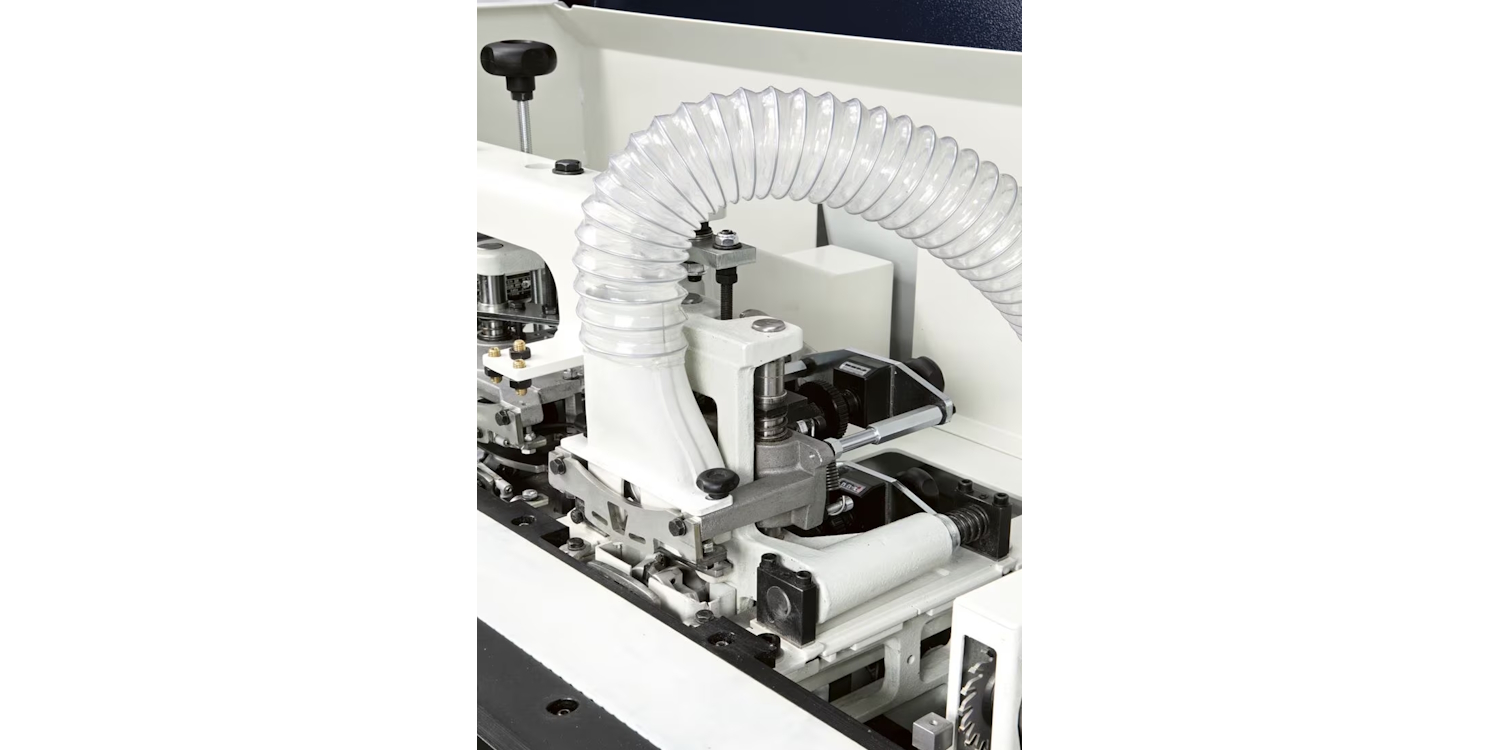

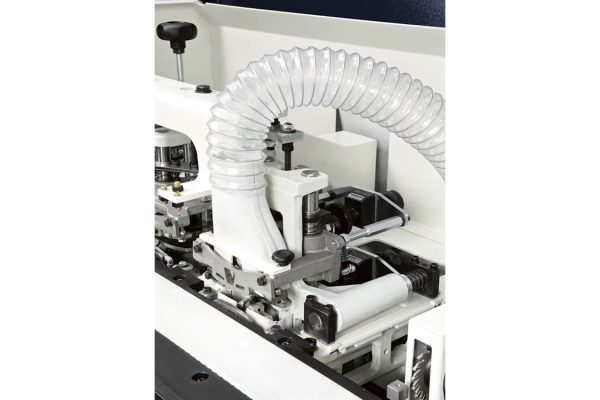

The unit functions with slide copying pads to align perfectly to the work piece. These cutters are designed for straight or radius trimming of any type of edge, whether it is thick or thin, made of PVC, ABS, melamine, laminate or wood. The edge thickness is easily set by means of two numerical readouts.
| Function | Measurement |
|---|---|
| Worktable dimensions | 1950 x 180mm |
| Worktable height | 904mm |
| Thickness Of Rolled Edges | 0,4 ÷ 2mm |
| Max. Thickness Of Edges In Strips | 5mm |
| Min. ÷ Max. Panel Height | 12 ÷ 50mm |
| Min. Panel Length/Width | 180/65mm |
| Min. panel length (frontal end cutting only) | 120mm |
| Panel Feed Speed | 6m/min |
| Options |
|---|
| Single-phase machine version |
