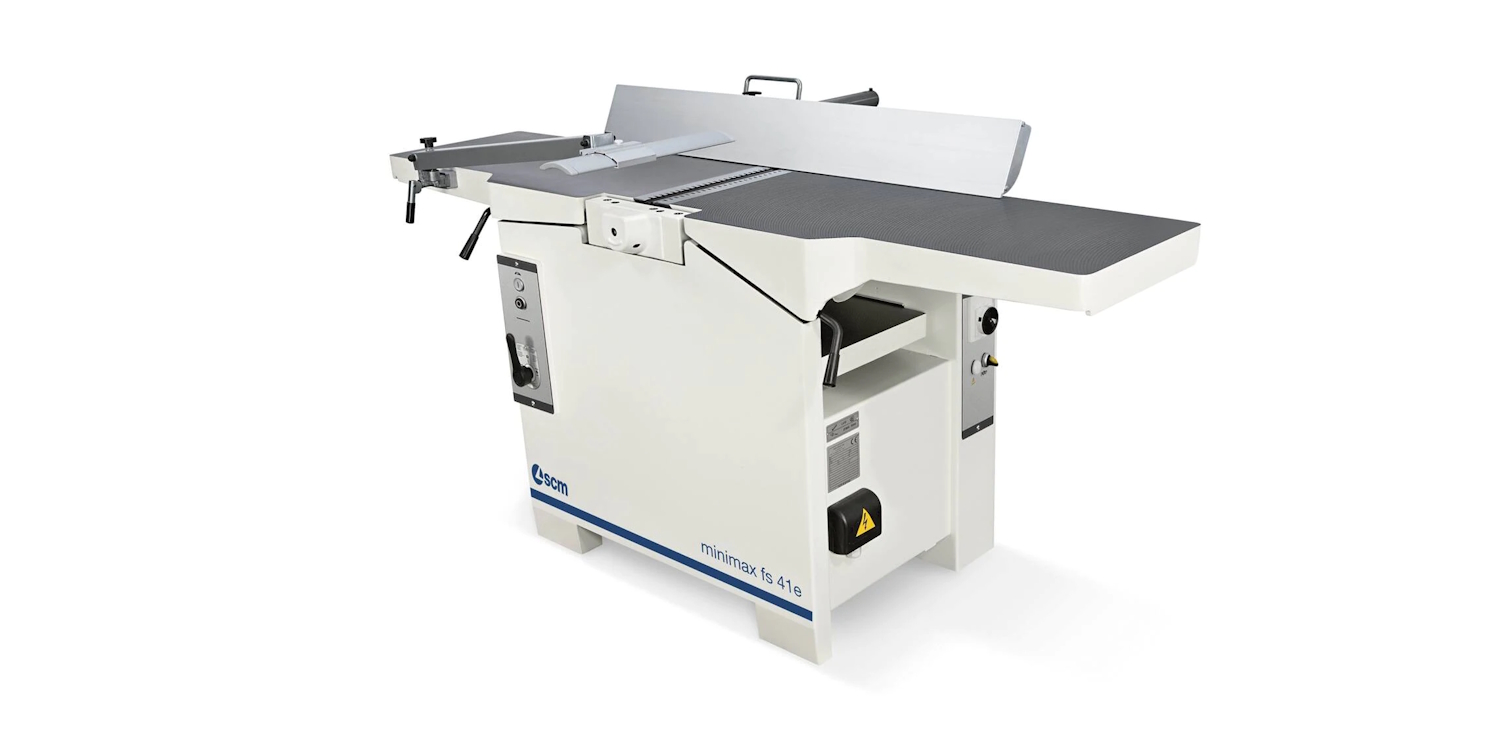

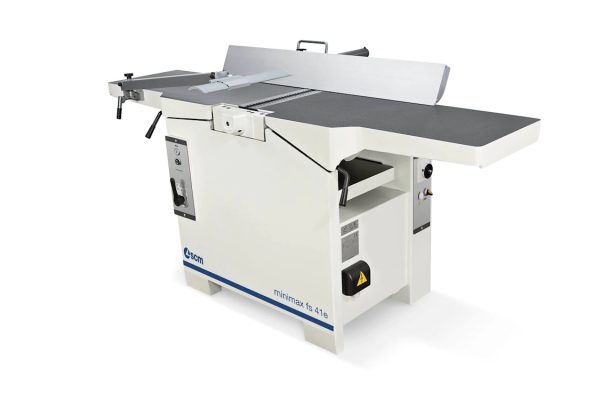

SCM Minimax fs 41e Combined Planer Thicknesser
Perfect finishing

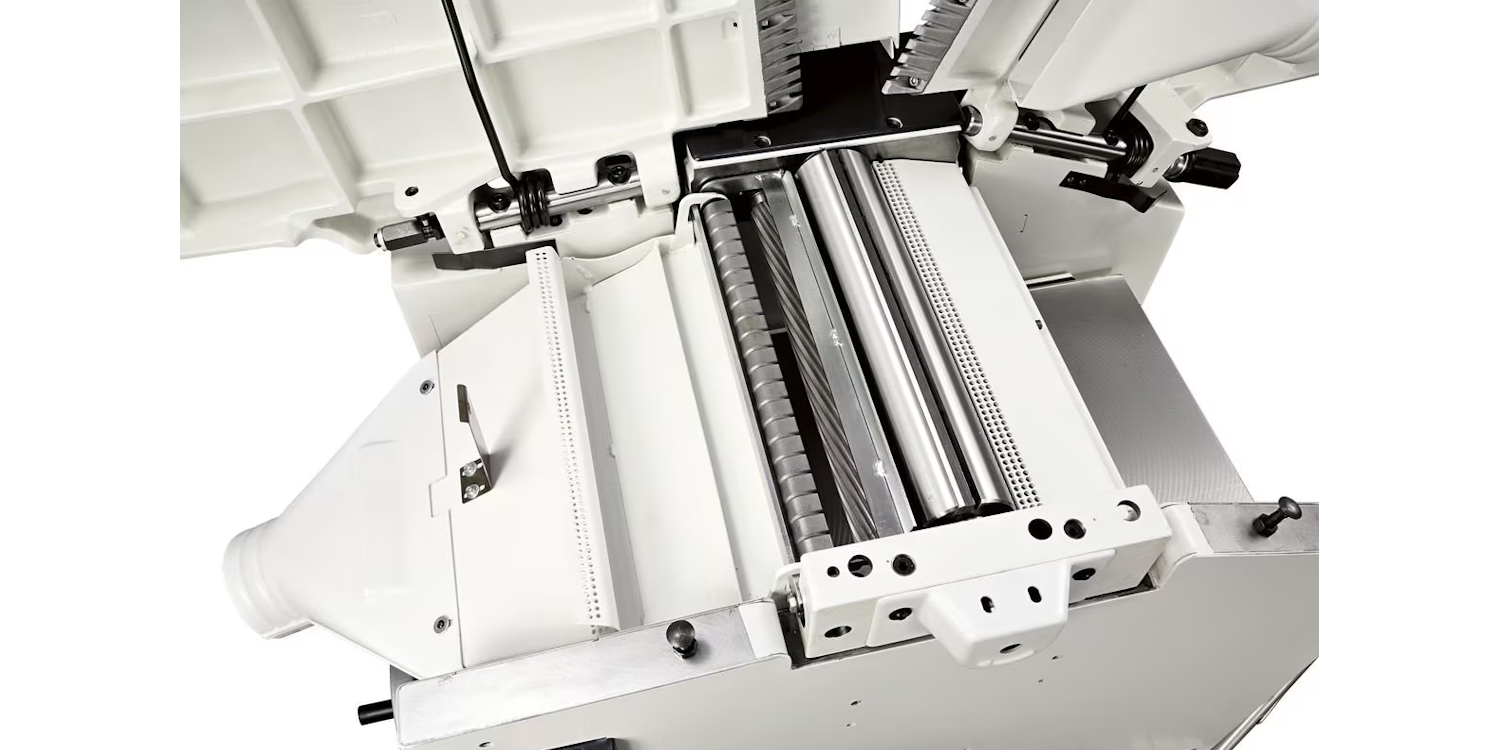

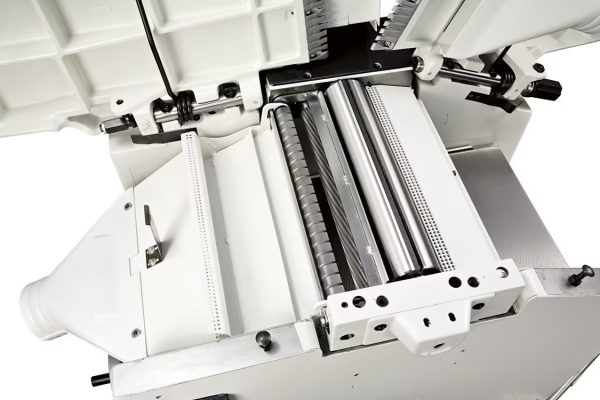

The planer unit stands on cast iron supports and the standard version has a 87 mm diameter cutter block with 3 knives. (The optional “Tersa” cutter block is available with 4 quick tightening knives and automatic adjustment). For an impeccable finish, the pressureof the thicknesser feed rollers can be adjusted according to the type of wood machined. The infeed roller has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller, in sandblasted steel, maintains the perfect post-processing finishing.

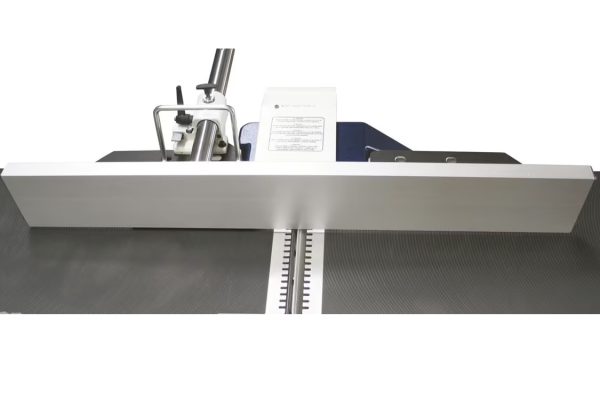

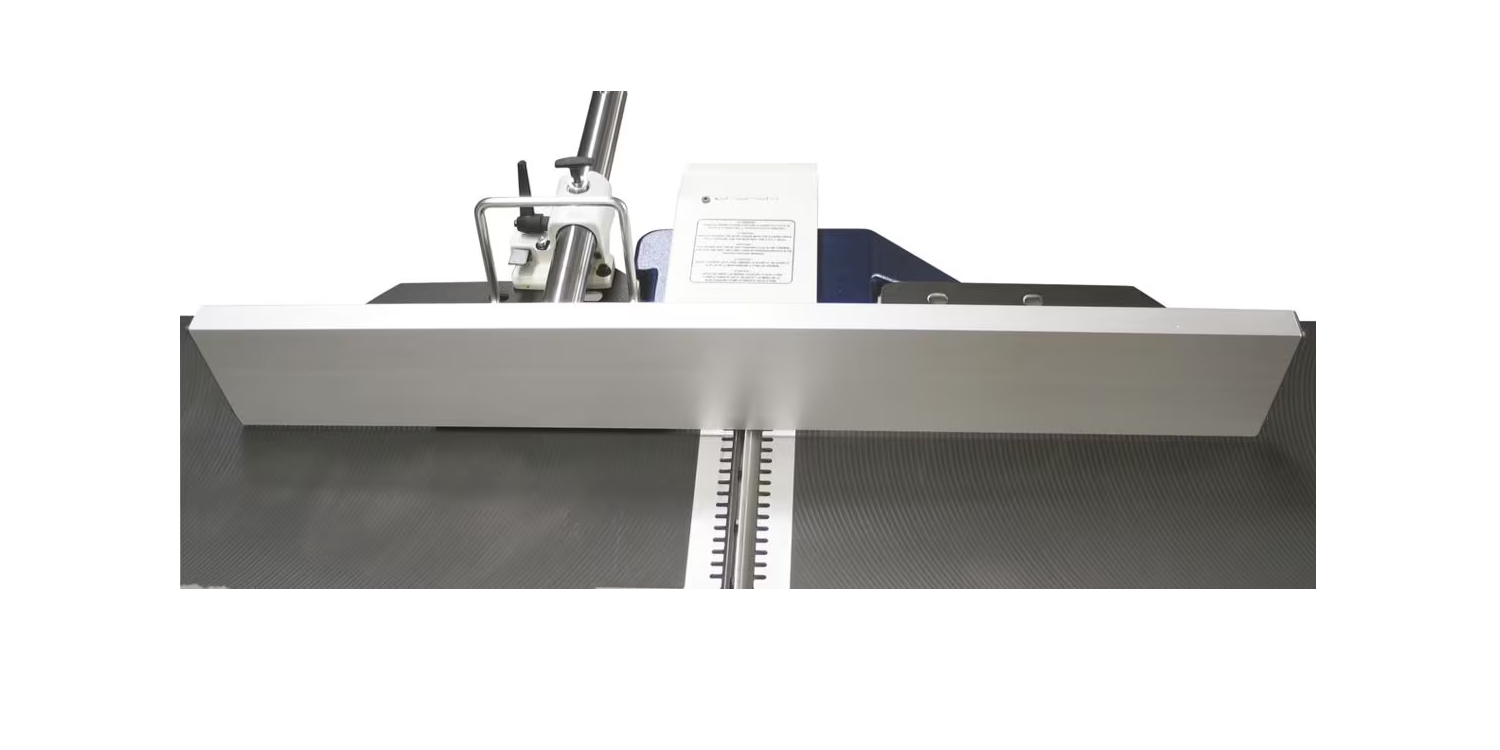

Planing fence
The fs 41e uses a dedicated planing fence extremely rigid and smooth, thanks to a support with central round bar.

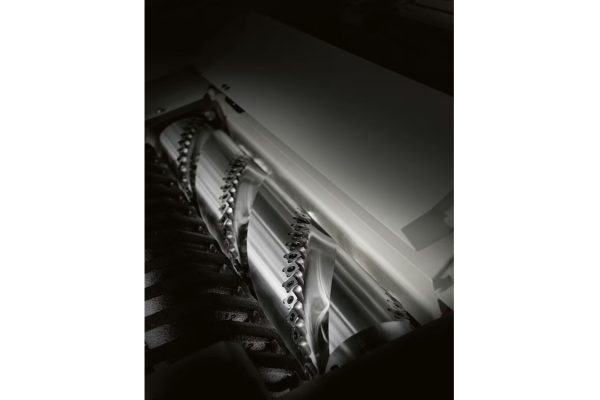

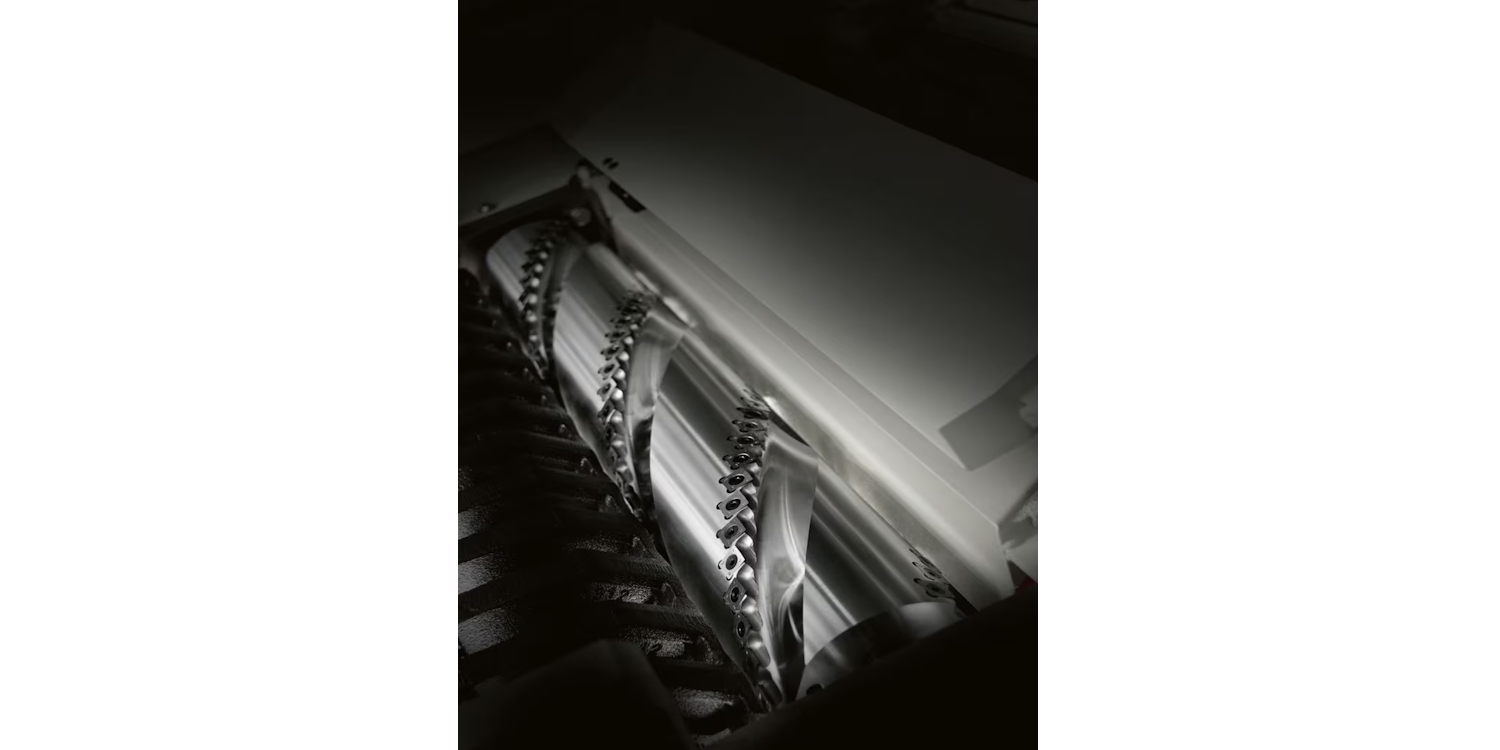

“Xylent” spiralknife cutter block with 3 series of knives
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
Function | Measurement |
---|---|
Planer Working Width | 410mm |
Cutterblock Diameter | 87mm |
Surfacing Tables Total Length | 2000mm |
Thicknessing Table Dimensions | 423 x 775mm |
2 Feed Speeds On Thicknesser | 6/12m/min |
Min. ÷ Max. Working Height On Thicknesser | 3 ÷ 230mm |
Min Working Length On Thicknesser | 160mm |
Three Phase Motor | 4kW (5,5hp) |
