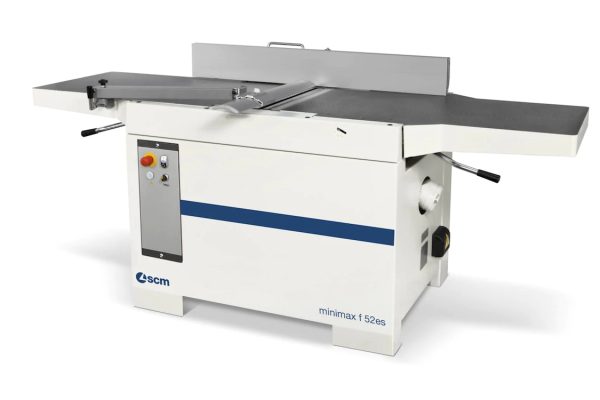

SCM Minimax f 52es Surface Planer
The SCM Minimax f 52es Surface Planer with 520 mm working width, professional, massive and compact, for a high-flexible production; ideal for the demanding craftsman and carpentry.
Discover the Xylent cutterhead, available for this machine.
Optimal planning with minimum effort, with the 120 mm spindle diameter and 4 knives.

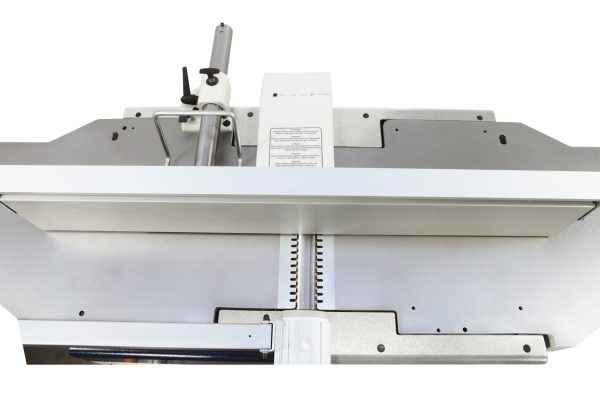

Total safety and control, high rigidity fence with a smooth movement due to the central locking on round bar.
More versatile with the practical mortiser (option).
Manufacture – SCM
Condition – New
Price – From £6,027 (ex VAT)
| Function | Measurement |
|---|---|
| Planer Working Width | 520mm |
| Cutter Block Diameter (mm)/N. of Knives Standard | 120/4mm |
| Max. Stock Removal | 8mm |
| Surfacing Tables Total Length | 2250mm |
| Three-Phase Motor Power Starting From | 5kW (6,6hp) 50Hz / 6kW (8hp) 60Hz |
| Options |
|---|
| Cast iron mortiser |

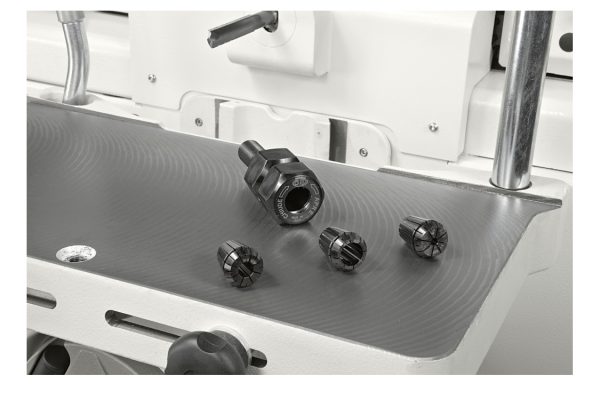

| 0-16 mm self-centering (Wescott type) chuck |

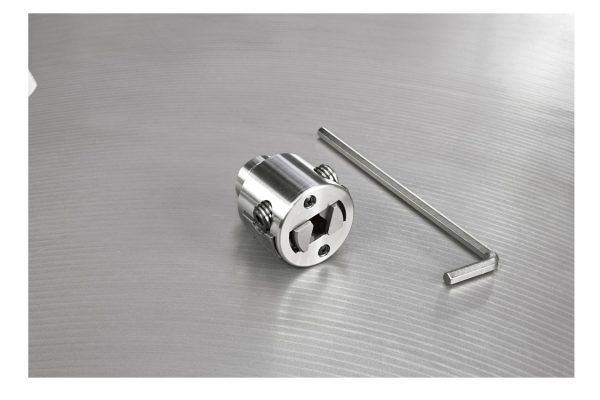

| Chuck with clamp 5-10-16 mm |
| “Tersa” cutterblock Ø 95 mm with 4 knives with rapid locking system |
| “Xylent” spiralknife cutterblock with 3 series of knives |
| Xylent maintenance kit |
| 10 spare inserts kit (15x15x2,5) for Xylent spindle |
| Additional overturning fence for processing of thin workpieces |
| Three-phase motor 7kW (9,5hp) |
