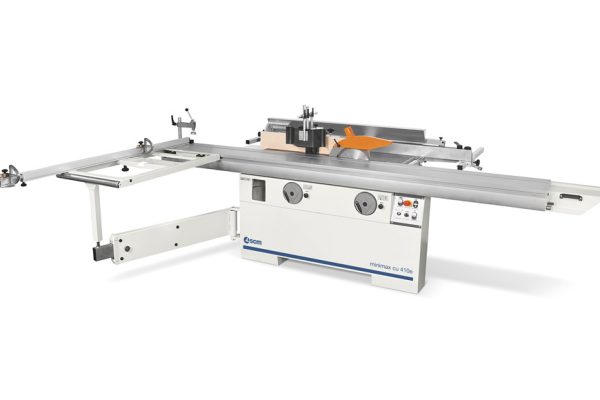

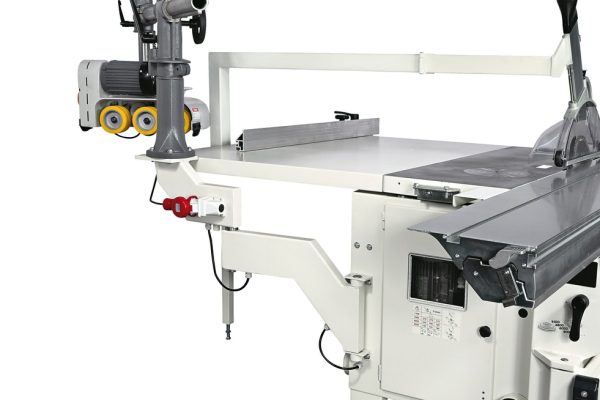

SCM Minimax cu 410e ​Universal Machine

Stabilidy and rigidity
The new saw unit closed loop structure is made of a heavy cast iron and is supported firmly under the table by two lateral supports in a crescent shape. These solutions give strength and rigidity, guaranteeing perfect cutting results. The saw unit can be equipped, on request, with scoring blade for perfect cutting even on veneered panels. The scoring blade is an optional available in two versions: with belt transmission from the main motor and with an independent motor 0.75 HP (0.55 kW). The maximum diameter allowed for the main saw is 315 mm with scoring blade mounted.

Versatility

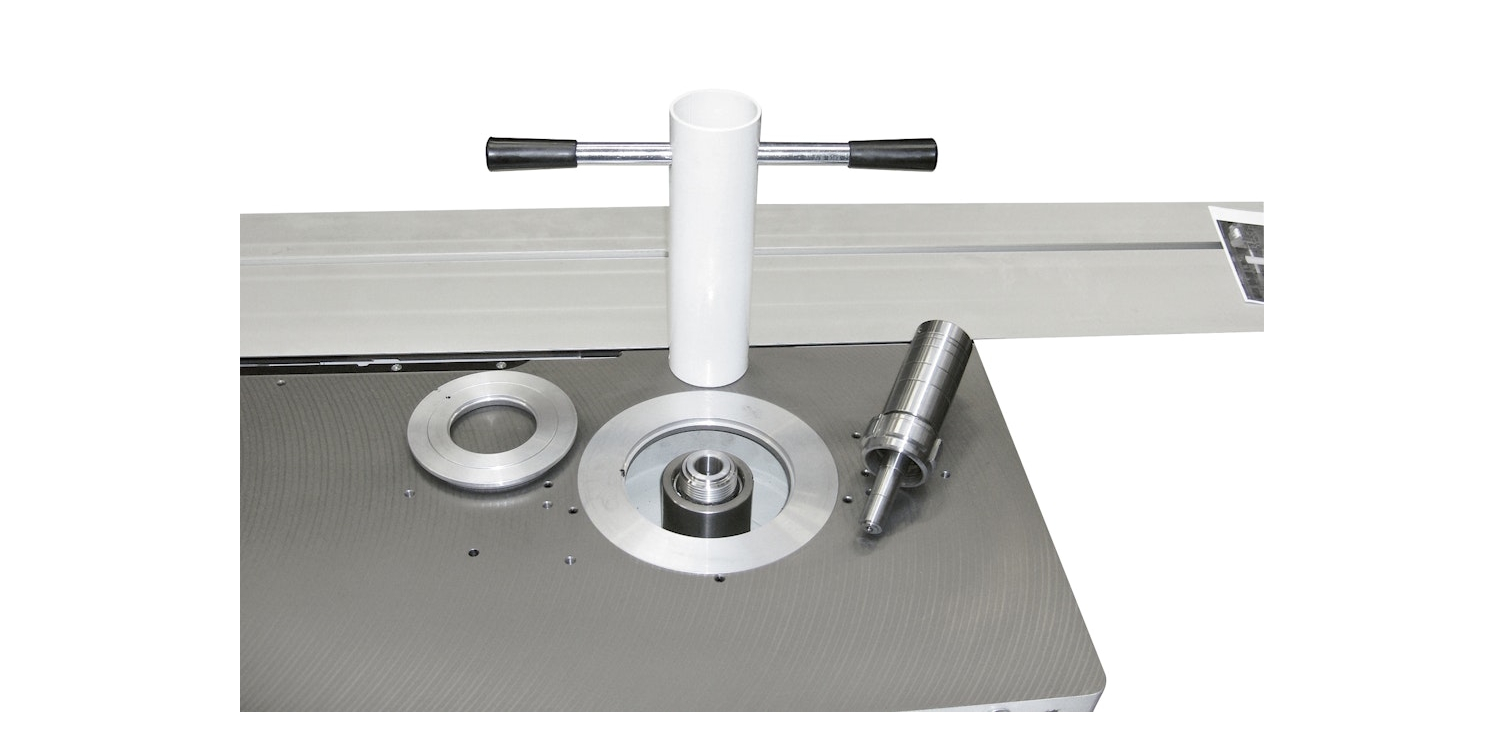

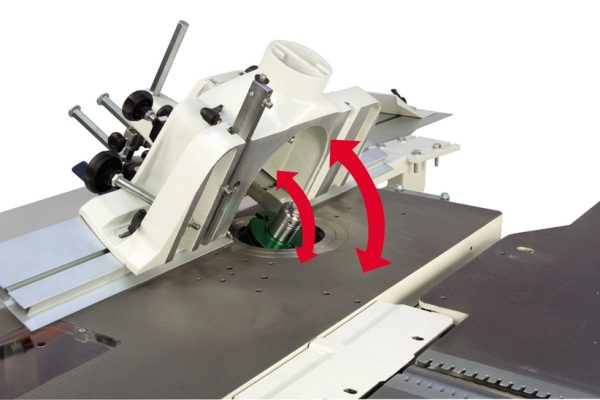

Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The 4 standard speed are ideal for any type of machining, from moulding to routing and tenoning, with the possibility to fit tools upto 275 mm of diameter.The spindle is surrounded by a cast iron “cup” to protect the internal mechanical components from shavings and sawdust.

Perfect finishing

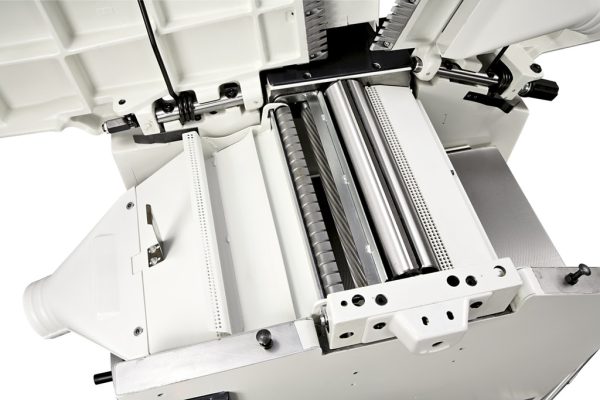

The planer unit stands on cast iron supports and the standard version has a 87 mm diameter cutter block with 3 knives. (The optional “Tersa” cutter block is available with 4 quick tightening knives and automatic adjustment). For an impeccable finish, the pressureof the thicknesser feed rollers can be adjusted according to the type of wood machined. The infeed roller has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller, in sandblasted steel, maintains the perfect post-processing finishing.

Two feed speed
Two feed speed for the standard thicknesser (6 – 12 m/min.). The planers open towards the circular sawspindle moulder side: an ergonomic solution with minimum amount of space.
