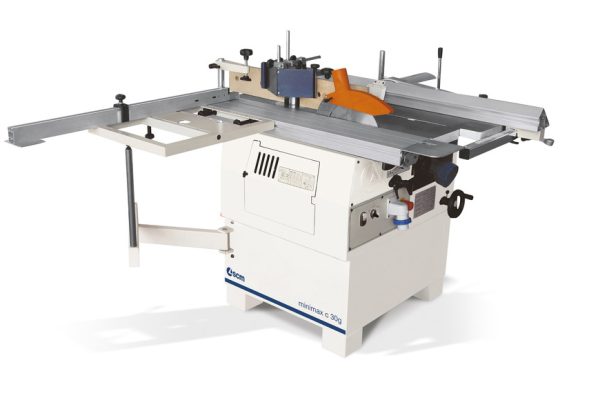

SCM Minimax c 30g Universal Machine
The SCM Minimax c 30g Universal Machine is built with all the Minimax quality at the more accessible price, ideal for the D.I.Y. woodworkers and the small joinery workshops.
Great precision and easy-to-use: the saw unit can be raised and tilted using comfortable handwheels. The anodised-aluminium sliding table has a 1200 mm stroke and slides next to the saw blade thus ensuring better cutting precision. Maximum versatility with the spindle moulder unit with two speeds, the spindle moulder fence with micrometric adjustment, and the two dedicated special fences for tenoning and shaping. To keep the machine compact and make machining easier, the surfacing table opens towards the inside of the machine.
Manufacture – SCM Minimax
Condition – New
Price – From £5,036 (ex VAT)
Function | Measurement |
---|---|
Planer Working Width | 300mm |
Surfacing Tables Total Length | 1200mm |
Min. ÷ Max. Working Height On Thicknesser | 3 ÷ 200mm |
Saw Blade Tilting | 90° ÷ 45° |
Max. Saw Blade Projection From Table At 90° | 80mm |
Squaring Stroke | 1200mm |
Spindle Moulder Speeds | 5000/7500rpm |
