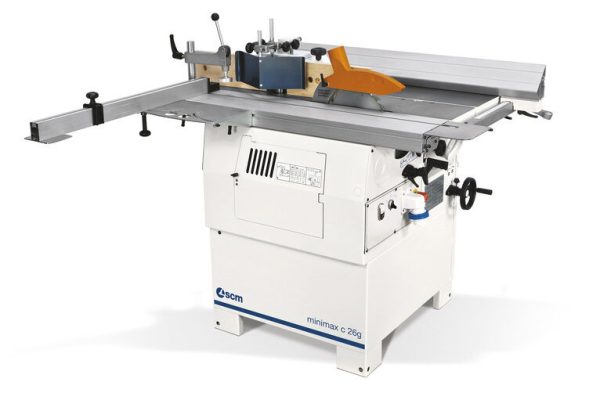

SCM Minimax c 26g Universal Machine
The SCM Minimax c 26g Universal Machine is built with all the “Made in Italy” Minimax quality at the more accessible price, ideal for the D.I.Y. woodworkers and the small joinery workshops.
The most compact 4-in-1 combination machine available, the minimax c 26g is ideal for the hobbyist who works primarily with solid wood and is looking for a better alternative to tools like a jobsite saw, benchtop lunchbox jointer, benchtop planer, and router table. 2.5hp motors, 10″ sawblade capacity, 2-speed shaper, 3-knife Tersa cutterhead, and mobility kit are standard.
Manufacture – SCM Minimax
Condition – New
Price – From £4,346 (ex VAT)
Three independent 2.5HP motors – 230V-1Φ
Anodized aluminum sliding table
Swiss-made Tersa cutterhead in jointer/planer
Net weight (base machine): 551 lbs.

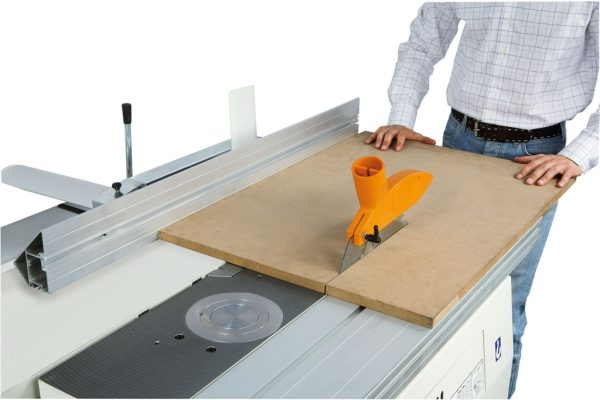

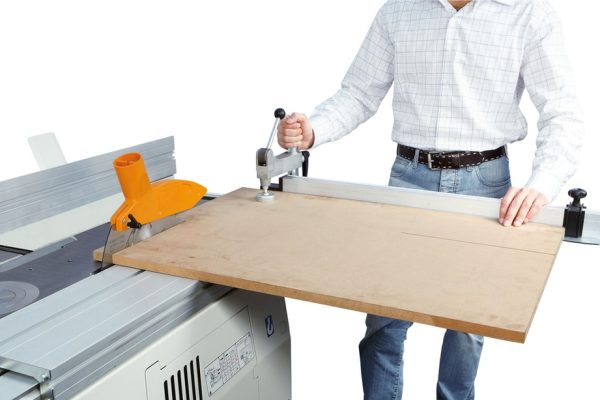

TABLE SAW
Blade size 10” diameter with 5⁄8” arbor
Blade tilt 90° to 45°
Maximum rip 20″
Maximum depth of cut (at 90°) 31⁄4”
Aluminum sliding table stroke 42”

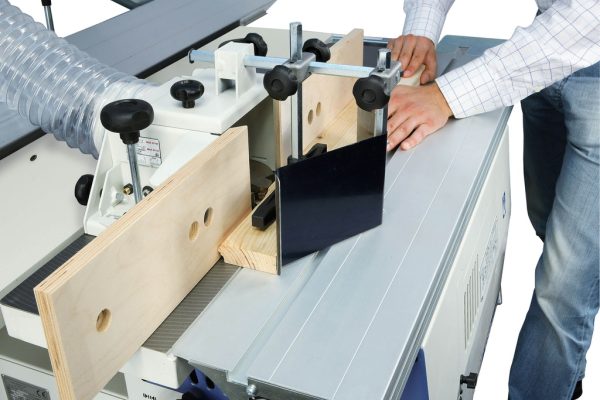

SHAPER (SPINDLE MOULDER)
Spindle working length 3”
Spindle speed(s) 4000 & 6500 rpm
Max. tool diameter (under table) 6”
Max. tool diameter (above table) 81⁄4” (with optional tenoning table & hood)

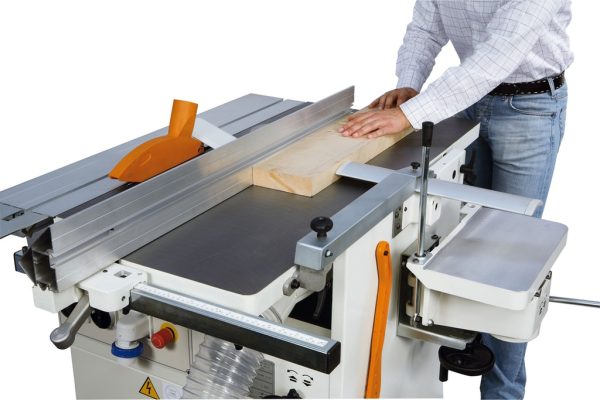

JOINTER (SURFACER)
Width of cutterhead 10”
Jointer table size 101⁄4” x 41”
Maximum stock removal (single pass) 1⁄8”
Number of knives 2
Fence tilting 90° to 45°

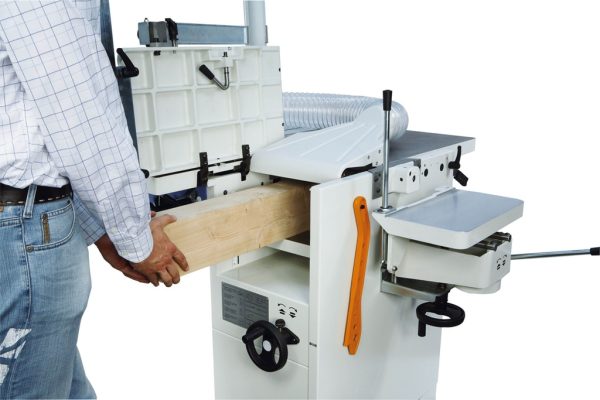

PLANER (THICKNESSER)
Width of cutterhead 10”
Planer table size 101⁄4” x 173⁄4”
Min./Max. material thickness 1⁄8” / 6”
Maximum stock removal (single pass)
Feed speed 19.7 feet per min.

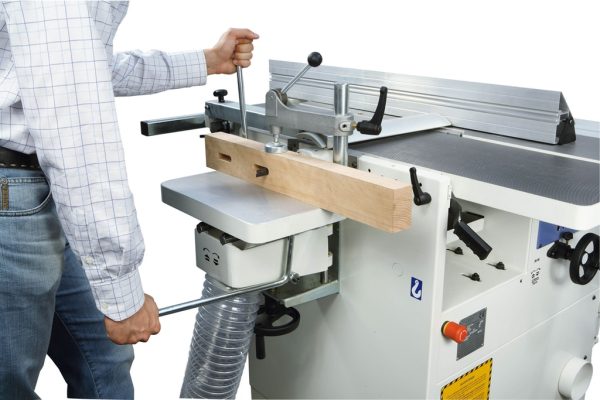

MORTISER (OPTIONAL)
Table size 6” x 121⁄4”
Vertical height adjustment 6”
Crossways (left/right) travel 23⁄4”
Lengthwise (plunge) travel 31⁄2”
Chuck (Wescott) 5⁄8” capacity, self-centering
