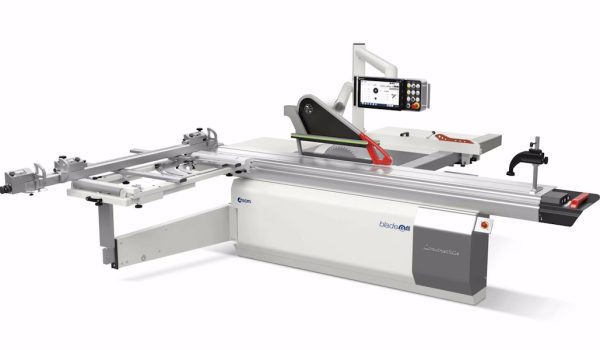

SCM L'invincibile si3 Blade Off Panel Saw

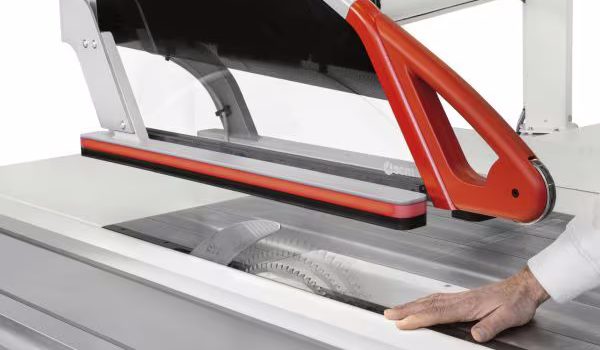

SCM L’invincibile si3 Panel Saw – The blade off system prevents any accidental contact with the blade thanks to an intelligent system that using smart sensors, can recognise the human body and trigger the system even before the operator gets too close to the blade, protecting the danger zone around it, at all times and in all environmental conditions.

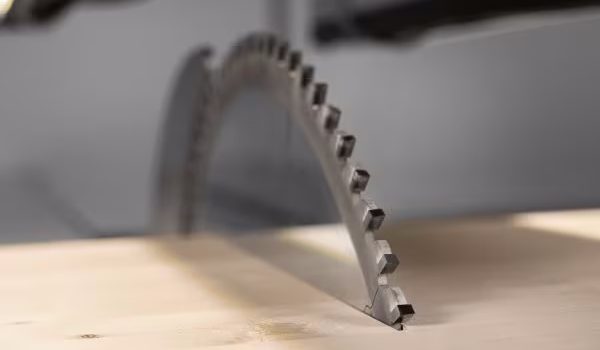

The system automatically excludes the blade in a rapid, repeatable and non-distructive way, activating in a few milliseconds, avoiding contact between the blade cutting edge and the human body even at high feed speeds of up to 2 m/s.
Moreover, in the event of an intervention, the system can be rearmed without affecting the accuracy and the performance of the machine.
Manufacture – SCM
Condition – New
Price – From £51,458 (ex VAT)

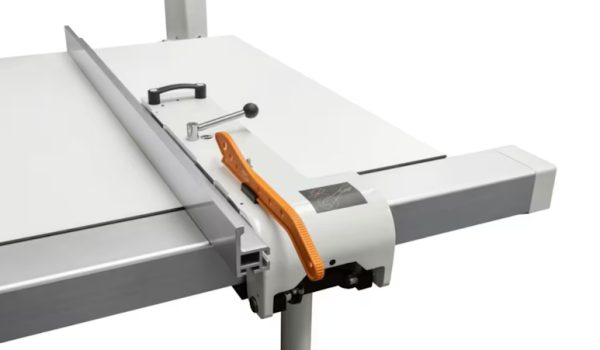

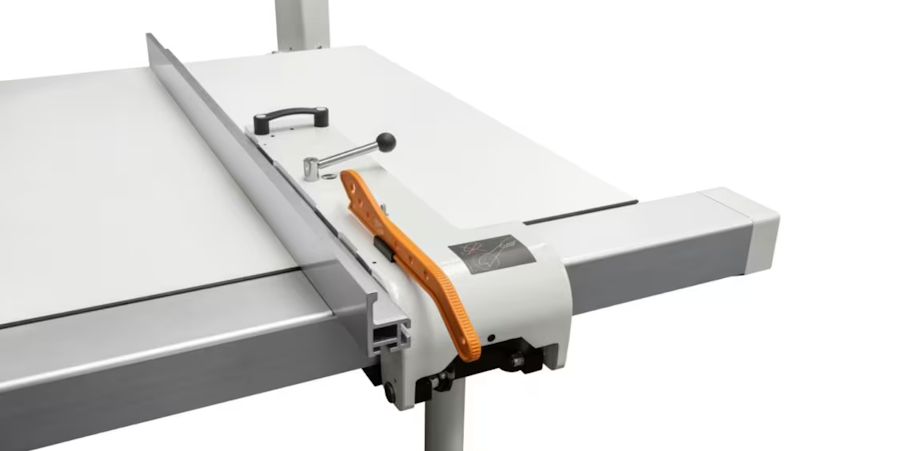

Programmed rip fence: quick and accurate positioning
Movement on a recirculating ball screw mechanism and sliding on linear guide.
The fence can be easily excluded from the working area when it is not used.

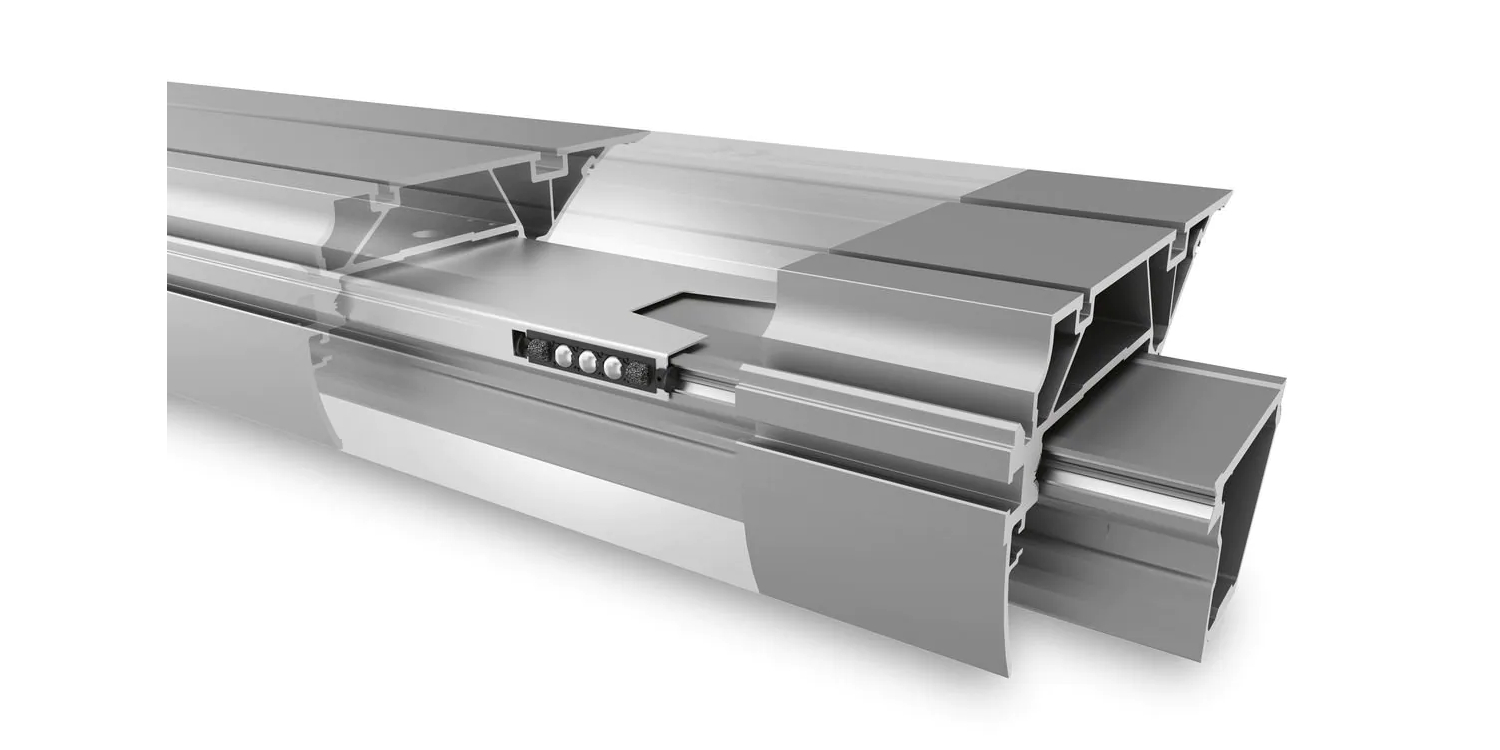

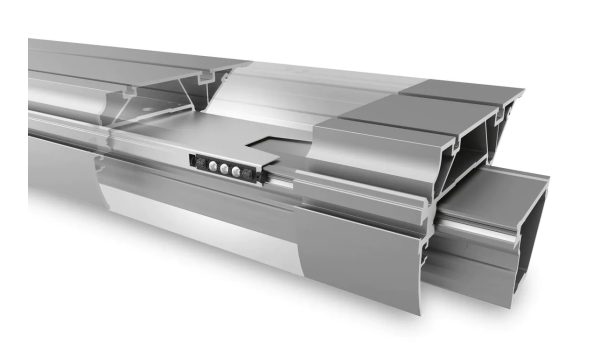

Sliding carriage: maximum cut quality guaranteed over time
The carriage will never require adjustment and thanks to its structure with arch-ground steel slideways (SCM exclusive and patented solution) it can bear loads four times higher.

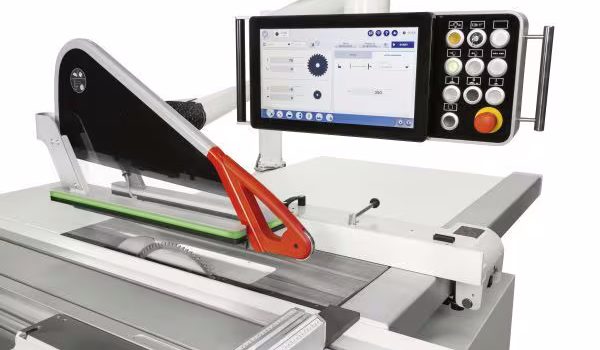

“eye-S” console: the pleasure of controlling all machine functions from the control panel
The mobile control panel, with its attractive design, allows easy and intuitive machine programming, combining the 15” colour touch-screen display and the Maestro active user interface.
Telescopic swinging arm: fluidity of movement
The support of the squaring frame is the only one to be made of a large dimensioned extrusion with sliding on prismatic linear guides on recirculating ball bearings.
| Function | Measurement |
|---|---|
| Main Blade Diameter | 400mm |
| Scoring Blade Diameter | 120mm |
| Squaring Capacity With Carriage And Extended Stop | 3200 x 3200mm (3800 x 3200mm option) |
| Blade Tilting | 45° |
| Cutting Height At 90°/45° | 140/97mm |
| Main Blade Rotating Speed | 3000-4000-5000rpm |
| Scoring Blade Rotating Speed | 8500rpm |
| Main Blade Motor Power | 7kW (9,5Hp) |
| Scoring Blade Motor Power | 1,3kW (1,7Hp) |
| Cutting Width On Parallel Fence | 1500mm |
