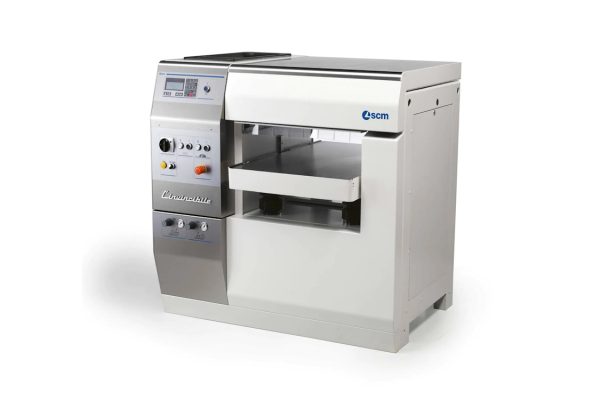

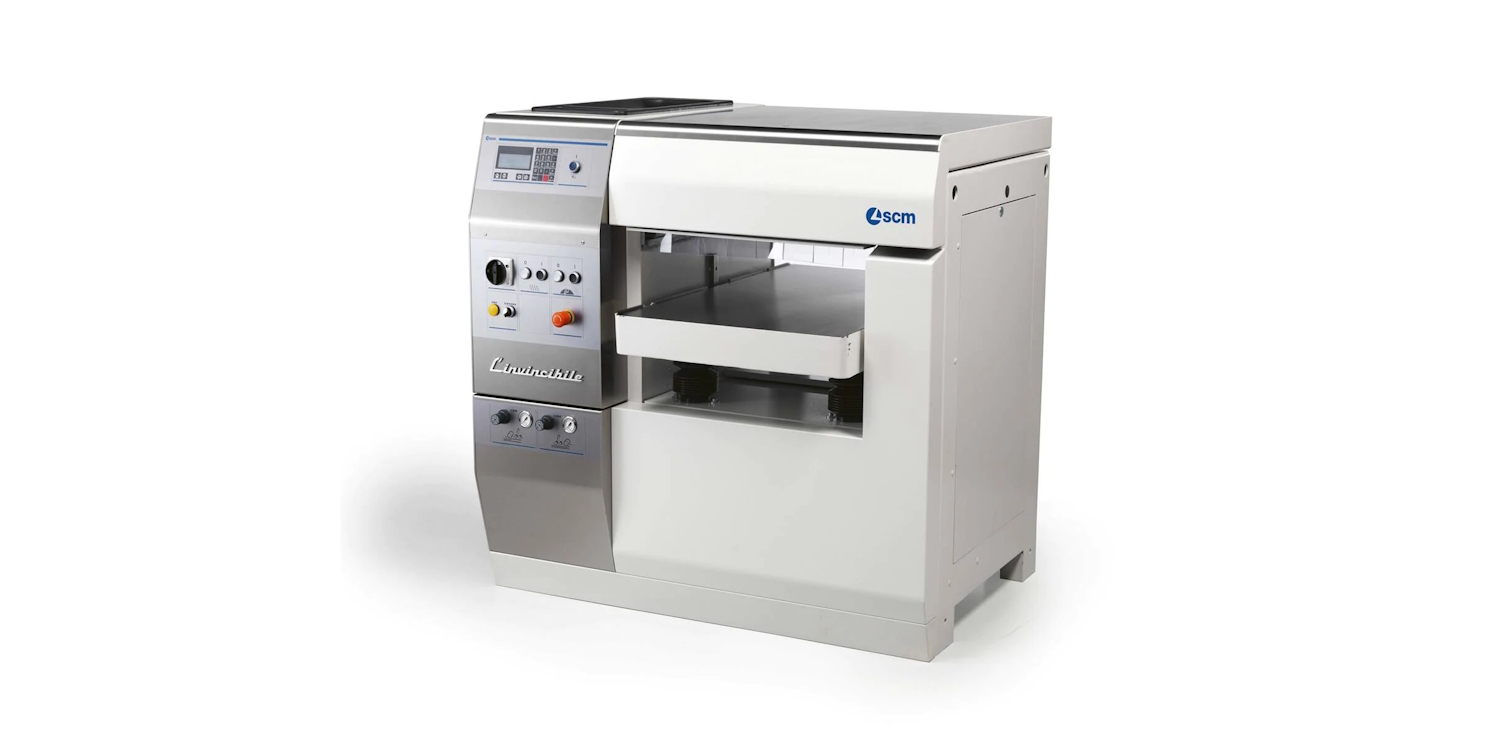

SCM L'invincibile s7 Thicknessing Planer
SCM L’invincibile s7 Thicknessing Planer – The advantages of an exclusive choice.
Buying a “L’invincibile” machine means you get a customized solution, thanks to experience, technical research and Italian creativity.
Discover the Xylent cutterhead, available for this machine.
Manufacture – SCM
Condition – New
Price – From £16,954 (ex VAT)
The best finish and effectiveness of the feeding of any material and in any working condition thanks to the pneumatic adjustment. The unique ability to differentially set the pressure on the infeed and outfeed rollers, allows to change at any time the pressure exerted on the work piece.

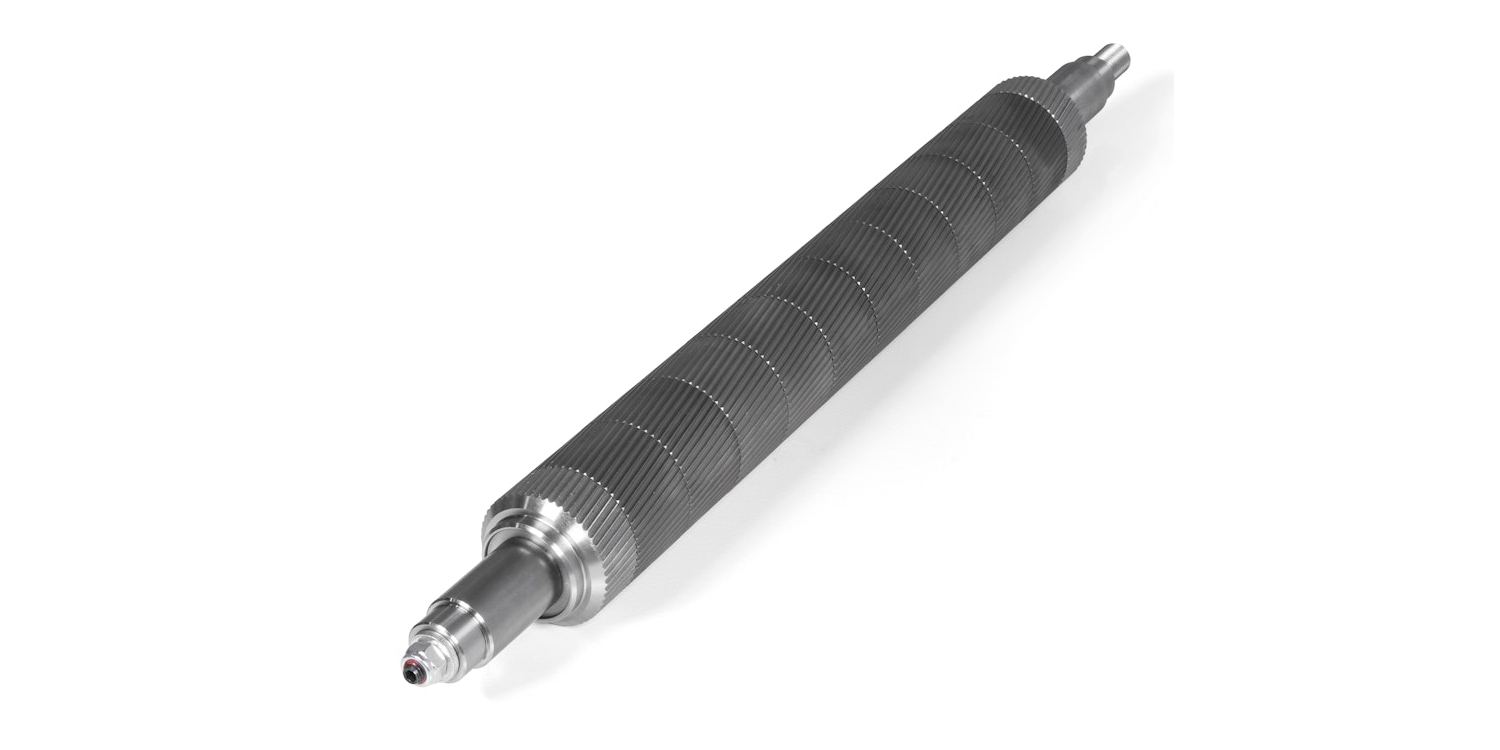

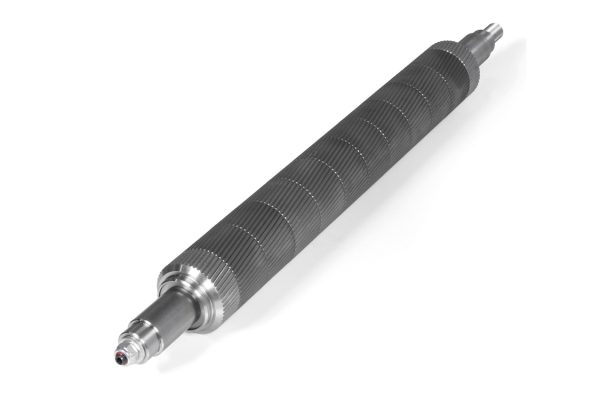

Interchangeable rollers: one machine for every requirement. Quick and easy changeover of the rollers that allows the operator to configure the machine drive function in case of special requirements such as minimum removal of fine wood and/or batches where multiple pieces of different thicknesses are processed.

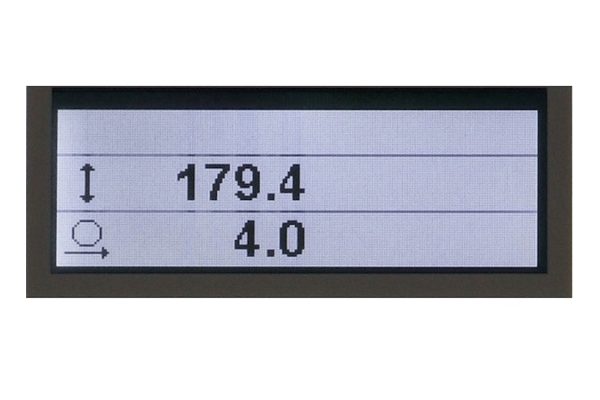

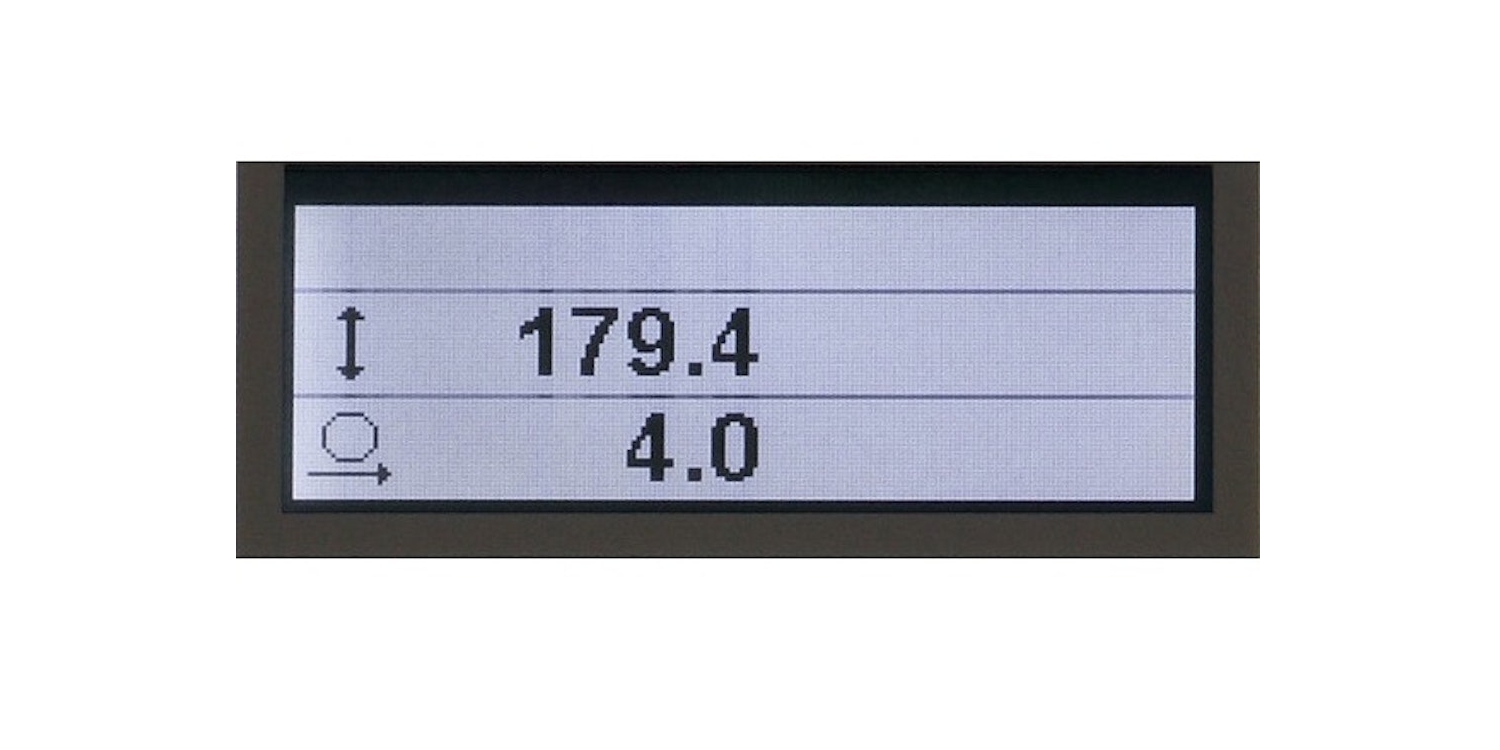

Best finish at maximum speed with the electronic adjustment of the feed speed.
Feeding rollers on connecting roads: perfect finish. The stopping of the work piece and the presence of notches on its surface are eliminated due to the movement system on all three rollers that allows their vertical displacement by rotation and the best linear feeding.
| Function | Measurement |
|---|---|
| Worktable Dimensions | 640 x 1000mm |
| Working Width | 630mm |
| Maximum Working Height (Minimum) | 300 (3,5)mm |
| Maximum Stock Removal | 8mm |
| Electronically Adjustable Feed Speed | 4 – 20m/min |
| Main Motor Power | 9kW (12Hp) |
| Options |
|---|
| First infeed top feed roller with rubber coating, |
| First infeed top feed roller with sectioned steel |
| First infeed roller coated with 2 diff. types of rubber |
| Thicknessing table with 2 idle rollers |
| Rectified thicknessing table |
| “TERSA” type cutter block with throwaway knives, |
| “Xylent” spiralknife cutterblock with 3 series of knife |
| Xylent maintenance kit |
| 10 spare inserts kit (15x15x2,5) for Xylent spindle |
| Outfeed table extension (630 x 1.200 mm dimensions) |
| Machine configuration for the machining of advanced materials |
| Electronic adjustment of the feed speed by means of inverter 1 ÷ 5 m/min |
