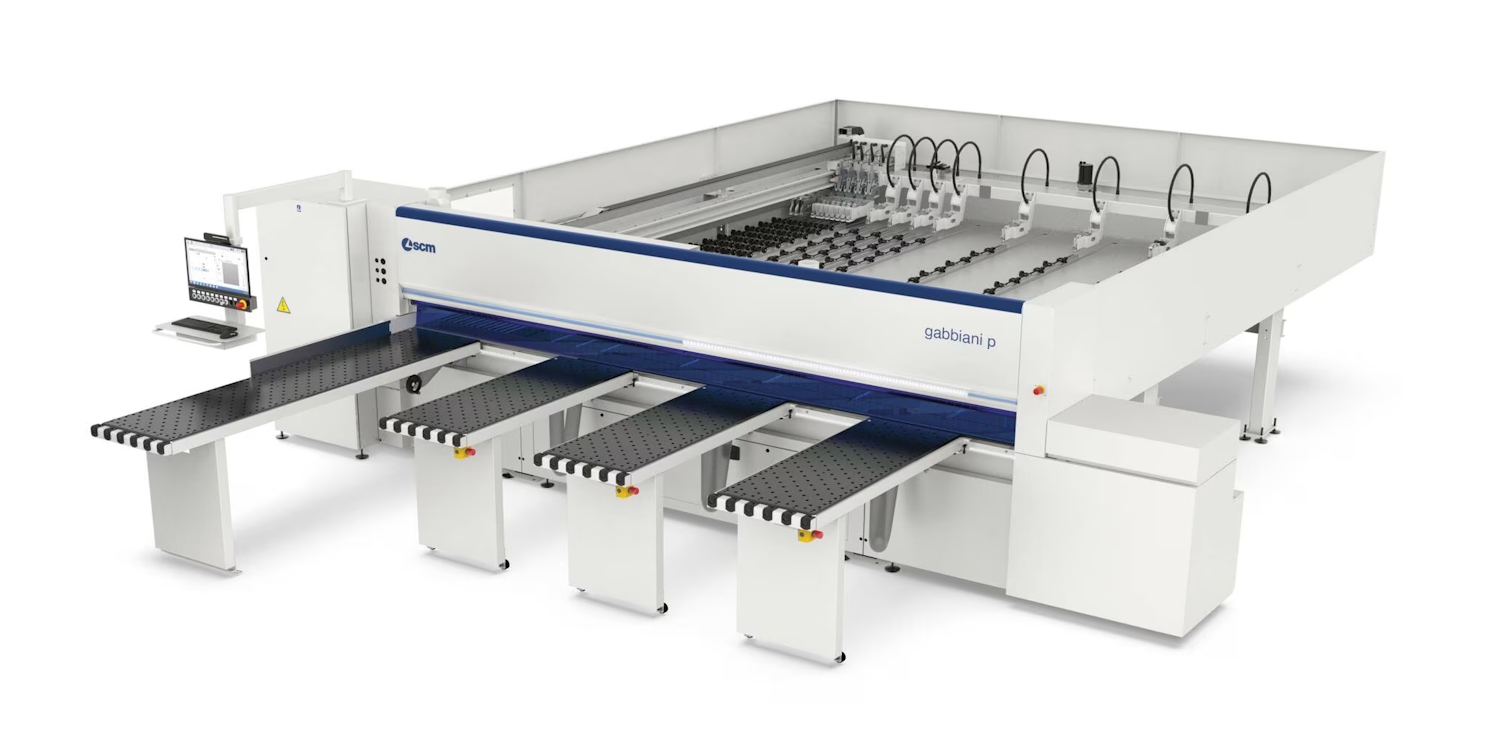

SCM Gabbiani P Beam Saw
New SCM Gabbiani p Beam Saw is increasingly productive and intuitive and is the ideal automatic horizontal panel saw for the craftsman and small to medium-sized company looking for a streamlined and easy workflow.
These panel saws are intended for cutting panels of wood and its derivatives (chipboard, MDF, plywood, multilayer, fiber).
Manufacture – SCM
Condition – New
Price – From £45,424 (ex VAT)

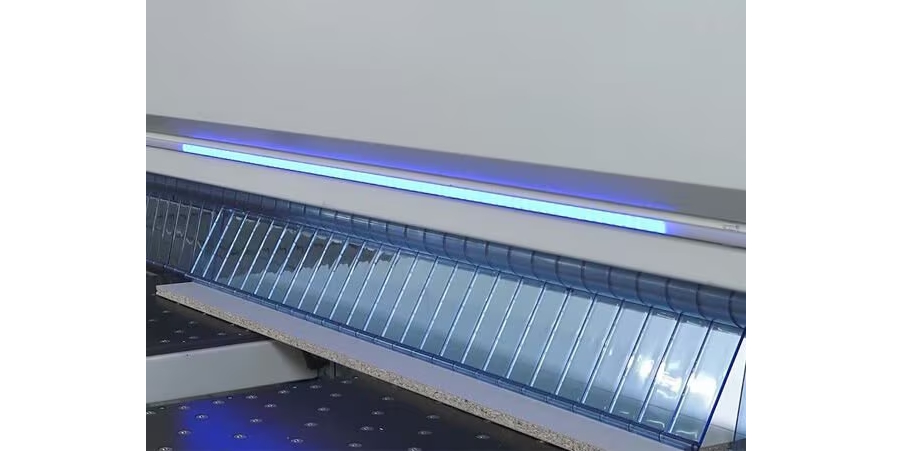

LED BAR: CONTINUOUS ASSISTANCE DURING CUTTING
An intelligent LED bar system guides the user through the processing steps for intuitive and safe production monitoring.

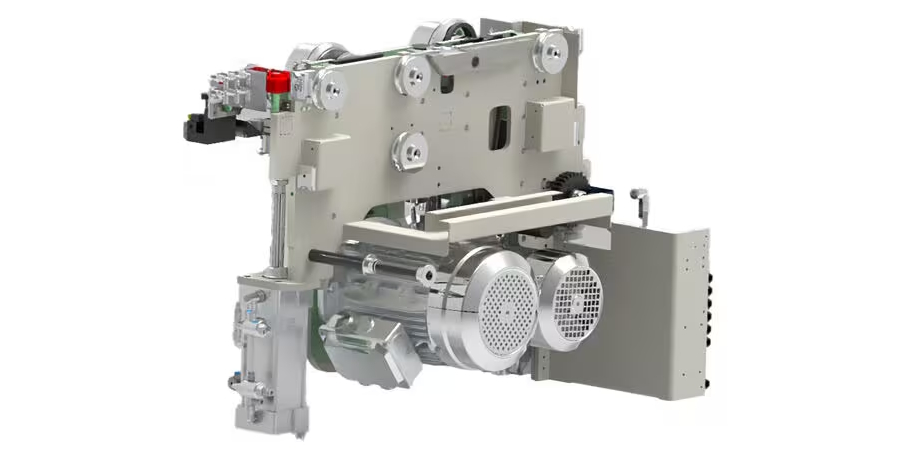

BLADE CARRIAGE: POWER INCREASES: Solution that allows the application of power up to 18 kW

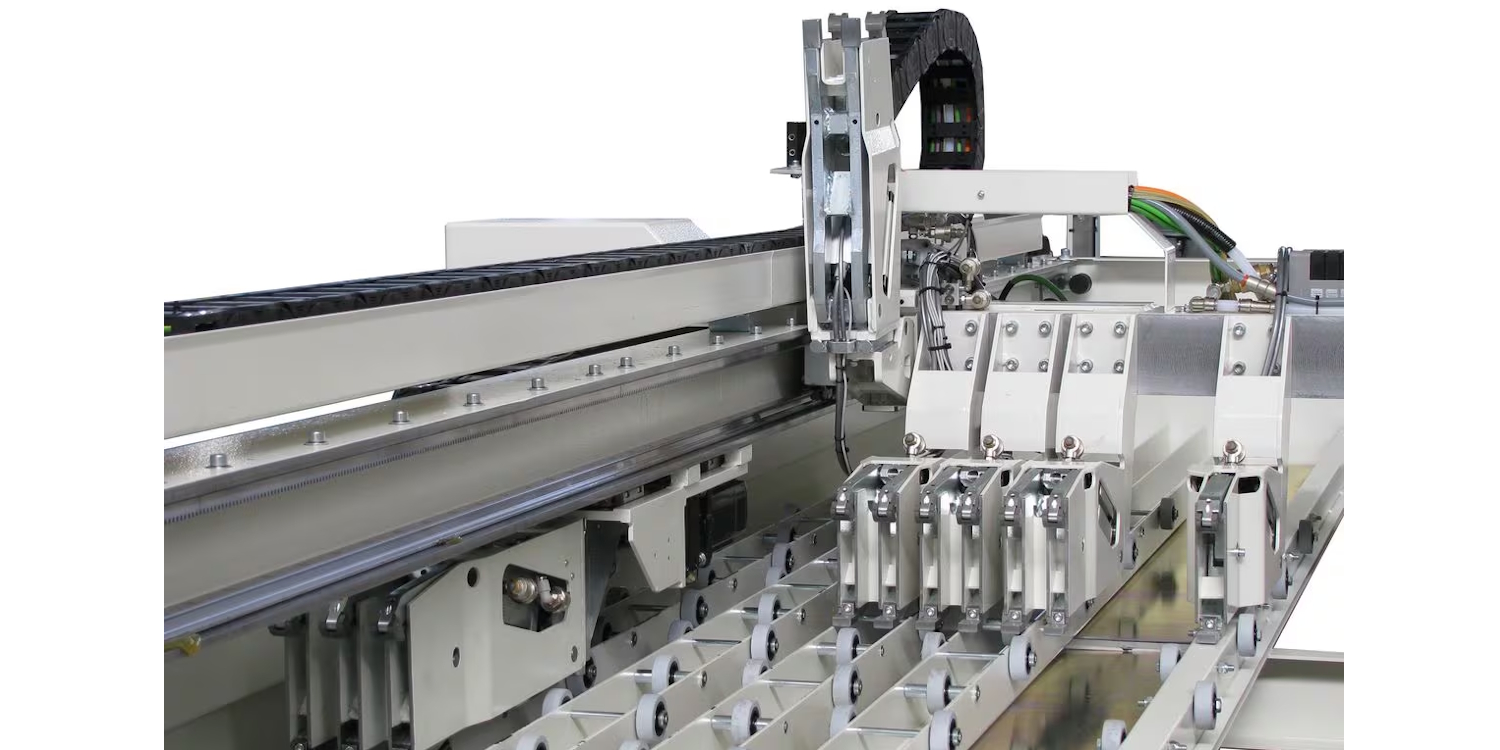

FLEXCUT unit: incomparable flexibility and productivity.
Increasing of productivity up to 30% and space saving up to 20% owing to the simultaneous execution of both rip and cross cuts.

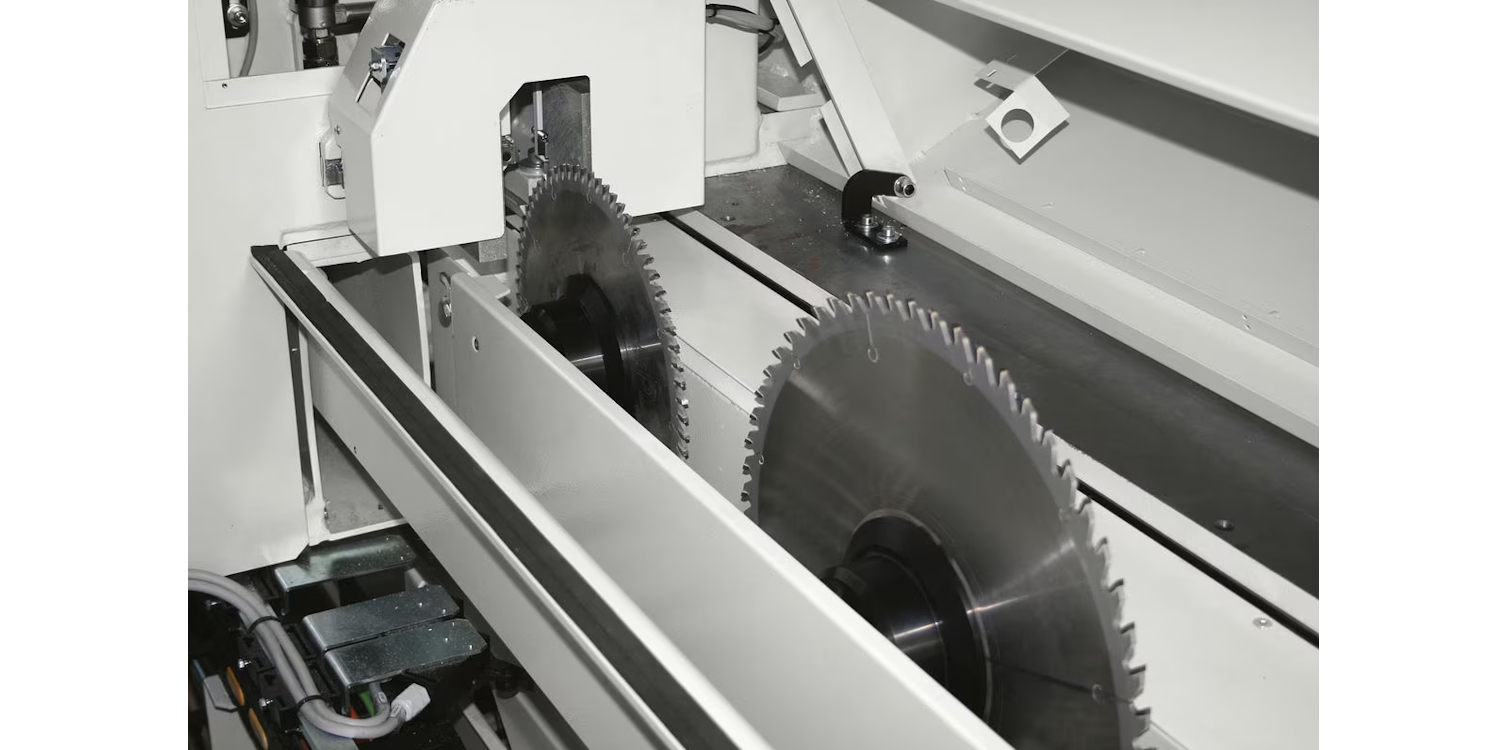

SAW SET: tool changing has never been so easy.
In few seconds the “SAW-SET” device carries out a fast and precise tools adjustment due to the electronic setting, allowing an intuitive use of the machine and a productivity increase.
| Function | Measurement | Measurement | Measurement |
|---|---|---|---|
| Gabbiani p60 | Gabbiani p80 | Gabbiani p95 | |
| Cutting Length | 3300/3800/4300mm | 3200/3800/4500mm | 3200/3800/4500mm |
| Blade Projection | 60mm | 80mm | 95mm |
| Saw Carriage Variable Speed (option) | 6 – 60 (0 – 100)m/min | 6 – 60 (0 – 100)m/min | 6 – 60 (0 – 100)m/min |
| Pusher Variable Speed (Option) | 0 – 60 (0 – 70)m/min | 0 – 60 (0 – 70)m/min | 0 – 60 (0 – 70)m/min |
| Main Blade Motor S6 – 40% (Option) | 7kW (9)Hp | 7kW (9)Hp | 7kW (9)Hp |
| Scoring Unit Blade Motor 50 Hz (Option) | 1,5kW | 1,5kW | 1,5kW |
| Main Blade / Scorer Speed 50 Hz | 4650/5850rpm | 4650/5850rpm | 4650/5850rpm |
| Main Blade / Scorer Blade Diameter | 370/200mm | 370/200mm | 370/200mm |
| Number Of Clamps | 5 | 5 | 5 |
